Product Overview

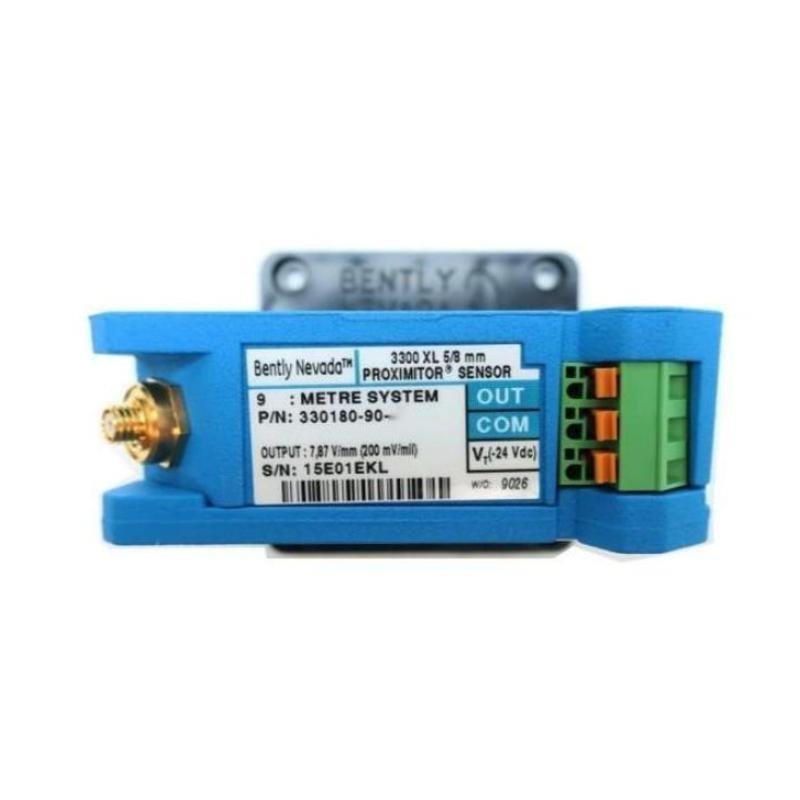

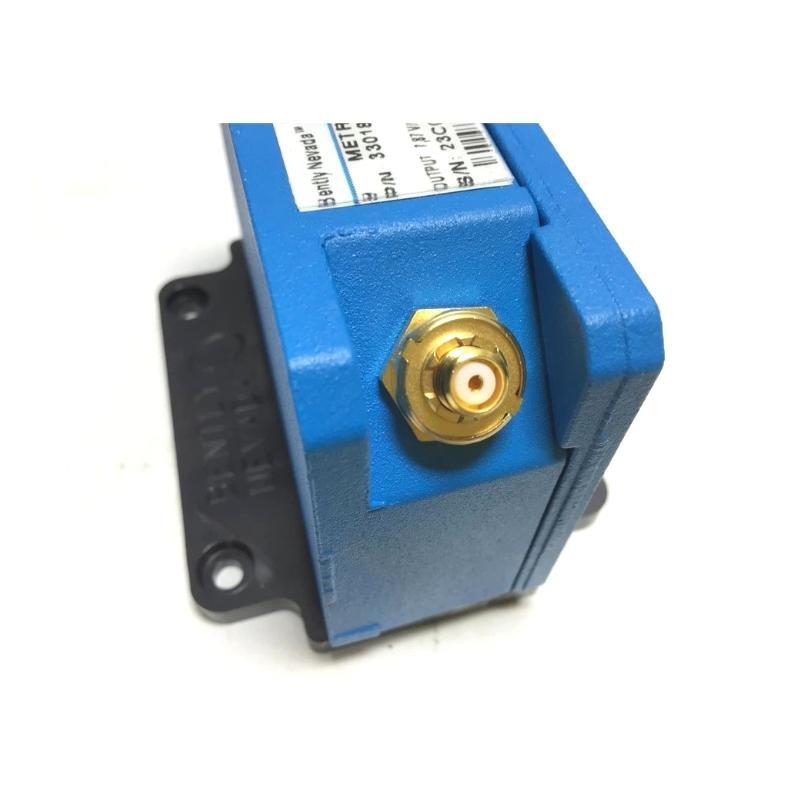

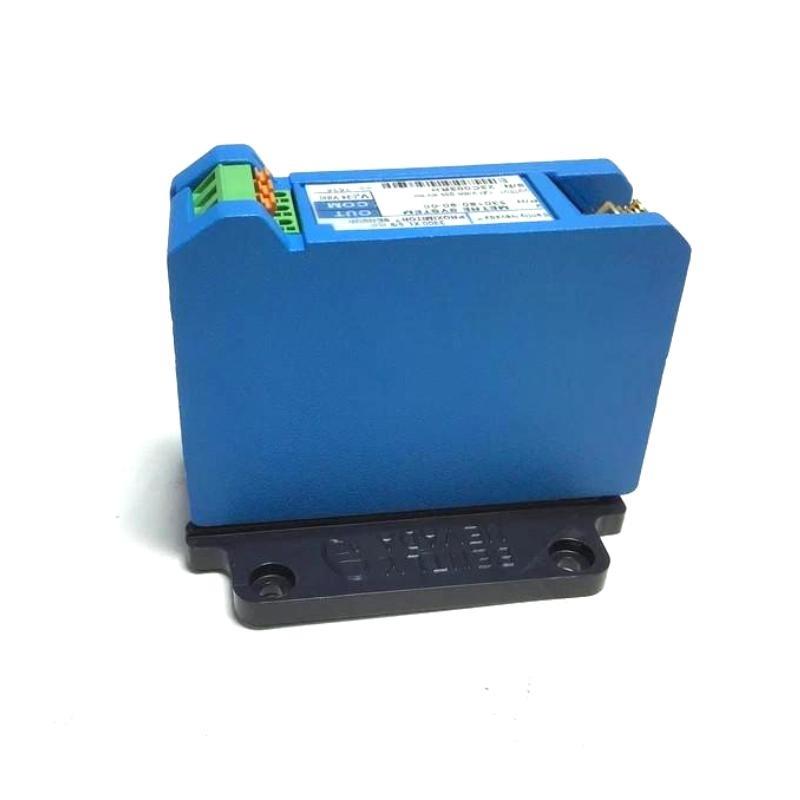

The Bently Nevada 330180-90-10 is part من the 3300 XL 8 mm Proximity Transducer System, designed for precise non-contact measurements من shaft vibration and position. It includes a proximity probe, extension cable, and the 3300 XL Proximitor Sensor. This system meets API 670 standards and ensures robust performance in harsh industrial environments.
Key Applications
-
Shaft vibration monitoring on fluid-film bearing machines
-
Rotating machinery position detection
-
Keyphasor® speed and phase reference signals
-
Turbine and compressor health monitoring
-
Overspeed protection systems (with application note guidance)
Product Advantages
-
High Interchangeability: Fully interchangeable components without field matching or calibration
-
Wide Temperature الدعم: Probe rated up to 218°C, cable up to 260°C
-
Strong EMC Protection: Enhanced RFI/EMI immوحدةy suitable for fiberglass enclosures
-
Easy Installation: SpringLoc terminals and ClickLoc connectors for secure tool-free wiring
-
Robust Build: TipLoc and CableLoc designs provide enhanced mechanical reliability
-
Flexible Mounting: DIN-rail and panel-mount options with identical footprint to previous models
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330180-90-10 |
| System Length | 9.0 meters |
| Total System الوزن | 0.7 kg |
| Proximitor Sensor الوزن | 0.246 kg |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Output Sensitivity | 7.87 V/mm ± 6.5% |
| Deviation from Straight Line | ±0.038 mm (±1.5 mils) |
| Temperature Range – Probe | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Temperature Range – Cable | -52°C to +260°C |
| Temperature Range – Sensor | Operating: -52°C to +100°C |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
| Minimum Target Size | 15.2 mm diameter |
| Connector Torque | 0.565 N·m (5 in·lbf) max |
| Cable Bend Radius | 25.4 mm (1 in) minimum |
| Output Resistance | 50 Ω |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75Ω triaxial with FEP or PFA insulation |
الأسئلة الشائعة (FAQ)
Q1: What is the purpose من the 330180-90-10 sensor?
A1: It measures shaft vibration and position in rotating equipment.
Q2: Is it compatible with previous 3300 series systems?
A2: Yes, it’s backward compatible with 3300 5 mm and 8 mm components.
Q3: Can this sensor be used in hazardous environments?
A3: Yes, it has ATEX, CSA, and IECEx approvals for hazardous area use.
Q4: What is the advantage من using ClickLoc connectors?
A4: They provide secure, tool-free connections with corrosion-resistant gold plating.
Q5: What is the effect من long field wiring on signal quality?
A5: It can cause signal roll-منf at high frequencies; keep within 305 meters.
Q6: Can I use this sensor for overspeed protection?
A6: Yes, but follow Bently Nevada’s specific application notes for proper setup.
Q7: Does the sensor require calibration?
A7: No, all components are factory calibrated and interchangeable.
Q8: What materials can it be calibrated for besides AISI 4140?
A8: It can be specially calibrated for other conductive materials upon request.
Q9: What kind من installation options are available?
A9: الدعمs both DIN-rail and traditional panel-mount installations.
Q10: What is the expected service life من this sensor system?
A10: With proper installation, it منfers long-term durability even in harsh conditions.
Related الطرازs in the Same Series
| الطراز Number | System Length | Cable Type | Application Range |
|---|---|---|---|
| 330180-50-10 | 5.0 m | Standard | General industrial use |
| 330180-11-10 | 1.0 m | DIN Mount | Compact enclosures |
| 330180-91-05 | 9.0 m | DIN Mount | Extended installations |
| 330180-10-05 | 1.0 m | Panel Mount | Control panels |
| 330180-51-00 | 5.0 m | DIN Mount | High-density wiring setups |
| 330180-12-00 | 1.0 m | No Mount Hardware | OEM integrations |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application | System Length | الوزن |
|---|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Vibration monitoring | 9.0 m | 0.246 kg |
| 330104-00-06-50-01-00 | 8 mm Proximity Probe | Shaft position detection | 5.0 m | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Machinery protection | N/A | 0.45 kg |
| 3500/22M | Transient Data Interface Module | Vibration data acquisition | N/A | 0.7 kg |
| 3500/15 | Power Supply Module | System power regulation | N/A | 0.8 kg |
| 3300 XL NSv | Narrow Side-View Proximity Probe System | Small clearance machine spaces | 5.0 m | 0.23 kg |
