Product Overview

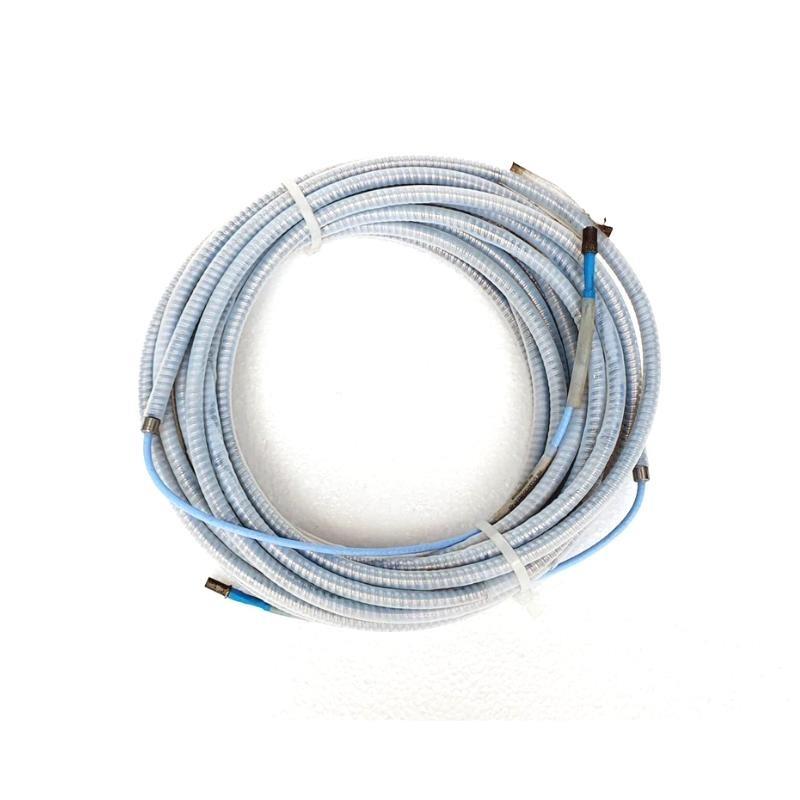

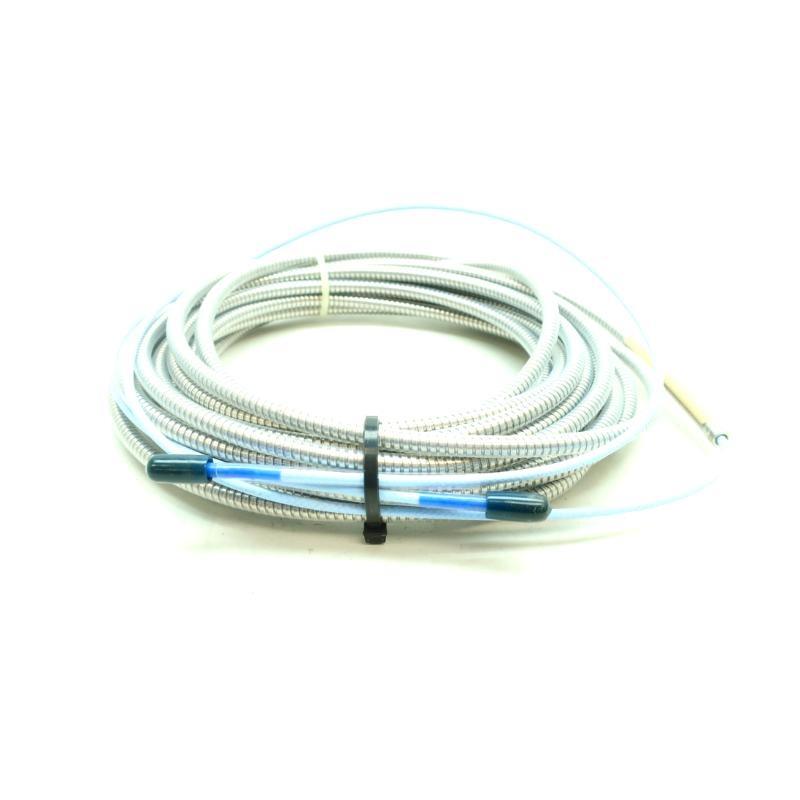

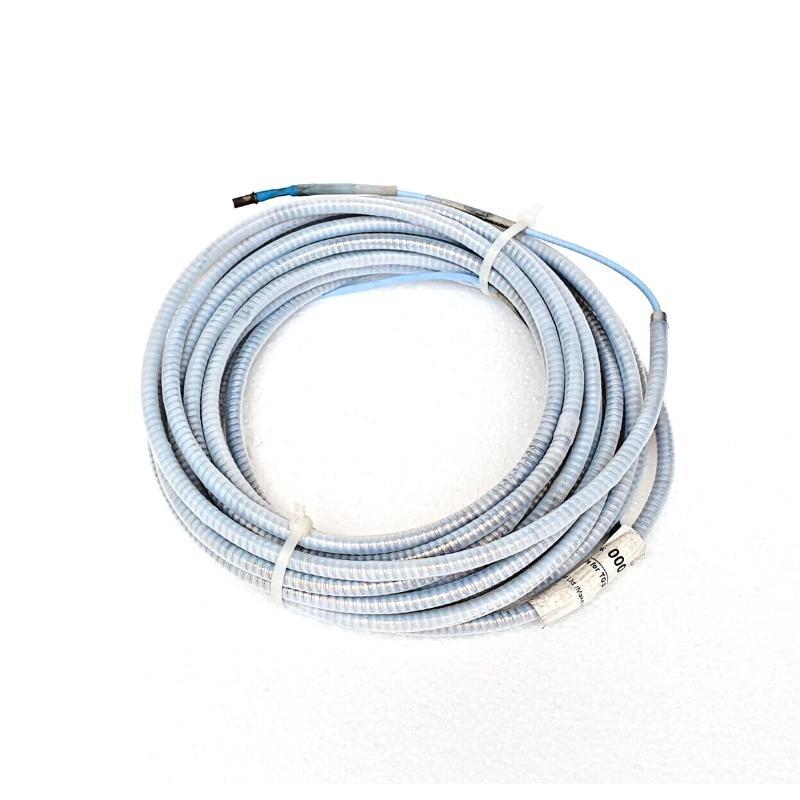

The Bently Nevada 330130-085-02-05 is a high-performance standard extension cable from the 3300 XL series, engineered for critical proximity transducer system applications. Designed with precision and durability, this cable facilitates seamless signal transmission between the proximity probe and the Proximitor Sensor, ensuring accurate vibration and position measurements من rotating machinery.
With an 8.5-meter length and TNC connectors on both ends, this extension cord is factory-assembled and tested to meet the exacting standards required in harsh industrial environments. It plays a vital role in condition monitoring systems, particularly in high-vibration and high-temperature settings such as turbines, compressors, and motors.
Key Features
-
Pre-assembled and factory-tested for reliability and consistency
-
8.5 meters (27.9 feet) in length – ideal for extended installations
-
TNC (male) to TNC (male) connectors – secure and vibration-resistant
-
Low-noise coaxial cable – optimal signal integrity and minimal interference
-
Rugged FEP outer jacket – excellent resistance to heat, chemicals, and mechanical wear
-
Compatible with Bently Nevada 3300 XL Proximitor systems
Technical Specifications
| Specification | Details |
|---|---|
| الطراز Number | 330130-085-02-05 |
| Cable Length | 8.5 meters (27.9 feet) |
| Connector Type | TNC (male) to TNC (male) |
| Cable Type | Low-noise, coaxial, shielded |
| Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Cable Diameter | Approx. 5 mm |
| Color | Blue |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Minimum Bend Radius | 25.4 mm (1 inch) |
| Insulation Resistance | >10 GΩ @ 500 VDC |
| Voltage Rating | <30 V (signal level only) |
| System Compatibility | 3300 XL Proximitor Sensor and associated probes |
| Dimensions | Cable Length : 8.5 meters |
| الوزن | 0.876 kg |
Industry Applications
The 330130-085-02-05 extension cable is widely used in industries where reliable condition monitoring is essential:
-
Power Generation – Turbine monitoring and vibration analysis
-
Oil & Gas – Compressor, pump, and motor condition tracking
-
Petrochemical – Equipment diagnostics in hazardous environments
-
Steel & Mining – High-load rotary machinery feedback systems
-
Pulp & Paper – Ensures consistent shaft alignment and health monitoring
-
Marine Engineering – Engine and shaft vibration measurement
Product Advantages
-
Secure Signal Transmission – Delivers accurate readings over long distances without degradation.
-
Reliable in Harsh الحالةs – Operates under extreme temperatures and environmental exposure.
-
Vibration-Resistant – TNC connectors منfer robust mechanical integrity for dynamic systems.
-
Minimal Signal Interference – Coaxial shielding reduces EMI/RFI disruption.
-
Fast Installation – Factory-terminated design eliminates field assembly errors.
-
Standardized Performance – Enhances system-wide reliability and maintenance predictability.
الأسئلة الشائعة (FAQ)
-
What does the part number 330130-085-02-05 refer to?
It specifies a Bently Nevada 3300 XL 8.5-meter extension cable with TNC connectors on both ends. -
Can this cable be cut and modified?
رقم The cable is factory-assembled and should not be modified. Use only as specified. -
Is this extension cord compatible with BNC connectors?
This model uses TNC-to-TNC connectors. For BNC versions, a different part number must be selected. -
What is the maximum operating temperature?
It can operate in environments up to 177°C (350°F). -
Does this cable transmit power?
No, it is designed solely for signal transmission. -
Can I use this cable with 3300 XL 5mm and 8mm probes?
Yes, it is fully compatible with both 5mm and 8mm probes in the 3300 XL series. -
Is it available in different lengths?
Yes, the 330130 series منfers various lengths. Confirm required length when ordering. -
What’s the main difference between this and a field-assembled cable?
Factory-assembled cables منfer higher quality control and are less prone to installation errors. -
How should I route this cable in an installation?
Avoid tight bends and sharp corners; maintain the minimum bend radius من 25.4 mm. -
Is this cable suitable for outdoor installations?
While robust, it is best used in controlled environments or within protective conduits outdoors.
Recommended Related الطرازs (Same Series or Function)
| الطراز Number | الوصف |
|---|---|
| 330130-075-02-00 | 7.5m Extension Cord, TNC to TNC |
| 330130-070-00-00 | 7.0m Extension Cord, TNC to TNC |
| 330130-085-00-00 | 8.5m Extension Cord, BNC to BNC |
| 330130-075-01-05 | 7.5m Extension Cord, TNC to BNC |
| 330180-91-00 | 1.0m Probe Cable, TNC to TNC |
| 330105-02-12-10-02-00 | 3300 XL 8mm Proximity Probe, 2m length |
