Product الوصف

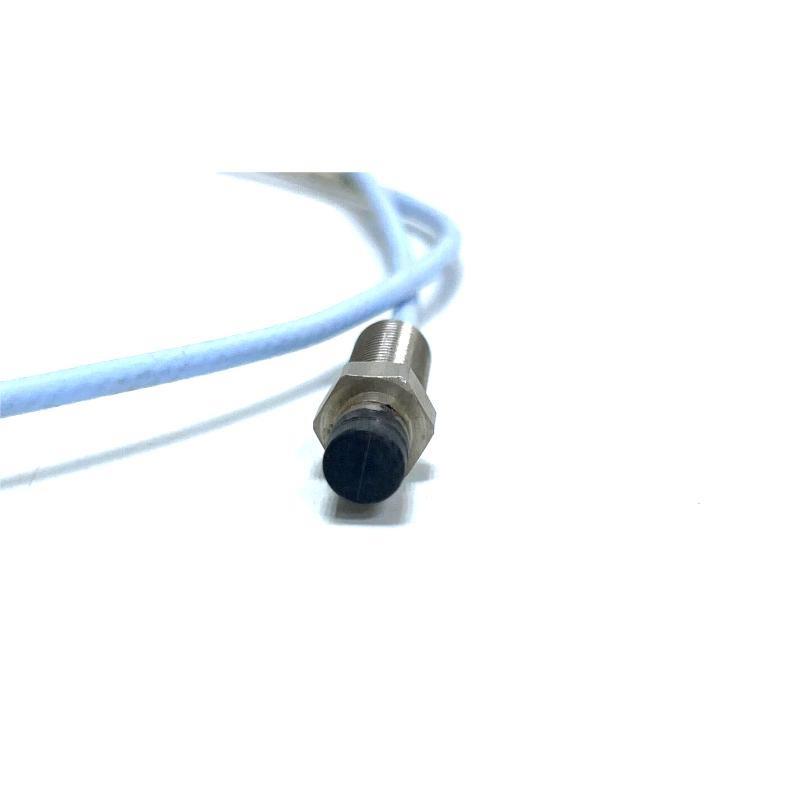

The Bently Nevada 330105-02-12-50-02-00 is a reverse mount proximity probe from the 3300 XL 8 mm series, designed to measure static and dynamic displacement من rotating machinery. Engineered for rugged industrial environments, it features enhanced mechanical durability, RFI immوحدةy, and ease من installation with gold-plated ClickLoc connectors. The 5-meter probe is optimized for use with the 3300 XL Proximitor Sensor to meet API 670 standards.
Product Features
-
Reverse-mount design for limited access areas
-
Meets API 670 compliance
-

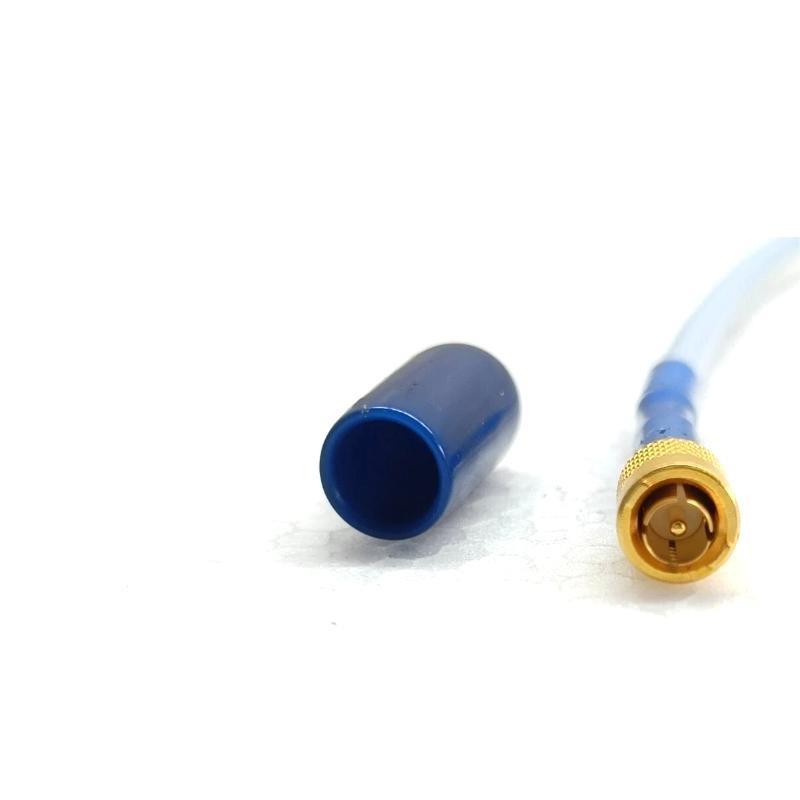

ClickLoc connectors for reliable connections
-
Optional FluidLoc cable for oil ingress protection
-
High mechanical and temperature endurance
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Reverse Mount |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | 3/8-24 UNF-2A |
| Total Length | 5.0 meters |
| الوزن | 1.615 kg (Total system) |
| Cable Type | 75Ω triaxial, FEP insulated |

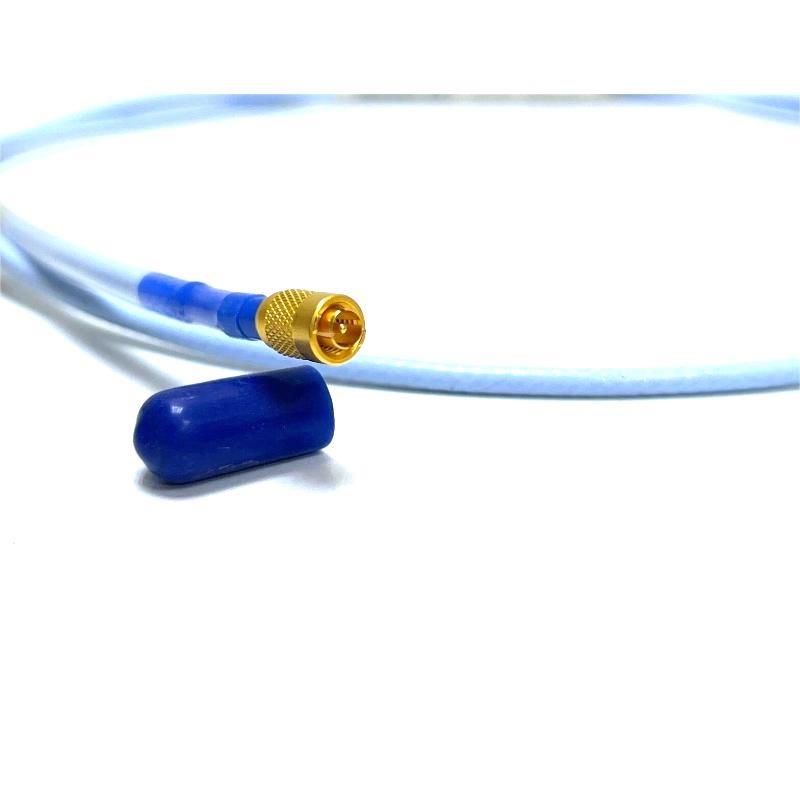

| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Storage Temperature | -52°C to +177°C |
| Max Tensile Strength | 330 N (probe to lead), 270 N (lead to connector) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | -9 Vdc (~1.27 mm / 50 mils) |
| Compliance | SIL 2/3, FCC, CE, RoHS, ATEX, IECEx, CSA |
Applications
-
Turbine shaft vibration monitoring
-
Compressor thrust position sensing
-
Rotating machinery dynamic displacement analysis
-
Keyphasor and overspeed detection
-
Gearbox bearing vibration trending
Product Advantages
-
API 670 compliant for critical machinery monitoring
-
Reverse mounting ideal for constrained installations
-
Interchangeable with other 3300 XL and legacy 3300 series
-
High resistance to RFI/EMI, ideal for fiberglass enclosures
-
Robust build with TipLoc and CableLoc technologies
-
Maintenance-free ClickLoc connectors
-
Suitable for hazardous environments (ATEX, CSA, IECEx approved)
FAQ
Q1: What is the typical use من the 330105-02-12-50-02-00 probe?
A1: It is typically used in rotating equipment for vibration and position monitoring, especially in hard-to-access reverse-mount scenarios.
Q2: Can the probe operate in hazardous areas?
A2: Yes, it is certified for hazardous locations including ATEX Zone 0/1 and CSA Class I, Div 2.
Q3: Is the probe compatible with non-XL series components?
A3: Yes, it is both electrically and mechanically compatible with legacy 3300 5 mm and 8 mm components.
Q4: What material is used for the probe tip?
A4: The probe tip is made من PPS (polyphenylene sulfide) for chemical and temperature resistance.
Q5: Does the system require calibration before installation?
A5: No, all components are fully interchangeable and factory-calibrated, requiring no bench calibration.
Q6: Can this probe measure both vibration and position?
A6: Yes, it is designed for dual-purpose measurements—both dynamic vibration and static position.
Q7: What is the recommended probe gap setting?
A7: The standard gap setting is approximately -9 Vdc, corresponding to 1.27 mm (50 mils).
Q8: What’s the pull strength rating من the probe cable?
A8: It supports up to 330 N (75 lbf) from the probe case to the probe lead.
Q9: What is the probe’s operating temperature range?
A9: Standard probes operate from -52°C to +177°C; ETR versions up to +218°C.
Q10: Is the cable bend radius limited?
A10: Yes, the minimum bend radius is 25.4 mm (1.0 in) to maintain signal integrity.
Related الطرازs (Same Series or Function)
| الطراز Number | الوصف | Length | Thread Type | الوزن |
|---|---|---|---|---|
| 330105-02-12-10-02-00 | Reverse Mount Probe, 1.0 m | 1.0 m | 3/8-24 UNF | ~0.35 kg |
| 330105-02-12-15-02-00 | Reverse Mount Probe, 1.5 m | 1.5 m | 3/8-24 UNF | ~0.45 kg |
| 330105-02-12-20-02-00 | Reverse Mount Probe, 2.0 m | 2.0 m | 3/8-24 UNF | ~0.55 kg |
| 330106-05-30-10-02-00 | Reverse Mount Probe, Metric M10 Thread | 1.0 m | M10 x 1 | ~0.35 kg |
| 330106-05-30-50-02-00 | Reverse Mount Probe, 5.0 m, Metric | 5.0 m | M10 x 1 | ~1.6 kg |
| 330195-02-12-50-05-00 | Reverse Mount ETR Probe, 5.0 m | 5.0 m | 3/8-24 UNF | ~1.7 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application | Length | الوزن |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | Standard Mount Probe, 1.0 m | General vibration monitoring | 1.0 m | ~0.35 kg |
| 330104-01-05-50-02-00 | Armored Probe, Metric, 5.0 m | Harsh environments | 5.0 m | ~1.6 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor, Panel Mount | Signal processing | 5.0 m | ~0.25 kg |
| 330130-060-01-05 | Extension Cable, 6.0 m, Armored | Extended sensor systems | 6.0 m | ~0.35 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Seismic and displacement monitoring | N/A | ~0.45 kg |
| 330103-00-04-10-02-00 | Standard Probe, Metric, 1.0 m | Compact mount applications | 1.0 m | ~0.35 kg |
