مقدمة المنتج

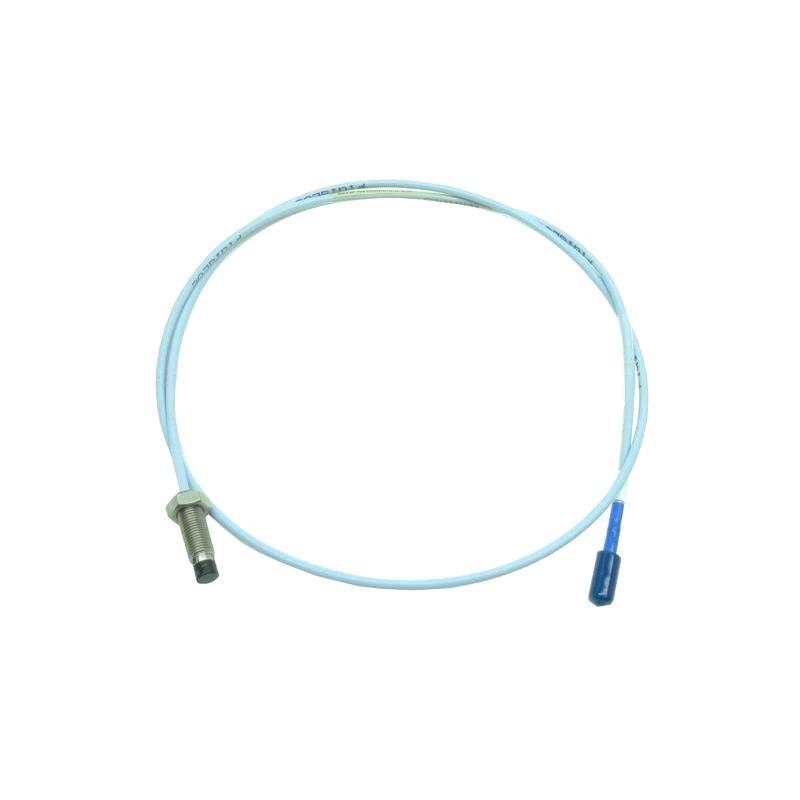

The Bently Nevada 330104-01-05-50-01-CN is a high-performance proximity probe from the 3300 XL series, designed to provide precise and reliable shaft position and vibration measurements for critical rotating machinery. With an 8mm sensing distance, this probe منfers accurate and stable output signals that enable effective machinery condition monitoring and early fault detection.
The 3300 XL probes are engineered for long service life in demanding industrial environments, including power generation, oil and gas, and heavy manufacturing. Bently Nevada’s expertise ensures these probes meet rigorous standards من durability, accuracy, and ease من integration, making them a trusted choice for protecting high-value assets.
مواصفات المنتج
| Parameter | Details |
|---|---|
| الطراز Number | 330104-01-05-50-01-CN |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Distance | 8 mm |
| Probe Tip Diameter | 12.7 mm (0.5 inches) |
| Probe Body Diameter | 12.7 mm (0.5 inches) |
| Total Length | 5 meters |
| الوزن | 1.615 kg |
| Operating Temperature | -40°C to +120°C |
| Connector Type | MIL-C-26482 or equivalent |
| Output Signal | AC variable voltage proportional to gap |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded mounting (M12 x 1.5) |
Applications
-
Power Generation: Monitoring turbine and generator shaft position and vibration to prevent failure.
-
Petrochemical Industry: الحالة monitoring من compressors and pumps to ensure operational reliability.
-
Heavy Manufacturing: Protection من motors, fans, and industrial machinery through continuous monitoring.
-
Hydroelectric Plants: Monitoring shaft displacement and vibration for turbine maintenance.
-
Aerospace and Defense: Used in test rigs and rotating machinery monitoring.
-
Mining and Minerals: Equipment health monitoring in harsh environments.
Advantages
-
Precision Measurement: The 8mm sensing gap allows for accurate and repeatable position measurement.
-
Durable Build: Stainless steel housing with IP67 rating protects against dust and water ingress.
-
Wide Operating Range: Suitable for harsh environments with temperatures from -40°C up to +120°C.
-
Industry Standard Connector: MIL-C-26482 connectors provide reliable, vibration-resistant connections.
-
Flexible Installation: Threaded M12 x 1.5 mounting facilitates secure and straightforward installation.
-
Long Cable Options: Custom cable lengths available to suit various installation needs.
-
Proven Reliability: Part من the 3300 XL platform with decades من proven field performance.
-
Stable Signal Output: Produces a consistent AC voltage signal that accurately reflects the probe-to-target gap.
الأسئلة الشائعة (FAQ)
-
What is the sensing distance من this probe?
It has a sensing distance من 8 mm for precise shaft position detection. -
Which industries commonly use the 3300 XL probes?
Power generation, petrochemical, manufacturing, hydroelectric, aerospace, and mining sectors. -
What is the length من the cable supplied with the probe?
Total length is 5 meters, with options for custom lengths. -
What kind من output signal does the probe provide?
An AC variable voltage proportional to the distance between the probe and target. -
What mounting method does this probe use?
Threaded mounting using an M12 x 1.5 thread. -
Is this probe suitable for outdoor and harsh environments?
Yes, it has an IP67 rating and operates reliably from -40°C to +120°C. -
Can the probe be connected to all Bently Nevada 3300 XL systems?
Yes, it is fully compatible with the 3300 XL monitoring platform. -
What maintenance does the proximity probe require?
Routine visual inspection and cleaning من the probe tip to ensure optimal performance. -
Are there different cable length options available?
Yes, cable lengths can be customized based on installation requirements. -
Is the probe suitable for use in hazardous locations?
When installed with appropriate protective measures and certifications, it can be used in hazardous environments.
Recommended Related الطرازs (Same Series or Related Proximity Probes)
| الطراز Number | Sensing Distance | Probe Diameter | Cable Length | الوزن (kg) | Notes |
|---|---|---|---|---|---|
| 330101-00-40-10-12-05 | 8 mm | 12.7 mm | 2 m | 0.3 | Standard 8 mm proximity probe |
| 330103-00-40-10-12-05 | 12 mm | 12.7 mm | 2 m | 0.32 | Extended sensing distance |
| 330106-00-40-10-12-05 | 8 mm | 8 mm | 2 m | 0.28 | Smaller probe diameter |
| 330120-00-40-10-12-05 | 10 mm | 12.7 mm | 3 m | 0.35 | Longer cable option |
| 330130-00-40-10-12-05 | 8 mm | 12.7 mm | 5 m | 0.4 | Extended cable length |
| 330140-00-40-10-12-05 | 15 mm | 12.7 mm | 2 m | 0.36 | Maximum sensing distance in series |
Popular Bently Nevada الطرازs (Widely Used Proximity Probes and Monitoring Equipment)
| الطراز Number | Product Type | Sensing Distance | Dimensions (mm) | الوزن (kg) | Application Area |
|---|---|---|---|---|---|
| 330101-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 12.7 mm | 0.3 | Standard 3300 XL probe |
| 330103-00-40-10-12-01 | Proximity Probe | 12 mm | 150 x 12.7 mm | 0.32 | Extended sensing distance |
| 330141-00-40-10-12-01 | Proximity Probe | 20 mm | 150 x 12.7 mm | 0.38 | High sensing distance |
| 330200-00-00-00-00-01 | Vibration Transducer | N/A | 40 x 25 x 25 mm | 0.15 | Vibration measurement |
| 3500/05-00-00-00-00-00 | 3500 Series Monitor | N/A | 440 x 600 x 220 mm | 15 | Machinery protection system |
| 330106-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 8 mm | 0.28 | Smaller diameter probe |
