مقدمة المنتج

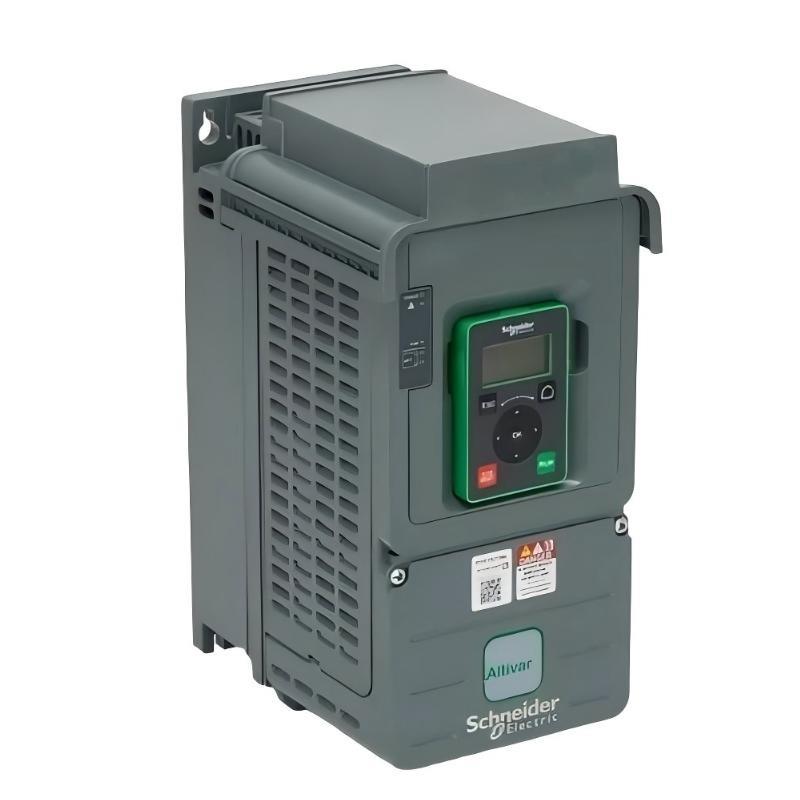

The Schneider Electric ATV610U75N4 is a standard-version Easy Altivar 610 variable speed drive designed for reliable speed control من three-phase asynchronous and synchronous motors. It operates on a rated supply voltage range من 380 to 460 VAC and supports industrial power systems with 50/60 Hz frequency.
This model is suitable for fans, pumps, compressors, and conveyors, covering a wide range من standard industrial applications. It delivers 7.5 kW (10 hp) motor power under normal duty conditions and 5.5 kW (7.5 hp) under heavy-duty operation, providing flexibility for both continuous and demanding load prمنiles.
The ATV610U75N4 features a cabinet-mounted design, forced convection cooling, and an integrated EMC filter compliant with IEC 61800-3 الفئة C3, ensuring reliable electromagnetic compatibility while simplifying system integration. As part من the Easy Altivar 610 range, it focuses on ease من commissioning, robust performance, and long-term operational stability.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Name | Schneider Electric ATV610U75N4 |
| Range من Product | Easy Altivar 610 |
| Product Type | Variable Speed Drive |
| Device Short Name | ATV610 |
| Variant | Standard version |
| Product Destination | Asynchronous motors, Synchronous motors |
| Product-Specific Applications | Fan, pump, compressor, conveyor |
| Mounting Mode | Cabinet mount |
| Network Number من Phases | 3 phases |
| Supply Frequency | 50 / 60 Hz ±5% |
| Rated Supply Voltage | 380 – 460 V (−15% / +10%) |
| Motor Power (Normal Duty) | 7.5 kW / 10 hp |
| Motor Power (Heavy Duty) | 5.5 kW / 7.5 hp |
| Line Current (Normal Duty) | 14.7 A at 380 V / 12.8 A at 460 V |
| Line Current (Heavy Duty) | 11.3 A at 380 V / 10.2 A at 460 V |
| Prospective Line Short-Circuit Current (Isc) | 22 kA |
| EMC Filter | Integrated, IEC 61800-3 الفئة C3 |
| Degree من Protection | IP20 |
| Cooling Method | Forced convection |
| Dimensions | 297 × 145 × 203 mm |
| الوزن | 4.575 kg |
Applications
• Fan systems, supporting precise airflow control and reduced energy consumption.
• Pump applications, including water handling and fluid circulation processes.
• Compressors, enabling smooth speed regulation and controlled startup.
• Conveyor systems, ensuring stable and consistent material transport.
• General-purpose industrial motor control, where reliable speed variation is required.
Advantages
• Dual-duty capability, supporting both normal-duty and heavy-duty applications.
• Integrated EMC filter, minimizing external components and simplifying cabinet layout.
• Wide voltage compatibility, suitable for 380–460 VAC industrial networks.
• Compact cabinet-mounted design, optimized for control panel installation.
• Stable electrical performance, with high short-circuit withstand capability.
