Product Overview

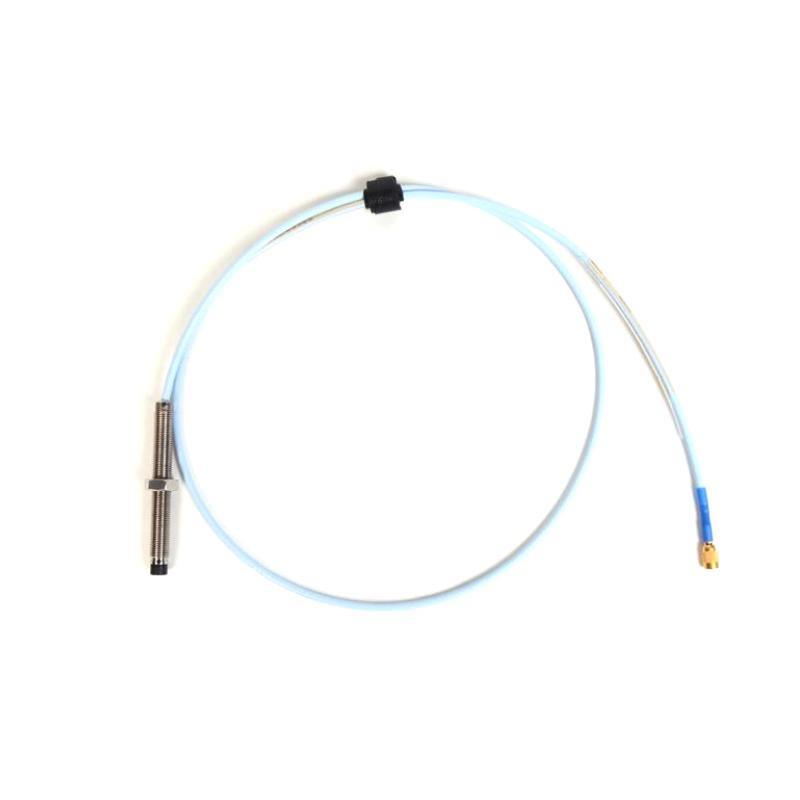

The Bently Nevada 330104-00-22-10-02-05 3300 XL 8 mm Proximity Probe is an industry-leading sensor designed to measure shaft vibration, relative position, and axial thrust in critical rotating machinery. Utilizing proven eddy current sensing technology, this probe forms part من the globally trusted 3300 XL series and delivers highly accurate, stable, and linear output signals, even under extreme operating conditions.
This particular configuration features a 1 meter probe cable length, non-armored construction, and an 8 mm probe tip, making it an ideal solution for applications requiring flexibility and excellent measurement performance.
Compatible with 3300 XL Proximitor Sensors and extension cables, the probe provides a consistent voltage output corresponding to shaft displacement. It is a vital component in machine protection and condition monitoring systems across industries like oil & gas, power generation, refining, chemicals, and heavy manufacturing.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 330104-00-22-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy current, non-contact |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Thread Size | 3/8-24 UNF |
| Total Length | 1 meter |
| Cable Armor | Non-armored |
| Connector Type | Miniature coaxial connector |
| Target Material | 4140 steel (factory calibrated) |
| Measurement Range | 2 mm (80 mils), linear range |
| Scale Factor | 200 mV/mil (7.87 mV/μm) nominal |
| System Linear Range | 80 mils (2.0 mm) |
| Non-Linearity | ≤ ±0.75% من full scale (typical) |
| Frequency Response | 0 Hz to 10 kHz (±3 dB) |
| Operating Temperature (Probe) | -51 °C to +177 °C |
| Operating Temperature (System) | -35 °C to +120 °C |
| Humidity | 100% condensing, fully sealed |
| Shock / Vibration Tolerance | 10 g @ 10-2,000 Hz |
| Pressure Rating | 5 bar (sealed probe tip) |
| Certifications | CE, ATEX Zone 2, CSA, IECEx |
| الوزن | 0.323 kg |
Applications
The 330104-00-22-10-02-05 proximity probe is used across a wide range من rotating machinery in industries that depend on high asset reliability and uptime:
-
Gas and Steam Turbines
Continuous monitoring من shaft vibration and thrust position to prevent costly failures. -
Compressors (Centrifugal and Reciprocating)
Real-time measurement من shaft movement and bearing health. -
Electric Motors
Detecting imbalance, misalignment, and degradation من motor components. -
Industrial Pumps
Providing early warnings من excessive vibration or mechanical wear in pump systems. -
Fans and Blowers
Ensuring smooth, vibration-free operation and extending equipment life. -
Gearboxes
Monitoring relative shaft position for improved gearbox health diagnostics. -
Critical Rotating Equipment in Oil & Gas, Power Plants, and Refineries
Preventing unplanned shutdowns and improving maintenance efficiency.
Product Advantages
-
Exceptional Measurement Accuracy
Delivers highly linear, low-noise signals — critical for protection systems. -
Non-Armored Cable for Flexibility
Simplified installation where armored protection is unnecessary. -
Broad Temperature Range
Operates reliably from -51 °C to +177 °C — ideal for demanding environments. -
Industry Certifications
Approved for use in hazardous zones (CE, ATEX Zone 2, CSA, IECEx). -
Rugged Design
Sealed construction ensures full performance in high humidity, vibration, and shock-prone locations. -
Compatible with Global Standards
Integrates seamlessly with 3300 XL Proximitor Sensors and legacy Bently Nevada systems. -
Low Maintenance
Designed for years من reliable service with minimal recalibration. -
Highly Versatile
Suitable for diverse rotating equipment across industries. -
Proven in the Field
Backed by thousands من installations worldwide. -
Optimized Cable Length (22 ft)
Provides flexibility for various mounting configurations.
الأسئلة الشائعة (FAQ)
-
What equipment can this probe monitor?
It is suitable for turbines, compressors, motors, pumps, fans, gearboxes, and many other rotating machines. -
How does it measure shaft vibration?
It outputs a voltage that is linearly proportional to shaft-to-probe distance. -
What’s the advantage من using a non-armored cable?
Easier routing and installation in clean or controlled environments. -
What is the rated cable length for this model?
1 meter. -
What certifications does it have?
CE, ATEX Zone 2, CSA, and IECEx — safe for use in explosive and hazardous areas. -
Does it require periodic recalibration?
No — designed for long-term operation with excellent stability. -
Is it compatible with older Bently Nevada Proximitor وحدةs?
Yes — backward compatible with most legacy 3300 series systems. -
What is the probe’s linear measurement range?
80 mils (2.0 mm). -
Can this probe operate in extreme temperatures?
Yes — rated from -51 °C to +177 °C at the probe tip. -
What is the recommended shaft target material?
4140 steel, or material calibrated to match Bently Nevada’s factory standard.
Related الطرازs from the Same Series or الفئة
| الطراز | Product Type | Cable Length | Armor Type | Dimensions & الوزن |
|---|---|---|---|---|
| 330104-00-22-10-02-05 | 3300 XL 8 mm Probe | 22 ft (6.71 m) | Non-armored | 8 mm tip, ~0.58 kg |
| 330104-00-20-05-02-00 | 3300 XL 8 mm Probe | 20 ft (6.10 m) | Armored | 8 mm tip, ~0.60 kg |
| 330104-00-15-10-01-CN | 3300 XL 8 mm Probe | 15 ft (4.57 m) | Non-armored | 8 mm tip, ~0.50 kg |
| 330104-00-25-05-02-00 | 3300 XL 8 mm Probe | 25 ft (7.62 m) | Armored | 8 mm tip, ~0.65 kg |
| 330104-00-10-10-01-CN | 3300 XL 8 mm Probe | 10 ft (3.05 m) | Non-armored | 8 mm tip, ~0.45 kg |
| 330104-00-05-05-02-00 | 3300 XL 8 mm Probe | 5 ft (1.52 m) | Armored | 8 mm tip, ~0.40 kg |
Popular الطرازs from Bently Nevada Product Line
| الطراز | Product Type | Application Area | Dimensions & الوزن |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Machine Protection Systems | ~0.80 kg |
| 3500/42M | Proximitor/Seismic Monitor | Shaft vibration, bearing wear | ~1.20 kg |
| 3500/33 | RTD/TC Temperature Monitor | Motor winding / bearing temp | ~1.10 kg |
| 330130-040-00-00 | 3300 XL 8 mm Extension Cable | Drives matching probes | ~0.30 kg |
| 330180-50-00 | 3300 XL Proximitor Sensor | Drives 3300 XL 8 mm probes | ~0.50 kg |
| 3500/15 | Power Supply Module | 3500 Series Rack | ~1.50 kg |
