Product Overview

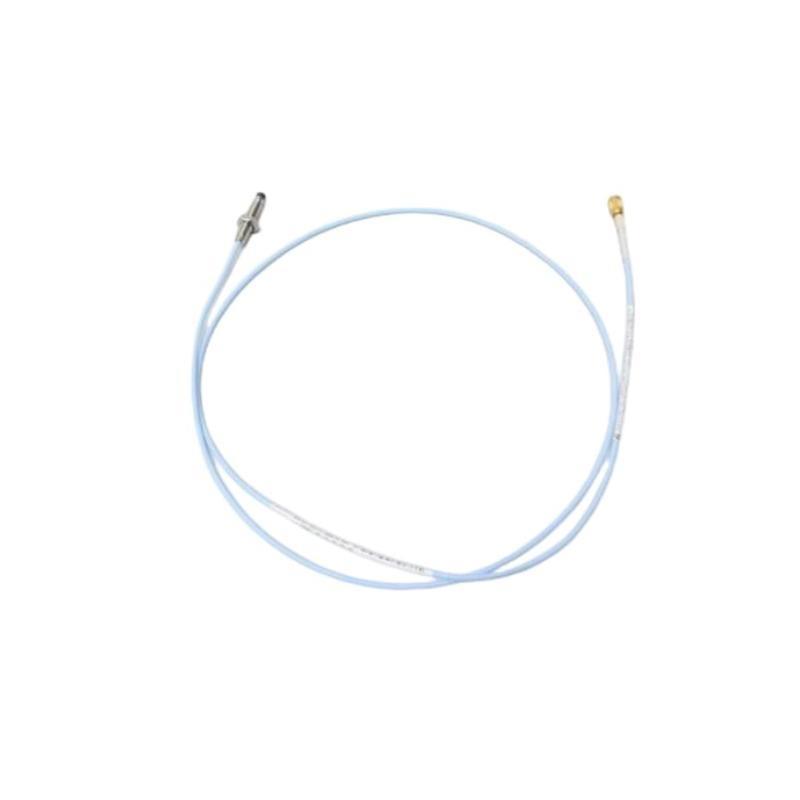

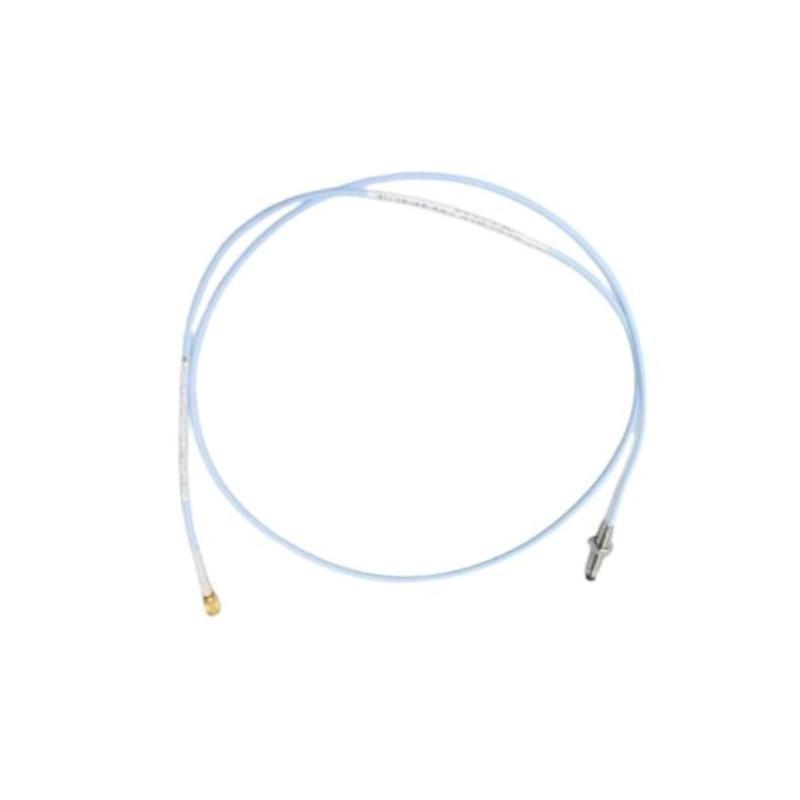

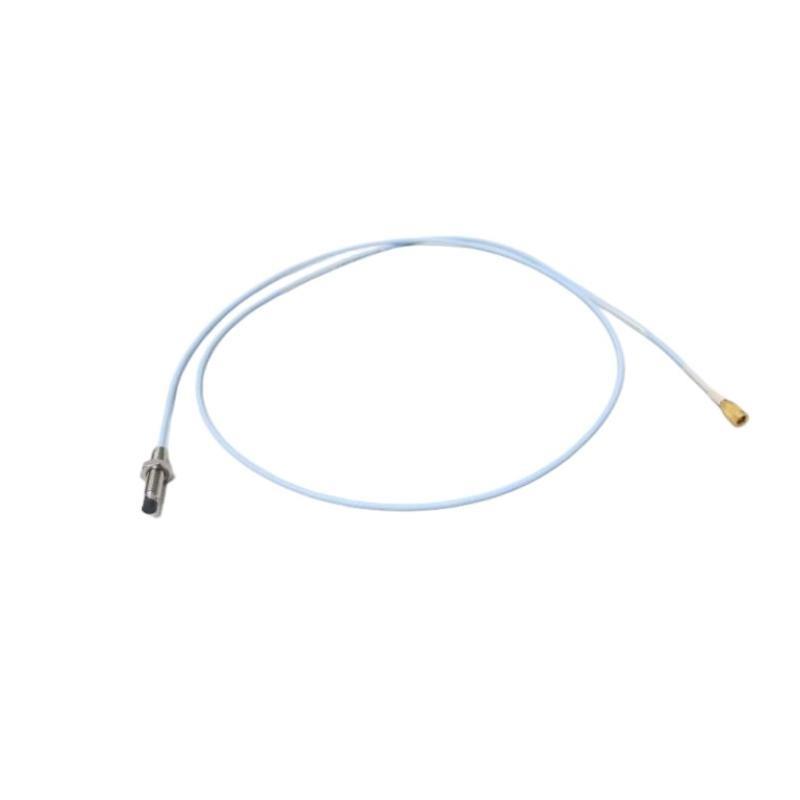

The Bently Nevada 330104-00-08-10-01-CN is a precision 8 mm proximity probe from the 3300 XL series, engineered for reliable vibration and shaft position monitoring in critical rotating machinery. Manufactured by Baker Hughes, this model features an 8-foot (2.44 meters) molded miniature coaxial cable, suitable for medium-to-long range installations requiring robust signal transmission.
Built with a corrosion-resistant stainless steel body and a durable polyphenylene sulfide (PPS) tip, the probe withstands harsh industrial environments while maintaining high measurement accuracy. Its advanced electromagnetic shielding minimizes interference, ensuring clean signals. Fully compatible with the Bently Nevada 3300 XL Proximitor® sensor system, it meets stringent API 670 machinery protection standards.
Key Features
-
8 mm probe tip diameter for precise measurement
-
8-foot (2.44 m) molded miniature coaxial cable for flexible installation
-
Corrosion-resistant stainless steel probe body
-
High immوحدةy to EMI/RFI for accurate signal transmission
-
Reverse polarity and overvoltage protection
-
IP68 rated for dust and water ingress protection
-
Complies with API 670 machinery protection standards
-
CE and RoHS certified for global regulatory compliance
Technical Specifications
| Item | Specification |
|---|---|
| Product الطراز | 330104-00-08-10-01-CN |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 8 feet (2.44 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| الوزن | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
Industry Applications
-
Steam, gas, and hydraulic turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and drive trains
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion machinery
-
General rotating machinery condition monitoring
Product Advantages
-
Robust, corrosion-resistant design for long service life
-
High accuracy and signal stability with factory calibration
-
8-foot cable length for versatile installation options
-
Superior EMI/RFI shielding reduces electrical noise
-
IP68 rating ensures durability in harsh conditions
-
Compliance with API 670 machinery protection standards
-
Enables predictive maintenance, minimizing unplanned downtime
-
Fully compatible with Bently Nevada 3300 XL monitoring systems
-
Simplified installation and maintenance via standardized connectors
-
الدعمed by Baker Hughes’ worldwide technical support network
الأسئلة الشائعة (FAQ)
-
What is the cable length من this probe?
It features an 8-foot (2.44 meters) molded miniature coaxial cable. -
Is this probe compatible with the 3300 XL system?
Yes, it integrates seamlessly with all 3300 XL system components. -
What sensing range does it support?
The sensing range is 0.5 to 2.0 mm (20 to 80 mils). -
Can it be used in harsh industrial environments?
Yes, it is designed to withstand extreme temperatures, vibration, dust, and moisture. -
What connector type is used?
Molded miniature coaxial connector. -
What is the ingress protection rating?
IP68, providing protection against dust and water. -
Does it meet any industry standards?
Yes, it complies with API 670 machinery protection standards. -
Is factory calibration provided?
Yes, factory calibration is standard, with recommended field verification. -
What materials are used for the probe?
Stainless steel for the body and polyphenylene sulfide (PPS) for the tip. -
Are custom cable lengths available?
Custom cable lengths can be requested from Baker Hughes.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-00-03-10-02-CN | 3 ft cable length probe |
| 330104-00-04-10-02-05 | 4 ft cable length probe |
| 330104-00-05-10-02-05 | 5 ft cable length probe |
| 330104-00-06-10-02-CN | 6 ft cable length probe |
| 330104-00-10-10-02-05 | 10 ft cable length probe |
| 330104-00-15-10-02-CN | 15 ft cable length probe |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 330105-02-12-05-02-00 | 3300 XL Proximitor Sensor |
| 330104-00-10-10-02-05 | 10 ft extension cable for 3300 XL systems |
| 330130-045-00-05 | Standard 4.5 m extension cable |
| 3500/22M-01-01-00 | 3500 Series Communication Gateway Module |
| 3500/42M-01-00 | 3500 Series Vibration Monitor Module |
| 330180-91-00 | DIN rail mountable Proximitor Sensor |
