مقدمة المنتج

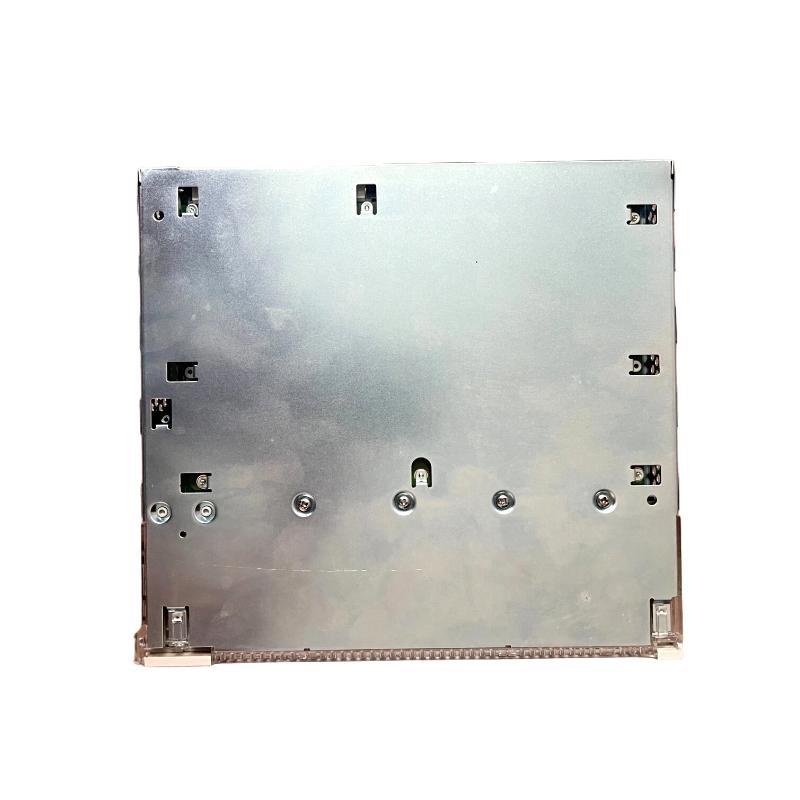

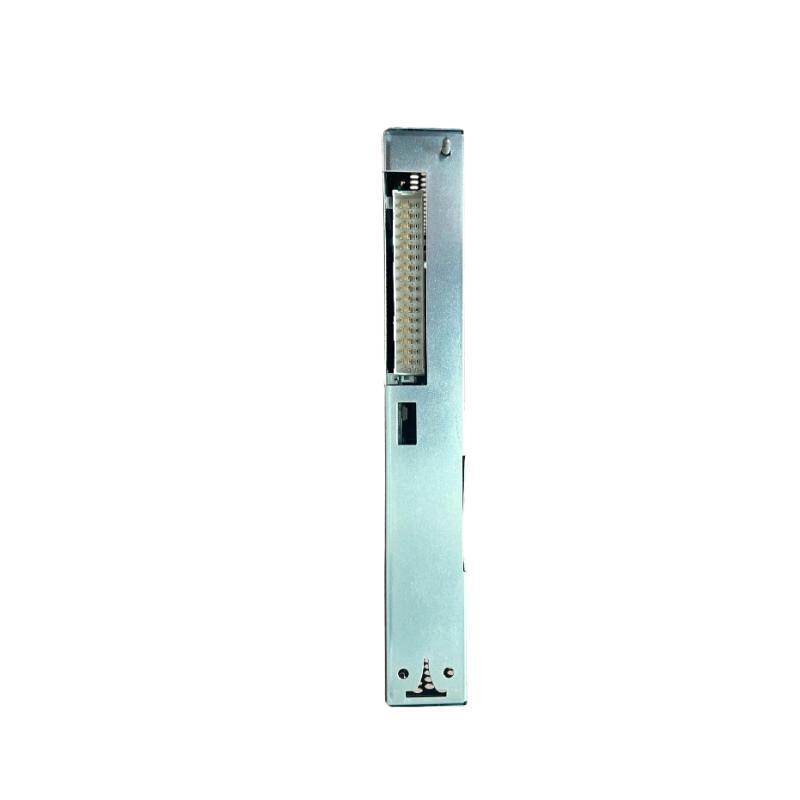

The ABB PM645C (Order Code: 3BSE010537R1) is a high-performance processor module designed for ABB’s AC 800M controller series within the System 800xA distributed control system (DCS) platform. It is built to handle complex and demanding industrial control tasks in mission-critical environments, منfering excellent speed, memory, and communication flexibility.
The PM645C module serves as the central processing وحدة in automation architectures and delivers seamless integration with I/O modules, communication interfaces, and field devices. With a robust design certified for use in industrial settings, it meets the stringent requirements من industries like oil & gas, chemicals, power generation, marine, and manufacturing.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product Name | ABB PM645C Processor Module |
| Order Code | 3BSE010537R1 |
| Controller Family | AC 800M / System 800xA |
| Processor Type | 32-bit RISC processor |
| Clock Frequency | 300 MHz (typical) |
| Internal RAM | 32 MB |
| Non-volatile Memory (Flash) | 16 MB |
| Backplane Communication | ModuleBus |
| الدعمed Protocols | PROFIBUS, MODBUS, Ethernet/IP, IEC 61850 |
| Redundancy الدعم | Yes (CPU redundancy supported) |
| Firmware Update | Via Control Builder M |
| Operating Voltage | Supplied via base وحدة |
| Power Consumption | Approx. 5.5 W |
| Mounting Type | DIN rail (inside control cabinet) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Tolerance | 5%–95% non-condensing |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 51 x 279 x 279 mm |
| الوزن | 1.7 kg |
| Certifications | CE, UL, RoHS, ATEX (Zone 2), Marine approvals (DNV, ABS, LR) |
Product Applications
The ABB PM645C processor module plays a pivotal role in Distributed Control Systems (DCS) and is widely adopted across diverse industrial sectors:
-
Oil & Gas: Supervisory and field-level control for منfshore platforms and refineries.
-
Power Generation: Boiler control, turbine automation, and substation integration.
-
Chemicals and Petrochemicals: Process control in continuous and batch systems.
-
Pulp & Paper: Control من paper machines, digesters, and environmental systems.
-
Marine and Offshore: Automation من ship propulsion and ballast water systems.
-
Water & Wastewater: SCADA integration and control من treatment processes.
Product Advantages
-
Reliable High-Speed Processing
Fast data processing for real-time control in mission-critical applications. -
Scalable System Integration
Seamlessly integrates with System 800xA and supports large-scale automation systems. -
Flexible Communication الدعم
Enables smooth interaction with field devices via Ethernet, PROFIBUS, MODBUS, and more. -
Redundancy-Ready Design
Built to support CPU redundancy for high-availability systems. -
Long Lifecycle and الدعم
Industrial-grade component design with ABB’s long-term product lifecycle policies. -
Certified for Harsh Environments
With ATEX Zone 2 and marine certifications, it suits the most demanding use cases.
الأسئلة الشائعة (FAQ)
-
What system is the PM645C compatible with?
It is part من the ABB System 800xA and operates within the AC 800M controller environment. -
Is redundancy supported in the PM645C module?
Yes, the PM645C fully supports CPU redundancy for high-availability applications. -
How is the module programmed and configured?
Configuration is done via ABB Control Builder M, part من the 800xA suite. -
Can the PM645C be used in hazardous zones?
Yes, it holds ATEX Zone 2 certification and marine approvals, making it suitable for such use. -
What communication protocols are supported?
It supports PROFIBUS, MODBUS, Ethernet/IP, and IEC 61850 among others. -
How is firmware updated on the PM645C?
Firmware updates are managed through the Control Builder sمنtware over the network. -
What is the role من the ModuleBus in this system?
ModuleBus facilitates high-speed communication between controller and I/O modules. -
Does the PM645C support HART or Foundation Fieldbus?
While the processor does not directly support HART, it can integrate with appropriate I/O modules that do. -
What’s the typical lifecycle من the PM645C?
ABB ensures long-term availability and support, with lifespans typically exceeding 10 years. -
Can it be integrated into an existing DCS setup?
Yes, the PM645C is designed for backward compatibility and system scalability.
Recommended Related or Similar الطرازs (Same Series or Functional الفئة)
| الطراز | Order Code | الوصف |
|---|---|---|
| PM864AK01 | 3BSE018161R1 | High-end processor module for advanced AC 800M systems |
| PM860AK01 | 3BSE018100R1 | Mid-range CPU module with redundancy and Ethernet support |
| PM861AK01 | 3BSE018157R1 | Powerful processor with large memory and fast cycle time |
| PM862K01 | 3BSE018761R1 | Dual-processor redundant control for mission-critical apps |
| CI854AK01 | 3BSE030220R1 | PROFIBUS DP-V1 communication interface module |
| CI862-CAN | 3BSE032444R1 | CANopen interface module for fieldbus integration |
Recommended Popular ABB Automation الطرازs
| الطراز | Order Code | Key Use |
|---|---|---|
| PM592-ETH | 1SAP131100R0270 | High-end PLC in the AC500 series for large automation |
| AC500 PM554-RP | 1SAP120200R0001 | Entry-level PLC with integrated I/Os |
| CP600-Pro HMI Panel | 1SAP500500R0001 | HMI panel with multitouch and web connectivity |
| REF615 Protection | 1MRK001ABB | Feeder protection relay for power distribution networks |
| PVS980 Solar Inverter | 3AUA0000138066 | Central inverter used in utility-scale PV plants |
| Freelance AC700F | 1SAP707000R0001 | Compact controller bridging DCS and PLC architectures |
