Product Overview

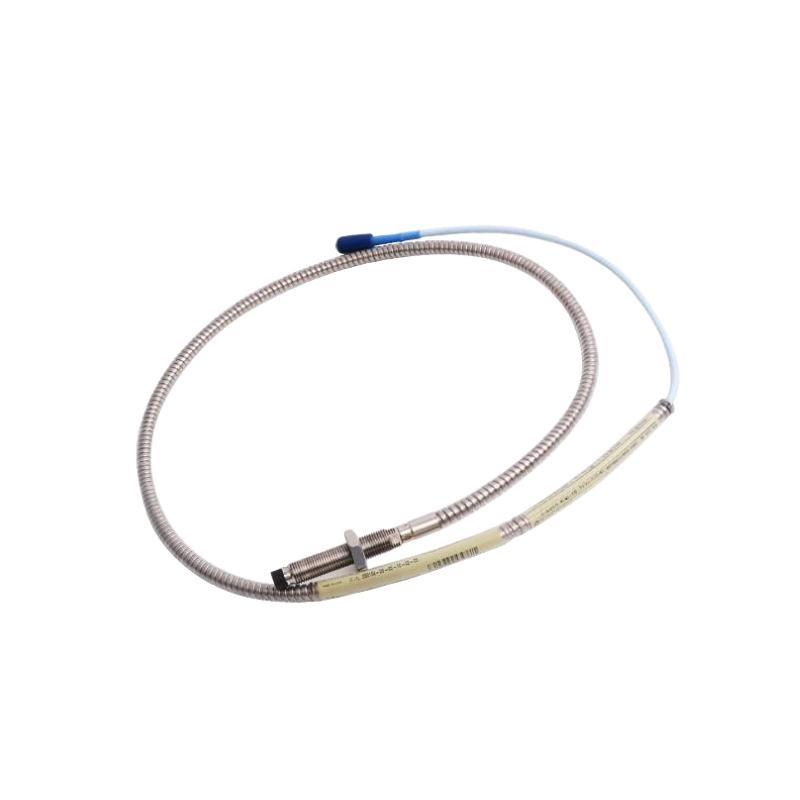

The Bently Nevada 330104-00-07-10-02-00 is a part من the 3300 XL 8 mm Proximity Transducer System. It is engineered for precise non-contact measurement من shaft position and vibration. The system includes the probe, extension cable, and a Proximitor sensor, منfering industry-leading accuracy and ruggedness, with full API 670 compliance.
Applications
-
Shaft vibration and position monitoring
-
Fluid-film bearing machines
-
Keyphasor signal referencing
-
Overspeed protection (with considerations)
Key Advantages
-
Fully interchangeable components—no bench calibration required
-
API 670 compliance for mechanical configuration and performance
-
Robust PPS tip with patented TipLoc and CableLoc technology
-
ClickLoc gold-plated connectors—tool-free, secure fit
-
Extended Temperature Range (ETR) models available for up to 260°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe الطراز | 330104-00-07-10-02-00 |
| Probe Type | 8 mm diameter, M10 x 1 thread, armored |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg (approx.) |
| Cable Type | FEP insulated, 75Ω triaxial |
| Connector | Miniature ClickLoc, standard |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Temperature Range (probe only) | –52°C to +177°C (standard) |
| Pressure Seal | Viton® O-ring sealed |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) |
| DSL Accuracy | ±0.025 mm (±1 mil) over full range |
| Frequency Response | 0 to 10 kHz (+0, –3 dB) |
| Minimum Shaft Diameter | 50.8 mm (Recommended: ≥76.2 mm) |
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the 330104-00-07-10-02-00 probe?
A1: It is designed to measure shaft vibration and position in rotating machinery using non-contact eddy current sensing.
Q2: Is the probe compatible with other Bently Nevada transducer systems?
A2: Yes, it is backward-compatible and interchangeable with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the linear measurement range من this proximity probe?
A3: The linear range is 2.0 mm (80 mils), typically between –1 Vdc to –17 Vdc output.
Q4: What kind من connector does this model use?
A4: It uses a gold-plated miniature ClickLoc coaxial connector, which ensures a secure and corrosion-resistant fit.
Q5: Is an armored version available?
A5: Yes, this model includes stainless steel armor for enhanced mechanical protection.
Q6: Can this probe be used in high-temperature applications?
A6: This specific وحدة supports standard temperatures up to 177°C. For higher temperatures, ETR versions are recommended.
Q7: What is the required gap voltage for standard radial vibration monitoring?
A7: A gap voltage من approximately –9 Vdc, which corresponds to a physical gap من 1.27 mm.
Q8: Does this probe require calibration before installation?
A8: رقم All components are pre-calibrated and fully interchangeable, eliminating the need for field calibration.
Q9: What is the total system weight?
A9: The probe itself weighs approximately 0.323 kg. Including the sensor and extension cable, the system totals about 0.7 kg.
Q10: Is this probe certified for hazardous areas?
A10: Yes, it holds multiple certifications including ATEX, IECEx, CSA, and complies with various Zone 0 and Zone 2 requirements.
Related الطرازs (Same Series)
| الطراز Number | Thread Type | Length | Armor | الوزن |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | M10 x 1 | 1.0 m | Yes | 0.323 kg |
| 330104-01-05-50-02-00 | M10 x 1 | 5.0 m | Yes | ~0.8 kg |
| 330104-00-08-10-02-00 | M10 x 1 | 1.0 m | Yes | 0.323 kg |
| 330103-00-05-10-02-00 | M10 x 1 | 1.0 m | No | 0.290 kg |
| 330101-00-08-10-02-00 | 3/8-24 UNF | 1.0 m | No | 0.300 kg |
| 330102-00-20-10-02-00 | 3/8-24 UNF | 2.0 m | Yes | 0.380 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application | الوزن |
|---|---|---|---|
| 3300 XL 5 mm Probe | Compact proximity probe | Small-space vibration monitoring | ~0.2 kg |
| 330103 | 8 mm probe, M10 thread, no armor | Shaft vibration and position | ~0.3 kg |
| 330180 | Proximitor Sensor for 3300 XL probes | Signal conditioning & output | 0.246 kg |
| 3500/42M | Proximitor Seismic Monitor | Machinery condition monitoring | ~0.4 kg |
| 3500/22M | Transient Data Interface (TDI) | Advanced machine monitoring | ~0.5 kg |
| 330400 | Velomitor Piezo-Velocity Sensor | Low-frequency vibration measurement | ~0.45 kg |
