Product Overview

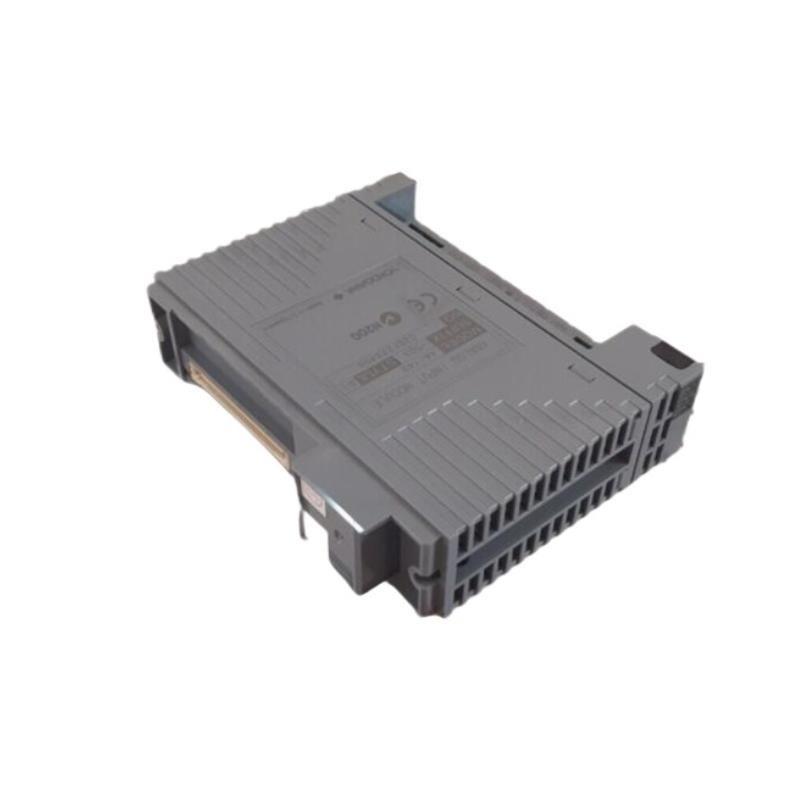

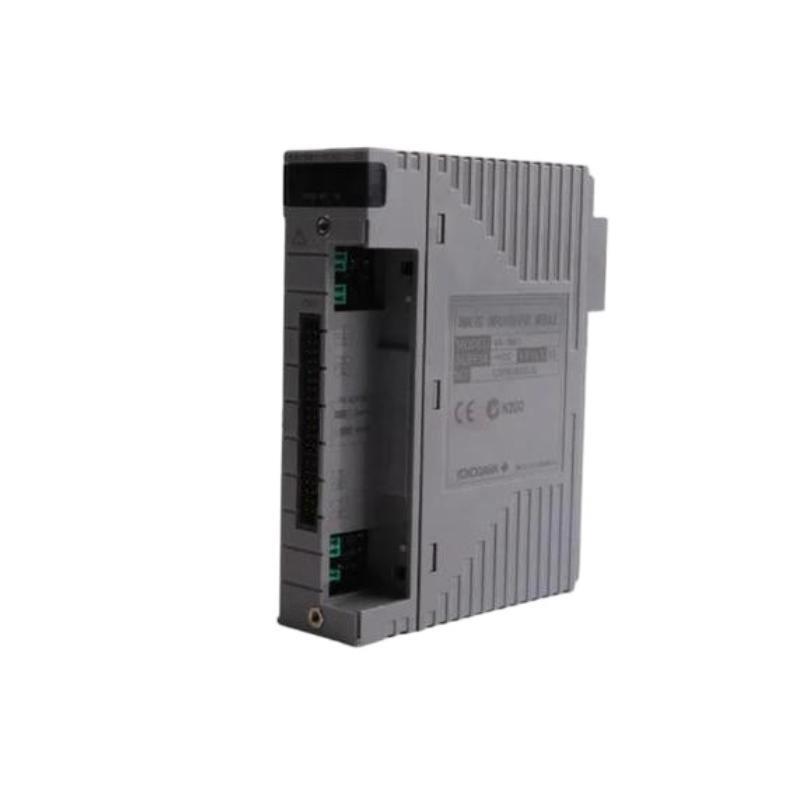

The Yokogawa AAI143-S53/K4A00 is a precision analog input module designed for the CENTUM VP distributed control system (DCS). It supports various analog input signal types such as 4–20 mA, 1–5 V, and thermocouple inputs, enabling accurate and reliable process data acquisition. This module features advanced diagnostics, high resolution, and noise immوحدةy, making it suitable for critical industrial control applications.
Key Features
-
الدعمs 16 analog input channels
-
Compatible with multiple input signal types: 4–20 mA, 1–5 V, thermocouple
-
16-bit high-resolution analog-to-digital conversion
-
Enhanced diagnostics for input status and fault detection
-
Seamless integration with Yokogawa CENTUM VP system
-
Hot-swappable design to minimize downtime
-
Compact size optimized for space-saving installation
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Analog Input Module |
| الطراز Number | AAI143-S53/K4A00 |
| الشركة المصنعة | يوكوجاوا إلكتريك Corporation |
| Number من Channels | 16 analog input channels |
| الدعمed Signal Types | 4–20 mA, 1–5 V, Thermocouple |
| Input Resolution | 16-bit |
| Input Accuracy | ±0.1% من span |
| Input Impedance | >250 Ω (current input), >10 kΩ (voltage input) |
| Diagnostics | Open circuit detection, overrange/underrange alarms |
| Hot Swappable | Yes |
| Mounting | DIN rail or I/O baseplate |
| Power Supply | Supplied via baseplate |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 107.5 × 32.8 × 130 mm |
| الوزن | 0.3 kg |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Chemical and Petrochemical Processing
-
Power Generation and Utilities
-
Oil and Gas Industry
-
Pharmaceutical Manufacturing
-
Food and Beverage Processing
-
Water and Wastewater Treatment
-
Pulp and Paper Industry
-
Metals and Mining Automation
Product Advantages
-
Flexible input support for multiple signal types enhances versatility
-
High-precision 16-bit conversion ensures reliable process data
-
Comprehensive diagnostics enable proactive maintenance
-
Hot-swappable module design reduces operational downtime
-
Compact and modular design fits efficiently in control racks
-
Fully compatible with CENTUM VP distributed control systems
-
Resistant to electrical noise and environmental disturbances
الأسئلة الشائعة (FAQ)
1. What input signals are supported by the AAI143-S53/K4A00?
الدعمs 4–20 mA, 1–5 V, and thermocouple inputs.
2. How many input channels does the module have?
16 analog input channels.
3. Is hot swapping supported?
Yes, the module supports hot swapping.
4. What is the resolution من the input conversion?
16-bit resolution.
5. What diagnostic features are included?
Open circuit detection and overrange/underrange alarms.
6. Which control system is the module compatible with?
Designed for Yokogawa CENTUM VP.
7. What are the physical dimensions?
130 mm × 27.2 mm × 130 mm.
8. What is the operating temperature range?
0°C to +60°C.
9. What certifications does the module hold?
CE, UL, CSA, and RoHS certified.
10. How can the module be mounted?
الدعمs DIN rail and I/O baseplate mounting.
