مقدمة المنتج

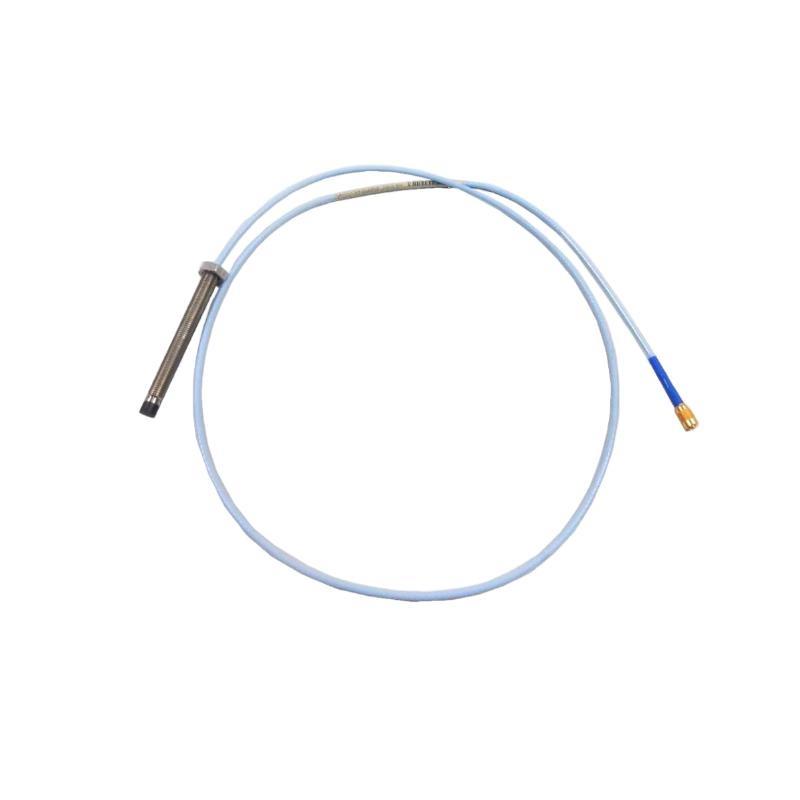

The Bently Nevada 330103-11-16-10-12-05 is a premium 3300 XL 8 mm proximity probe specifically designed for vibration monitoring, shaft position detection, and rotor dynamic measurements in rotating machinery. As part من the 3300 XL Series, this probe delivers unparalleled reliability, high accuracy, and long-term stability in harsh industrial environments.
Engineered for compatibility with the 3300 XL Proximitor sensor system, this probe ensures precise measurement من shaft vibration and displacement across various industrial applications such as turbomachinery, compressors, and pumps. Its rugged construction and metric design make it a trusted choice in global industries requiring continuous online monitoring من critical assets.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | 330103-11-16-10-12-05 |
| Series | 3300 XL 8 mm Proximity Probe (Metric) |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 x 1.0 thread |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Cable Length | 10 meters (integrated cable) |
| Linear Range | 2 mm (80 mils) |
| Measurement Range | Up to 80 mils (2 mm) dynamic vibration |
| Operating Temperature | –35°C to +177°C (probe tip) |
| Frequency Response | DC to 10 kHz |
| Accuracy | ±0.025 mm (1.0 mil) |
| Mounting Options | Threaded mounting with lock nuts |
| Compliance | API 670, CE, and RoHS standards |
Applications
-
Turbomachinery Monitoring
Ideal for turbines, compressors, and generators to monitor shaft vibration and axial displacement. -
Pumps and Motors
Used in critical pump systems for real-time condition monitoring and fault detection. -
Gearbox Systems
Ensures reliable vibration feedback to prevent mechanical damage in gear-driven systems. -
Industrial Compressors
Tracks rotor movement and detects early-stage failures, minimizing downtime. -
Power Plants and Refineries
الدعمs high-value assets in energy production and oil and gas sectors by ensuring operational safety. -
الحالة-Based Maintenance Programs
Enables predictive maintenance strategies by integrating with advanced monitoring systems.
Advantages
-
High Accuracy and Reliability
Provides precise vibration and position measurements under various operating conditions. -
Rugged Design
Built to withstand high temperatures, harsh environments, and mechanical stress. -
Global Standard Compliance
Fully meets API 670 standards, ensuring compatibility with global industrial systems. -
Enhanced Signal Integrity
Delivers stable, interference-free signals over extended cable lengths. -
Easy Installation and Maintenance
Threaded design allows quick and secure installation in tight spaces. -
Long-Term Stability
Maintains performance consistency over extended operational periods, reducing recalibration needs. -
Versatile Application
الدعمs a wide range من rotating machinery applications, making it a flexible monitoring solution. -
Proven Performance
Extensively field-tested and adopted worldwide for critical machinery protection.
FAQ
Q1: What is the main function من the 330103-11-16-10-12-05 probe?
A1: It measures shaft vibration and position in rotating machinery to ensure accurate condition monitoring and protection.
Q2: What type من sensor system is this probe compatible with?
A2: It is specifically designed for use with the 3300 XL Proximitor Sensor System.
Q3: What is the linear range من this proximity probe?
A3: The probe provides a linear range من 2 mm (80 mils) for precise vibration measurement.
Q4: Does this probe comply with API standards?
A4: Yes, it complies fully with API 670 standards, ensuring reliability and accuracy for critical monitoring systems.
Q5: What is the maximum operating temperature for the probe tip?
A5: The probe tip operates effectively in temperatures up to +177°C, making it suitable for high-heat environments.
Q6: Can the probe be used for long cable applications?
A6: Yes, it maintains signal stability even over 10 meters من cable length.
Q7: What is the frequency response range من this probe?
A7: It supports a frequency range from DC to 10 kHz, suitable for high-speed machinery applications.
Q8: Is the probe resistant to environmental stress?
A8: Absolutely. Its rugged construction provides resistance to vibration, heat, and chemical exposure.
Q9: Can this probe be integrated into condition monitoring systems?
A9: Yes, it integrates seamlessly with Bently Nevada monitoring platforms for real-time asset diagnostics.
Q10: What industries most commonly use this probe?
A10: It is widely used in oil and gas, power generation, petrochemical, and heavy manufacturing industries.
Related الطرازs
| الطراز | الوصف |
|---|---|
| 330103-00-05-10-02-00 | Standard 8 mm proximity probe with fixed cable length. |
| 330103-05-05-10-02-05 | 8 mm probe with high-temperature tolerance and extended length. |
| 330103-08-10-05-05-00 | Compact probe for tight installation environments. |
| 330103-11-05-05-05-00 | Metric threaded version for European applications. |
| 330103-11-16-05-05-00 | Custom cable length for specialized installations. |
| 330103-12-16-10-12-05 | Enhanced durability for demanding industrial systems. |
Popular Bently Nevada الطرازs
| الطراز | الوصف |
|---|---|
| 330171-20-55-05-02-CN | Standard proximity probe assembly منfering reliable vibration measurement for general industrial applications. |
| 330171-24-32-20-02-05 | High-precision probe designed for extended range and enhanced signal stability in critical monitoring systems. |
| 330171-22-60-10-02-00 | Rugged version optimized for high-temperature environments and continuous vibration analysis. |
| 330171-25-45-05-02-05 | Advanced probe assembly providing superior accuracy and compatibility with high-speed machinery. |
| 330171-28-50-15-02-CN | Durable probe solution منfering improved resistance to harsh industrial conditions and contamination. |
| 330171-30-40-20-02-05 | Premium model featuring high sensitivity and extended operational life for mission-critical applications. |
