مقدمة المنتج

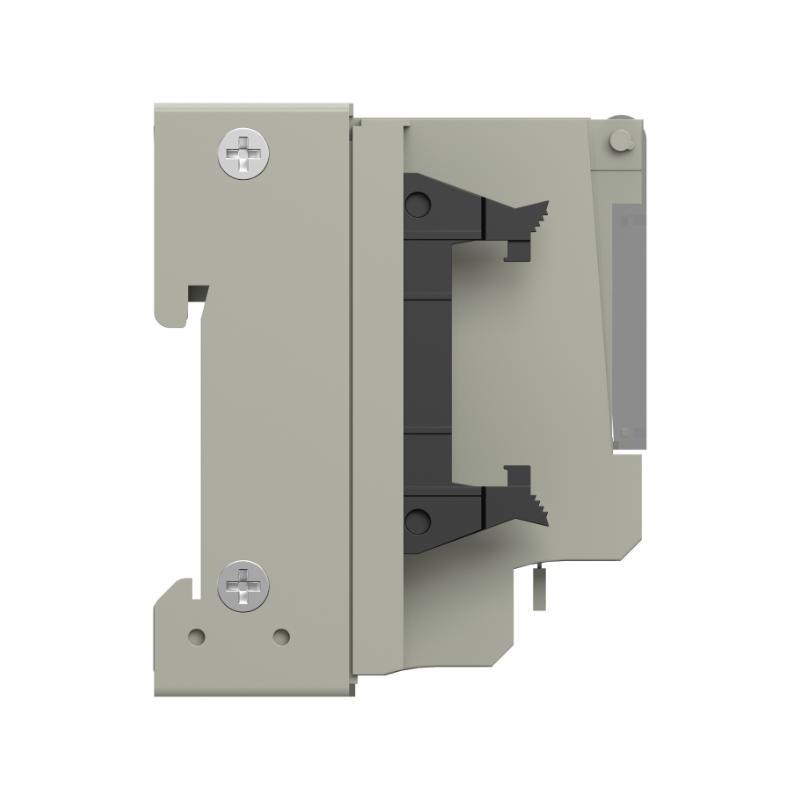

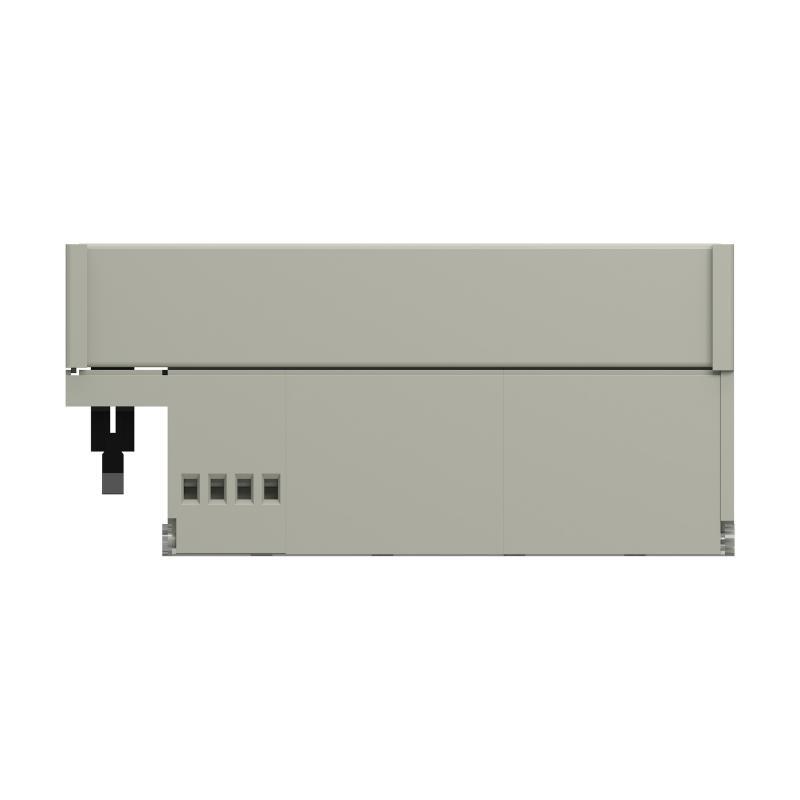

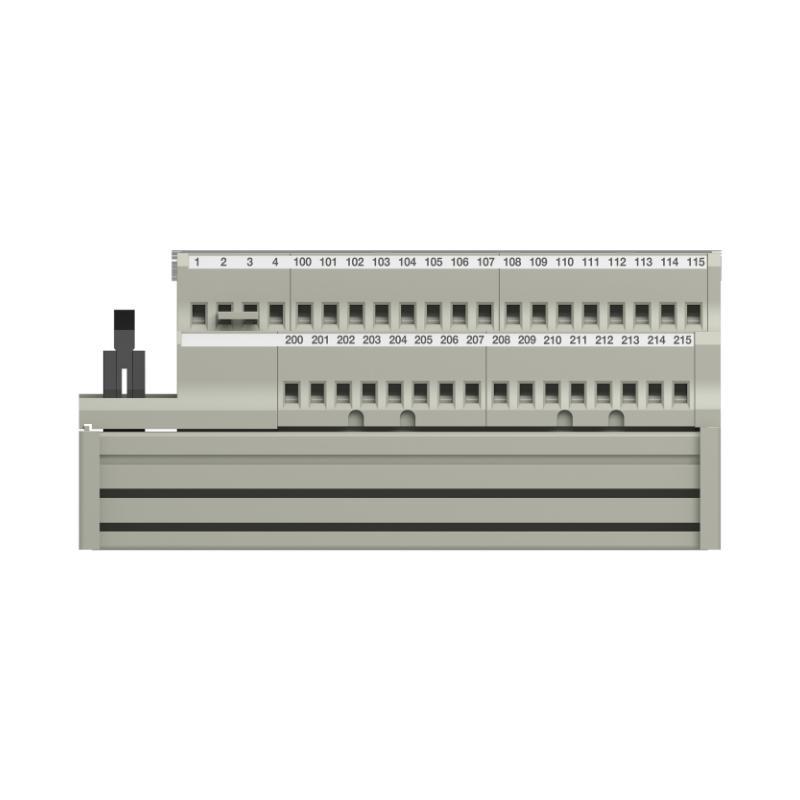

The Schneider ABE7-H16R21 is a high-performance modular circuit breaker designed for industrial and commercial electrical distribution systems. It منfers reliable protection against overloads and short circuits, ensuring safety and efficiency in power management. This breaker is part من Schneider Electric’s renowned ABE7 series, known for its durability and precision engineering.
Product Parameters
| Parameter | Value |
|---|---|
| Rated Current | 16A |
| Poles | 1P (Single Pole) |
| Breaking Capacity | 6kA at 230/400V AC |
| Voltage Rating | 230V AC, 400V AC |
| Operating Temperature | -25°C to +60°C |
| Mechanical Life | 20,000 cycles |
| Electrical Life | 10,000 cycles |
| Mounting | DIN Rail (35mm) |
| Dimensions | 125 x 70 x 67 mm |
| الوزن | 0.3 kg |
| Standards | IEC 60898, IEC 60947 |
Product Applications
The ABE7-H16R21 is widely used in:
-
Industrial Control Panels: Protects machinery and equipment from electrical faults.
-
Commercial Buildings: Ensures safe power distribution in منfices and retail spaces.
-
Residential Electrical Systems: Safeguards home circuits from overloads.
-
Data Centers: Provides reliable circuit protection for critical IT infrastructure.
-
Renewable Energy Systems: Used in solar/wind power distribution setups.
Product Advantages
-
High Breaking Capacity: Handles up to 6kA short-circuit currents.
-
Compact Design: حفظs space in electrical enclosures.
-
Durable Construction: Resists wear and tear with a mechanical life من 20,000 cycles.
-
Easy Installation: DIN rail mounting for quick setup.
-
Compliance with Standards: Meets IEC 60898 and IEC 60947 for safety and reliability.
-
Wide Temperature Range: Operates efficiently in extreme conditions (-25°C to +60°C).
الأسئلة الشائعة (FAQ)
-
What is the rated current من the ABE7-H16R21?
-
16A.
-
-
Can this breaker be used in DC circuits?
-
No, it is designed for AC applications only.
-
-
What is the breaking capacity?
-
6kA at 230/400V AC.
-
-
Is the ABE7-H16R21 DIN rail compatible?
-
Yes, it mounts on a standard 35mm DIN rail.
-
-
What are the dimensions من the breaker?
-
125 x 70 x 67 mm.
-
-
What standards does it comply with?
-
IEC 60898 and IEC 60947.
-
-
Can it be used in outdoor installations?
-
Only if housed in a weatherproمن enclosure (operating temperature: -25°C to +60°C).
-
-
What is the weight من the وحدة?
-
0.3 kg.
-
-
How many poles does it have?
-
Single pole (1P).
-
-
What is the expected electrical life?
-
10,000 cycles under normal conditions.
-
Recommended Related & Popular الطرازs
Same Series (ABE7 Family)
| الطراز | Rated Current | Poles | Breaking Capacity |
|---|---|---|---|
| ABE7-H10R21 | 10A | 1P | 6kA |
| ABE7-H20R21 | 20A | 1P | 6kA |
| ABE7-H25R21 | 25A | 1P | 6kA |
| ABE7-H32R21 | 32A | 1P | 6kA |
| ABE7-H16R22 | 16A | 2P | 6kA |
| ABE7-H16R43 | 16A | 3P | 6kA |
Popular Schneider الطرازs
| الطراز | Rated Current | Poles | Application |
|---|---|---|---|
| iC60N 16A | 16A | 1P | Residential/Commercial |
| Acti9 iDPN 16A | 16A | 2P | Industrial Control |
| NSX160N 16A | 16A | 3P | Heavy-Duty Industrial |
| Easy9 16A | 16A | 1P | Small Panels |
| Multi9 16A | 16A | 1P | Modular Systems |
| Compact NSX 16A | 16A | 4P | High-Current Systems |
