مقدمة المنتج

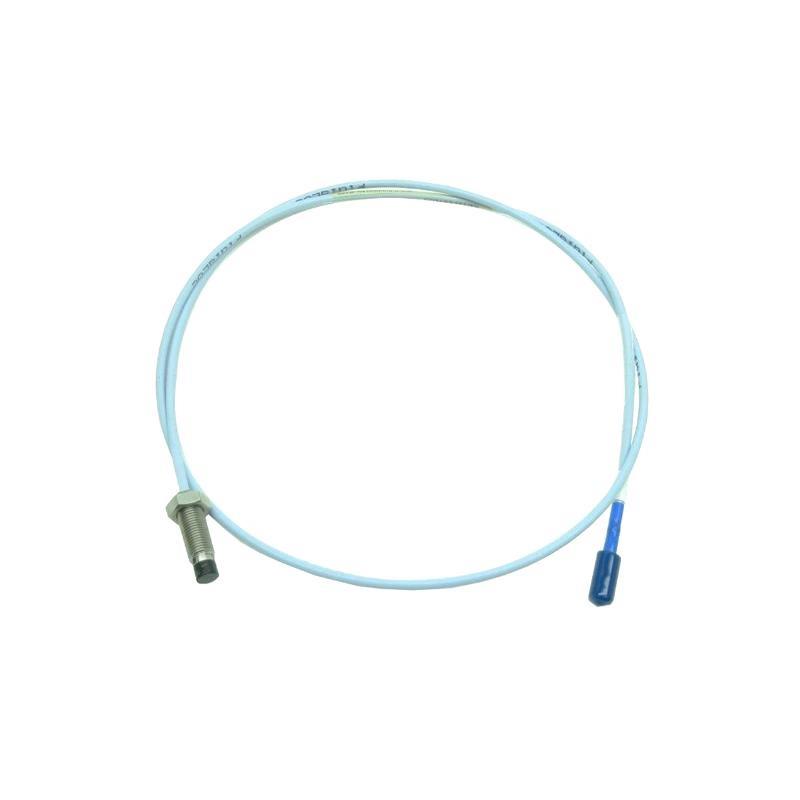

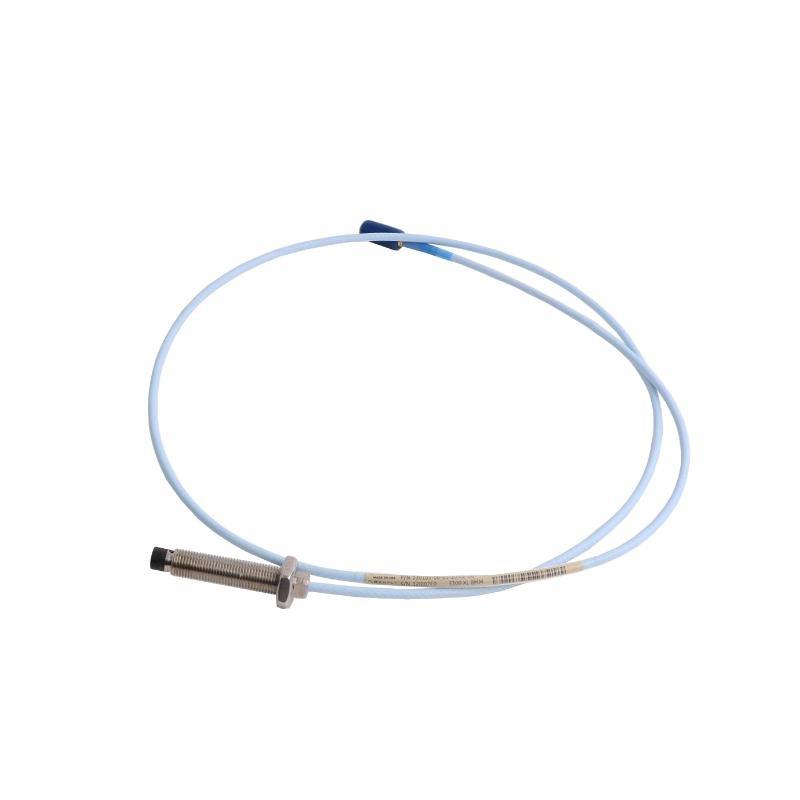

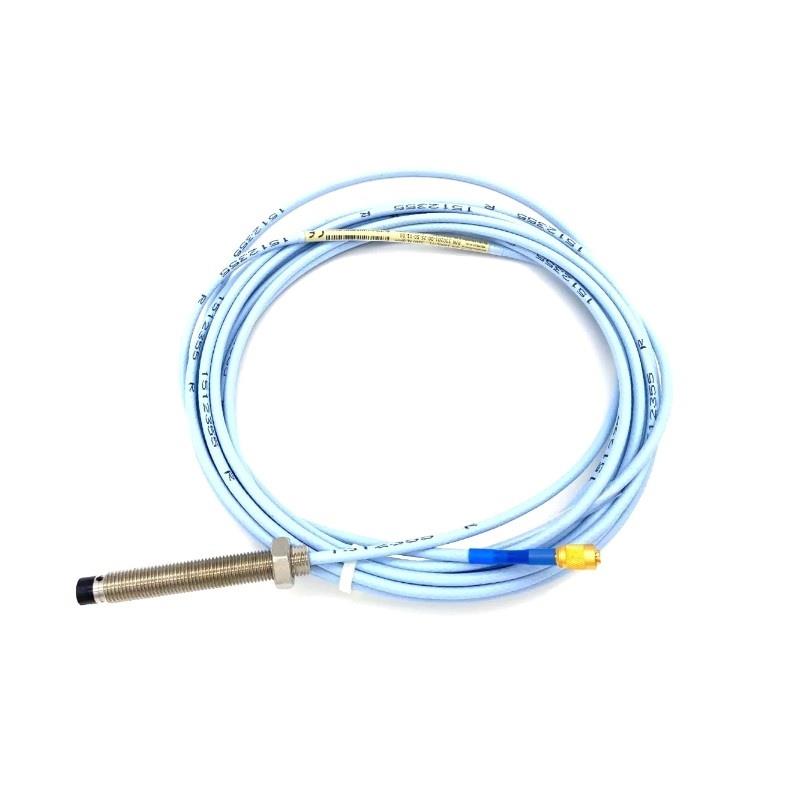

The Bently Nevada 330102-05-25-10-01-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for non-contact measurement من shaft vibration and position in rotating machinery. As part من the 3300 XL Series, it provides reliable and continuous monitoring for critical industrial equipment, including turbines, compressors, and generators. The probe features an 8 mm tip, suitable for applications requiring tight installation tolerances and robust performance in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Sensing Range | ±0.127 mm (±5 mils) standard |
| Linearity | ≤1% من full scale |
| Tip Diameter | 8 mm |
| Operating Temperature | -40°C to 120°C |
| Mounting Thread | M18 x 1.5 |
| Material | Stainless Steel |
| الوزن | 0.323 kg |
| Total Length | 1 m |
| Connector Type | 6-pin LEMO |
Applications
-
Vibration monitoring in steam and gas turbines
-
الحالة monitoring in compressors and pumps
-
Generator rotor position tracking
-
High-speed industrial rotating machinery diagnostics
-
Critical plant equipment for oil, gas, and power generation
-
Feedback systems for vibration protection relays
Advantages
-
High accuracy and low linearity error ensure reliable measurements.
-
Robust 8 mm probe tip designed for heavy-duty industrial environments.
-
Wide operating temperature range supports diverse industrial conditions.
-
Corrosion-resistant stainless steel construction for extended service life.
-
Compatible with standard 3300 XL monitoring systems for easy integration.
-
Flexible cable options allow installation in constrained or remote locations.
FAQ
Q1: What is the probe’s frequency response range?
A1: The 3300 XL 8 mm Proximity Probe operates effectively from 0 Hz up to 25 kHz, supporting high-speed shaft monitoring.
Q2: Can this probe be used in explosive environments?
A2: Yes, when paired with an intrinsically safe barrier and proper certification, it can be used in hazardous locations.
Q3: What is the minimum radial clearance for accurate measurement?
A3: For optimal performance, the probe should be installed with a radial clearance من 0.05–0.25 mm from the shaft.
Q4: Does the probe support dual-channel vibration measurement?
A4: It is compatible with dual-channel 3300 XL systems, allowing simultaneous position and vibration monitoring.
Q5: What is the recommended mounting orientation?
A5: The probe can be mounted in any orientation; however, alignment with the monitored shaft centerline is critical.
Q6: How does cable length affect signal accuracy?
A6: Standard 1 m cables maintain signal integrity; longer cables may require signal conditioning to prevent attenuation.
Q7: Can the probe withstand shaft misalignment?
A7: Minor misalignments are tolerated, but large deviations can reduce measurement accuracy and increase wear.
Q8: Is the probe compatible with non-ferrous shafts?
A8: Yes, it functions with both ferrous and non-ferrous shafts, though calibration may differ slightly.
Q9: What type من output does the probe provide?
A9: The probe provides a variable inductive AC output proportional to the gap between the probe tip and shaft.
Q10: How does temperature affect probe readings?
A10: The probe is rated for -40°C to 120°C, and readings remain accurate across this range with minor temperature compensation.
Recommended 6 Same-Series or Related الطرازs
| الطراز Number | Tip Diameter | Sensing Range | Connector Type | Notes |
|---|---|---|---|---|
| 330102-05-25-10-02-05 | 8 mm | ±0.127 mm | 6-pin LEMO | Standard variant |
| 330102-04-25-10-01-05 | 8 mm | ±0.127 mm | 6-pin LEMO | Shorter cable option |
| 330102-03-25-10-02-05 | 8 mm | ±0.127 mm | 6-pin LEMO | High-temperature version |
| 330102-05-25-15-01-05 | 8 mm | ±0.254 mm | 6-pin LEMO | Extended range |
| 330102-05-30-10-01-05 | 8 mm | ±0.127 mm | 6-pin LEMO | For high-speed shafts |
| 330102-05-25-10-03-05 | 8 mm | ±0.127 mm | 6-pin LEMO | Longer cable variant |
6 Popular الطرازs from the Same العلامة التجارية
| الطراز Number | Tip Diameter | Sensing Range | Cable Length | Notes |
|---|---|---|---|---|
| 330102-00-16-90-02-05 | 8 mm | ±0.127 mm | 3 m | Standard 3300 XL probe |
| 330102-00-90-10-02-00 | 8 mm | ±0.127 mm | 3 m | High linearity |
| 330102-00-88-10-02-05 | 8 mm | ±0.127 mm | 3 m | Vibration optimized |
| 330102-00-80-10-01-00 | 8 mm | ±0.127 mm | 3 m | Standard industrial use |
| 330102-00-79-10-02-05 | 8 mm | ±0.127 mm | 3 m | High-temperature version |
| 330102-00-05-25-10-01-05 | 8 mm | ±0.127 mm | 3 m | Compact design |
