Product الوصف

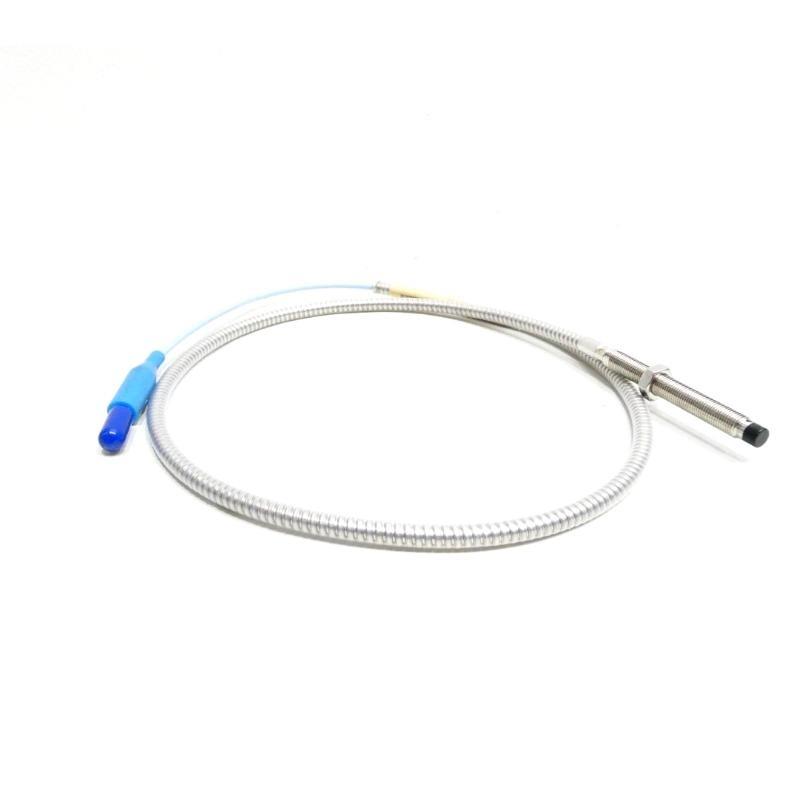

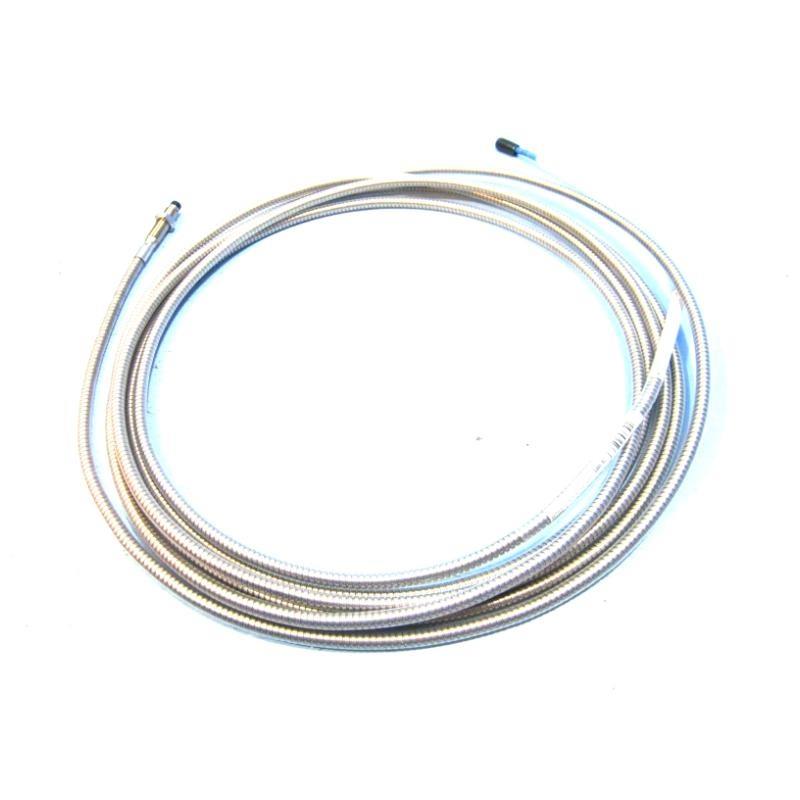

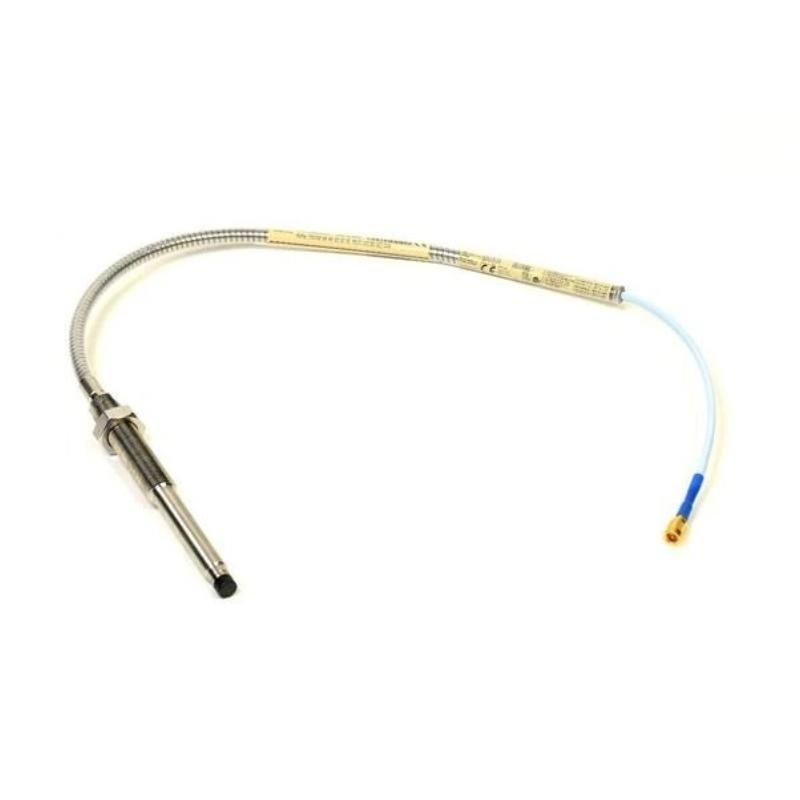

The Bently Nevada 330102-00-20-10-01-00 is part من the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements on fluid-film bearing machinery. It features a rugged armored design, enhanced RFI/EMI immوحدةy, and ClickLoc connectors for secure and tool-free installation. The probe system outputs a voltage proportional to the gap between the probe tip and the target surface, supporting both static and dynamic monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread | 3/8-24 UNF |
| Total Length | 2.0 m |
| الوزن | 0.646 kg |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Operating Temp. (Probe) | -52°C to +177°C |
| Operating Temp. (Sensor) | -52°C to +100°C |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter | ≥50.8 mm (recommended ≥76.2 mm) |
| Output Sensitivity | 7.87 V/mm ±5% (5m system) |
| Armor | Stainless steel with FEP outer jacket |
Applications
-
Vibration monitoring on turbines, compressors, and pumps
-
Shaft position and displacement measurement
-
Keyphasor signal generation for rotational speed
-
Overspeed protection systems (with appropriate application note)
Advantages
-
Fully compliant with API 670 standard
-
Backward and forward compatible with non-XL systems
-
ClickLoc connectors prevent loosening without tools
-
Enhanced RFI/EMI immوحدةy for reliable operation in harsh environments
-
Rugged armored cable for mechanical protection
-
No need for component matching or recalibration
FAQ
Q1: What is the primary use من this probe?
A1: It is used for measuring vibration and position on rotating machinery such as turbines and compressors.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it is backward and forward compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: Does it meet API 670 requirements?
A3: Yes, the 3300 XL 8 mm system complies fully with API 670 standards.
Q4: What is the recommended minimum shaft diameter for accurate measurement?
A4: At least 50.8 mm, with 76.2 mm recommended for best performance.
Q5: How is the connector secured?
A5: Using ClickLoc connectors which lock with a click and require no tools.
Q6: Can it operate in high-temperature environments?
A6: The standard probe is rated up to 177°C, with ETR variants rated higher.
Q7: What is the linear measurement range?
A7: 2 mm (80 mils), beginning approximately 0.25 mm from the target.
Q8: Does it require calibration to specific target material?
A8: Yes, it is factory-calibrated to AISI 4140 steel; other materials are available upon request.
Q9: How is the probe protected against liquid ingress?
A9: The armored version provides mechanical and environmental protection.
Q10: What is the total length من this model?
A10: This specific model has a total length من 2.0 meters.
Related الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-20-10-02-00 | XL 8mm, unarmored | 2.0 m | 0.450 kg |
| 330103-00-20-10-02-00 | XL 8mm, M10 thread, unarmored | 2.0 m | 0.450 kg |
| 330104-00-20-10-02-00 | XL 8mm, M10 thread, armored | 2.0 m | 0.646 kg |
| 330105-02-20-10-02-00 | XL 8mm, reverse mount | 2.0 m | 0.500 kg |
| 330192-00-20-10-02-00 | XL 8mm ETR, armored | 2.0 m | 0.650 kg |
| 330141-00-20-10-02-00 | XL 8mm smooth case, armored | 2.0 m | 0.646 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 3300/42M-01-00 | Proximitor Seismic Monitor | — | — |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | — | — |
| 3500/44M | Aeroderivative Monitor | — | — |
| 3500/22M | Transient Data Interface Module | — | — |
| 3500/60 | Temperature Monitor | — | — |
| 3500/20 | Rack Interface Module | — | — |
