Product الوصف

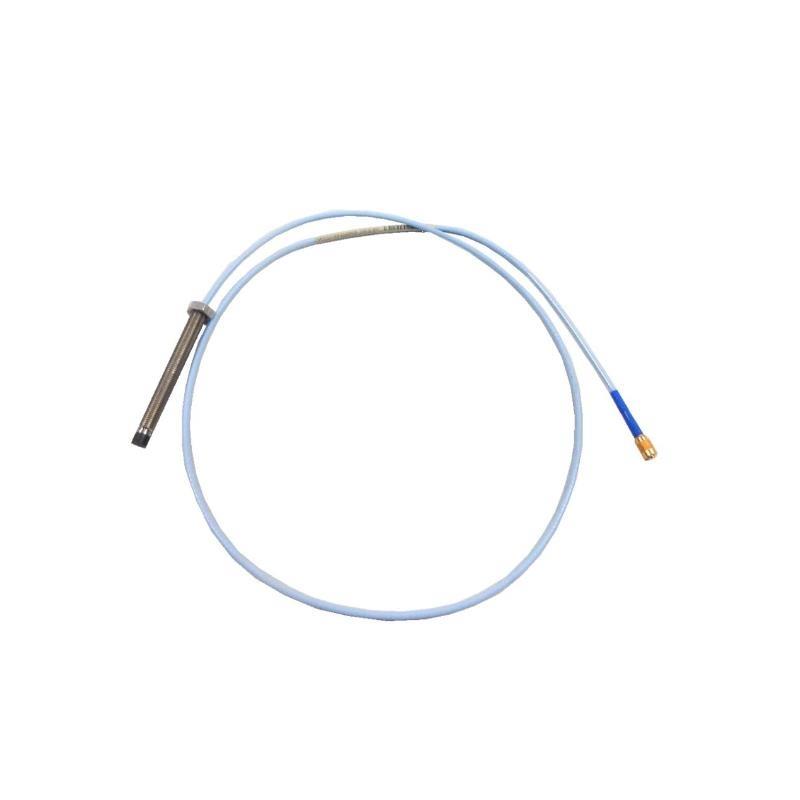

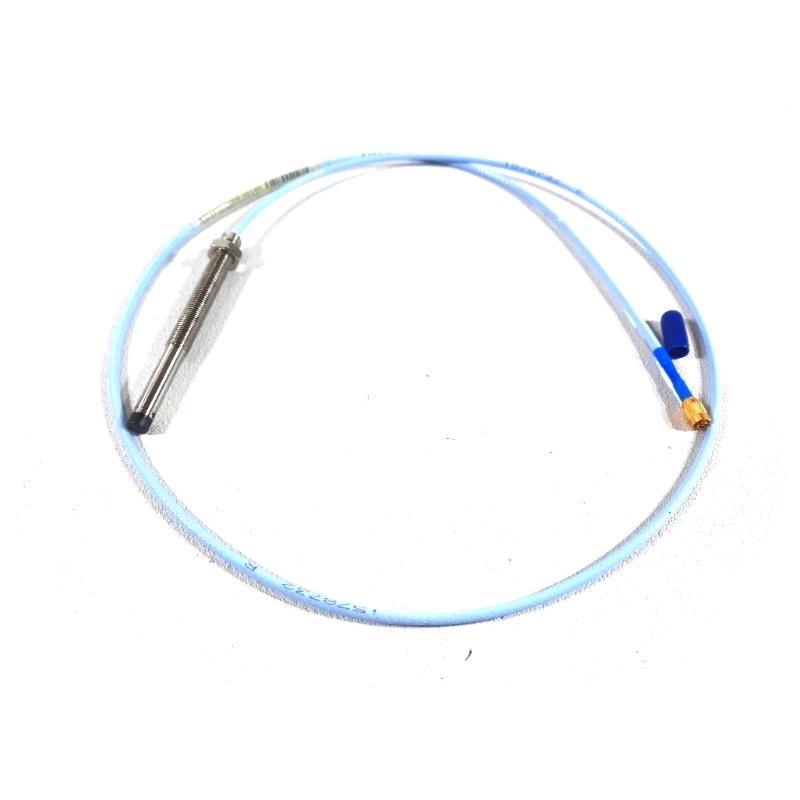

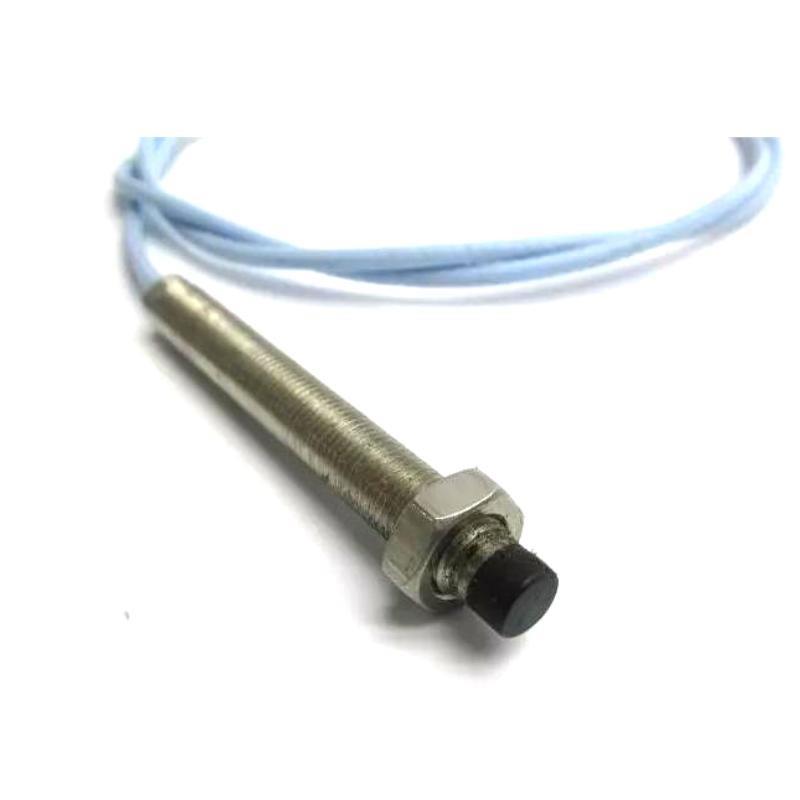

The Bently Nevada 330101-00-96-10-02-CN is part من the 3300 XL 8 mm Proximity Transducer System. This system is designed for non-contact measurement من static and dynamic parameters, including shaft vibration and position. It includes a proximity probe, extension cable, and Proximitor sensor. The system is optimized for compatibility, accuracy, and rugged industrial environments, with full compliance to API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Probe Material | PPS tip, 303/304 stainless steel housing |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Cable Type | 75Ω triaxial, FEP insulation (FluidLoc option available) |
| Gap Measurement Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Temperature Range | -52°C to +177°C (standard), up to +218°C (ETR) |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Minimum Target Diameter | 15.2 mm |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥ 76.2 mm) |
| Connector Type | ClickLoc gold-plated miniature coaxial connectors |
| Environmental Rating | CE compliant, SIL 2/3 certified, RoHS, ATEX, CSA |
Applications
-
Shaft vibration monitoring on turbines, compressors, and motors
-
Radial and axial position measurements
-
Speed and Keyphasor reference measurements
-
Fluid-film bearing condition monitoring
-
High-density installation in hazardous areas
Product Advantages
-
API 670 compliant system design
-
ClickLoc connectors ensure secure, tool-free installation
-
Rugged construction with improved tip and cable retention (TipLoc and CableLoc)
-
Interchangeable components reduce calibration needs
-
Wide temperature and EMI/RFI resistance for harsh environments
-
FluidLoc option to prevent oil migration along the cable
-
DIN or panel mount flexibility
FAQ
Q1: What is the main use من the 330101-00-96-10-02-CN probe?
A1: It is primarily used for non-contact vibration and position monitoring on rotating equipment.
Q2: Can this probe be used in hazardous areas?
A2: Yes, it complies with ATEX, CSA, and IECEx certifications for Zone 0 and Zone 2 environments.
Q3: What is the recommended gap setting for this probe?
A3: Approximately 1.27 mm (50 mils) corresponding to -9 Vdc output.
Q4: Is the 330101-00-96-10-02-CN interchangeable with older Bently Nevada probes?
A4: Yes, it is backward compatible with 3300 non-XL 5 mm and 8 mm systems.
Q5: What is the total system length من this probe?
A5: 1.0 meter, which does not require an extension cable.
Q6: What is the maximum operating temperature?
A6: +177°C for the standard version; up to +218°C for the ETR version.
Q7: Does the probe require calibration?
A7: Factory-calibrated to AISI 4140 steel; no bench calibration is required if used with matching components.
Q8: What is the frequency response من the system?
A8: 0 to 10 kHz with ±3 dB deviation.
Q9: What kind من connector does the probe use?
A9: It uses gold-plated ClickLoc miniature coaxial connectors.
Q10: Can the system detect overspeed?
A10: Yes, it is suitable for tachometer and overspeed applications when properly configured.
Related or Same-Series الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-96-10-02-CN | 3300 XL 8 mm Probe, Standard Cable | 1.0 m | 0.323 kg |
| 330102-00-20-10-02-00 | 3300 XL 8 mm Probe with Armor | 2.0 m | 0.45 kg |
| 330103-00-04-10-02-00 | Metric Thread (M10 x 1), No Armor | 1.0 m | 0.32 kg |
| 330105-02-12-10-02-00 | Reverse Mount, UNF Thread | 1.0 m | 0.33 kg |
| 330140-00-10-02-00 | Smooth Case, No Armor | 1.0 m | 0.32 kg |
| 330191-00-20-10-02-00 | ETR Probe, UNF Thread, No Armor | 2.0 m | 0.34 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application | الوزن |
|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Probe, M10 Thread, with Armor | Vibration monitoring in small shafts | 0.35 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5 m system, Panel | Panel-mounted position monitoring | 0.7 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration and axial displacement | 0.8 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | Data acquisition and analysis | 0.9 kg |
| 3500/15-05-01-00 | Power Supply Module | Rack-mounted 3500 Series systems | 0.6 kg |
| 3500/94M | VGA Display Interface | System display and diagnostics | 1.0 kg |
