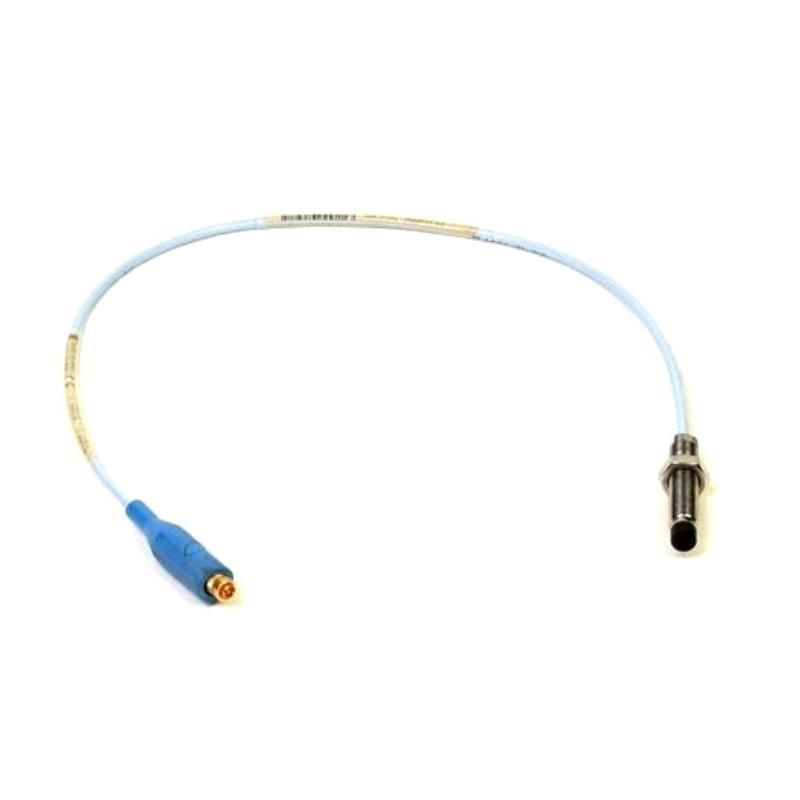

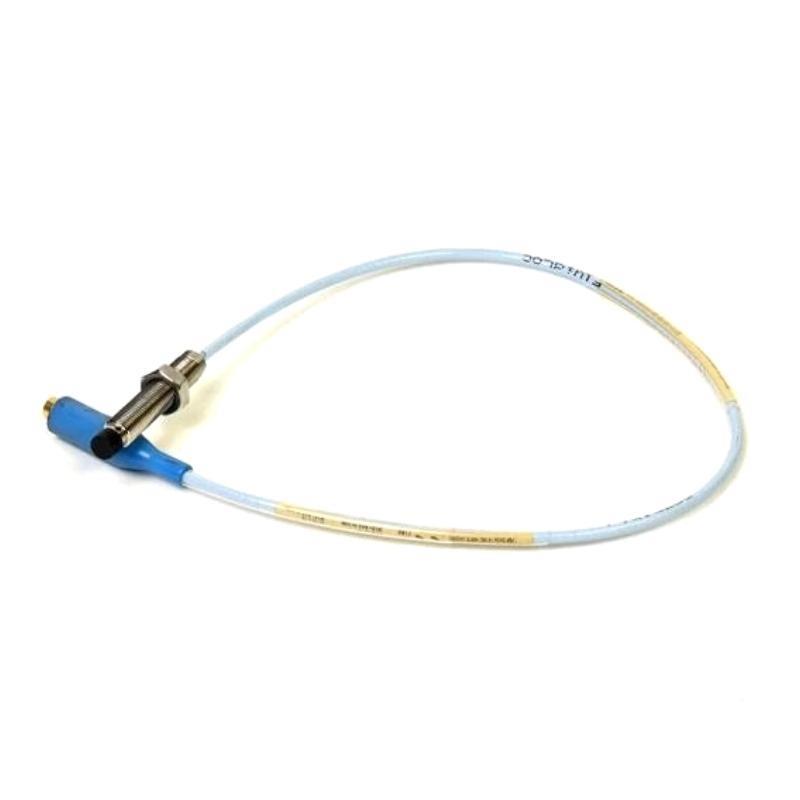

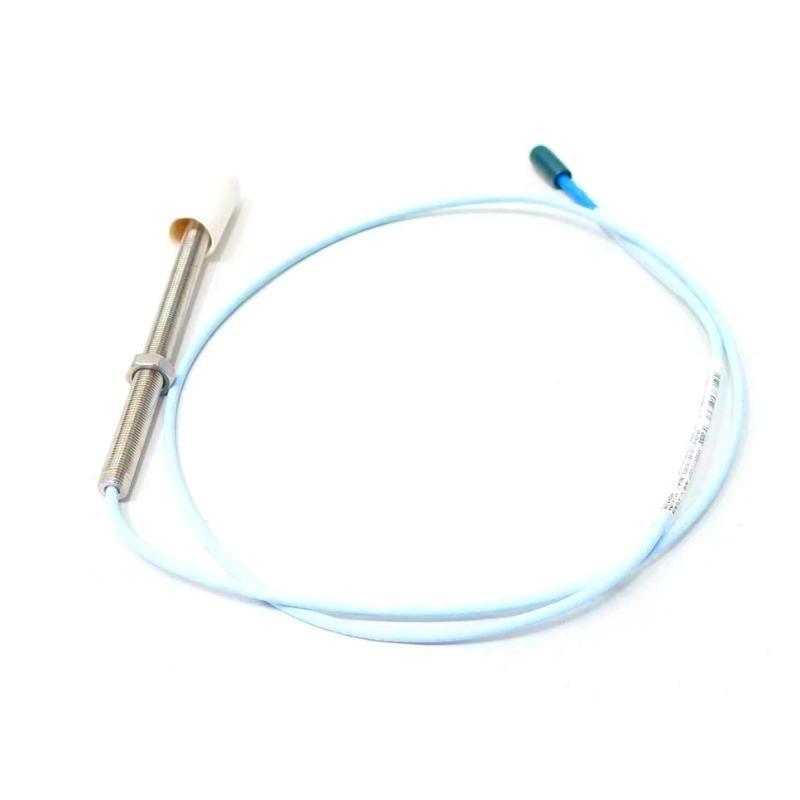

The Bently Nevada 330101-00-65-10-11 is part من the 3300 XL 8 mm Proximity Transducer System. This system includes a proximity probe, extension cable, and Proximitor sensor, designed for accurate non-contact vibration and position measurements. It is suitable for fluid-film bearing machines, turbine shaft monitoring, and Keyphasor reference applications. The probe منfers high durability, EMI immوحدةy, and ease من installation with its ClickLoc connector design.
Applications
-
Shaft vibration and position monitoring
-
Keyphasor and speed sensing
-
Fluid-film bearing condition monitoring
-
Turbomachinery diagnostics
-
Overspeed protection systems
-
Electrical insulation-critical environments
Advantages
-
Fully API 670 compliant (mechanical, range, stability)
-
ممتاز EMI/RFI immوحدةy — suitable for high-interference environments
-
SpringLoc terminal strips for faster wiring
-
TipLoc and CableLoc patented designs for robust field performance
-
Interchangeable components with other 3300-series systems
-
Extended temperature variants available (up to 260°C cable)
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | AISI 303/304 Stainless Steel |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 – 10 kHz, +0/-3 dB |
| Operating Temperature | –52°C to +177°C (Probe), –52°C to +100°C (Sensor) |
| Minimum Shaft Diameter | 50.8 mm (2 in), Recommended: 76.2 mm (3 in) |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Connector Type | Miniature ClickLoc |
| Pressure Seal | Viton® O-ring (differential pressure capable) |
| Compliance | SIL2/SIL3, CE, FCC, ATEX, IECEx |
FAQ
Q1: What material is the 330101-00-65-10-11 probe tip made من?
A1: It is made من PPS (Polyphenylene sulfide), منfering durability and chemical resistance.
Q2: Is the probe suitable for high-temperature environments?
A2: Yes, the standard model supports up to 177°C; extended versions support up to 218°C for the probe and 260°C for the cable.
Q3: Can I mix components with older 3300-series systems?
A3: Yes, it is backward-compatible with 3300 5 mm and 8 mm series components.
Q4: Does this model require calibration for each installation?
A4: No, all components are interchangeable and factory-calibrated to AISI 4140 steel.
Q5: What is the recommended gap for optimal performance?
A5: The recommended gap setting is 1.27 mm (50 mils).
Q6: How is the probe connected?
A6: Via gold-plated ClickLoc connectors that require only finger-tight installation.
Q7: Is the system compliant with API 670 standards?
A7: Yes, it meets mechanical configuration, linear range, and accuracy requirements.
Q8: What is the minimum shaft diameter supported?
A8: The minimum is 50.8 mm, but 76.2 mm is recommended for best accuracy.
Q9: Does the system منfer EMI/RFI immوحدةy?
A9: Yes, it meets CE mark standards without shielded conduit.
Q10: Can the probe withstand high-pressure sealing environments?
A10: Yes, it is designed with a Viton® O-ring for differential pressure sealing.
Recommended Related الطرازs (Same Series)
| الطراز Number | الوصف | Total Length | الوزن |
|---|---|---|---|
| 330101-00-05-10-11 | 3300 XL 8 mm Probe, 0.5 m standard cable | 0.5 m | 0.270 kg |
| 330101-00-20-10-11 | 3300 XL 8 mm Probe, 2.0 m standard cable | 2.0 m | 0.380 kg |
| 330102-00-10-10-11 | 3300 XL 8 mm Probe with Armor, 1.0 m | 1.0 m | 0.370 kg |
| 330103-00-10-10-11 | Metric Thread M10x1, 1.0 m standard cable | 1.0 m | 0.323 kg |
| 330105-02-12-10-11 | Reverse Mount, 1.0 m standard cable | 1.0 m | 0.323 kg |
| 330191-00-10-10-11 | ETR High Temp Version, 1.0 m | 1.0 m | 0.330 kg |
