مقدمة المنتج

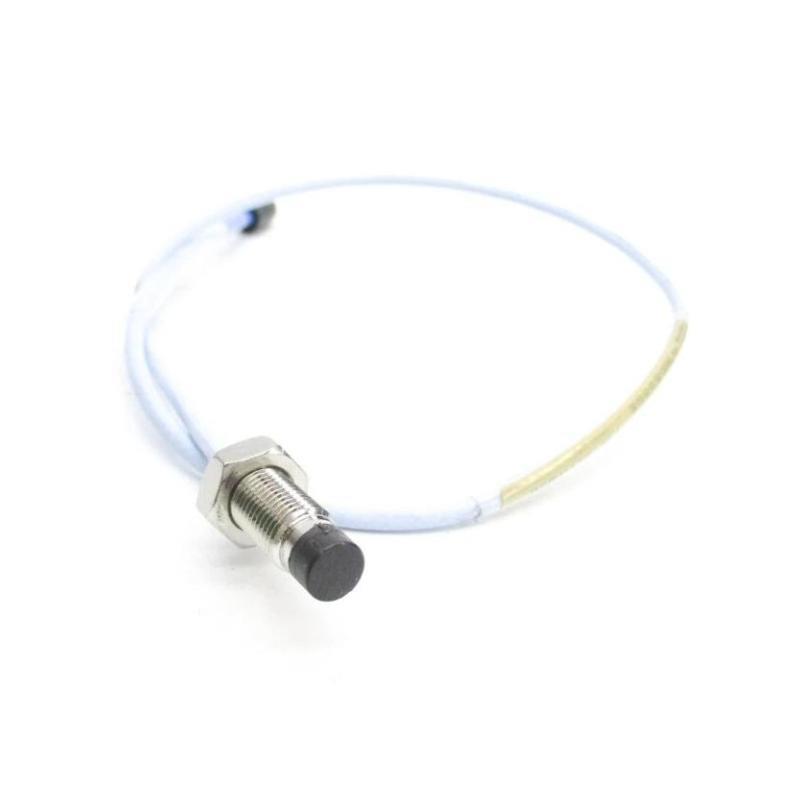

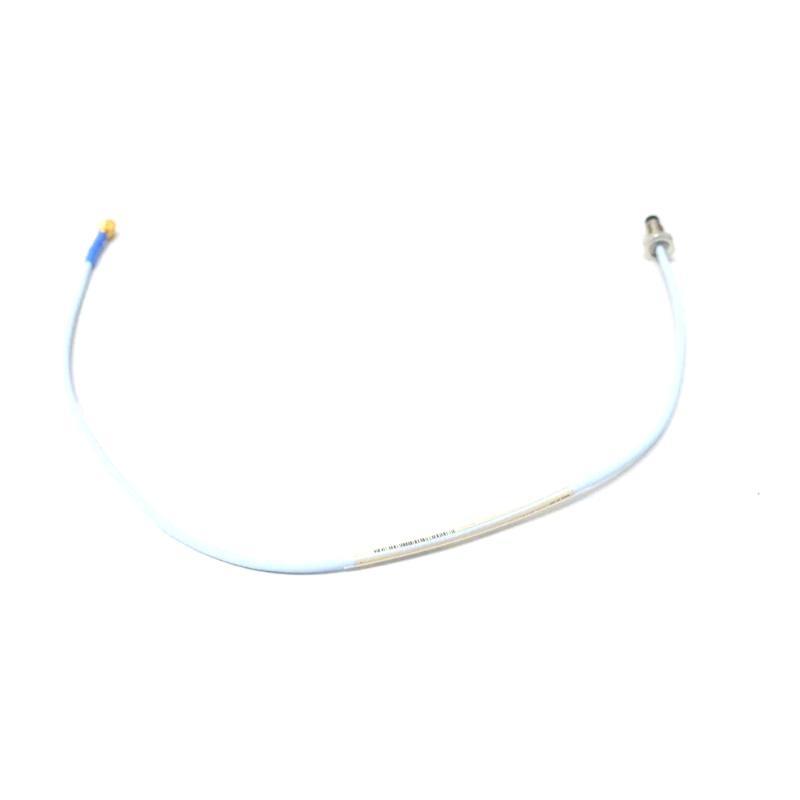

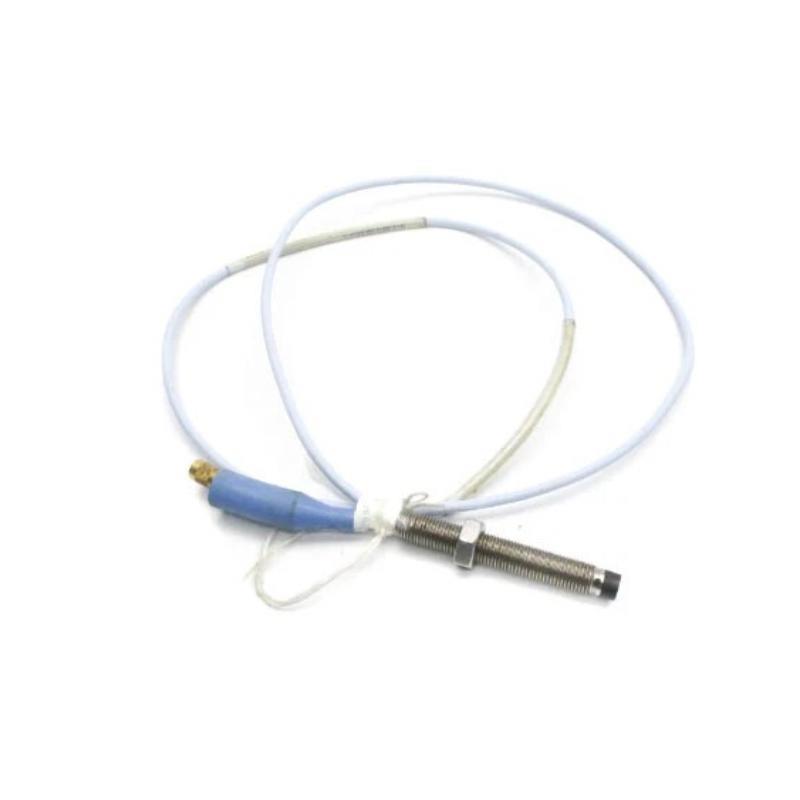

The Bently Nevada 330101-00-20-90-12-05 is part من the 3300 XL 8 mm Proximity Probe System, widely used for machinery condition monitoring and protection. It ensures accurate non-contact measurement من shaft vibration and displacement. With robust construction, high reliability, and industry-proven design, it is suitable for critical rotating machinery in power generation, petrochemical, and industrial sectors.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Family | 3300 XL 8 mm Proximity Probe |
| رقم القطعة | 330101-00-20-90-12-05 |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Length | 2.0 in (standard for this variant) |
| Total Length | 9.0 m |
| Connector Type | ClickLoc (90° angle) |
| الوزن | 2.907 kg |
| Operating Temperature | -35 °C to +180 °C |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Interchangeability | Fully interchangeable with other 3300 XL 5 mm and 8 mm probes |
| Certifications | متاح with CE/ATEX/IECEx approvals depending on option code |
Applications
-
Shaft vibration and displacement monitoring
-
Turbine, compressor, and pump condition monitoring
-
Axial position measurement in rotating machinery
-
Radial vibration detection in large industrial machines
-
الحالة-based maintenance in petrochemical plants and power stations
Advantages
-
High durability: PPS probe tip and rugged design withstand harsh environments.
-
Reliable performance: Maintains precise linearity over wide frequency ranges.
-
Improved retention: TipLoc technology prevents probe tip movement.
-
Strong cable system: CableLoc provides high pull strength for demanding conditions.
-
Leak protection: Optional FluidLoc option prevents oil or fluid ingress.
-
Interchangeability: Compatible across 5 mm and 8 mm XL systems for easy replacement.
FAQ
Q1: What is the measuring range من the 3300 XL 8 mm probe?
A1: It provides a linear measurement range من approximately 2 mm (80 mils).
Q2: Is the probe interchangeable with older 3300 series probes?
A2: Yes, the 3300 XL series is backward compatible with earlier systems.
Q3: Can the probe withstand high-temperature environments?
A3: Yes, it supports continuous operation from -35 °C to +180 °C.
Q4: What industries commonly use this probe?
A4: Power generation, petrochemical, oil & gas, and heavy industrial applications.
Q5: What is the advantage من the PPS probe tip?
A5: It improves wear resistance and chemical resistance compared to earlier designs.
Q6: How is cable retention improved in this model?
A6: The CableLoc design ensures pull strength من up to 133 N (30 lbf).
Q7: What connector type does this part use?
A7: It uses the ClickLoc 90° connector for secure and repeatable connection.
Q8: Can the probe be used for axial position monitoring?
A8: Yes, it is suitable for both radial vibration and axial displacement monitoring.
Q9: How heavy is the probe including cable?
A9: The total weight is approximately 2.907 kg for the 9 m length.
Q10: What Proximitor sensor is compatible with this probe?
A10: It is designed to work with the 3300 XL Proximitor Sensor (model 330180).
Related الطرازs in the Same Series
| الطراز Number | Cable Length | Case Length | الوزن | Connector Type |
|---|---|---|---|---|
| 330101-00-12-05-02-00 | 5 m | 2.0 in | 1.65 kg | Straight |
| 330101-00-08-10-02-00 | 1 m | 2.0 in | 0.55 kg | Straight |
| 330101-00-20-90-02-CN | 9 m | 2.0 in | 2.90 kg | ClickLoc 90° |
| 330101-00-07-10-02-00 | 0.5 m | 2.0 in | 0.30 kg | Straight |
| 330101-00-15-10-02-00 | 7.5 m | 2.0 in | 2.40 kg | Straight |
| 330101-00-25-10-02-00 | 12 m | 2.0 in | 3.90 kg | Straight |
أخرى Popular Bently Nevada الطرازs
| الطراز Number | Product Type | Application | Key Feature |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Shaft vibration monitoring | 6 m cable length |
| 330104-00-06-50-01-00 | 3300 XL 8 mm Proximity Probe | Machinery protection | Hazardous area certified |
| 330180-91-CN | 3300 XL Proximitor Sensor | Probe interface | CE/ATEX certified |
| 330103-00-03-90-12-CN | 3300 XL 8 mm Probe | Compact machinery | 3 m cable with ClickLoc |
| 31000-29-05-00-060-01-02 | Proximity Probe Housing | Probe installation | Rugged stainless steel |
| 3300-20-XX-XX | 3300 Proximitor Sensor | General machinery | High reliability analog output |
