مقدمة المنتج

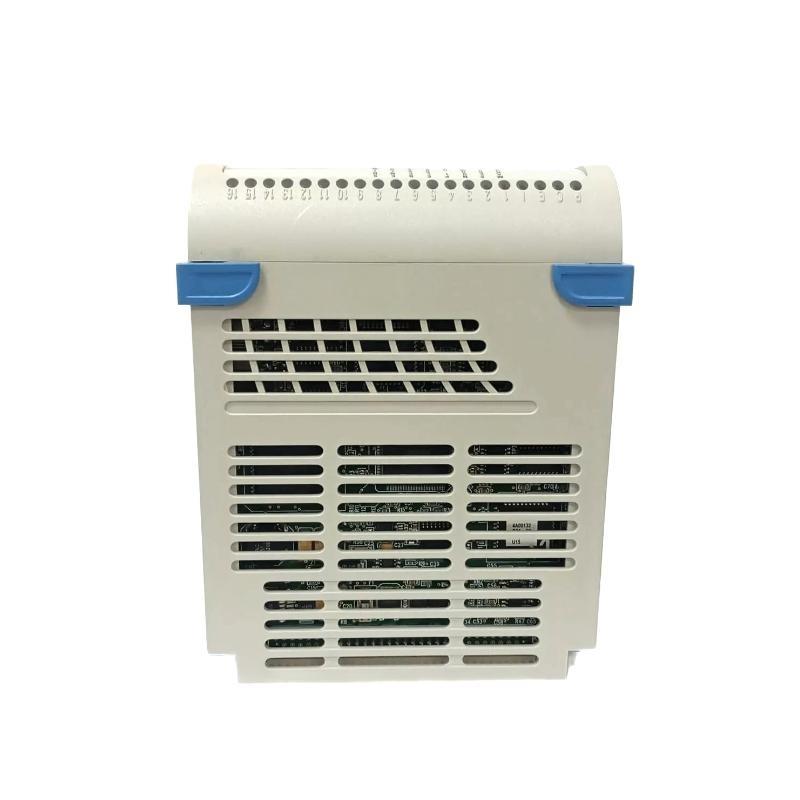

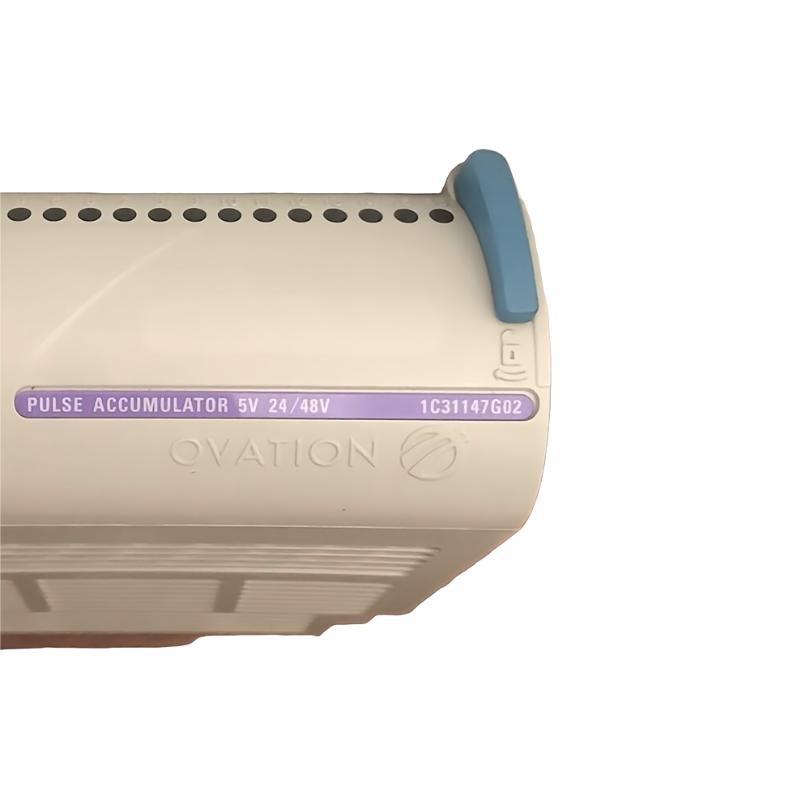

The Ovation 1C31147G02 Pulse Accumulator Module is a high-performance input module designed for use with Emerson’s Ovation™ control systems. This module is essential for applications that require precise pulse accumulation, such as in metering, flow measurement, or counting processes. It is capable من receiving and accumulating pulses from various input devices, including flowmeters, counters, or position sensors, and then converting these pulses into usable data for process control systems.
The 1C31147G02 Pulse Accumulator Module supports multiple applications in industries such as water treatment, power generation, and oil & gas, where accurate pulse-based measurements are essential. With robust design features, high accuracy, and seamless integration with Ovation control systems, this module ensures that the control systems are able to handle pulse-based signals effectively.
مواصفات المنتج
Here are the detailed specifications for the Ovation 1C31147G02 Pulse Accumulator Module:
| Parameter | Value |
|---|---|
| الطراز | 1C31147G02 |
| Input Type | Pulse Inputs (contact closures) |
| Number من Channels | 4 Channels |
| Input Voltage Range | 10-30 V DC |
| Output Type | Digital Output |
| Operating Temperature | -20°C to +70°C |
| Dimensions (L x W x H) | 152 x 107 x 38 mm |
| الوزن | 0.8 kg |
| Response Time | < 100 ms |
| Mounting Type | DIN Rail |
| Protection Features | Over-voltage, Over-current, Short-circuit |
| Certification | UL, CE, RoHS |
| Communication Protocol | Ovation Control System |
Product Applications
The Ovation 1C31147G02 Pulse Accumulator Module can be used in various industrial applications where pulse-based signals need to be accumulated or processed. Some typical applications include:
-
Flow Measurement: Used in systems that measure flow rates using pulse-generating flow meters, such as water treatment plants or chemical manufacturing processes.
-
Energy Metering: Ideal for energy management systems where the consumption من electricity, water, or gas is tracked using pulse meters.
-
Oil & Gas: In the oil and gas industry, pulse accumulators can be used for monitoring the amount من fluid pumped or the flow through pipelines, providing critical data for process optimization.
-
Power Generation: In power plants, the module accumulates pulses from generators, turbines, or other equipment to track operational parameters such as production or efficiency.
-
Industrial Automation: It can be used in various types من industrial machinery where counting or pulse-based input data is required for controlling equipment or measuring performance.
-
HVAC Systems: The module can monitor system parameters such as flow rates and pressures, providing essential data for the control من heating, ventilation, and air conditioning systems.
Product Advantages
-
High Accuracy: The 1C31147G02 منfers high-precision pulse accumulation, ensuring accurate data collection for flow and energy measurement systems.
-
Multiple Channel الدعم: With 4 input channels, the module can handle multiple pulse signals simultaneously, making it suitable for complex applications.
-
Wide Input Voltage Range: It supports an input voltage range from 10-30 V DC, ensuring compatibility with a wide range من devices.
-
Fast Response Time: The module features a fast response time من less than 100 ms, ensuring that accumulated pulses are processed quickly and efficiently.
-
Robust Protection: Built-in protection features such as over-voltage, over-current, and short-circuit protection ensure safe and reliable operation in industrial environments.
-
Easy Integration: The module integrates seamlessly with the Ovation control system, making it easy to incorporate into existing automation and control systems.
-
Compact Design: With dimensions من 152 x 107 x 38 mm, it has a compact form factor that is ideal for DIN rail mounting in control cabinets.
-
Durability and Reliability: The module is designed to operate in harsh industrial environments, with a temperature range من -20°C to +70°C.
FAQ
-
What is the purpose من the Ovation 1C31147G02 Pulse Accumulator Module?
The module is designed to accumulate pulses from input devices such as flow meters and convert them into usable data for the Ovation control system. -
How many input channels does this module support?
The 1C31147G02 supports 4 input channels, allowing for multiple pulse-based measurements. -
What is the input voltage range for the module?
The module operates within an input voltage range من 10-30 V DC. -
Can this module be used in harsh environmental conditions?
Yes, the module operates in temperatures ranging from -20°C to +70°C, making it suitable for a wide range من industrial environments. -
What protection features are included in the Ovation 1C31147G02?
The module includes protection against over-voltage, over-current, and short-circuit conditions, ensuring safe operation in industrial environments. -
How is the Ovation 1C31147G02 mounted?
The module is designed for easy mounting on a DIN rail, simplifying installation and maintenance. -
What types من signals does the module accept?
The module accepts pulse inputs from contact closures, commonly used in flow meters, energy meters, and other pulse-generating devices. -
Is the Ovation 1C31147G02 compatible with other systems besides Ovation?
This module is specifically designed for use with Ovation control systems and may not be directly compatible with other control systems. -
What is the response time من the module?
The response time من the 1C31147G02 is less than 100 ms, ensuring quick data processing. -
What industries can benefit from using the Ovation 1C31147G02 Pulse Accumulator Module?
Industries such as water treatment, power generation, oil & gas, HVAC, and industrial automation can all benefit from this pulse accumulator module for accurate data processing and control.
Recommended Related الطرازs from the Same Series
| الطراز | Number من Channels | Input Type | Response Time | Operating Temperature |
|---|---|---|---|---|
| 1C31147G01 | 2 | Pulse Inputs (contact closures) | < 100 ms | -20°C to +70°C |
| 1C31147G03 | 4 | Pulse Inputs (contact closures) | < 100 ms | -20°C to +70°C |
| 1C31147G04 | 8 | Pulse Inputs (contact closures) | < 100 ms | -20°C to +70°C |
| 1C31147G05 | 4 | Pulse Inputs (contact closures) | < 100 ms | -20°C to +70°C |
| 1C31147G06 | 6 | Pulse Inputs (contact closures) | < 100 ms | -20°C to +70°C |
| 1C31147G07 | 8 | Pulse Inputs (contact closures) | < 100 ms | -20°C to +70°C |
Recommended Popular الطرازs from Ovation and Emerson
| الطراز | Type | Channels | Input Type | Accuracy |
|---|---|---|---|---|
| 1C31125G03 | Digital Input Module | 8 | 24 V DC | ±0.1% FS |
| 1C31129G02 | Analog Output Module | 8 | 4-20 mA | ±0.1% FS |
| 1C31125G04 | Digital Output Module | 16 | 24 V DC | ±0.1% FS |
| 1C31127G01 | Temperature Input Module | 4 | RTD | ±0.1% FS |
| 1C31128G02 | Pulse Input Module | 8 | Pulse (contact closures) | ±0.1% FS |
| 1C31129G09 | Analog Input Module | 8 | 4-20 mA | ±0.1% FS |
