مقدمة المنتج

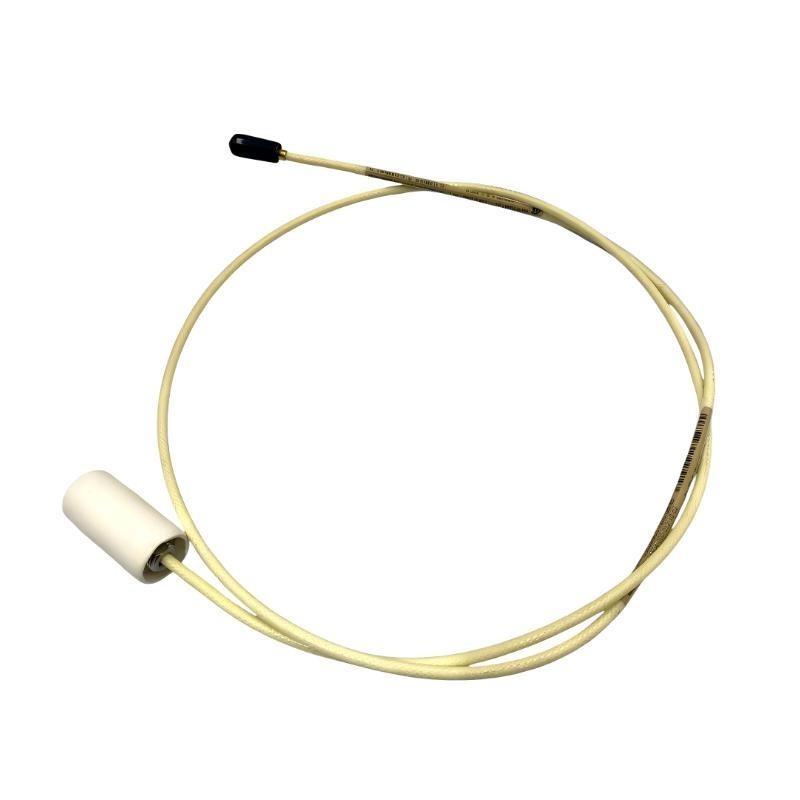

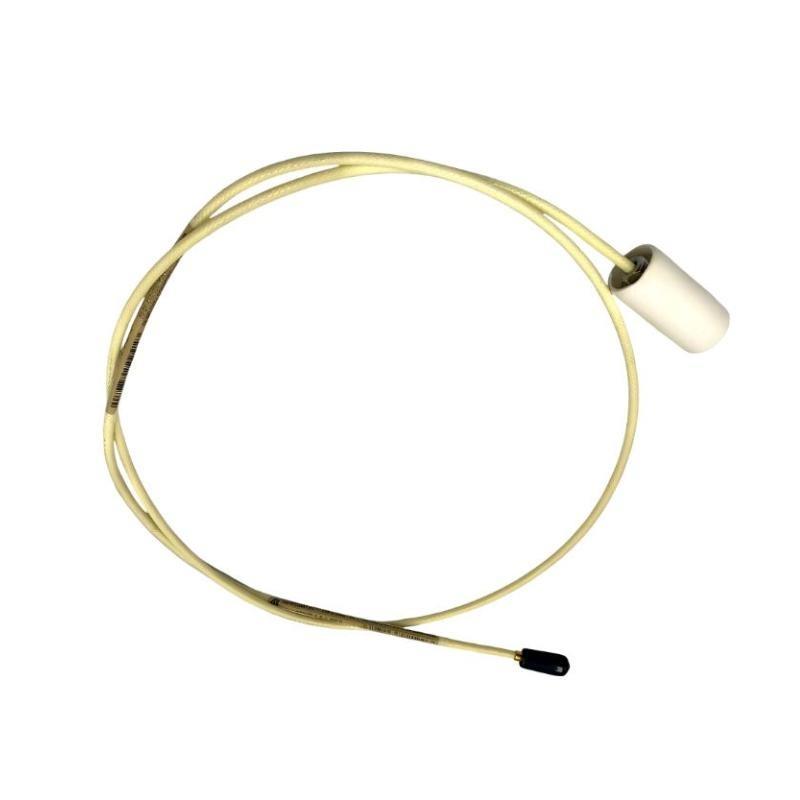

The Bently Nevada P1407030-02006 Double Probe is a precision proximity sensor designed for critical machinery monitoring in industrial environments. This double probe منfers dual measurement capabilities, providing redundancy and enhanced reliability in vibration and position monitoring for rotating machinery. Built to withstand extreme operational conditions, the sensor is suitable for applications where accurate shaft position or vibration measurement is essential for maintenance and safety.
The design incorporates robust materials and high-precision eddy current sensing technology, ensuring consistent performance under high-speed rotation, variable temperatures, and challenging installation environments. With its dual-probe configuration, this sensor allows either simultaneous measurement من two separate parameters or backup sensing, improving reliability in critical machinery applications such as turbines, compressors, and generators.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | P1407030-02006 |
| Type | Double Probe |
| Measurement Principle | Eddy Current / Proximity Sensing |
| Probe Material | Stainless Steel / High-Temperature Alloy |
| Cable Type | Shielded, Twisted Pair |
| Total Length | 1.0 meter |
| Operating Temperature | -40°C to +120°C |
| Frequency Response | DC to 25 kHz |
| Sensitivity | 50 mV/mil typical |
| Gap Range | 0.1 mm to 2.0 mm |
| Linearity | ±1% من full scale |
| Maximum Shaft Speed | 50,000 RPM |
| Output Impedance | 100 Ohms |
| الوزن | 0.22 kg |
| Environmental Protection | IP67 / NEMA 4X |
| Mounting Style | Threaded or Flanged |
Applications
The P1407030-02006 Double Probe is widely used for condition monitoring من critical rotating machinery where high reliability is required. Typical applications include:
-
Steam and gas turbines in power generation facilities
-
Compressors in oil and gas, chemical, and petrochemical plants
-
High-speed electric motors and generators
-
Process pumps and other rotating equipment in industrial plants
-
Offshore oil and gas machinery requiring redundant sensing
-
Applications requiring dual measurement من the same shaft for safety-critical monitoring
This probe is especially beneficial in environments where early detection من vibration anomalies or misalignment is crucial to prevent catastrophic failures.
Advantages
The P1407030-02006 منfers several technical and operational advantages:
-
Redundant Measurement Capability: Dual probes allow simultaneous sensing or backup to enhance reliability.
-
High Accuracy: Eddy current sensing ensures precise, repeatable measurements across variable gaps and speeds.
-
Robust Construction: Durable materials resist vibration, temperature extremes, and harsh environments.
-
Flexible Installation: Threaded and flanged mounting options with customizable cable lengths.
-
Enhanced Safety: Provides reliable monitoring for critical machinery where failure prevention is essential.
-
Low Maintenance: Shielded cables and corrosion-resistant materials reduce environmental wear.
FAQ
-
What is the maximum operational temperature for the double probe?
The probe is rated for continuous operation from -40°C to +120°C. -
Can this probe measure high-speed rotating shafts above 50,000 RPM?
The maximum recommended shaft speed is 50,000 RPM. Exceeding this may affect measurement accuracy. -
What is the recommended gap range for optimal performance?
The typical gap range is 0.1 mm to 2.0 mm, which ensures linear response and high accuracy. -
How is the linearity من the probe specified?
The probe provides ±1% من full-scale linearity across the specified operating gap. -
What type من output signal does the probe provide?
It generates an analog signal with a typical sensitivity من 50 mV/mil. -
Is this probe compatible with standard Bently Nevada monitoring systems?
Yes, it is fully compatible with 3300 XL and other Bently Nevada monitoring systems. -
What environmental protections does the probe have?
The probe features IP67/NEMA 4X protection, safeguarding against dust, water ingress, and harsh industrial conditions. -
Can the probe be mounted in multiple orientations?
Yes, the probe supports both threaded and flanged mounting styles for flexible installation. -
What type من cable is used for signal transmission?
A shielded, twisted-pair cable is used to minimize electromagnetic interference and maintain signal integrity. -
How sensitive is the probe to shaft vibration?
The probe sensitivity is approximately 50 mV/mil, providing precise and repeatable vibration measurements.
Related الطرازs (Same Series / Similar Type)
| الطراز Number | Type | Key Feature | الوزن |
|---|---|---|---|
| P1407030-02001 | Single Probe | Standard measurement | 0.20 kg |
| P1407030-02002 | Double Probe | Dual redundancy | 0.22 kg |
| P1407030-02003 | Triple Probe | Triple sensing | 0.28 kg |
| P1407030-02004 | Double Probe | Extended temperature range | 0.24 kg |
| P1407030-02005 | Single Probe | Compact design | 0.19 kg |
| P1407030-02007 | Double Probe | High-speed shaft monitoring | 0.23 kg |
Popular الطرازs (Same العلامة التجارية)
| الطراز Number | Type | Key Feature | الوزن |
|---|---|---|---|
| 3300 XL Proximity Probe | Single/Double | Standard in XL monitoring | 0.25 kg |
| 3300 XL Vibration Probe | Single | High sensitivity | 0.22 kg |
| 3300 XL Speed Probe | Single | Shaft speed detection | 0.21 kg |
| 3300 XL Core Probe | Double | Redundant sensing | 0.23 kg |
| 3300 XL Position Probe | Single | Position tracking | 0.20 kg |
| 3300 XL Temperature Probe | Single | Temperature monitoring | 0.24 kg |
