مقدمة المنتج

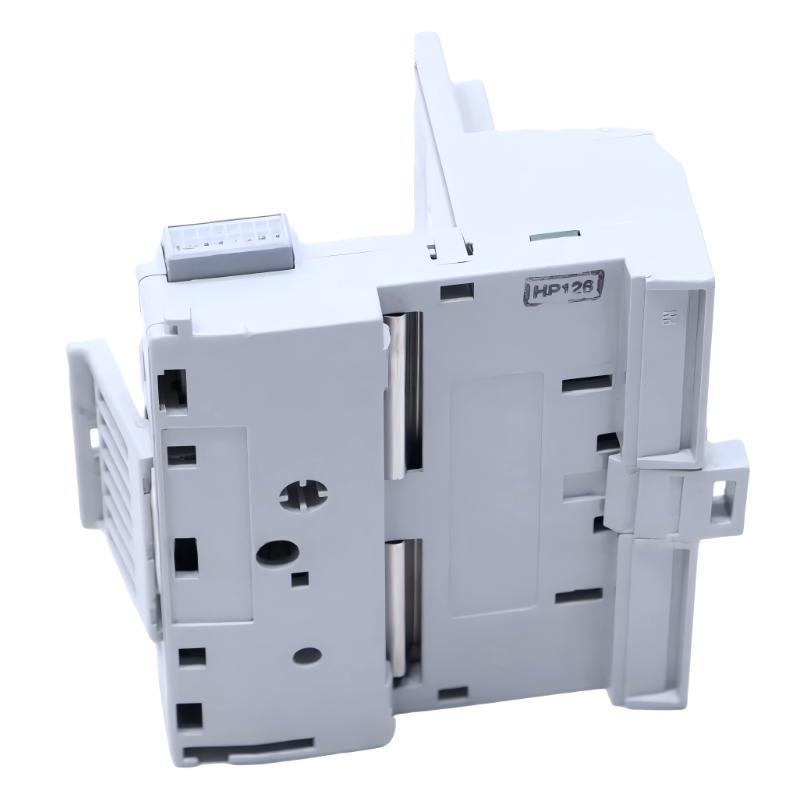

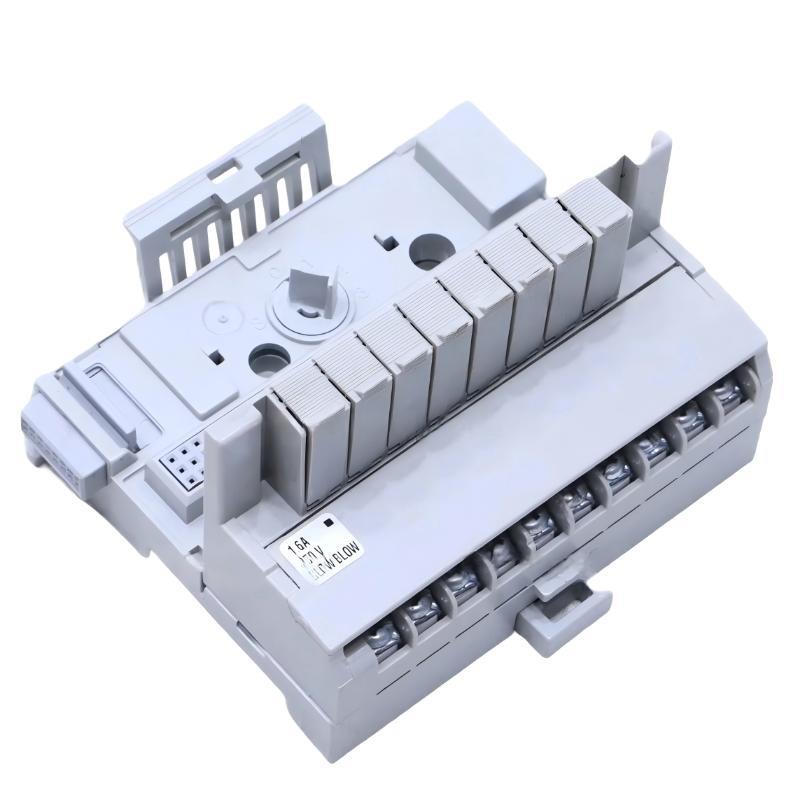

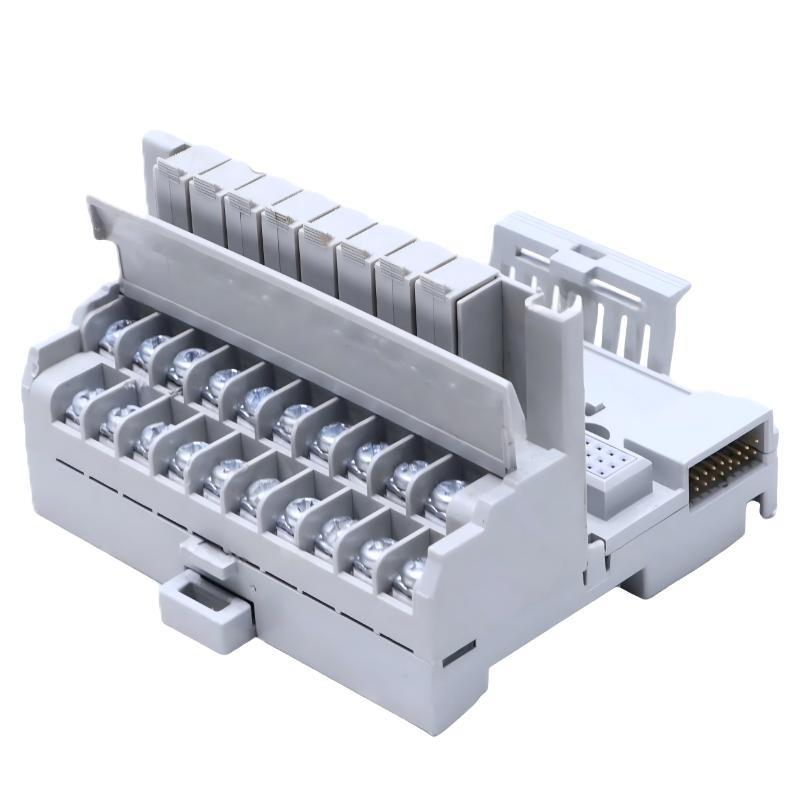

The Allen Bradley 1794-TBNF Flex I/O Terminal Base وحدة is a fused terminal base designed to provide enhanced protection and reliable wiring for FLEX I/O systems. It acts as the connection interface between I/O modules and field devices while integrating fuse protection to safeguard circuits against overcurrent conditions.
This model supports 16 I/O terminals along with 2 common terminals and 2 +voltage terminals, منfering a practical configuration for general industrial control applications. The built-in fuse feature is particularly valuable in protecting sensitive equipment and minimizing the risk من damage caused by electrical faults.
Equipped with screw-clamp terminals, the 1794-TBNF ensures secure and stable connections, while supporting wire sizes from 22 to 12 AWG. Its open-style construction and DIN rail mounting design allow for easy installation, inspection, and maintenance in control panels. This وحدة is widely used in automation systems where both wiring reliability and circuit protection are essential.
مواصفات المنتج
| Parameter | Value |
|---|---|
| Product Type | Flex I/O Terminal Base وحدة |
| System Compatibility | Allen Bradley FLEX I/O System |
| Total I/O Terminals | 16 |
| Common Terminals | 2 |
| +Voltage Terminals | 2 |
| Terminal Type | Screw Clamp |
| Wire Size | 22–12 AWG |
| Protection Type | Fused |
| Rated Current | 10 A |
| Rated Voltage | 250 VAC/DC |
| Mounting Type | DIN Rail Mount |
| Style | Open Style |
| Ingress Protection | IP20 |
| Dimensions | 94 × 94 × 69 mm |
| الوزن | 0.2 kg |
Applications
• Industrial control systems requiring integrated circuit protection
• Distributed I/O systems with sensitive field devices
• Factory automation for safe and reliable signal and power distribution
• Process control applications where overcurrent protection is critical
• Control panel installations using DIN rail mounting
• Suitable for manufacturing, energy, and process industries
Advantages
• Integrated fuse protection enhances system safety and prevents damage from overcurrent
• Screw-clamp terminals ensure secure and vibration-resistant connections
• Wide wire compatibility (22–12 AWG) supports flexible field wiring
• Reliable electrical performance for both signal and power connections
• Open-style design allows easy inspection and maintenance
• DIN rail mounting simplifies installation and panel organization
