مقدمة المنتج

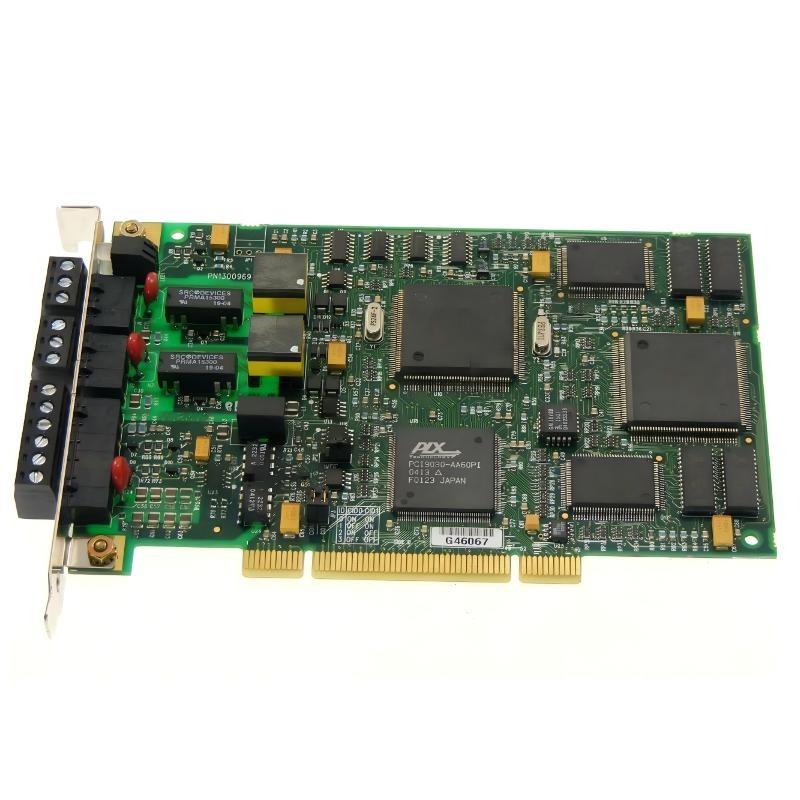

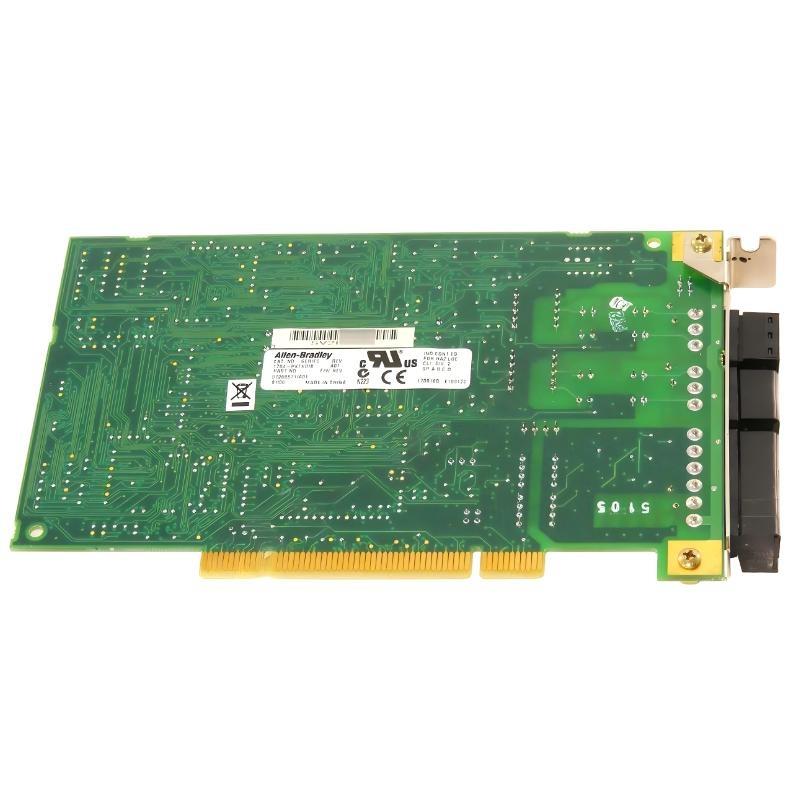

The Allen-Bradley 1784-PKTXD PCI Network Interface Card is an enhanced industrial communication interface designed for desktop PCs that require multi-channel connectivity to legacy Allen-Bradley control networks. It provides a reliable and structured solution for integrating engineering workstations into DH+, DH-485, and Remote I/O systems.
Compared to single-channel communication cards, the 1784-PKTXD introduces expanded channel capability, allowing simultaneous interaction with multiple network segments. This makes it particularly suitable for complex systems where multiple communication paths must be maintained at the same time.

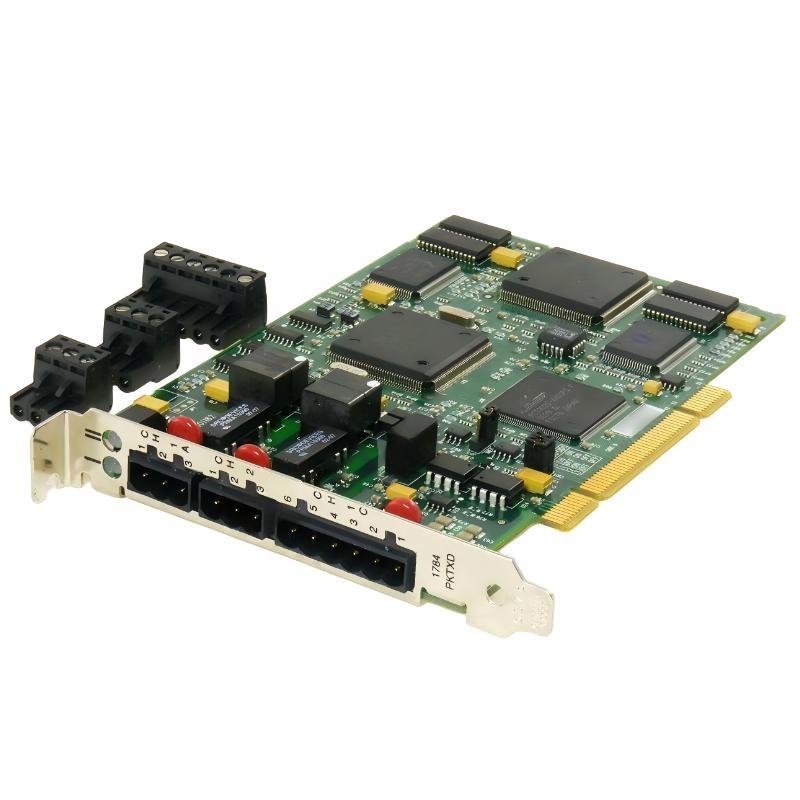

The card operates through a PCI interface compliant with version 2.3, ensuring stable data transfer and compatibility with industrial-grade PCs. It features multiple Phoenix connectors, with two channels dedicated to DH+ and Remote I/O, and one channel for DH-485 communication.
Each channel is equipped with a diagnostic LED, allowing quick identification من communication status and faults. With support for up to four modules per system and flexible driver integration, the 1784-PKTXD is widely used in system maintenance, commissioning, and long-term operation من legacy automation infrastructures.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product الطراز | 1784-PKTXD |
| الشركة المصنعة | Rockwell Automation (Allen-Bradley) |
| Communication Protocols | DH+, DH-485, Remote I/O (RIO) |
| Bus Interface | PCI (Compliant with PCI 2.3) |
| Channels | CH 1A (DH+ / RIO), CH 2 (DH+ / RIO), CH 1C (DH-485) |
| Connector Type | 3-pin Phoenix (CH 1A & CH 2), 6-pin Phoenix (CH 1C) |
| LED Indicators | 1 diagnostic/status LED per channel |
| Max Modules per System | 4 (jumper configurable) |
| Driver الدعم | RSLinx PKTx driver (DH+/DH-485), 6001-RIO driver |
| Operating System | Windows 95 / Windows NT (custom driver required for others) |
| Function | Desktop PC multi-network communication interface |
| Dimensions | 165 × 20 × 107 mm |
| الوزن | 0.14 kg |
Applications
● Multi-network PLC integration
Allows simultaneous communication with multiple DH+ and RIO networks, improving system efficiency.
● Centralized engineering workstations
Used in control rooms where one PC needs to access several controllers across different network segments.
● Legacy system support and maintenance
Provides stable communication with older Remote I/O and DH-485 systems still in operation.
● Industrial communication diagnostics
Enables detailed monitoring من multiple channels for fault detection and system analysis.
● Program management and data exchange
الدعمs reliable uploading, downloading, and monitoring من PLC programs across different networks.
Advantages
● Triple-channel communication capability
الدعمs two DH+/RIO channels and one DH-485 channel, enabling flexible network architecture.
● High system integration efficiency
Reduces the need for multiple interface cards by combining several communication paths in one module.
● Stable PCI-based communication
Direct PCI interface ensures consistent data transfer and low latency.
● Scalable configuration
الدعمs up to four cards per system, allowing expansion in large installations.
● Built-in diagnostic indication
Each channel includes a status LED for real-time monitoring and troubleshooting.
● Flexible driver compatibility
Works with RSLinx PKTx driver and specialized RIO drivers for different communication requirements.
