مقدمة المنتج

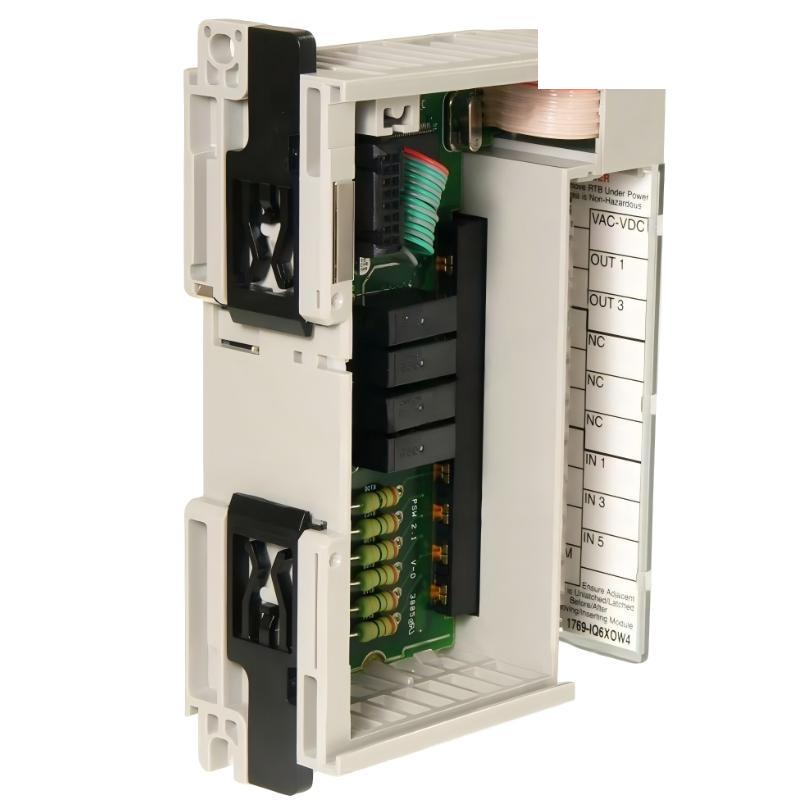

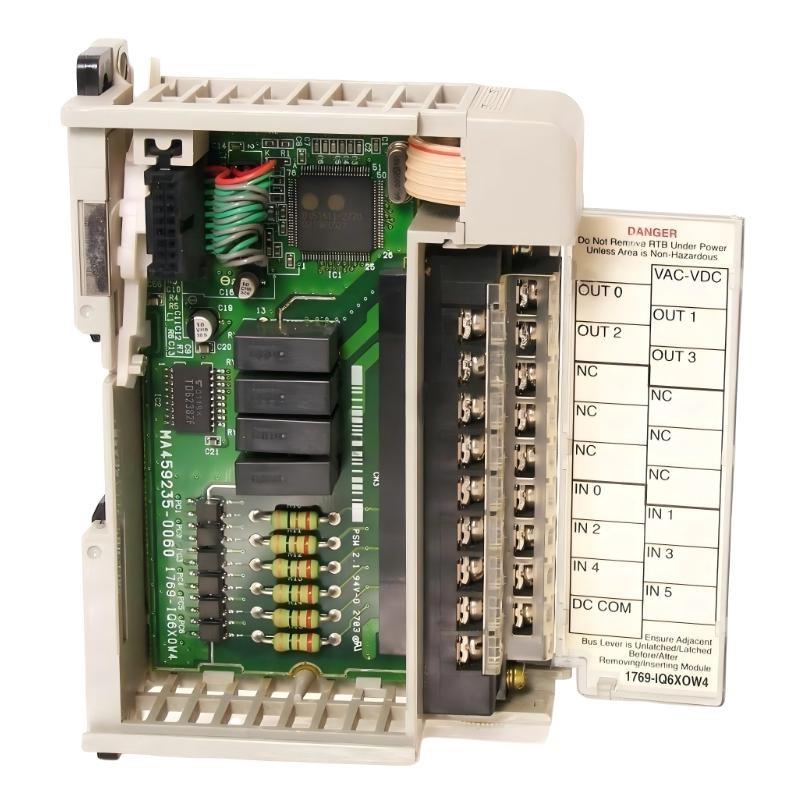

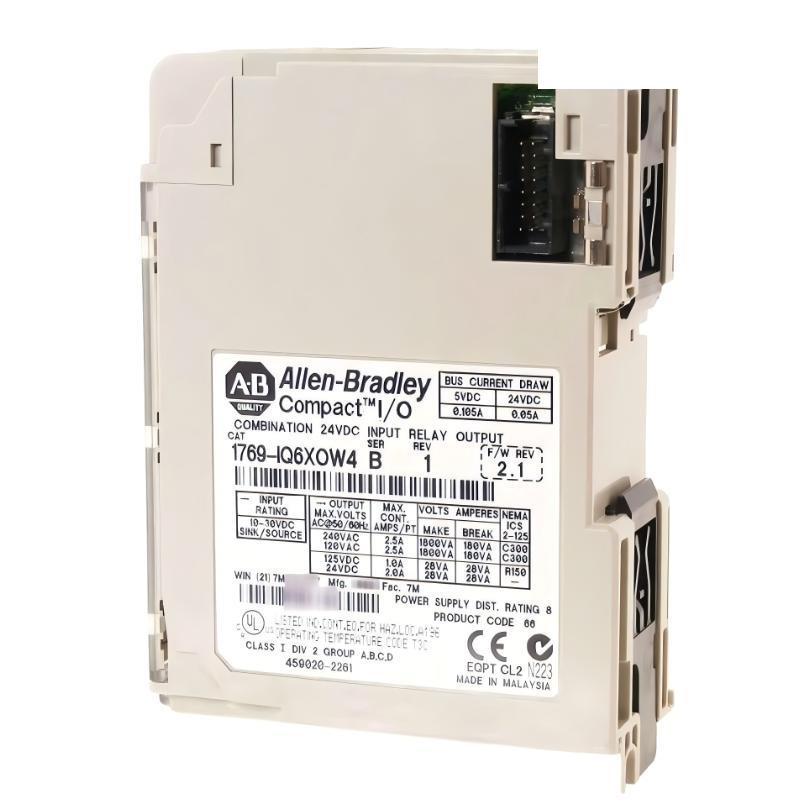

The Allen Bradley 1769-IQ6XOW4 CompactLogix Compact I/O Digital Combination Module is a versatile input/output module designed to provide both digital input monitoring and relay output control within a single compact وحدة. Manufactured by Allen Bradley, this module is engineered for seamless integration with CompactLogix PLC systems used in industrial automation.
The 1769-IQ6XOW4 module combines six digital DC input channels and four relay output channels, enabling efficient signal monitoring and device control in automation systems. The inputs operate within a signal range من 10–30 VDC and support 24 VDC sink/source configurations, making them compatible with common industrial sensors and switches. The relay outputs feature normally open contacts and support both AC and DC load switching, providing flexible control for various industrial devices.
Designed with strong electrical isolation and industrial-grade components, the module ensures reliable signal processing and safe operation even in demanding environments. Its compact form factor allows easy installation in control cabinets, reducing wiring complexity and saving panel space compared to using separate input and output modules.
The 1769-IQ6XOW4 module is widely used in manufacturing automation, machine control systems, material handling equipment, and process industries where both input detection and output switching are required in a compact automation architecture.
مواصفات المنتج
| Parameter | Value |
|---|---|
| Product الطراز | 1769-IQ6XOW4 |
| الشركة المصنعة | Allen Bradley |
| Product Type | Compact Digital Combination I/O Module |
| Input Signal Range | 10–30 VDC |
| Number من Inputs | 6 |
| Voltage Rating | 24 VDC sink/source inputs |
| Output Type | Relay, normally open contacts |
| Output Signal Range | 5–265 VAC or 5–125 VDC |
| Output Channels | 4 |
| Input Isolation | 1200 VAC for 1 s or 1697 VDC for 1 s |
| Conductor Type | Copper, 90°C |
| Wire Size | 22–14 AWG |
| System Compatibility | CompactLogix PLC systems |
| Mounting Method | DIN rail or CompactLogix backplane installation |
| Dimensions | 118 × 35 × 87 mm |
| الوزن | 0.28 kg |
Applications
• Industrial automation systems requiring both digital input monitoring and relay output control.
• Manufacturing machinery where sensors trigger control signals for relays or actuators.
• Packaging and assembly equipment requiring compact I/O integration.
• Material handling and conveyor systems monitoring sensors and controlling motors or indicators.
• Process control applications in water treatment, chemical plants, and energy facilities.
• Machine safety and interlock systems where inputs monitor conditions and outputs activate control devices.
• Distributed control systems integrated with CompactLogix PLC platforms.
Advantages
• Combination input/output design reducing the need for separate I/O modules.
• Six digital input channels supporting common DC sensor signals.
• Four relay outputs capable من switching both AC and DC loads.
• Flexible sink/source input compatibility for various field device configurations.
• High electrical isolation improving system safety and reliability.
• Compact form factor saving control cabinet space.
• Robust industrial design suitable for demanding automation environments.
• Seamless integration with CompactLogix controllers for scalable automation systems.
