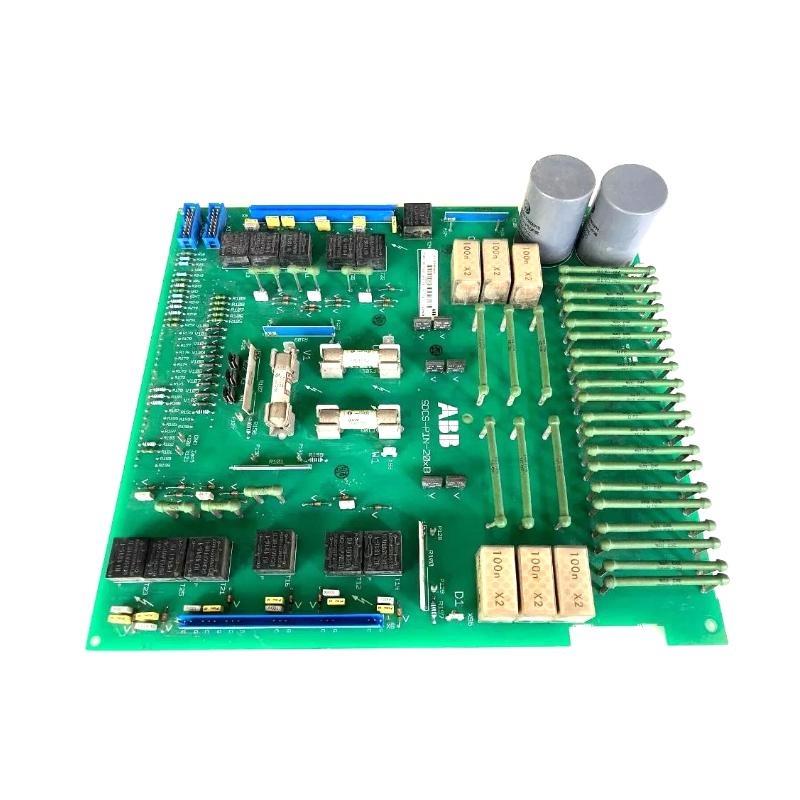

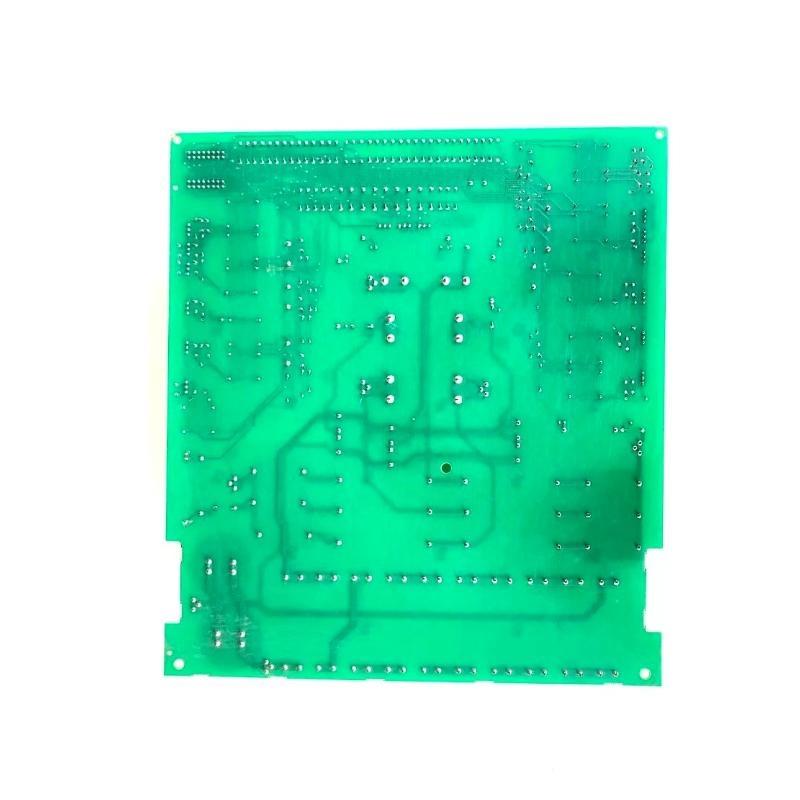

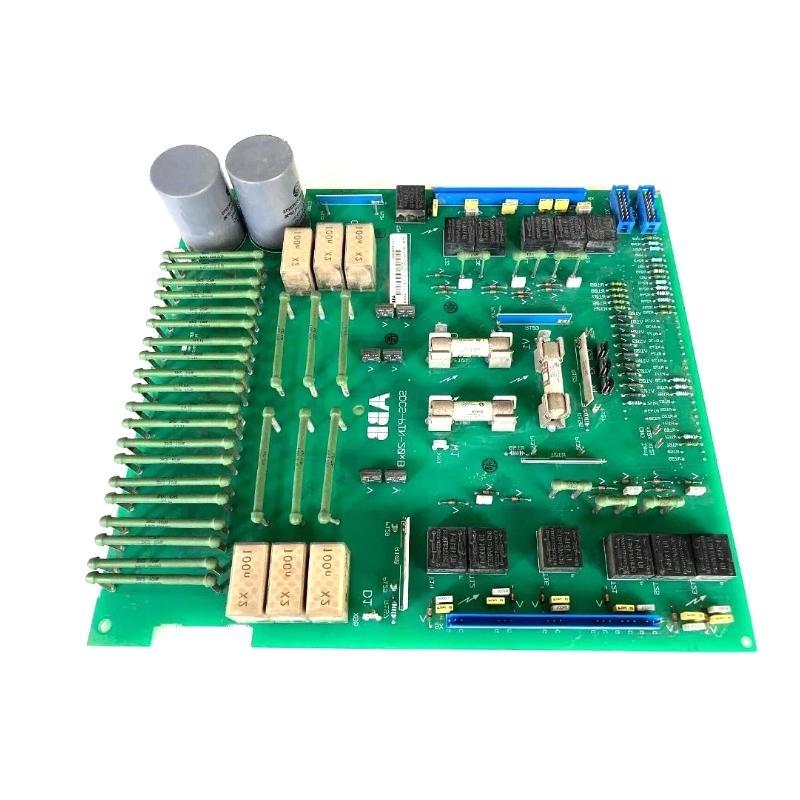

ABB SDCS-PIN-205B 3ADT312500R0001 Power Interface Board

مقدمة المنتج

The ABB SDCS-PIN-205B (3ADT312500R0001) is a robust and reliable power interface board used in ABB’s DC drive systems, particularly the DCS500 and DCS600 series. As part من ABB’s Speed Drive Control System (SDCS) architecture, this module provides the critical interface between control electronics and power modules, enabling precise signal transmission, command execution, and fault isolation in drive systems.

This board is designed to withstand harsh industrial environments and is equipped with multiple signal pathways, onboard protection circuitry, and diagnostic indicators. It plays a crucial role in managing logic-level signals, interfacing I/O functions, and coordinating drive behavior under normal and fault conditions. The SDCS-PIN-205B is widely adopted in industries requiring reliable DC drive control such as metals, pulp & paper, mining, and heavy process automation.

Technical Specifications

Applications

The SDCS-PIN-205B serves as an essential component in industrial drive systems, especially where high power reliability and interface control are required. Typical applications include:

• DC Motor Control in steel mills, paper production lines, and cable manufacturing.

• Signal Processing Interface between control CPUs and power modules.

• DC Drive Communication Backbone in ABB’s DCS500 and DCS600 platforms.

• System Retrمنitting and Upgrades, particularly for older drive panels.

• Redundant or Multi-Motor Configurations, where multiple drives need synchronized power control.

• Automation Panels in industrial process lines requiring advanced diagnostics and stable operation.

Product Advantages

• Direct Compatibility with DCS500/600 Drives – Offers seamless integration and reduces commissioning time.

• Stable Power Signal Handling – Ensures precise and noise-free communication with control and power modules.

• Built-In Diagnostic LEDs – Allows real-time fault identification and operational status checks.

• Industrial-Grade Durability – Designed for harsh environments with wide temperature and humidity tolerance.

• Ease من Replacement and Maintenance – Compact, plug-in form factor simplifies field service and minimizes downtime.

• الدعمs Complex Control Logic – Capable من managing multiple analog/digital I/O channels and high-speed command relays.

الأسئلة الشائعة (FAQ)

1. What is the core difference between SDCS-PIN-205A and SDCS-PIN-205B?
   The 205B is an updated version optimized for enhanced electrical isolation and better thermal performance in high-load DC drive environments.

2. Is SDCS-PIN-205B backward compatible with older DCS500 models?
   Yes, as long as the firmware من the drive supports the board version. Consult ABB compatibility charts before replacement.

3. What’s the main cause من failure for this board?
   Overvoltage, power spikes, or prolonged exposure to high ambient temperatures without proper ventilation.

4. Can I monitor system faults through the board directly?
   Yes, via the diagnostic LEDs which indicate operational, warning, or fault conditions.

5. Does it require any configuration or firmware update after installation?
   No firmware is needed. The board is hardware-based and pre-configured for its function in the drive system.

6. Is this board suitable for multi-motor synchronization systems?
   Yes, when used with ABB’s drive control logic, it supports parallel motor control coordination.

7. What tools are needed for replacement or installation?
   A standard screwdriver and ESD safety equipment. No special tools or sمنtware are required.

8. Can the board be installed in vertical orientation?
   Preferably horizontal for optimal heat dissipation, but vertical mounting is possible if cabinet airflow is adequate.

9. How can I prevent damage from static electricity during handling?
   Always use antistatic wrist straps and mats when unpacking or installing the board.

10. What type من cabling should be used with this interface board?
    Use shielded twisted-pair cables for analog signals and industrial-grade connectors for power/control terminals.
