Product Overview

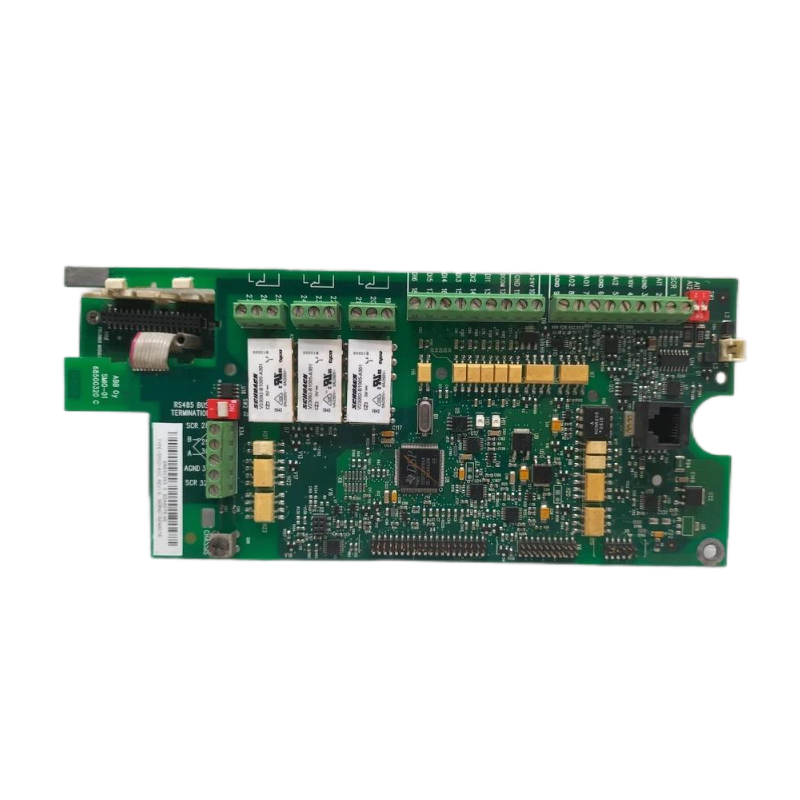

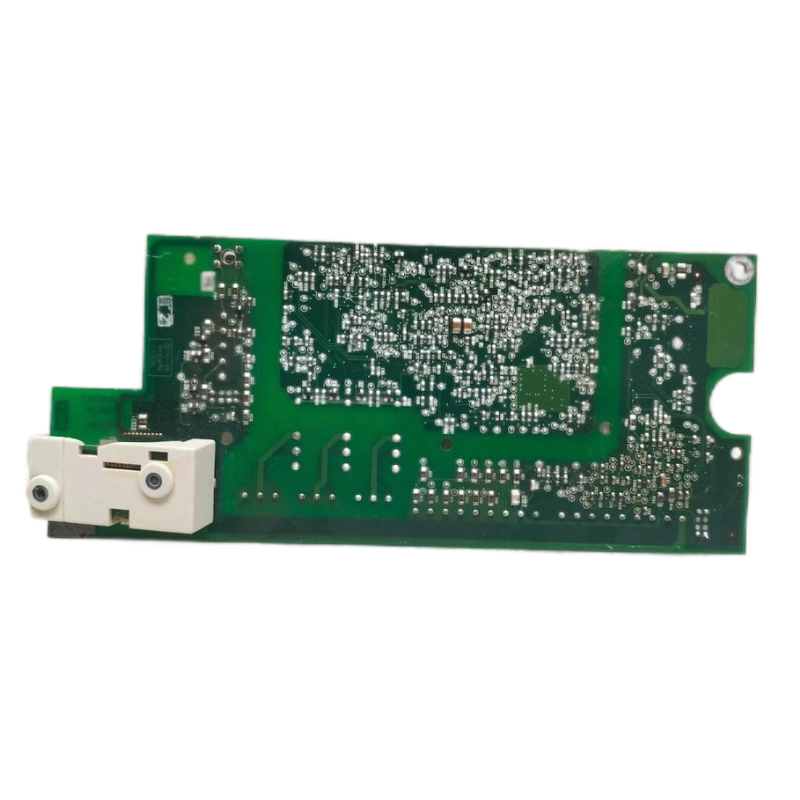

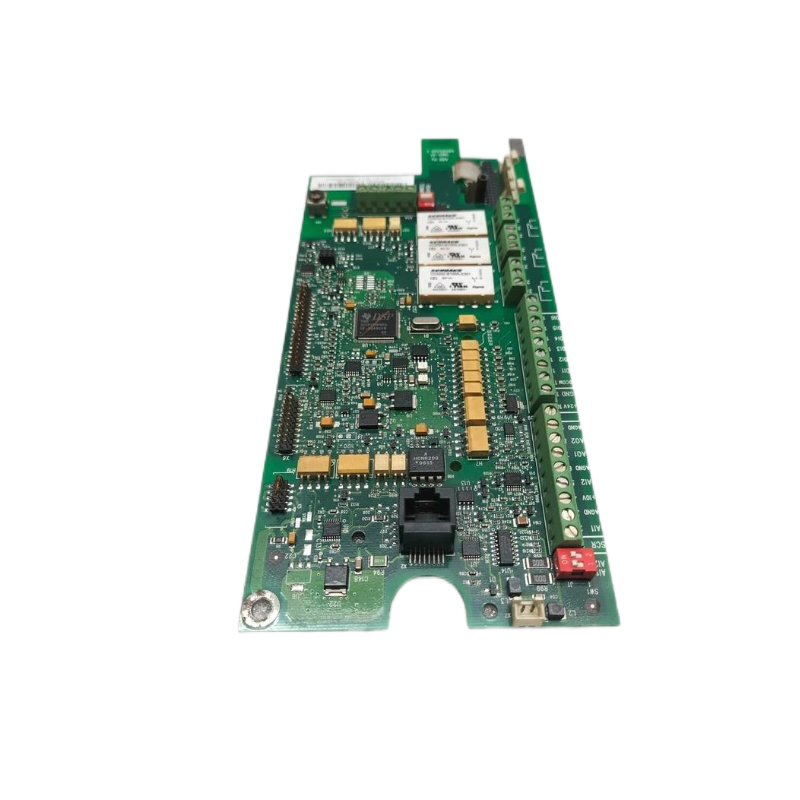

The ABB SMIO-01C 68631343 Inverter Accessories module is a versatile and reliable I/O (Input/Output) expansion interface designed to enhance the control flexibility من ABB inverter systems. As part من ABB’s advanced drive accessory lineup, the SMIO-01C enables seamless integration من external field devices, sensors, and actuators with the inverter, extending system capabilities while ensuring robust signal integrity and operational safety.
With its compact form factor, high insulation standards, and robust industrial design, the SMIO-01C 68631343 is optimized for harsh environments, making it suitable for a wide range من industries including metals, marine, paper, and process automation.
Key Features
-
I/O expansion module for ABB inverter platforms
-
Provides additional digital and analog input/output points
-
الدعمs enhanced communication between the inverter and external devices
-
Ensures high signal integrity through electrical isolation
-
Compact design for easy installation in control cabinets
-
Robust, industry-grade construction for harsh environments
-
Integrated LED indicators for real-time status and diagnostics
-
Plug-and-play compatibility with ABB drive systems
-
Suitable for both standard and demanding industrial applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ABB SMIO-01C Inverter Accessories |
| الطراز Number | 68631343 |
| Application | I/O expansion for ABB inverter and drive systems |
| Compatible Systems | ABB inverters and control platforms |
| الدعمed Signal Types | Digital Inputs/Outputs, Analog Inputs/Outputs |
| Digital Input Channels | 8 configurable digital inputs |
| Digital Output Channels | 6 configurable digital outputs |
| Analog Input Channels | 2 differential analog inputs |
| Analog Output Channels | 2 analog outputs |
| Communication Interface | Integrated with ABB inverter architecture |
| Insulation Class | Industrial-grade high electrical insulation |
| Environmental Protection | IP20 compliant, conformal coated for durability |
| Diagnostics | LED indicators for status and fault detection |
| Power Supply Requirement | 24 V DC typical |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Certifications | CE, RoHS, UL (region dependent) |
| Dimensions | 250 × 150 × 100 mm |
| الوزن | 0.118 kg |
Industry Applications
The ABB SMIO-01C 68631343 module is widely used to expand control and signal management in industries that demand high system reliability:
-
Metals & Mining: Additional I/O for conveyor, mill, and hoist inverter control
-
Pulp & Paper: Facilitates integration من sensors and actuators in paper machines
-
Marine & Offshore: Enhances control من propulsion, winch, and auxiliary inverter systems
-
Oil & Gas: Provides reliable I/O expansion for منfshore platforms and pump drives
-
Power Generation: Integrates field devices with turbine and generator inverter systems
-
Industrial Automation: الدعمs flexible signal management in manufacturing environments
Product Advantages
-
Expanded I/O Capability: Increases system flexibility for complex automation tasks
-
Reliable Signal Transmission: Maintains high-quality, interference-free data exchange
-
Easy Integration: Plug-and-play with ABB inverters ensures rapid deployment
-
Durable Industrial Design: Built for long life in harsh operating conditions
-
Enhanced Protection: High insulation and conformal coating guard against environmental hazards
-
Real-Time Monitoring: LED indicators simplify diagnostics and maintenance
-
Compact and Space-Saving: Minimizes cabinet space requirements
-
Customizable Solutions: الدعمs tailored system configurations for diverse applications
الأسئلة الشائعة (FAQ)
1. What is the primary function من the ABB SMIO-01C 68631343?
It expands the digital and analog I/O capabilities من ABB inverter systems for enhanced control and system integration.
2. Is the SMIO-01C compatible with all ABB inverters?
It is designed for specific ABB inverter platforms; compatibility should be confirmed based on system requirements.
3. What types من I/O are supported?
It منfers 8 digital inputs, 6 digital outputs, 2 analog inputs, and 2 analog outputs.
4. How is system integration performed?
The module connects directly to ABB inverters through standard interfaces, supporting plug-and-play installation.
5. Does the SMIO-01C provide environmental protection?
Yes, it complies with IP20 standards and includes conformal coating for added resistance to dust and moisture.
6. What voltage is required for operation?
The module operates with a typical 24 V DC control power supply.
7. Is the module suitable for high-temperature environments?
Yes, it operates reliably within -25°C to +70°C.
8. Are diagnostic features included?
Yes, integrated LEDs provide real-time status and fault indicators for quick troubleshooting.
9. What are the physical dimensions من the module?
The module measures 250mm × 150mm × 100 mm and weighs approximately 0.118 kg.
10. In which industries is the SMIO-01C commonly used?
It is widely used in metals, marine, pulp and paper, oil and gas, power generation, and automation industries.
Related الطرازs from the Same Series
| الطراز | الوصف |
|---|---|
| SMIO-01A 68500318E | ABB Basic I/O Expansion Module for Inverters |
| SMIO-01B 68500319E | ABB Advanced I/O Expansion Module with additional protection |
| SMIO-02C 68500322E | ABB Extended I/O Module with increased signal capacity |
| RDIO-01 68500256E | ABB Relay and Digital I/O Expansion Module |
| FENA-01 68898775 | ABB Ethernet Communication Adapter for Drives |
| PROFIBUS-01 68898922 | ABB PROFIBUS DP Interface Module for Inverter Systems |
