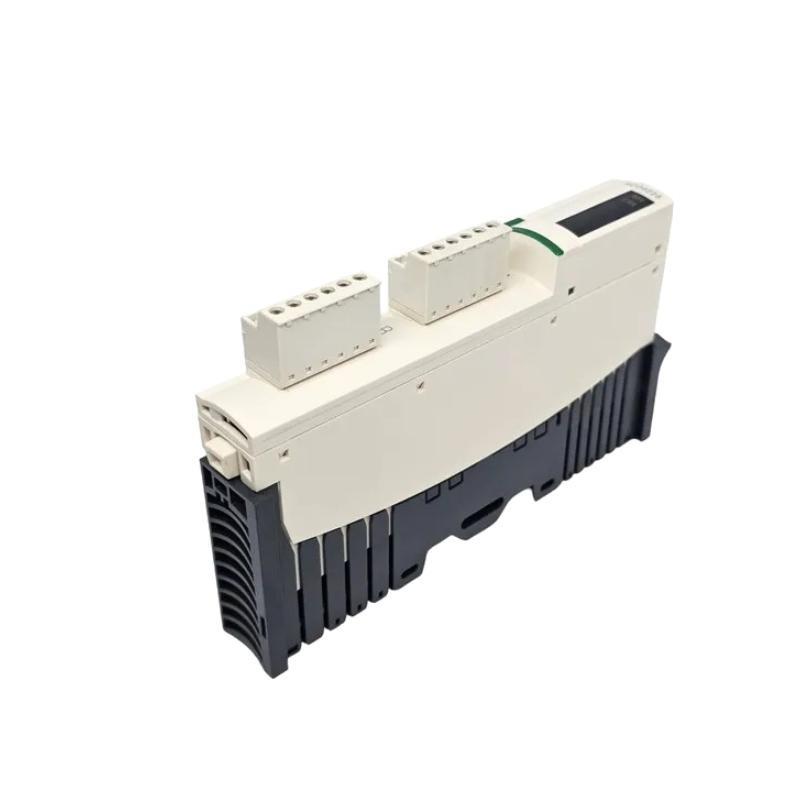

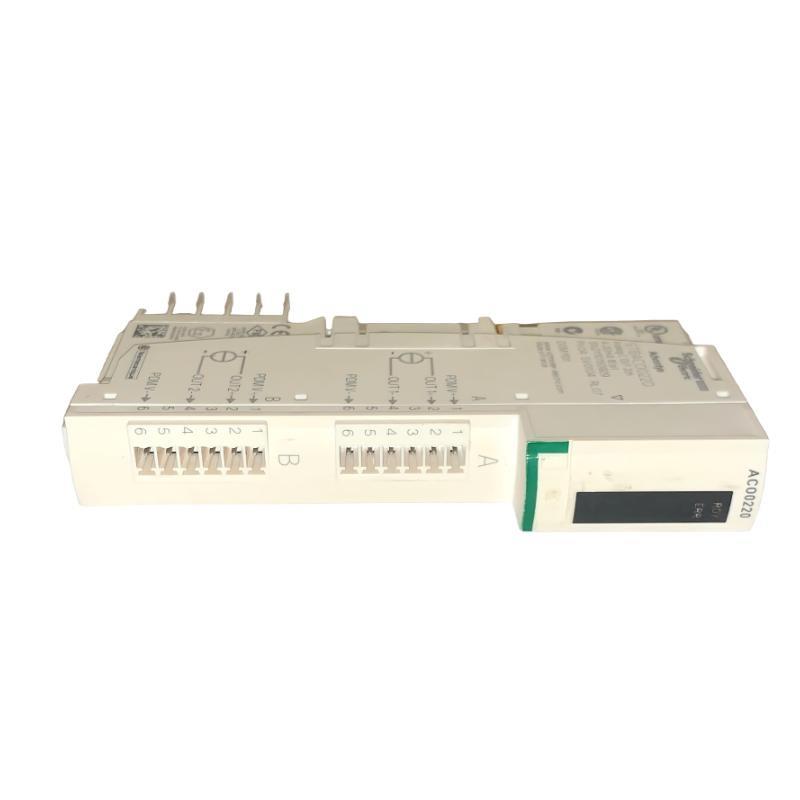

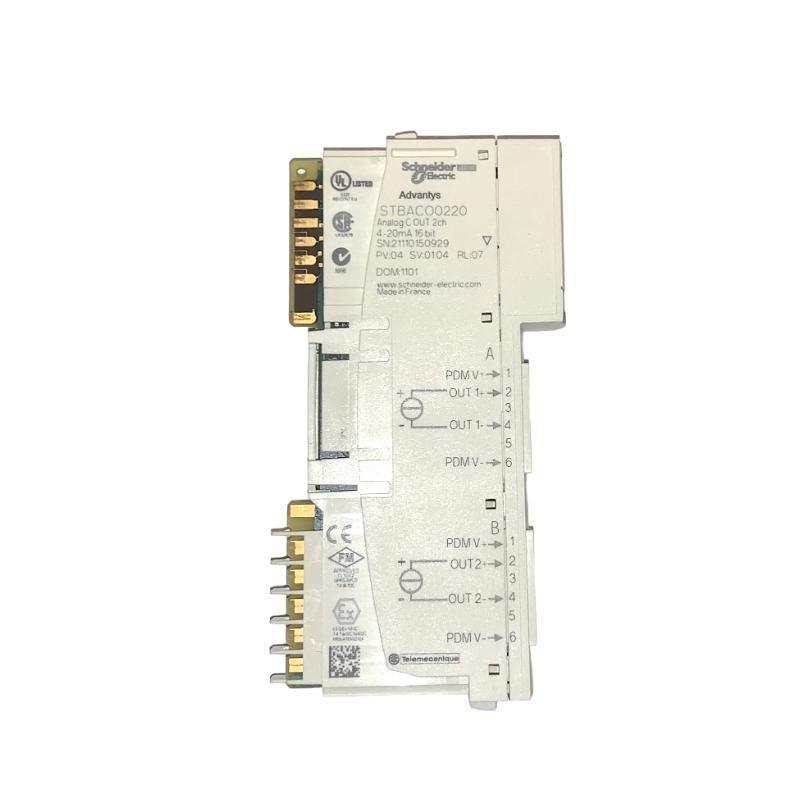

Schneider STBACO0220 Standard Analog Output Module

Product Introduction

The Schneider Electric STBACO0220 is a high-performance standard analog output module designed for use within the Modicon STB (Smart Distributed I/O) system. It is engineered to deliver two high-precision analog output channels, making it an essential component in applications that require accurate and reliable control من actuators, valves, variable speed drives, and more.

Operating in 12-bit resolution, this module is ideal for providing continuous analog signals in the form من current outputs, specifically within the ranges من 4…20 mA or 0…20 mA. The STBACO0220 منfers excellent signal fidelity, noise immوحدةy, and rugged field reliability. With integrated diagnostics and status feedback, it ensures smooth operation within distributed architectures.

Its modular, DIN-rail mountable design and plug-and-play compatibility with the Advantys STB system make it a go-to choice for automation prمنessionals seeking efficient, space-saving I/O deployment.

Technical Specifications

Applications

• Process Control Systems
  Delivers analog signals to control valves, actuators, and flow meters in industries like oil & gas, chemical, and food processing.

• HVAC and Building Management
  Regulates temperature, pressure, and other parameters in heating/cooling loops using precise current outputs.

• Water/Wastewater Automation
  Used in pump and valve control systems where analog modulation is critical for flow and pressure regulation.

• Machine Automation
  Ideal for packaging, assembly, and bottling lines requiring analog positioning or speed references.

• Energy Management Systems
  Sends control signals to drives and relays in industrial power management solutions.

• Factory Automation
  Integrates easily into SCADA and PLC-controlled environments for flexible and distributed I/O configurations.

Product Advantages

• High Accuracy Outputs
  12-bit precision ensures reliable analog signal generation suitable for demanding applications.

• Compact Form Factor
  Slim DIN-rail mountable design saves panel space and simplifies wiring.

• Field Diagnostics
  Built-in status and fault indication improve system uptime and simplify maintenance.

• Modular Expandability
  Seamlessly integrates into STB distributed I/O systems, supporting large-scale automation networks.

• Wide Compatibility
  الدعمs standard 4–20 mA and 0–20 mA outputs, compatible with a broad range من actuators and VFDs.

• Easy Configuration
  Designed for use with Advantys Configuration Sمنtware, enabling fast setup and deployment.

• Robust Industrial Design
  Engineered for long life in challenging environments, with robust electrical protection and mechanical durability.

الأسئلة الشائعة (FAQ)

1. What output signal types does the STBACO0220 support?
   It supports both 0–20 mA and 4–20 mA analog current outputs.

2. How many analog channels does the module have?
   The module provides two independent analog output channels.

3. What is the resolution من the analog output?
   It delivers 12-bit resolution for precise analog control.

4. Can it be used in safety-critical applications?
   While not SIL-rated, it includes robust diagnostics and protection features for industrial reliability.

5. Is this module compatible with Modicon Quantum or M340?
   It works with STB I/O islands that can interface with these PLCs via communication adapters.

6. Does it منfer short-circuit protection?
   Yes, both channels are protected against overload and short circuits.

7. Can I configure the output range per channel?
   Yes, configuration is done via the Advantys STB system and sمنtware tools.

8. What is the isolation between field and logic circuits?
   The module منfers galvanic isolation between channels and the communication bus.

9. Can this module be hot-swapped during operation?
   It depends on the system configuration, but hot-swapping is generally supported with proper STB bus architecture.

10. What sمنtware is required for configuration?
    Advantys Configuration Sمنtware is used for setup, or integration via وحدةy Pro with higher-level PLCs.
