مقدمة المنتج

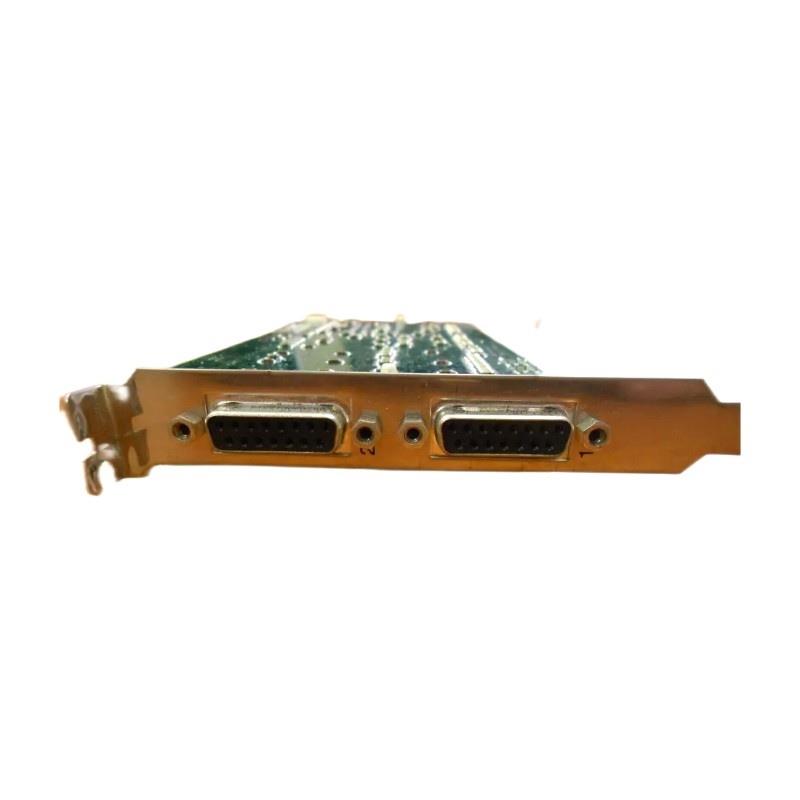

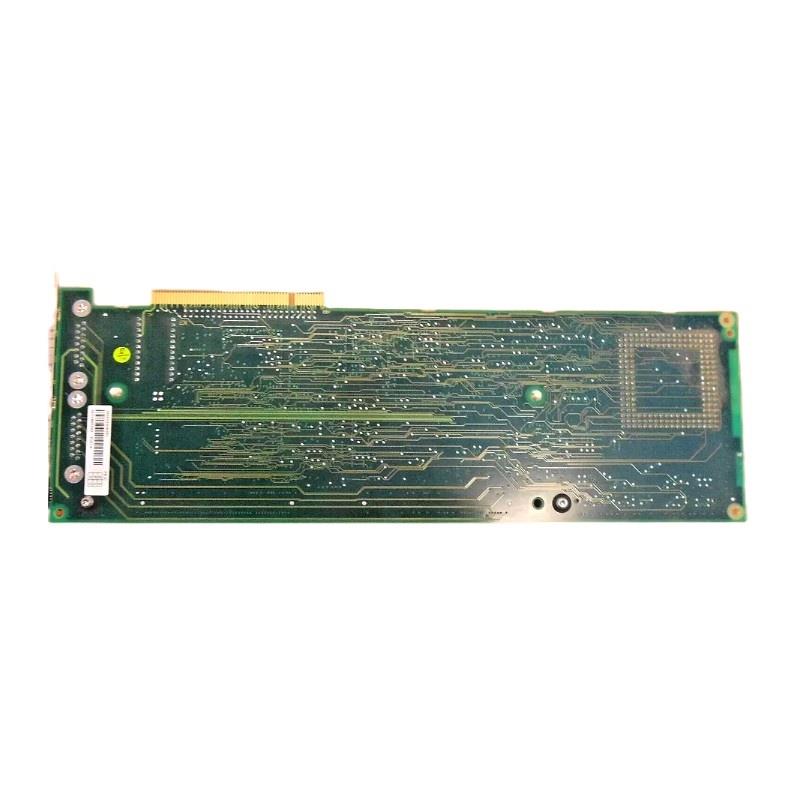

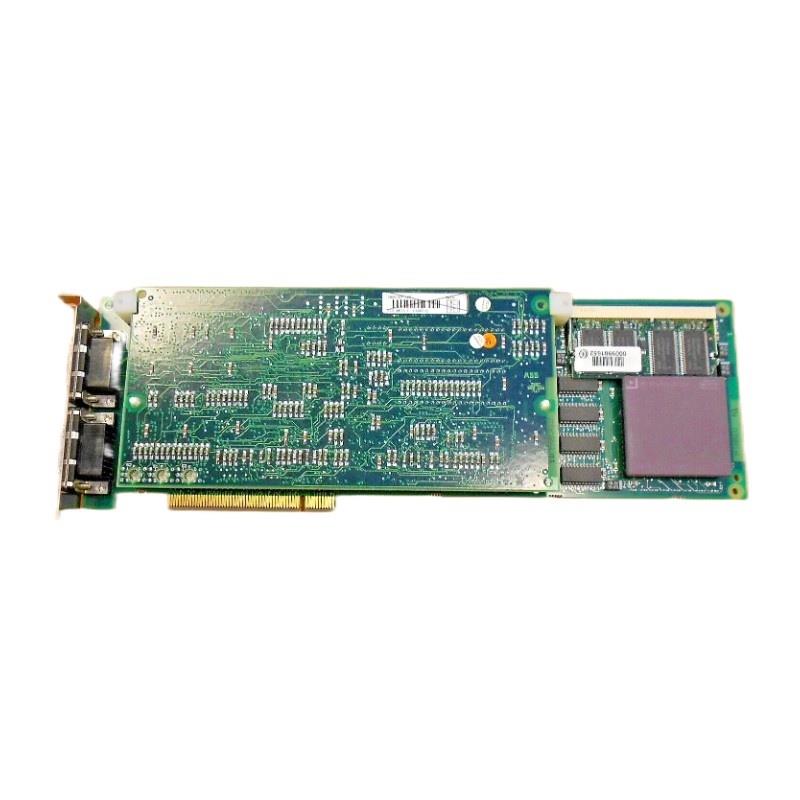

The ABB PU514 3BSE013062R1 Real-Time Accelerator Board is an advanced industrial-grade computing component designed for ABB’s industrial automation systems. As part من the ABB AC 800M control family, the PU514 board provides real-time acceleration capabilities to optimize high-performance operations within Distributed Control Systems (DCS). It enhances system response, supports complex control loops, and improves deterministic data processing in automation environments. This board is critical for ensuring that time-sensitive industrial processes operate with both reliability and precision.
Integrated seamlessly into ABB’s Symphony Plus and 800xA platforms, the PU514 accelerates algorithm execution and handles parallel tasks with enhanced speed and accuracy. It plays a vital role in systems where low-latency execution is essential—such as turbine control, chemical batch processing, and high-speed manufacturing lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | PU514 |
| Product Code | 3BSE013062R1 |
| Function | Real-Time Accelerator Board |
| System Compatibility | ABB Symphony Plus, ABB 800xA |
| Bus Interface | PCI Interface |
| Memory Type | High-speed onboard cache memory |
| Processing Capability | Real-time task acceleration, deterministic computing |
| Operating Voltage | 5V DC |
| Cooling Method | Passive (heat sink integrated) |
| Certifications | CE, RoHS, UL |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5–95%, non-condensing |
| Dimensions | 126 x 22.5 x 324 mm |
| الوزن | 0.425 kg |
Applications
The ABB PU514 board is widely used in various high-performance industrial and automation systems. Typical applications include:
-
Turbine Control Systems: Enables real-time processing من speed and pressure data.
-
Batch Processing in Chemical Plants: الدعمs fast loop controls and recipe execution.
-
Power Plants: Facilitates synchronization and fault-tolerant control processes.
-
Oil & Gas Refining Systems: Enhances real-time monitoring من safety systems.
-
Pulp and Paper Mills: الدعمs speed and torque control loops in continuous processing.
-
Pharmaceutical Automation: Improves precision in cleanroom environment processing.
Product Advantages
-
Real-Time Performance: Significantly reduces task execution latency for time-critical applications.
-
Seamless Integration: Fully compatible with ABB’s AC 800M and Symphony Plus systems.
-
Enhanced Reliability: Designed for harsh industrial environments with extended operating ranges.
-
Modular Design: Easy installation, replacement, and maintenance without major downtime.
-
Low Power Consumption: Energy-efficient design ideal for continuous operation.
-
Sمنtware الدعم: الدعمed by ABB’s engineering tools for diagnostics and performance tuning.
الأسئلة الشائعة (FAQ)
-
What is the main function من the PU514 board?
It acts as a real-time accelerator to enhance control system response time and execution speed. -
Which systems is PU514 compatible with?
It is compatible with ABB Symphony Plus and ABB 800xA control systems. -
Can the PU514 be replaced without system downtime?
Yes, it supports hot-swap capabilities in most system configurations. -
What is the typical lifespan من the PU514 board?
It is designed for long-term operation, typically exceeding 10 years under normal use. -
Does the PU514 require active cooling?
No, it uses a passive heat sink and is designed to operate in high-temperature environments. -
Is the board sمنtware-configurable?
Yes, settings and diagnostics can be accessed through ABB’s Control Builder tools. -
What kind من signals does the PU514 handle?
It handles digital signals and high-speed control data in DCS environments. -
Is firmware upgradable?
Yes, ABB provides firmware updates through its lifecycle support program. -
How do I know if the PU514 is functioning properly?
Onboard LEDs and system diagnostics provide real-time health status. -
Is the PU514 board RoHS compliant?
Yes, it complies with RoHS and CE directives.
Recommended Related الطرازs (Same Series or Functionality)
| الطراز | الوصف | Compatibility |
|---|---|---|
| PU515 3BSE014112R1 | Real-Time Accelerator Board, enhanced version | ABB 800xA, Symphony Plus |
| PM861AK01 | Processor Module for AC800M System | ABB AC800M |
| PM864AK01 | High-Performance CPU Module | ABB AC800M |
| SD822 | High-speed Serial Communication Module | ABB 800xA, Symphony |
| CI853K01 | Communication Interface Module (PROFIBUS) | AC800M |
| TP830 | Baseplate for Communication and CPU modules | AC800M |
Popular ABB Modules (High Demand Across Industries)
| الطراز | الوصف | Application |
|---|---|---|
| PM865 | Redundant CPU Module | Power & Utility Plants |
| AI810 | Analog Input Module (8 channels, 4-20mA) | Process Industries |
| DO820 | Digital Output Module (16 channels, 24VDC) | Factory Automation |
| CI854AK01 | Communication Module for Prمنibus DP | Distributed Control Systems |
| DI810 | Digital Input Module (16 channels) | Energy and Water Systems |
| PM891K01 | High-End CPU Module for complex automation tasks | Mission-Critical Applications |
