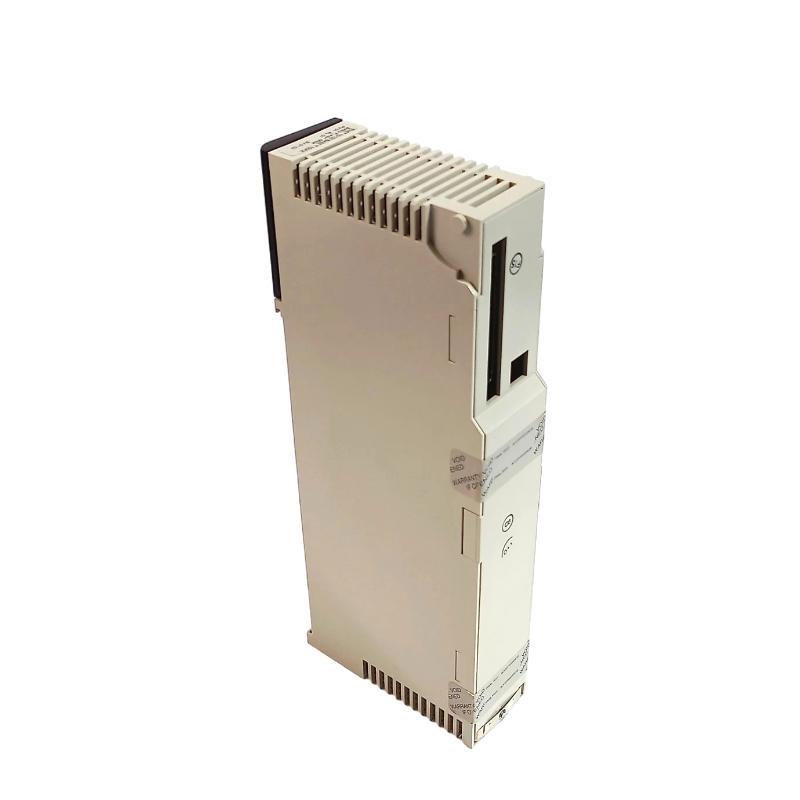

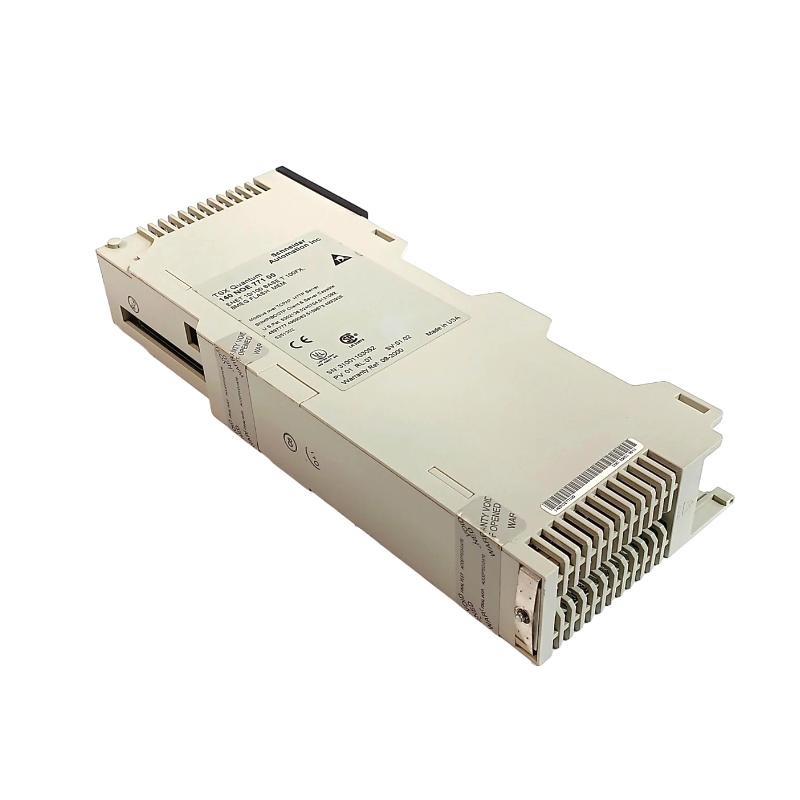

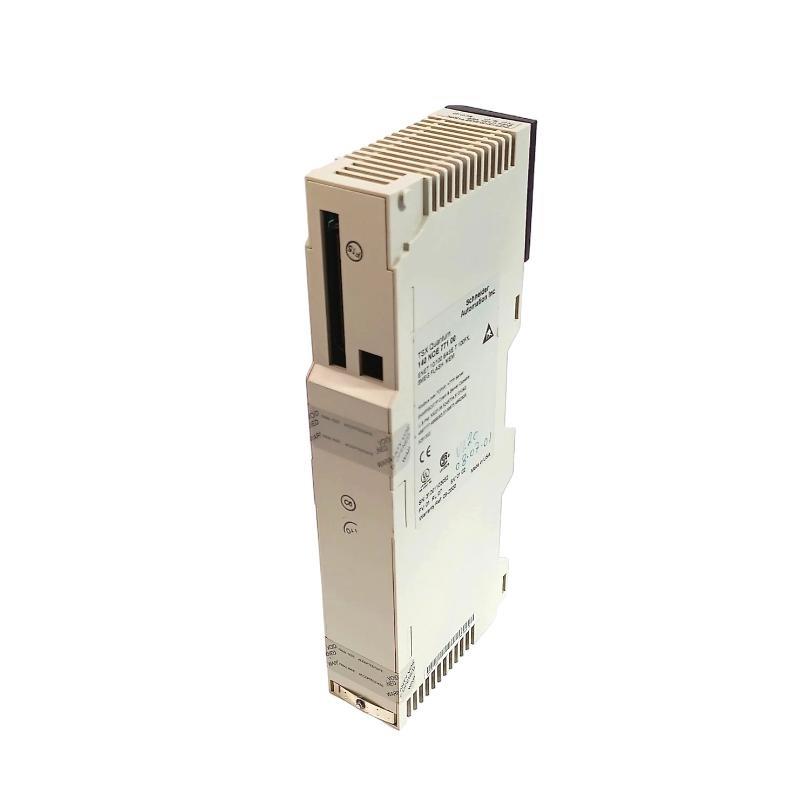

The Schneider 140NOE35100C Ethernet SY/MAX Fiber Optic Module is an industrial-grade communication module designed to integrate Schneider Modicon Quantum PLC systems with Ethernet networks over fiber optic media. This module ensures high-speed and secure data transmission across long distances, making it ideal for demanding industrial environments. By supporting Ethernet TCP/IP and Modbus TCP protocols, the 140NOE35100C enables seamless communication between programmable controllers, supervisory control systems, and remote devices, ensuring reliable real-time control and monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Ethernet SY/MAX Fiber Optic Communication Module |
| الطراز Number | 140NOE35100C |
| الدعمed Protocols | Ethernet TCP/IP, Modbus TCP, SY/MAX over Ethernet |
| Communication Interface | Fiber Optic (Single Channel) |
| Fiber Type | Multimode 62.5/125 µm |
| Data Rate | 10/100 Mbps full-duplex |
| PLC Compatibility | Modicon Quantum Series |
| Network Topology | Star, Ring, or Daisy Chain |
| Configuration | Web-based and وحدةy Pro configuration |
| Power Supply | 5 V DC from backplane |
| Power Consumption | Approx. 3 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.5 kg |
| Mounting | Standard Quantum rack |
| Certifications | CE, UL, CSA, Class I Div 2, RoHS compliant |
Applications
The 140NOE35100C is widely used in industrial automation and process control applications where robust Ethernet connectivity is required. Typical use cases include:
-
Process Automation: Seamless integration من PLCs with SCADA systems in industries such as chemical processing, oil and gas, and power generation.
-
Factory Automation: Real-time control من assembly lines, packaging systems, and material handling equipment.
-
Infrastructure Monitoring: Reliable communication backbone for water treatment plants, energy distribution, and building automation.
-
Remote Data Acquisition: Long-distance fiber optic connections for remote sensor data collection and control.
Advantages
-
High-Speed Fiber Optic Connectivity: Ensures noise-free communication over long distances, ideal for harsh industrial environments.
-
Seamless Integration: Fully compatible with Schneider Modicon Quantum PLCs and supports multiple network topologies.
-
Enhanced Reliability: Fiber optic medium provides immوحدةy to electromagnetic interference (EMI) and reduces signal degradation.
-
Flexible Configuration: Web-based configuration and وحدةy Pro sمنtware support simplify installation and maintenance.
-
Robust Build: Rugged design withstands industrial temperature ranges and humidity.
-
Cybersecurity Features: Advanced Ethernet protocol support with user access controls for secure data exchange.
FAQ
-
How do I configure the 140NOE35100C for Modbus TCP communication?
Configuration is performed through the built-in web server or Schneider وحدةy Pro sمنtware by assigning the IP address, subnet mask, and Modbus TCP parameters. -
What is the maximum fiber optic cable length supported?
For multimode 62.5/125 µm fiber, the maximum recommended distance is approximately 2 km at 100 Mbps. -
Can this module operate in a redundant Ethernet ring topology?
Yes, it supports ring and star network topologies to provide redundancy and high availability. -
Is the module compatible with legacy SY/MAX protocols?
Yes, Ethernet SY/MAX protocol is supported to maintain backward compatibility with older control systems. -
Does it support SNMP for network management?
Yes, the module includes SNMP capability for real-time monitoring and diagnostics. -
What diagnostic tools are available on the module?
The integrated web interface provides port status, traffic statistics, and detailed error counters for troubleshooting. -
How is firmware updated on the 140NOE35100C?
Firmware upgrades are completed via the Ethernet interface using Schneider’s منficial firmware utility. -
What is the recommended fiber optic connector type?
The module is designed for ST-type connectors to ensure secure and stable fiber connections. -
Can the module coexist with Ethernet/IP devices?
Yes, it can operate alongside Ethernet/IP devices when proper network segmentation and addressing are applied. -
What security measures are included to protect against unauthorized access?
User authentication, password protection, and IP-based access controls are implemented to safeguard communications.
Related الطرازs (Same Series/Family)
| الطراز Number | الوصف | Key Feature |
|---|---|---|
| 140NOE77101 | Quantum Ethernet TCP/IP Module | High-performance Ethernet networking |
| 140NOE77111 | Quantum Ethernet Module with Dual Port | Dual independent Ethernet ports |
| 140NOE77100 | Ethernet TCP/IP Module | Standard Ethernet communications |
| 140NOE77102 | Redundant Ethernet Communication Module | Redundant network support |
| 140NOE77103 | High-Speed Ethernet TCP/IP Module | Enhanced data throughput |
| 140NOE35101 | Fiber Optic Ethernet Module | Fiber optic communication, advanced |
Popular Schneider الطرازs
| الطراز Number | الوصف | Application Focus |
|---|---|---|
| 140CPU67160 | Modicon Quantum Processor | High-performance PLC processing |
| 140DDO36400 | 32-Point Discrete Output Module | Digital control outputs |
| 140DDI35300 | 32-Point Discrete Input Module | Digital input expansion |
| 140DAO84000 | Analog Output Module | Precision analog control |
| 140ACI04000 | Analog Current Input Module | Process current measurement |
| 140NOE77111 | Quantum Ethernet Communication Module (Dual Port) | Advanced network integration |
