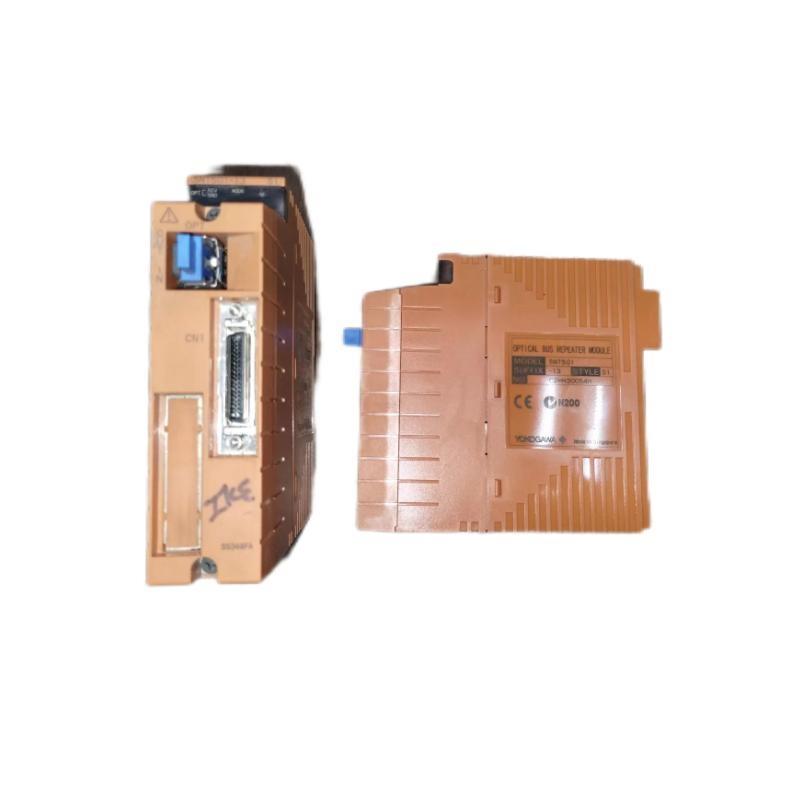

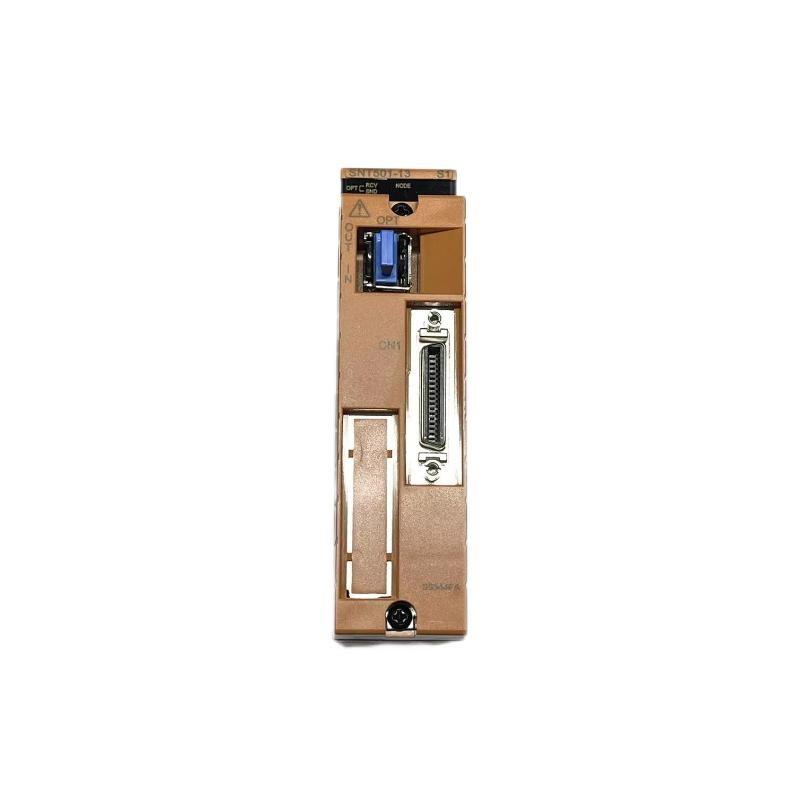

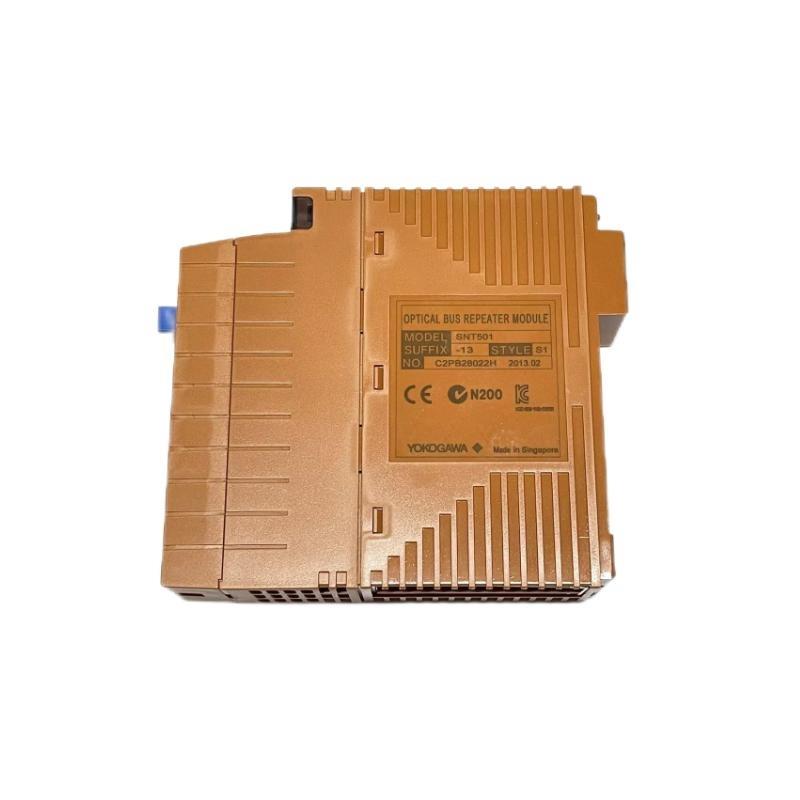

Yokogawa SNT501-13 Fiber Optic Bus Repeater Module

产品介绍:

The Yokogawa SNT501-13 Fiber Optic Bus Repeater Module is a highly reliable, high-performance device used in industrial automation systems to extend the communication distance between devices connected via a fiber optic bus. This module is part / the Yokogawa CENTUM VP series, renowned for its exceptional quality and seamless integration into control systems.

The SNT501-13 module acts as a repeater, amplifying and regenerating signals transmitted over fiber optic cables. This function is essential for maintaining signal integrity over long distances and ensuring the stable operation / industrial communication networks. The SNT501-13 can be integrated into various industrial applications, such as process control systems, power plants, and manufacturing environments, where high-speed communication and fault tolerance are critical.

By using fiber optics, the module ensures minimal electromagnetic interference, which is common in electrically noisy environments, thus maintaining the reliability and performance / the overall system. Its compact design, ease / installation, and robust performance make the SNT501-13 an ideal choice for extending the reach / industrial control networks while maintaining the highest standards / communication reliability.

Product Parameters:

Below is a detailed specification table for the Yokogawa SNT501-13 Fiber Optic Bus Repeater Module:

Product Applications:

The Yokogawa SNT501-13 Fiber Optic Bus Repeater Module is designed to provide critical communication support in industrial automation and process control systems, especially in environments where long-distance communication is necessary. Its primary applications include:

• Industrial Automation Networks: The module plays a crucial role in extending communication distances between devices such as controllers, sensors, and actuators, ensuring data integrity and stable communication over fiber optic cables.

• Process Control Systems: In large-scale systems like those found in power generation plants, chemical processing facilities, or oil and gas refineries, the SNT501-13 ensures that signals remain strong and clear across vast distances, maintaining uninterrupted operations.

• Manufacturing and Factory Automation: In automated production lines, the module facilitates high-speed communication over extended distances, ensuring timely data transmission for process monitoring and control.

• Power Plants: The SNT501-13 is ideal for use in power plants where long-distance communication between control devices and data centers is necessary, and where electromagnetic interference must be minimized.

• Building Automation Systems: This module is also used in large building management systems (BMS) to extend the communication range for various subsystems such as HVAC, lighting, and security systems.

• Telecommunication Networks: For industrial telecommunication setups requiring fiber-optic communication, this module ensures high-speed and reliable data transmission over long distances.

Product Advantages:

The Yokogawa SNT501-13 Fiber Optic Bus Repeater Module /fers several advantages that make it stand out in the field / industrial communication:

• Long-Distance Communication: With support for communication over distances / up to 1,000 meters, this module extends the reach / industrial control networks, making it ideal for large-scale operations.

• Signal Regeneration: The SNT501-13 amplifies and regenerates signals, ensuring that data transmitted over fiber optic cables remains strong and clear over long distances, even in noisy environments.

• Electromagnetic Interference Resistance: Fiber optic communication is inherently immune to electromagnetic interference (EMI), ensuring reliable data transmission even in electrically noisy environments, such as power plants or manufacturing areas.

• Flexible Connectivity: With support for multiple protocols like PROFIBUS, DeviceNet, and CANopen, the module can be seamlessly integrated into a wide range / industrial communication networks.

• Compact and Robust Design: The module’s compact size (142.5 x 130 x 32.8 mm) makes it easy to integrate into existing systems, and its DIN rail mounting ensures simple and secure installation.

• Low Power Consumption: With a power consumption / only 3.6 W, the module operates efficiently without consuming excessive energy, making it a cost-effective choice for industrial applications.

• Wide Operating Temperature Range: The module can operate in environments with temperatures ranging from -10°C to +60°C, making it suitable for a variety / industrial settings.

• Reliability: Yokogawa’s reputation for high-quality and reliable products ensures that the SNT501-13 is durable, /fering long-term performance with minimal maintenance.

FAQs:

1. What is the purpose / the Yokogawa SNT501-13 Fiber Optic Bus Repeater Module?

   • It amplifies and regenerates signals transmitted over fiber optic cables to extend communication distance and ensure signal integrity in industrial control systems.

2. What protocols does the SNT501-13 module support?

   • The module supports protocols such as PROFIBUS, DeviceNet, and CANopen.

3. How many ports does the SNT501-13 have?

   • The module has 2 ports, one for input and one for output.

4. What is the maximum communication distance for the module?

   • The SNT501-13 can extend communication distances up to 1,000 meters, depending on cable type and network conditions.

5. What is the power supply voltage required for the module?

   • The module requires a 24 V DC power supply.

6. What type / connector is used for the fiber optic ports?

   • The module uses ST connectors for the fiber optic ports.

7. What is the power consumption / the SNT501-13 module?

   • The module consumes 3.6 W / power.

8. Can the SNT501-13 module be used in harsh environments?

   • Yes, the module operates within a temperature range / -10°C to +60°C, making it suitable for various industrial environments.

9. Is the module compatible with Yokogawa’s CENTUM VP system?

   • Yes, the SNT501-13 is fully compatible with the Yokogawa CENTUM VP system, ensuring seamless integration into Yokogawa automation networks.

10. What are the dimensions / the SNT501-13 module?

    • The module has dimensions / 142.5 x 130 x 32.8 mm.
