产品介绍

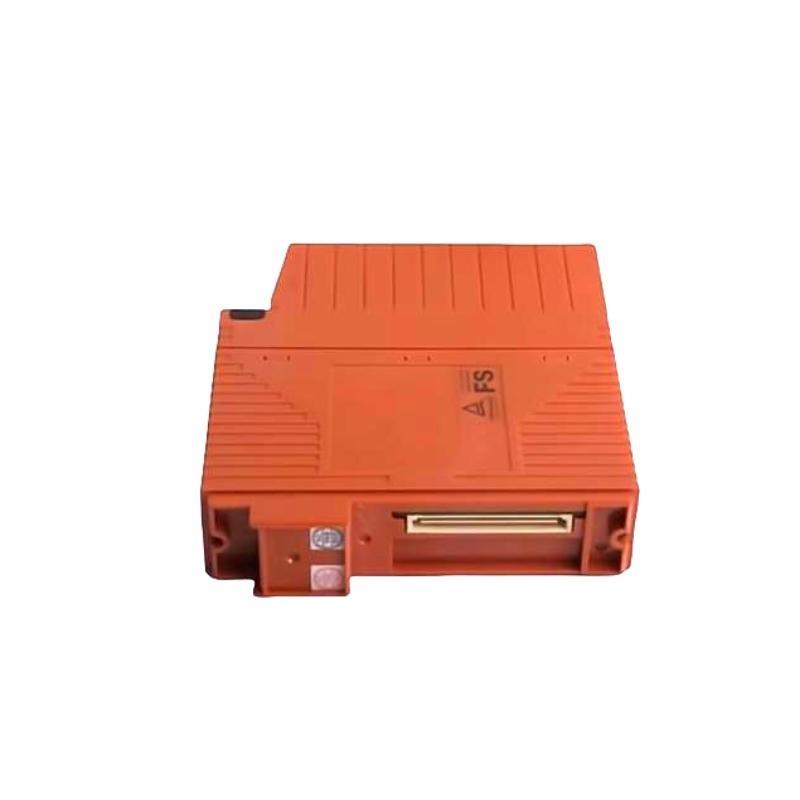

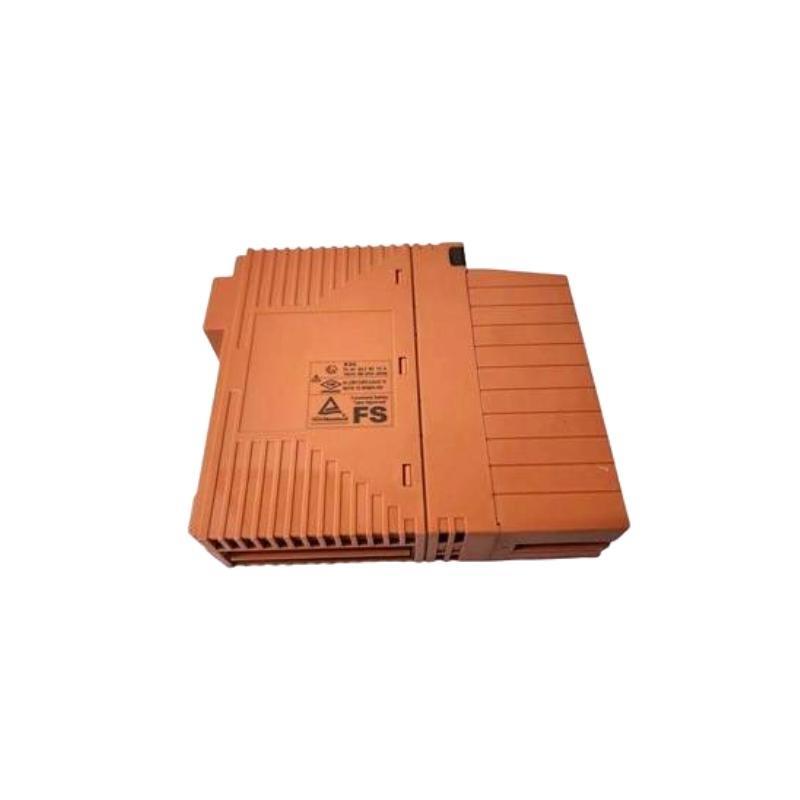

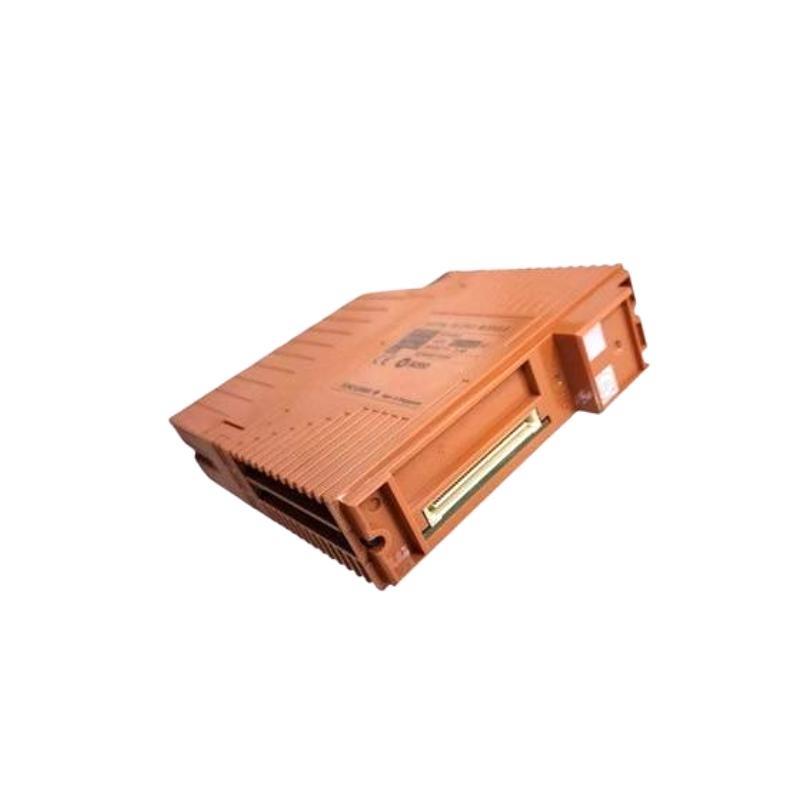

The Yokogawa SADV541-S63 is a digital output module designed for high-performance distributed control systems (DCS), specifically for the CENTUM VP and CS 3000 platforms. Engineered with precision and durability in mind, the SADV541-S63 is used to transmit control signals from the processor to actuators, solenoids, and other digital field devices. It features a robust design that ensures consistent operation even in harsh industrial environments.
The module provides 16 independent digital output channels, each capable / switching discrete field signals. Designed to meet high safety and reliability standards, this module is essential in industries requiring real-time process control, such as power generation, petrochemicals, water treatment, and advanced manufacturing.
产品规格
| Parameter | Details |
|---|---|
| 型号 | SADV541-S63 |
| Type | Digital Output Module |
| Output Channels | 16 channels |
| Output Type | Voltage (typically 24 VDC), sourcing |
| Load Type | Resistive/Inductive |
| Output Current | 0.5 A per channel (max) |
| Response Time | Less than 5 ms |
| Insulation Resistance | 100 MΩ or more (at 500 VDC) |
| Isolation | Channel-to-bus and channel-to-channel isolated |
| Diagnostics | Channel diagnostics, module fault detection |
| Power Supply | Supplied via I/O base or field supply |
| Mounting | Rack-mounted on I/O base |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 130 x 129.5 x 32.8 mm |
| 重量 | 0.24 kg |
| Certification | CE, UL, CSA, ATEX (depending on version) |
Applications
The SADV541-S63 module plays a critical role in digital signal output across multiple industries, including:
-
Power Generation Plants – For turbine control and breaker operations
-
Oil & Gas Refineries – Managing on//f control / pumps and valves
-
Water Treatment Facilities – Operating solenoids and motor starters
-
Chemical Processing 单位s – Triggering batch process sequences
-
Manufacturing Automation – Machine and robot line actuation control
-
Pharmaceutical Industry – Ensuring precise digital control in production steps
Product Advantages
-
High Reliability: Designed for critical process environments, minimizing failure rates
-
Channel Isolation: Enhanced safety by isolating each channel to prevent crosstalk
-
Rapid Switching: Fast response times suitable for real-time control systems
-
Diagnostic Features: Fault detection simplifies maintenance and reduces downtime
-
Compatibility: Seamlessly integrates with Yokogawa CENTUM VP and CS platforms
-
Compact Form Factor: Space-saving design ideal for dense control cabinets
-
Long Product Lifecycle: Engineered with long-term support in mind for industrial use
-
Certified for Harsh Environments: Meets international standards for quality and safety
-
Low Power Consumption: Efficient circuitry reduces heat generation
-
Flexible Load 支持: Handles both resistive and inductive field devices
常见问题 (FAQ)
-
What type / output does the SADV541-S63 provide?
It provides 24 VDC digital sourcing outputs suitable for driving solenoids and relays. -
Can this module be hot-swapped during system operation?
No, the SADV541-S63 should be powered down during replacement to avoid faults. -
Is each output channel isolated?
Yes, each channel features galvanic isolation to enhance signal integrity and safety. -
Which DCS systems is it compatible with?
It is designed for use with Yokogawa CENTUM VP and CS 3000 systems. -
How many channels are available on this module?
It /fers 16 independent digital output channels. -
What are common field devices it can control?
Solenoids, contactors, motor starters, and annunciators. -
Does it have built-in fault diagnostics?
Yes, it supports diagnostic functions including channel health monitoring. -
What is the maximum load per channel?
Each channel can handle up to 0.5 A / output current. -
How is the module mounted?
It is rack-mounted onto an I/O base for centralized DCS installation. -
Is the SADV541-S63 suitable for safety-critical applications?
Yes, it complies with industrial certifications making it viable for safety-sensitive environments.
Related 型号s from the Same Series
| 型号 | 描述 | Channels | Type | Remarks |
|---|---|---|---|---|
| SADV541-S50 | Digital Output Module (Standard) | 16 | Sourcing | Basic version / S63 |
| SADV541-S60 | High-Speed Output Module | 16 | Sourcing | Faster response time |
| SAVC621-S03 | Analog Output Module | 8 | Analog | 4–20 mA output |
| SADA841-S33 | Digital Input Module | 16 | Sink Input | Companion input module |
| SAIM161-S10 | AI Module for Thermocouple/RTD Inputs | 16 | Analog Input | Precision temperature input |
| SARM161-S33 | Relay Output Module | 8 | Relay Output | For high-load switching |
Popular Yokogawa 型号s (Same 品牌)
| 型号 | Function | Type | Key Features |
|---|---|---|---|
| AAI543-H00 | Analog Input Module | AI | High-precision 16-channel 4–20 mA input |
| AAI141-H50 | High-Speed Analog Input | AI | For fast response temperature control |
| ADV151-P50 | Power Supply Module | Power Supply | Redundant 24 VDC supply for I/O systems |
| AAR181-S00 | Remote I/O Communication Module | Network | Used in Vnet/IP architectures |
| SAI143-S03 | Isolated Analog Input | AI | 8-channel voltage/current selectable inputs |
| AFV10D | Foundation Fieldbus Interface | FF Comm Module | 支持s FF segment connection in DCS |
