产品介绍

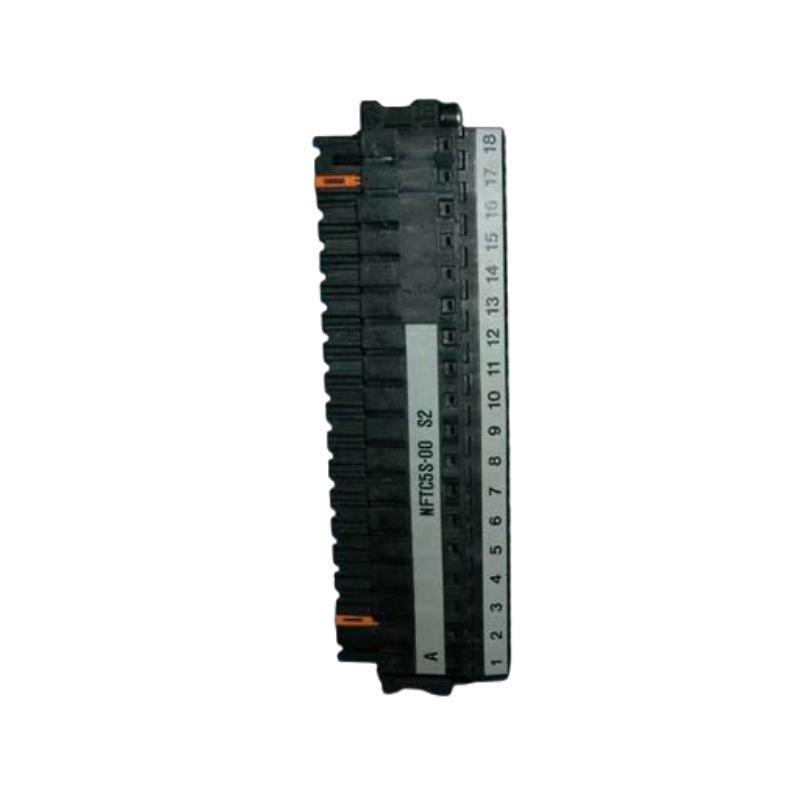

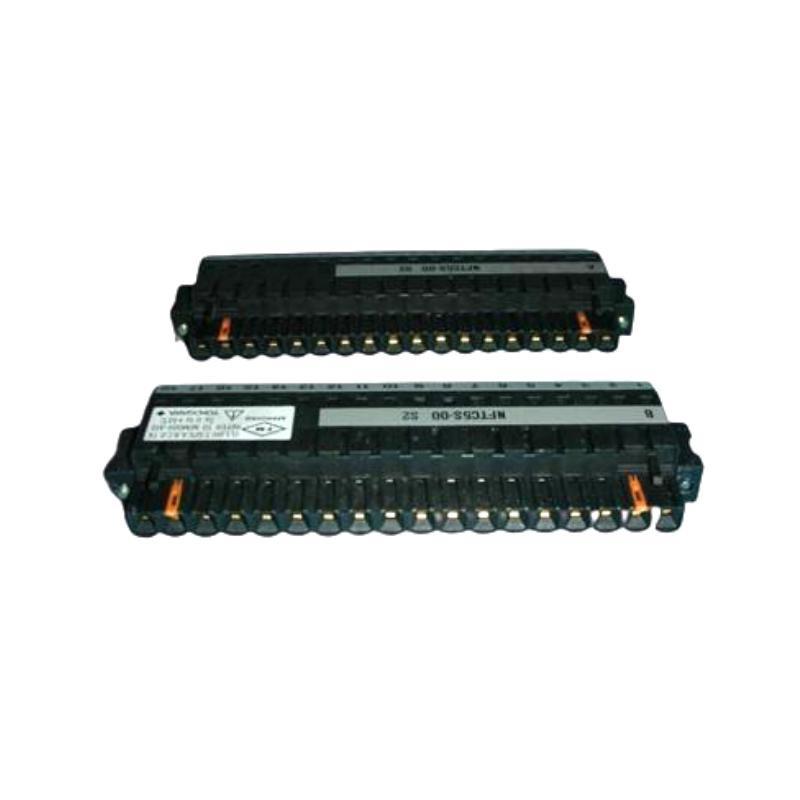

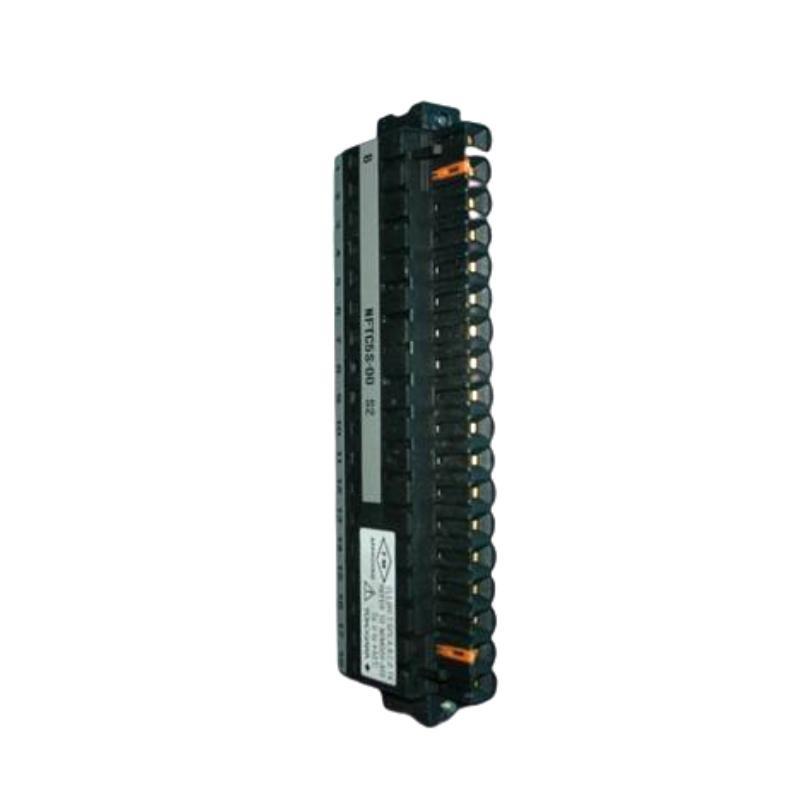

The Yokogawa NFTC5S-00 Pressure Clamp Terminal Block for Digital is a high-performance connection module designed for secure and efficient wiring / digital input/output signals. Engineered with a 32-channel configuration and a dedicated connector, this terminal block provides a reliable interface between field wiring and Yokogawa control systems. Its pressure-clamp mechanism ensures a vibration-resistant, maintenance-free connection, reducing installation time and improving long-term reliability. Built for rugged industrial applications, the NFTC5S-00 is ideal for demanding automation environments where stable digital signal transmission is critical.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | NFTC5S-00 |
| Type | Pressure Clamp Terminal Block for Digital I/O |
| Channel Capacity | 32 channels |
| Connector Type | Dedicated multi-pin connector |
| Terminal Technology | Spring pressure clamp |
| Rated Voltage | 24 V DC nominal, up to 250 V AC max |
| Rated Current | 2 A per channel |
| Insulation Resistance | ≥100 MΩ at 500 V DC |
| Dielectric Strength | 1500 V AC for 1 minute |
| 联系我们 Resistance | <10 mΩ |
| Material | High-strength, flame-retardant polymer |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 10–95% RH, non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Mounting Style | DIN rail or panel mounting |
| Dimensions | 185 × 100 × 40 mm |
| 重量 | 0.5 kg |
| Compliance | CE, RoHS, IEC/EN 60947 |
Applications
-
Distributed Control Systems (DCS): Provides a reliable digital signal interface between field devices and Yokogawa DCS modules.
-
Factory Automation: Handles dense digital I/O wiring for production lines and robotic systems.
-
Power Generation: Connects status and control signals from turbines, generators, and auxiliary equipment.
-
Oil & Gas Processing: 支持s complex digital signaling in high-vibration and hazardous industrial settings.
-
Building Automation: Interfaces sensors, alarms, and actuators for large-scale facilities management.
-
Test and Measurement Systems: Provides rapid, tool-free wiring changes for laboratory or industrial testing setups.
Advantages
-
High Channel Density: 32-channel configuration reduces cabinet space and simplifies wiring management.
-
Tool-Free Pressure Clamp: Ensures quick installation, strong contact pressure, and vibration-pro/ connections.
-
Dedicated Connector Interface: 支持s fast plug-and-play integration with Yokogawa I/O modules.
-
Enhanced Reliability: Spring-clamp technology maintains consistent contact force, minimizing signal loss over time.
-
优秀 Electrical Performance: High insulation and low contact resistance provide stable signal transmission.
-
Wide Environmental Tolerance: Operates reliably in harsh industrial conditions with wide temperature and humidity ranges.
-
Maintenance-Friendly: No need for periodic re-tightening, reducing routine maintenance costs.
-
International Compliance: Meets CE, RoHS, and IEC standards for industrial safety and environmental compatibility.
FAQ
-
How many digital signals can the NFTC5S-00 accommodate?
It supports up to 32 individual digital input or output channels in a single module. -
What type / connector is used for module interface?
A dedicated multi-pin connector ensures secure and fast connection to Yokogawa digital I/O modules. -
Is any special tool required for wiring?
No tools are needed; the spring pressure clamp allows quick and secure wire insertion and release. -
What is the maximum allowable current per channel?
Each channel can carry up to 2 A continuously while maintaining low contact resistance. -
How does the pressure clamp maintain connection stability under vibration?
The spring mechanism provides constant pressure, preventing loosening even in high-vibration environments. -
Can the terminal block handle mixed AC and DC signals?
Yes, it supports 24 V DC nominal and up to 250 V AC maximum, suitable for diverse digital applications. -
What is the rated dielectric strength / the terminal block?
The 件 withstands 1500 V AC for one minute between contacts and ground for safety assurance. -
How is insulation resistance tested and rated?
It provides ≥100 MΩ at 500 V DC, ensuring high-quality signal isolation. -
Is the module compatible with standard DIN rail systems?
Yes, it supports both 35 mm DIN rail and direct panel mounting. -
Does the NFTC5S-00 require periodic maintenance?
Routine maintenance is minimal since the pressure clamp maintains a stable connection without retightening.
Related 型号s (Same Series or Similar)
| 型号 | Type | Channels | Mounting | 重量 |
|---|---|---|---|---|
| NFTC5S-01 | Pressure Clamp Terminal Block | 32 | DIN/Panel | 0.48 kg |
| NFTC5S-02 | Pressure Clamp Terminal Block | 32 | DIN/Panel | 0.49 kg |
| NFTC6S-00 | Pressure Clamp Terminal Block | 64 | DIN/Panel | 0.55 kg |
| NFTC4S-00 | Pressure Clamp Terminal Block | 16 | DIN/Panel | 0.40 kg |
| NFTC5M-00 | Pressure Clamp Terminal Block | 32 | DIN/Panel | 0.50 kg |
| NFTC5P-00 | Pressure Clamp Terminal Block | 32 | DIN/Panel | 0.47 kg |
Popular Yokogawa 型号s
| 型号 | Type | Key Feature | 重量 | Typical Application |
|---|---|---|---|---|
| ADV851-P50 | Digital I/O Module | 16 input/16 output high-speed channels | 0.40 kg | Process automation |
| AAI141 | Analog Input Module | 16-channel high-resolution input | 0.45 kg | Continuous process monitoring |
| CP451-10 | Processor Module | High-performance CPU for DCS | 0.60 kg | Central control processing |
| PW482 | Power Supply Module | Redundant 24 V DC supply | 0.50 kg | Control system power |
| ADV151-D132 | Digital Input Module | 32 isolated digital inputs | 0.35 kg | Large-scale input acquisition |
| PWB51549B | LCD Display Board | TFT LCD operator interface | 0.30 kg | Operator interface displays |
