产品介绍

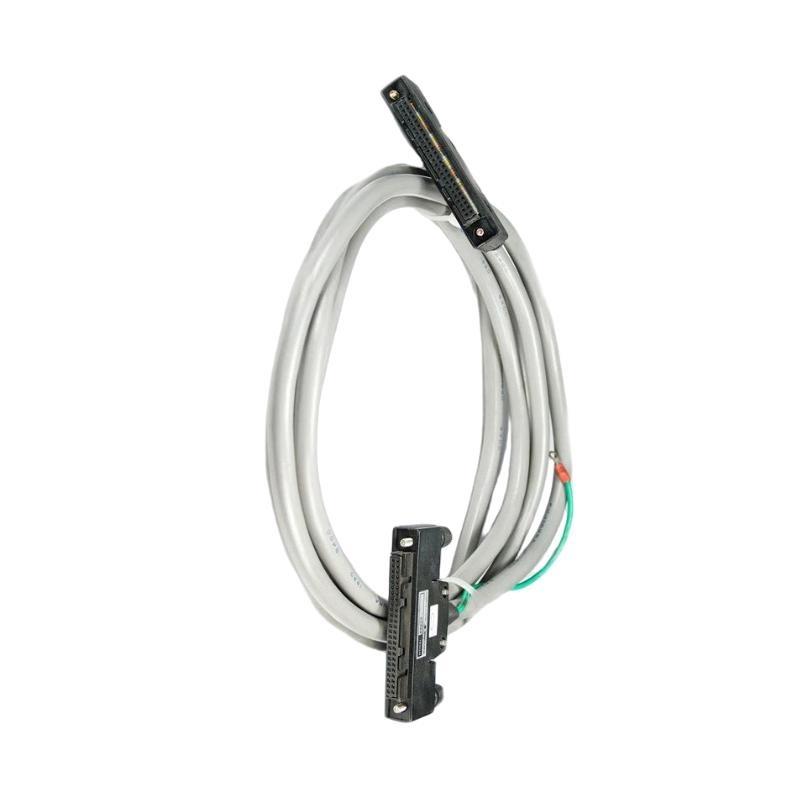

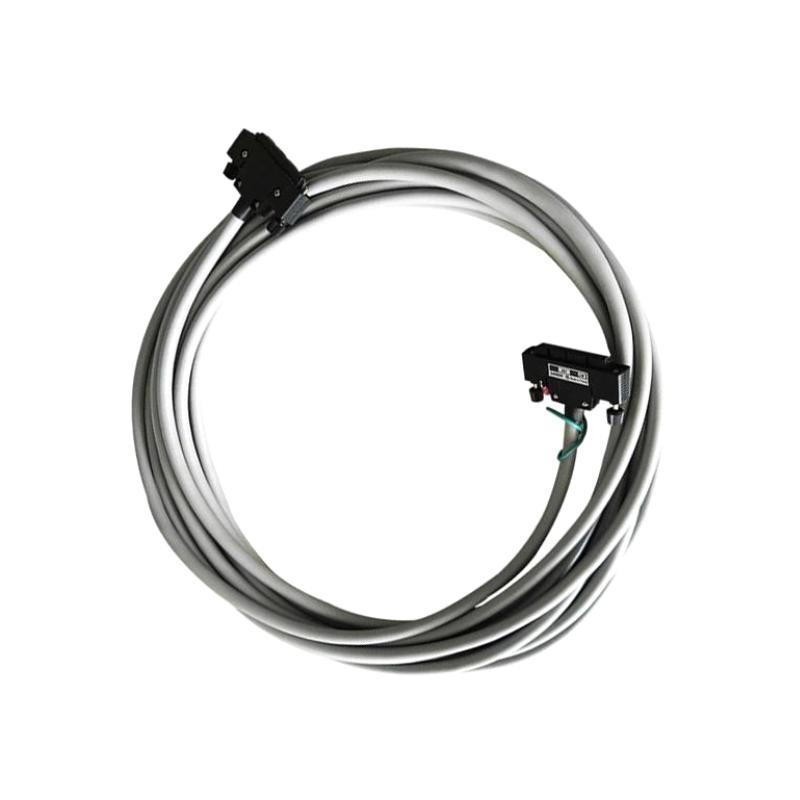

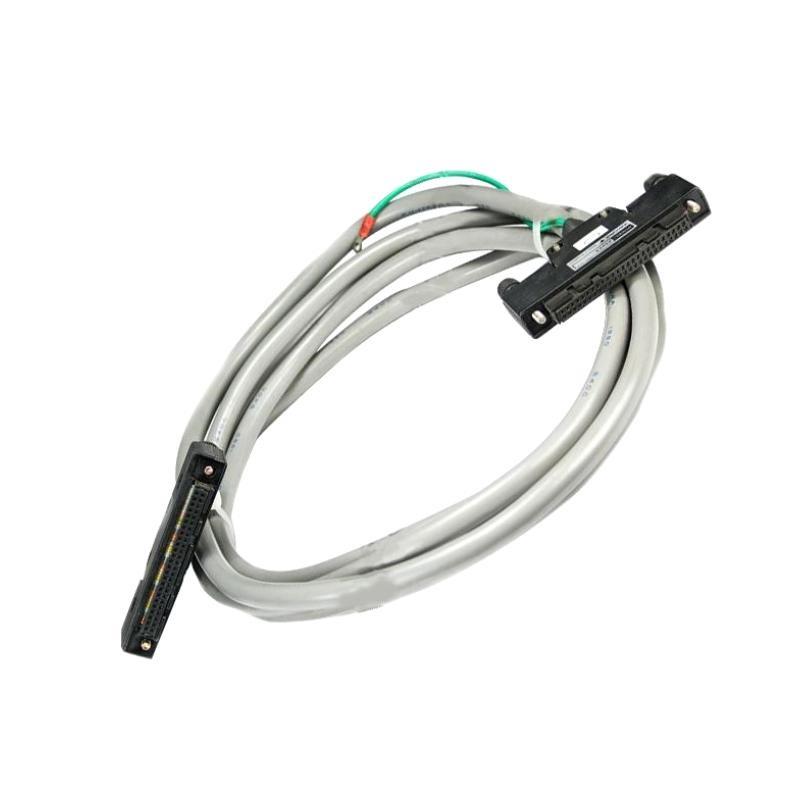

The Yokogawa KS9-05*B Signal Cable is a high-performance communication cable designed for industrial instrumentation and process control systems. It is engineered to transmit analog and digital signals reliably between Yokogawa measurement instruments, controllers, and data acquisition systems. With a focus on signal integrity and durability, this cable ensures accurate transmission even in electrically noisy industrial environments.
The KS9-05*B model features robust shielding, high-quality conductor materials, and precise insulation to maintain signal quality over extended distances. Its 5-meter length and 3 kg shipping weight make it suitable for medium-range interconnections within process control panels or plant installations. The cable is fully compatible with Yokogawa analyzers, controllers, and modules, providing dependable performance for critical measurement and control tasks.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | KS9-05*B |
| Cable Type | Signal/Instrumentation Cable |
| Cable Length | 5 meters |
| 运输 重量 | 3 kg |
| Conductor Material | High-purity copper |
| Conductor Size | 0.5 mm² (typical) |
| Number / Conductors | 5 cores |
| Insulation Material | Polyvinyl chloride (PVC) |
| Outer Sheath Material | PVC or flame-retardant PVC |
| Shielding | Overall foil shield with drain wire |
| Rated Voltage | 300 V |
| Operating Temperature Range | –20 °C to +80 °C |
| Bend Radius | 10× cable diameter (minimum) |
| Compliance | Yokogawa instrument standards |
Applications
The KS9-05*B signal cable is widely used in industrial process control, instrumentation, and measurement systems. Key applications include:
-
Connecting Yokogawa analyzers to control modules or data acquisition systems.
-
Signal transmission in chemical, petrochemical, and power generation plants.
-
Medium-distance wiring inside control panels or between distributed instruments.
-
Integration into SCADA systems and DCS networks for real-time process monitoring.
-
Reliable analog and digital signal transfer in electrically noisy industrial environments.
-
Connecting sensors, transducers, and field instruments to Yokogawa controllers.
Advantages
-
High Signal Integrity: Shielding and quality conductors minimize signal loss and noise.
-
Durable Construction: Insulation and outer sheath protect against abrasion, moisture, and chemicals.
-
Flexible Length: 5-meter length suitable for medium-range installations.
-
Industrial Compatibility: Designed for Yokogawa instruments and compliant with their standards.
-
EMI Resistance: Overall foil shield and drain wire provide electromagnetic interference imm件y.
-
Temperature Resistant: Operates reliably between –20 °C and +80 °C.
-
Ease / Installation: Flexible and lightweight, suitable for panel wiring and plant installations.
-
Multi-Conductor 支持: Handles multiple signals within a single cable for simplified wiring.
FAQ
1. What type / signals can the KS9-05*B cable transmit?
It can transmit analog, digital, and low-voltage control signals.
2. How is the cable shielded against interference?
It features an overall foil shield with a drain wire to reduce electromagnetic interference (EMI).
3. Can it be used in high-voltage applications?
No, it is rated for 300 V and should only be used within this voltage limit.
4. What is the minimum bend radius for installation?
The minimum bend radius is 10 times the cable diameter.
5. Is the cable suitable for outdoor installation?
It is primarily designed for indoor industrial environments; additional protection is required for outdoor use.
6. Can it connect multiple Yokogawa instruments simultaneously?
Yes, the 5-core configuration allows multiple signals to be transmitted through a single cable.
7. What is the conductor material and size?
High-purity copper conductors with a typical size / 0.5 mm².
8. What temperature range does the cable operate in?
–20 °C to +80 °C.
9. Is the cable compatible with other instrumentation brands?
It may work with other brands if connector compatibility is ensured, but it is optimized for Yokogawa instruments.
10. Does the cable comply with any standards?
It is designed according to Yokogawa instrument standards and industrial signal transmission guidelines.
Recommended Related 型号s (Same Series / Family)
| 型号 Number | 描述 |
|---|---|
| KS9-01*B | Signal cable, 1 meter length, 5 cores |
| KS9-03*B | Signal cable, 3 meters length, 5 cores |
| KS9-05*A | Signal cable, 5 meters, alternative insulation |
| KS9-07*B | Signal cable, 7 meters length, 5 cores |
| KS9-10*B | Signal cable, 10 meters length, 5 cores |
| KS9-05*C | Signal cable, 5 meters, enhanced EMI shielding |
Popular Yokogawa 型号s (其他 Hot 产品)
| 型号 Number | 描述 |
|---|---|
| YS1700 | Process Analyzer Module |
| YS1000 | Field Transmitter |
| TX1000 | Temperature Transmitter |
| YS9000 | Digital Control Module |
| YS1100 | pH/Conductivity Analyzer |
| YS1200 | Flow Transmitter |
