Product Overview

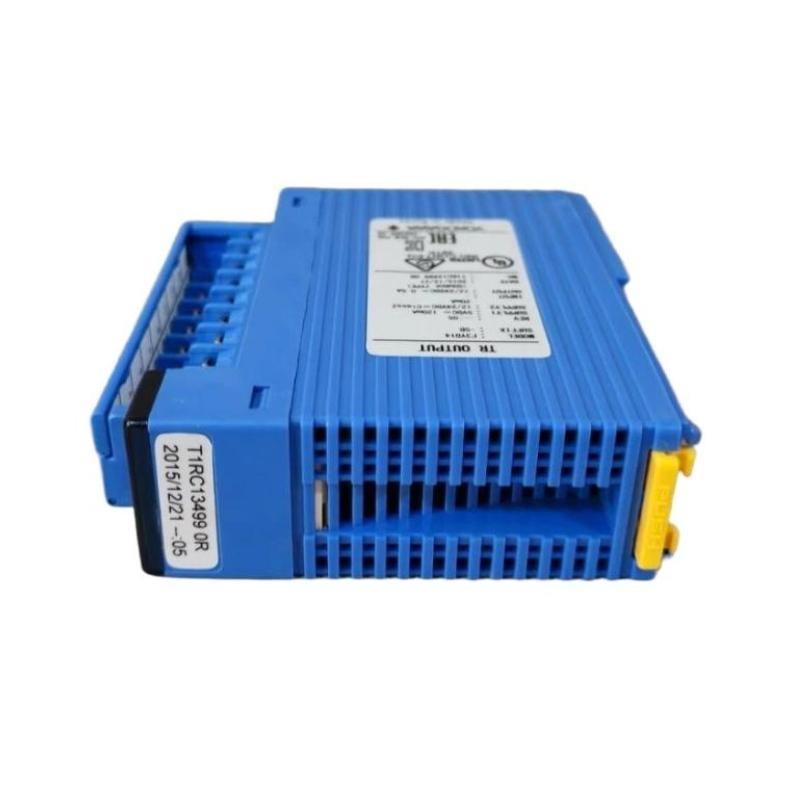

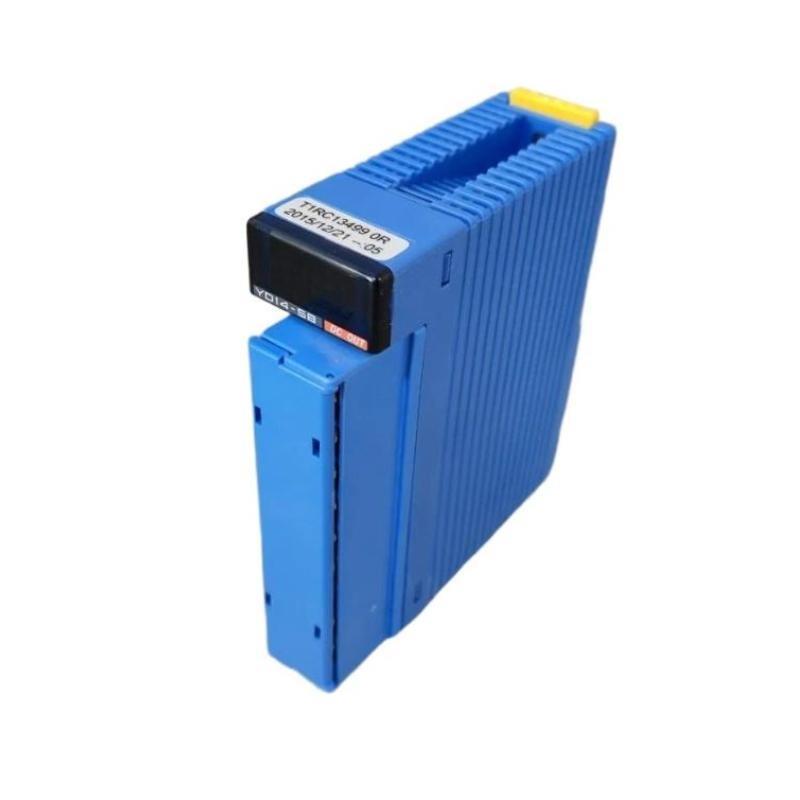

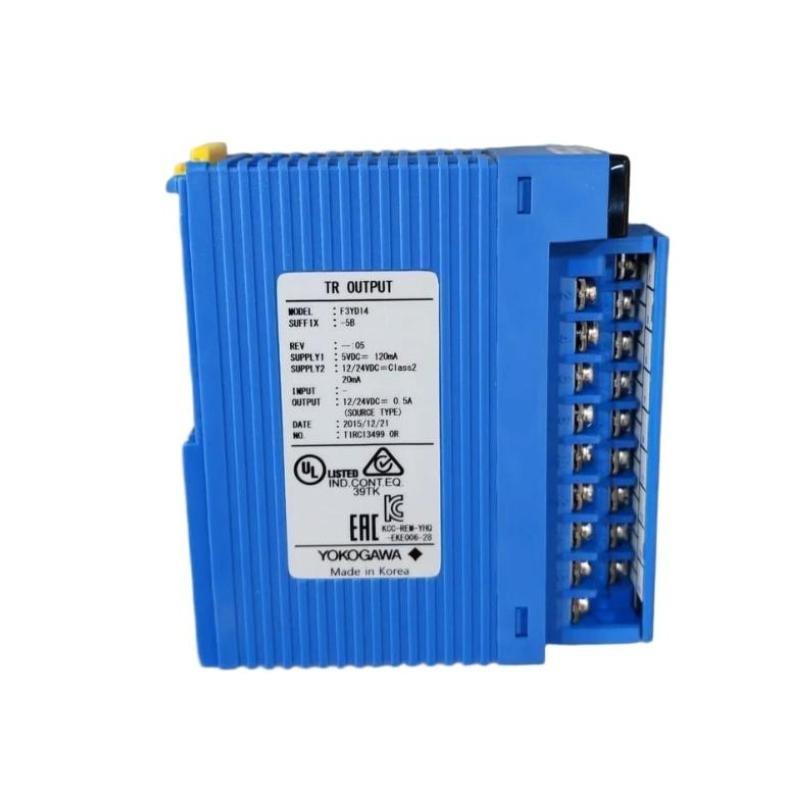

The Yokogawa F3YD14-5B Output Module is a high-performance digital output module designed for the F3 Series control systems, providing reliable control signals to actuators, relays, and other field devices. It enables precise operation / automated processes by converting controller commands into real-world actions.
Key Features
-
14-channel digital output module
-
High-speed switching for real-time control
-
Compatible with Yokogawa F3 Series controllers and I/O modules
-
Industrial-grade design for reliable operation in harsh environments
-
Built-in protection against short circuits and overloads
-
Simplifies system integration and expansion
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | F3YD14-5B |
| Module Type | Digital Output Module |
| Compatible System | Yokogawa F3 Series Controllers |
| Output Channels | 14 digital output channels |
| Output Type | Relay output |
| Maximum Switching Current | 2 A per channel |
| Maximum Switching Voltage | 250 V AC / 30 V DC |
| Response Time | ≤ 1 ms |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Supply | Supplied via F3 base 件 |
| Mounting | DIN rail or panel mounting via base 件 |
| Dimensions | 28.9 × 100 × 83.2 mm |
| 重量 | 0.16 kg |
Industry Applications
-
Oil & Gas – Controlling valves, actuators, and relays
-
Power Generation – Field device control for turbines and generators
-
Chemical & Petrochemical – Automation / process control equipment
-
Water & Wastewater – Pump, motor, and valve control
-
Manufacturing – Industrial automation and machinery control
Advantages
-
Provides fast and reliable digital output signals
-
Industrial-grade design ensures stable operation in harsh environments
-
Protects connected devices with built-in overload and short circuit protection
-
Simplifies integration and improves automation efficiency
-
Compatible with multiple F3 Series modules for system expansion
常见问题 (FAQ)
Q1: What is the primary function / the F3YD14-5B module?
It provides 14-channel digital output control for F3 Series control systems.
Q2: What type / output does it support?
Relay output.
Q3: How many channels does it support?
14 digital output channels.
Q4: Can it operate in industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Q5: What is the maximum switching current per channel?
2 A per channel.
Q6: What is the maximum switching voltage?
250 V AC / 30 V DC.
Q7: How is the module powered?
Powered via the F3 base 件.
Q8: How is it mounted?
DIN rail or panel mounting via the base 件.
Q9: What are the module dimensions?
28.9 mm × 100 mm × 83.2 mm.
Q10: What is the module weight?
Approx. 0.16 kg.
