Product Overview

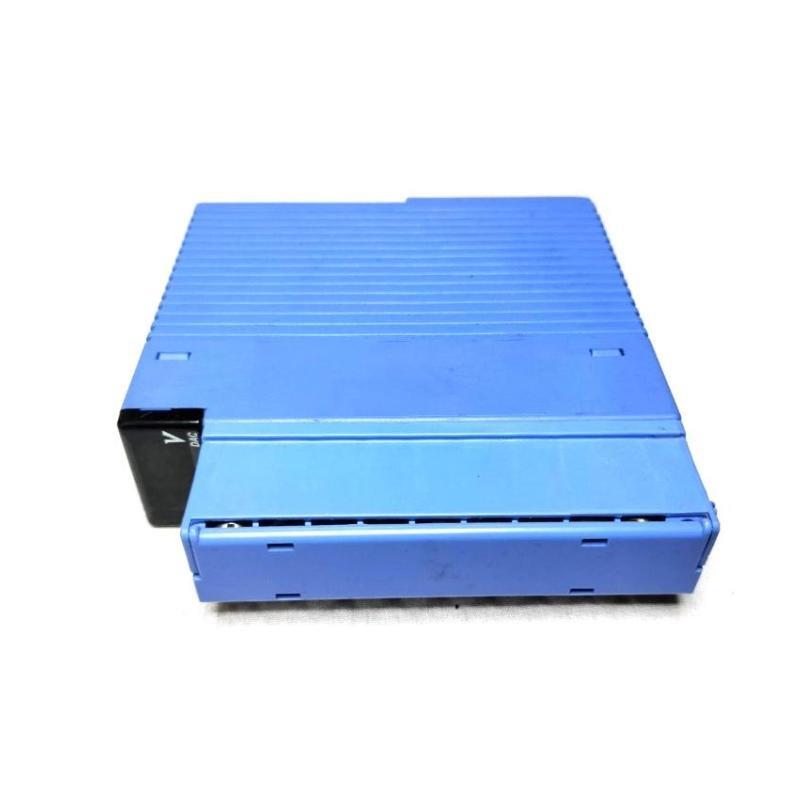

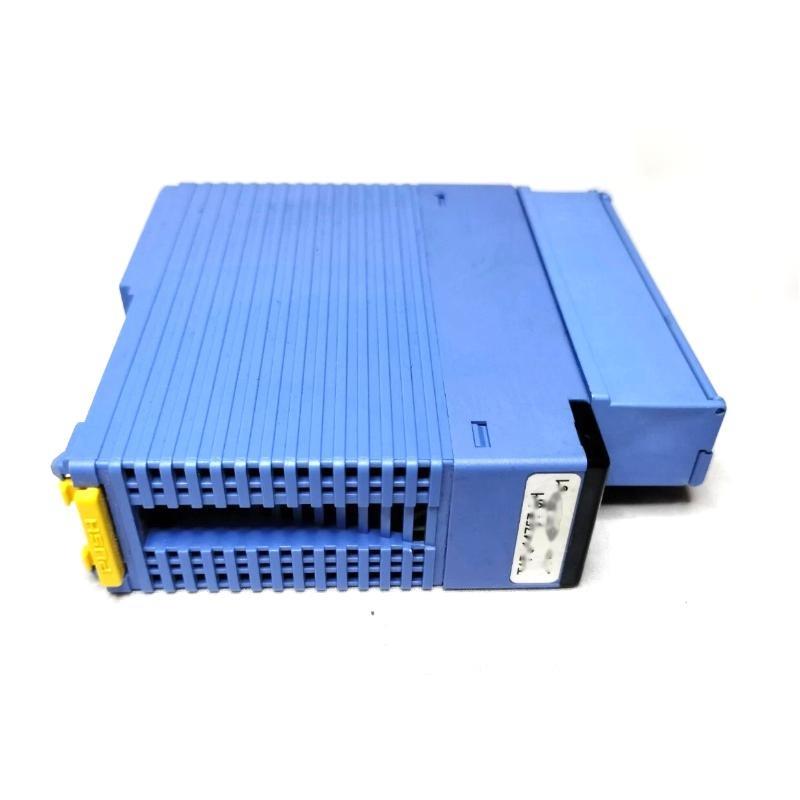

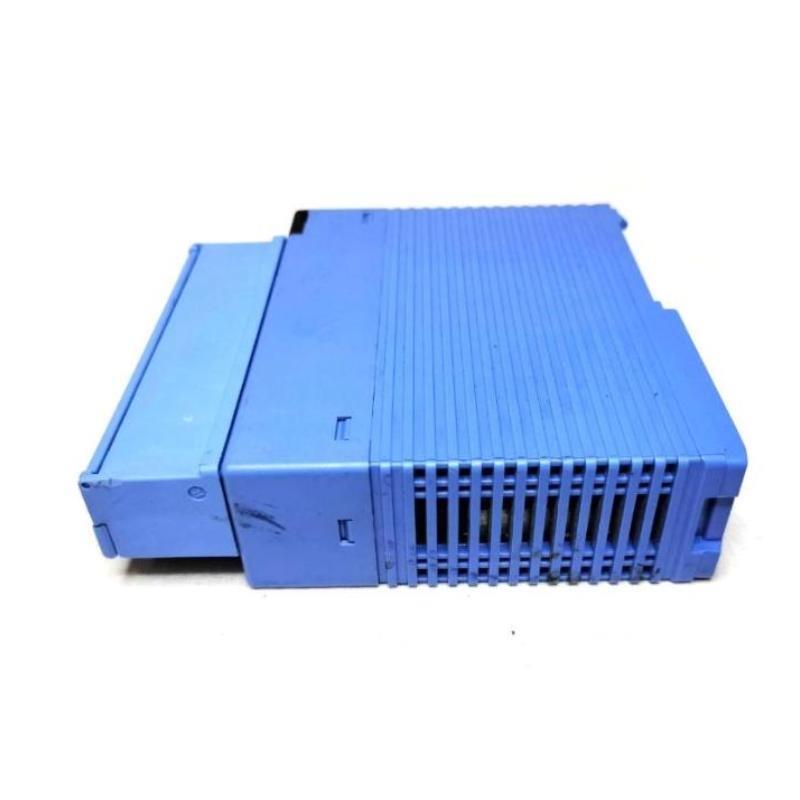

The Yokogawa F3DA04-6R is a high-performance 4-channel analog output module designed for industrial automation systems. It provides fast and accurate digital-to-analog conversion, supporting multiple voltage and current output ranges. Its compact design and advanced functions make it suitable for precise control applications in manufacturing and process industries.
产品规格
| Parameter | Specification |
|---|---|
| Channels | 4 |
| Resolution | 16-bit DAC |
| Output Voltage Ranges | -10 to 10 V, 0 to 5 V, 0 to 10 V, 1 to 5 V |
| Output Current Ranges | 4 to 20 mA, 0 to 20 mA, -20 to 20 mA |
| Update Time | 2 µs + 2 µs × number / channels updated |
| Response Time | Voltage: ~20 µs, Current: ~10 µs |
| Accuracy | Voltage: ±0.1% FS, Current: ±0.2% FS |
| Power Supply | 24 V DC, 60 mA system-side |
| Mounting Dimensions | 28.9 × 100 × 106.2 mm |
| 重量 | 0.18 kg |
| Isolation | 500 VDC (output to internal circuit) |
| Voltage Output Impedance | 0.5 Ω max |
| Current Output Impedance | 3 MΩ max |
| Allowable Load Resistance | Voltage: 500 Ω–1 kΩ, Current: – |
| Sampling Rate | 50 µs per point |
| Special Functions | Selective channel update, synchronous output, output hold on CPU failure |
Applications
-
Precision industrial process control
-
High-speed automation systems
-
Multi-channel analog control in FA-M3 or similar platforms
-
Temperature, pressure, and flow control loops
-
Factory automation requiring accurate analog signals
Advantages
-
High-speed conversion with low latency
-
Flexible voltage and current output ranges
-
Compact and lightweight design for tight spaces
-
Output hold function for safe operation during CPU failure
-
Synchronous channel update for consistent multi-channel control
-
High accuracy and reliability for demanding industrial environments
FAQ
1. What is the maximum output resolution / the module?
The module provides 16-bit digital-to-analog conversion.
2. Can it output both voltage and current simultaneously?
Each channel is configurable for either voltage or current output, but not both simultaneously.
3. What is the response time for voltage and current outputs?
Voltage: approximately 20 µs; Current: approximately 10 µs.
4. How is the module powered?
It requires a 24 V DC external supply with 60 mA consumption on the system side.
5. What are the physical dimensions and weight?
Dimensions are 28.9 × 100 × 106.2 mm, and the module weighs 0.18 kg.
6. Is the module protected in case / CPU failure?
Yes, it features an output hold function to maintain safe output or drive a predefined value.
7. How many channels can be updated simultaneously?
All four channels can be synchronously updated using the synchronous output function.
8. What is the allowable load for voltage outputs?
500 Ω minimum for 0–5 V and 1–5 V ranges; 1 kΩ minimum for 0–10 V and -10–10 V ranges.
9. Does the module provide electrical isolation?
Yes, it provides 500 VDC isolation between outputs and internal circuits.
10. What is the update time per channel?
It is 2 µs plus 2 µs multiplied by the number / channels updated.
Related 型号s (Same Series / Analog Output Modules)
| 型号 | Channels | Output Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| F3DA08-5R | 8 | Voltage/Current | 28.9 × 100 × 106.2 | 0.20 |
| F3DA04-5R | 4 | Voltage/Current | 28.9 × 100 × 106.2 | 0.18 |
| F3DA02-6R | 2 | Voltage/Current | 28.9 × 100 × 106.2 | 0.15 |
| F3DA08-6R | 8 | Voltage/Current | 28.9 × 100 × 106.2 | 0.22 |
| F3DA16-6R | 16 | Voltage/Current | 28.9 × 200 × 106.2 | 0.35 |
| F3DA04-7R | 4 | Voltage/Current | 28.9 × 100 × 106.2 | 0.18 |
Popular Yokogawa 型号s
| 型号 | Type | Channels | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| F3DA04-6R | Analog Output | 4 | 28.9 × 100 × 106.2 | 0.18 |
| F3DA08-5R | Analog Output | 8 | 28.9 × 100 × 106.2 | 0.20 |
| F3DA16-6R | Analog Output | 16 | 28.9 × 200 × 106.2 | 0.35 |
| F3DB04-6R | Analog Input | 4 | 28.9 × 100 × 106.2 | 0.18 |
| F3DB08-6R | Analog Input | 8 | 28.9 × 100 × 106.2 | 0.22 |
| F3DC04-6R | Digital I/O | 4 | 28.9 × 100 × 106.2 | 0.18 |
