产品介绍

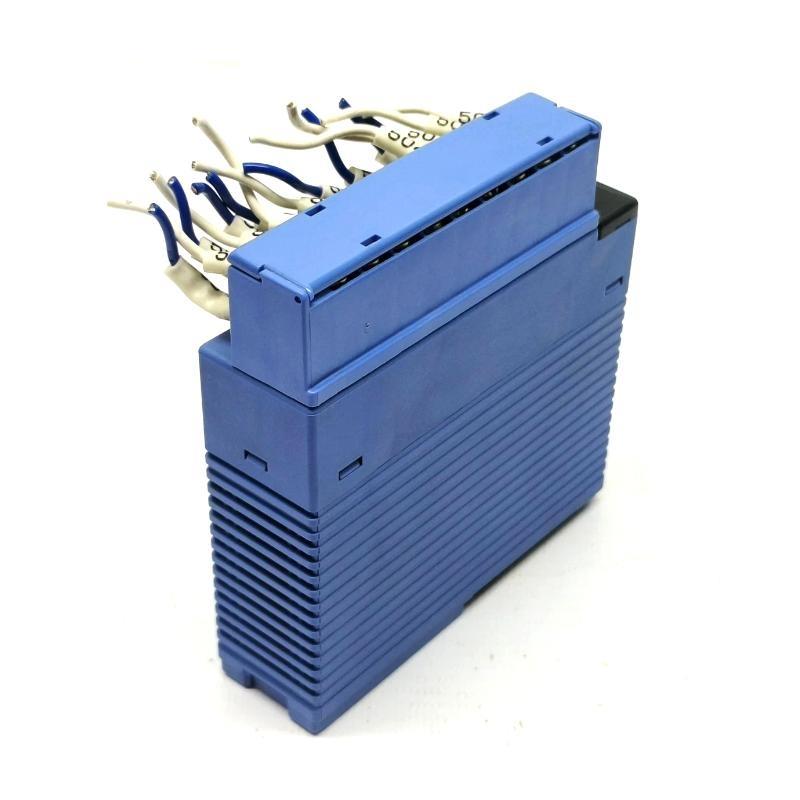

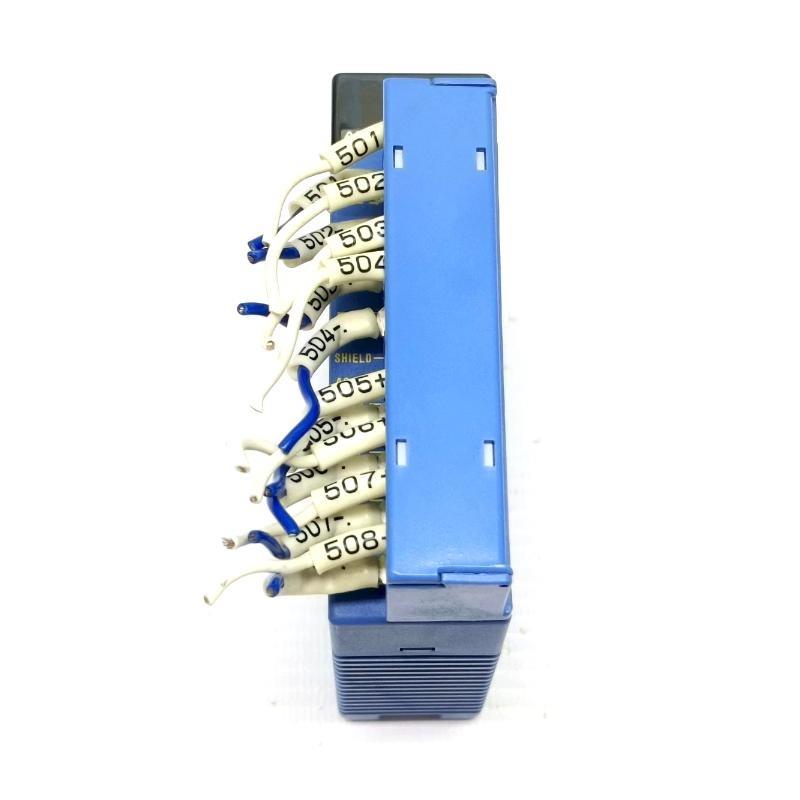

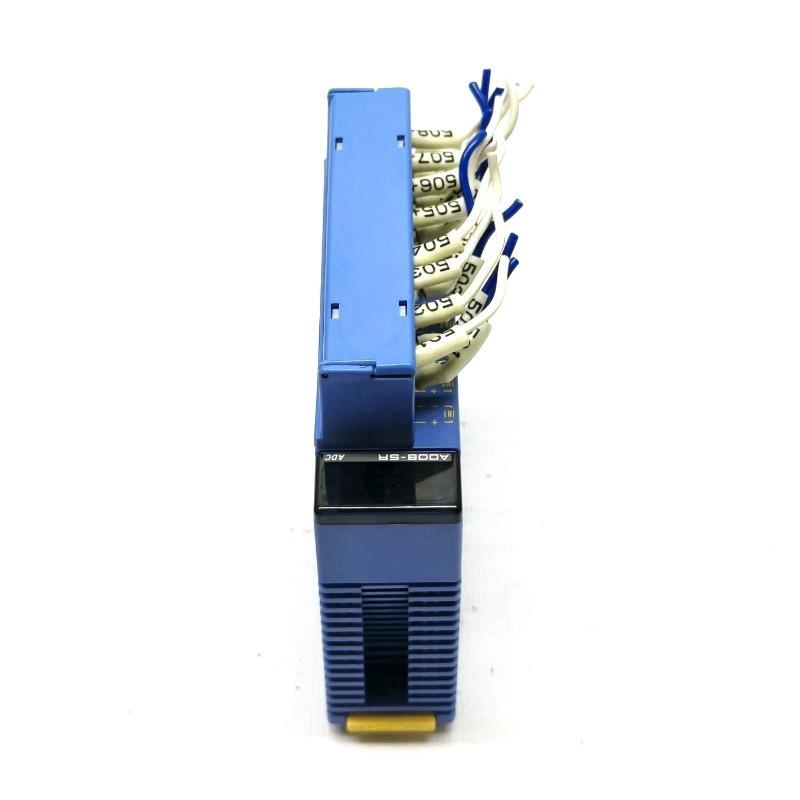

The Yokogawa F3AD08-5R Analog Input Module is a high-performance module designed for integration with the FA-M3 programmable logic controller (PLC) system. It provides precise measurement and high-speed conversion for a variety / analog signals, ensuring reliable operation in industrial automation environments.
产品规格
| Parameter | Specification |
|---|---|
| Input Channels | 8 differential analog input channels |
| Resolution | 16-bit ADC |
| Conversion Speed | 50 µs per channel |
| Input Signal Ranges | 0–5 V DC, 1–5 V DC, -10–10 V DC, 0–10 V DC, 0–20 mA DC, 4–20 mA DC |
| Isolation | Photocoupler isolation between input terminals and internal circuitry |
| Power Consumption | Approx. 210 mA at 5 V DC |
| Operating Temperature | 0–55°C |
| Mounting | FA-M3 system compatible |
| Dimensions | 28.9 × 100 × 106.1 mm |
| 重量 | 0.2 kg |
Applications
-
Industrial process control
-
Factory automation and monitoring
-
Real-time data acquisition from sensors and transducers
-
High-precision measurement in laboratory and manufacturing systems
-
Integration into FA-M3 PLC systems for analog input processing
Advantages
-
High-resolution 16-bit analog conversion ensures accurate readings
-
Fast 50 µs per channel sampling supports real-time monitoring
-
Wide input range accommodates both voltage and current signals
-
Robust isolation protects the module and PLC from signal noise
-
Compact and lightweight design for easy installation
FAQ
1. How many channels does the F3AD08-5R support?
It supports 8 differential analog input channels.
2. What types / signals can it measure?
It can measure voltage signals (0–5 V, 1–5 V, -10–10 V, 0–10 V) and current signals (0–20 mA, 4–20 mA).
3. What is the resolution / the module?
The module has a 16-bit analog-to-digital conversion resolution.
4. How fast is the conversion speed?
Conversion speed is 50 µs per channel.
5. Does the module provide isolation?
Yes, the module uses photocoupler isolation between input terminals and internal circuitry.
6. What is the operating temperature range?
It operates between 0°C and 55°C.
7. How is current input measured?
A 250Ω resistor is required across the input terminals to convert current into voltage.
8. What happens on startup?
Upon power-on, all outputs are held at high impedance until values are written to data registers.
9. What is the module’s weight and size?
The module measures 28.9 × 100 × 106.1 mm and weighs 0.2 kg.
10. Which PLC system is it compatible with?
It is designed for integration with the FA-M3 PLC system.
Related 型号s (Same Series / Related Functionality)
| 型号 | Channels | Resolution | Input Range | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| F3AD08-5T | 8 | 16-bit | 0–5V, 4–20mA | 28.9 × 100 × 106.1 | 0.2 |
| F3AD04-5R | 4 | 16-bit | 0–5V, 4–20mA | 28.9 × 100 × 106.1 | 0.2 |
| F3AD16-5R | 16 | 16-bit | 0–5V, 4–20mA | 28.9 × 200 × 106.1 | 0.4 |
| F3AD08-10R | 8 | 16-bit | 0–10V | 28.9 × 100 × 106.1 | 0.2 |
| F3AD08-5C | 8 | 16-bit | 0–5V, 4–20mA | 28.9 × 100 × 106.1 | 0.2 |
| F3AD04-10R | 4 | 16-bit | 0–10V | 28.9 × 100 × 106.1 | 0.2 |
Popular Yokogawa 型号s
| 型号 | Type | Channels | Resolution | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| F3AD08-5R | Analog Input | 8 | 16-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD16-5R | Analog Input | 16 | 16-bit | 28.9 × 200 × 106.1 | 0.4 |
| F3AD08-10R | Analog Input | 8 | 16-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3VD08-5R | Analog Output | 8 | 16-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD04-5R | Analog Input | 4 | 16-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3VD04-5R | Analog Output | 4 | 16-bit | 28.9 × 100 × 106.1 | 0.2 |
