Product Overview

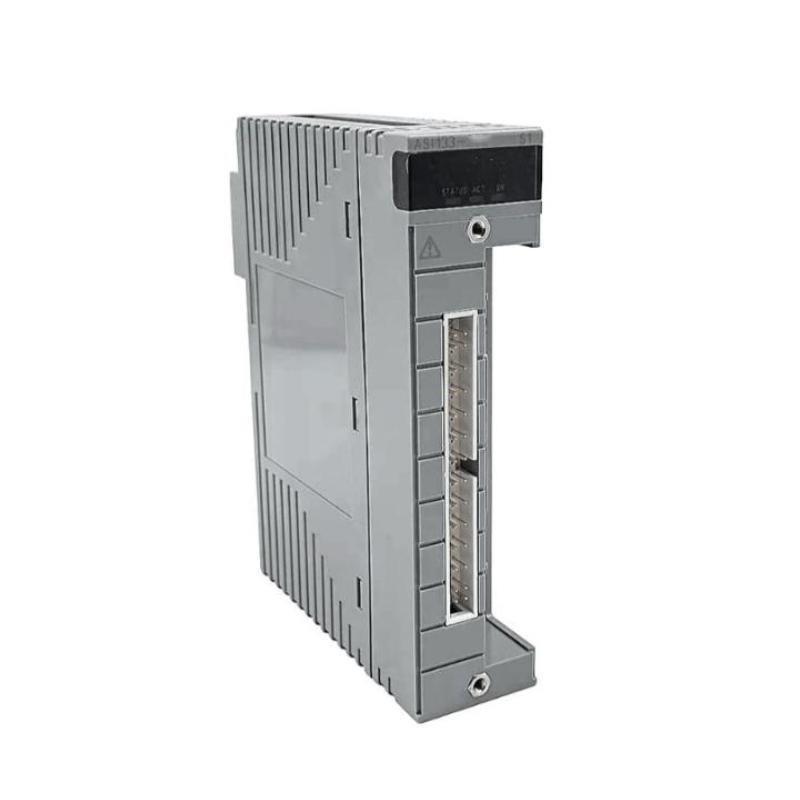

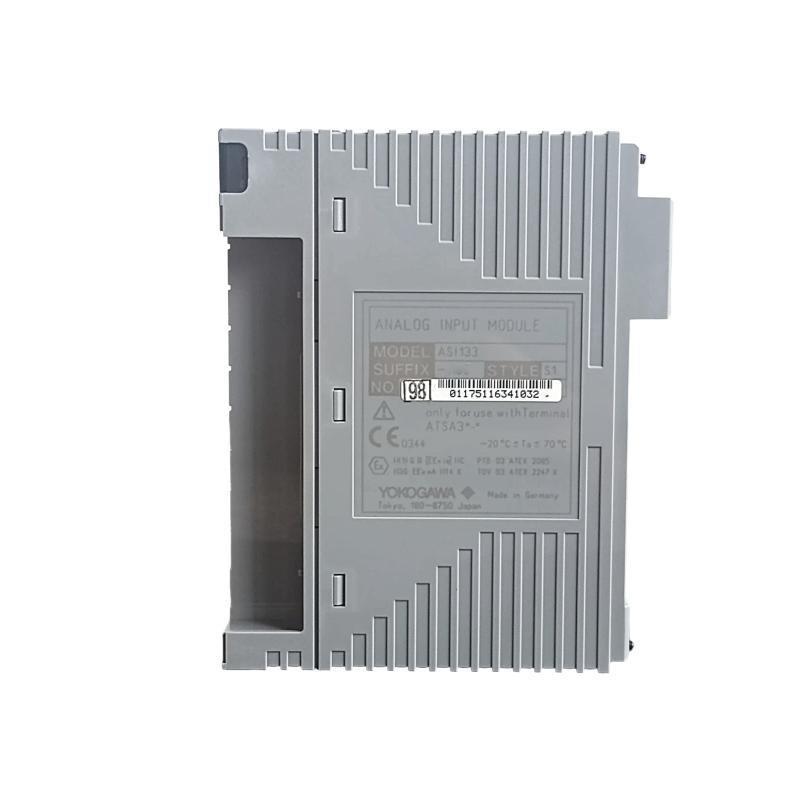

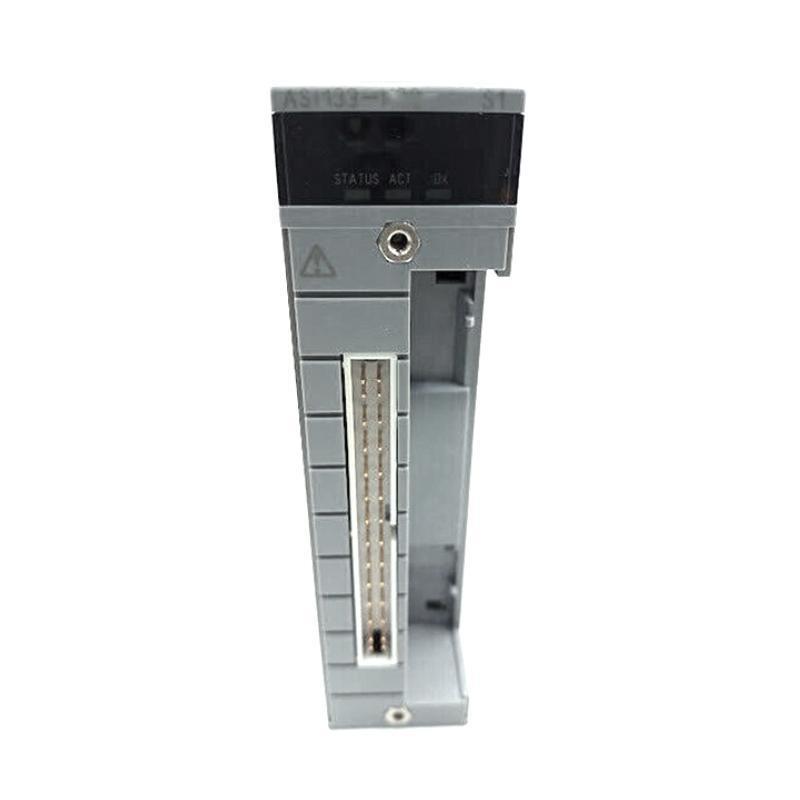

The Yokogawa ASI133-S00/SA3S0 Analog Input Module is designed for industrial automation systems requiring accurate and reliable signal acquisition. It /fers high-performance analog input capabilities with excellent isolation and stability, suitable for critical process control applications.
产品规格
| Parameter | Specification |
|---|---|
| Input Signal | 4–20 mA |
| Channels | 8 channels |
| Isolation | Module-level isolation |
| Terminal Type | Screw/Clamp terminals |
| Operating Temperature | -20°C to 70°C |
| HART Communication | Not supported |
| Power Supply | 24 VDC |
| Voltage Withstand | AC 1.5 kV, 1 min |
| Data Update Interval | 40 ms |
| Temperature Drift | ±16 µA/10°C |
| Dimensions (W × H × D) | 130 × 107.5 × 32.8 mm |
| 重量 | 0.3 kg |
Applications
-
Critical process control systems in chemical, petrochemical, and power industries
-
High-temperature industrial environments
-
Systems requiring reliable analog signal acquisition without HART communication
-
Integration with Yokogawa Centum CS and VP systems
Advantages
-
High isolation between channels ensures signal integrity
-
Compact design reduces space requirements
-
Fast data acquisition with 40 ms update time
-
Wide operating temperature range for harsh industrial environments
-
Simple and reliable wiring with clamp terminals
-
Stable operation with minimal temperature drift
FAQ
1. What is the input signal range / ASI133-S00/SA3S0?
4–20 mA current input signals.
2. How many channels does this module support?
It supports 8 analog input channels.
3. Can this module operate in high-temperature environments?
Yes, it operates reliably from -20°C to 70°C.
4. Is HART communication supported?
No, this module does not support HART communication.
5. What is the data update rate?
The module updates data every 40 ms.
6. How is the module powered?
It requires a 24 VDC power supply.
7. What type / terminal does it use?
Screw or clamp terminals for easy wiring.
8. What is the module’s physical size and weight?
Dimensions: 130 × 107.5 × 32.8 mm; 重量: 0.3 kg.
9. What isolation does the module provide?
It provides module-level isolation to prevent interference between channels.
10. Can it be used with Yokogawa Centum systems?
Yes, it is fully compatible with Centum CS and Centum VP systems.
Related and Recommended 型号s
| 型号 | Channels | Input Signal | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| ASI133-S01 | 8 | 4–20 mA | 130 × 107.5 × 32.8 | 0.3 |
| ASI133-S02 | 8 | 0–10 V | 130 × 107.5 × 32.8 | 0.3 |
| ASI133-S03 | 16 | 4–20 mA | 130 × 107.5 × 32.8 | 0.4 |
| ASI143-S00 | 8 | 4–20 mA | 130 × 107.5 × 32.8 | 0.3 |
| ASI143-S01 | 16 | 4–20 mA | 130 × 107.5 × 32.8 | 0.4 |
| ASI143-S02 | 8 | 0–10 V | 130 × 107.5 × 32.8 | 0.3 |
Popular Yokogawa 型号s
| 型号 | Channels | Input Signal | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| YS143-A00 | 8 | 4–20 mA | 130 × 107.5 × 32.8 | 0.3 |
| YS143-A01 | 16 | 4–20 mA | 130 × 107.5 × 32.8 | 0.4 |
| YS133-B00 | 8 | 0–10 V | 130 × 107.5 × 32.8 | 0.3 |
| YS133-B01 | 16 | 4–20 mA | 130 × 107.5 × 32.8 | 0.4 |
| ASI123-S00 | 8 | 4–20 mA | 130 × 107.5 × 32.8 | 0.3 |
| ASI123-S01 | 16 | 4–20 mA | 130 × 107.5 × 32.8 | 0.4 |
