产品介绍

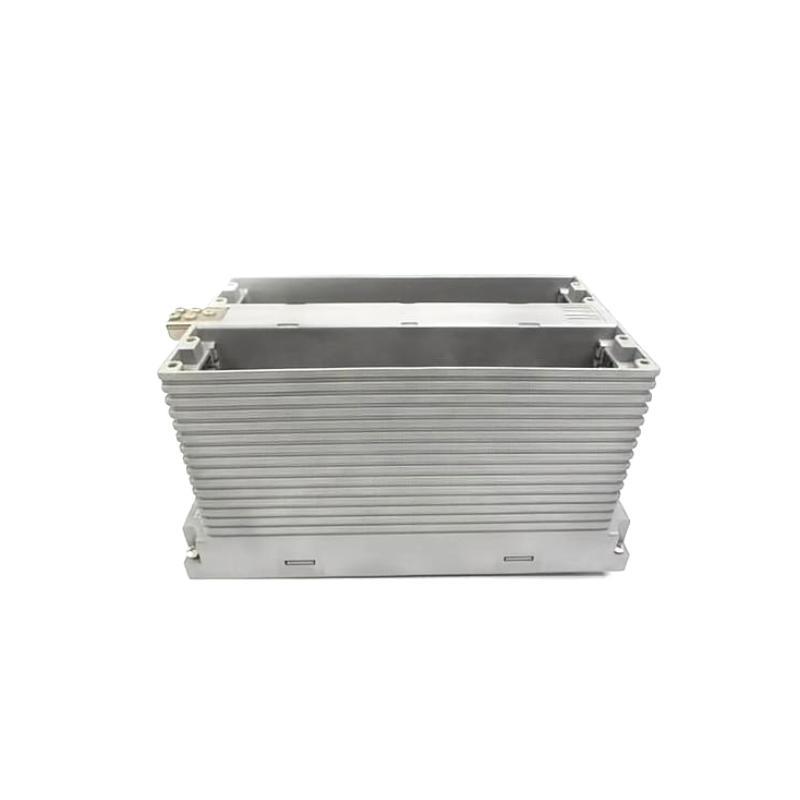

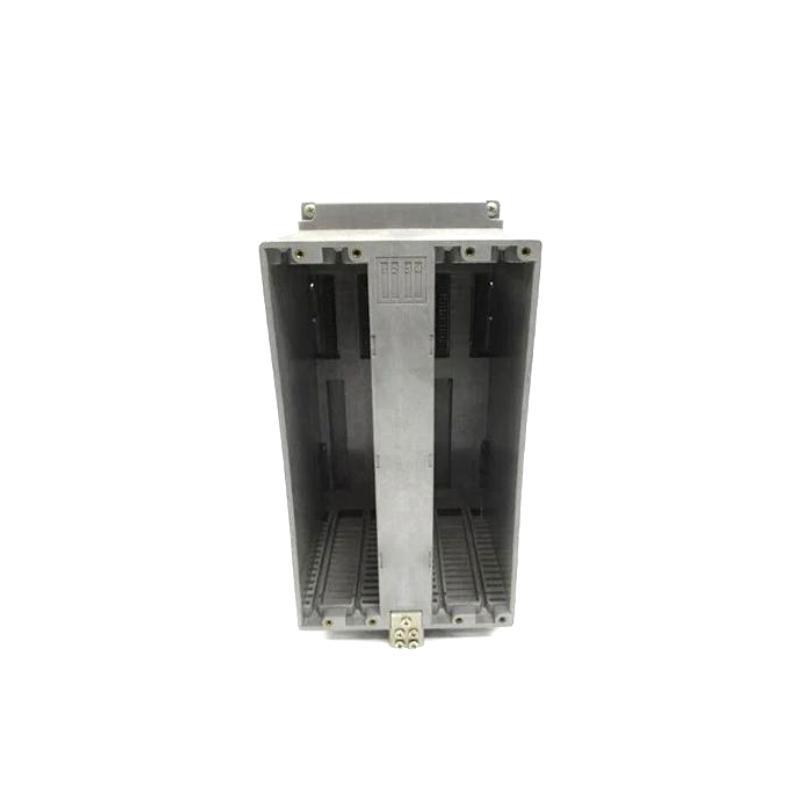

The Yokogawa AFS30D-H4113 Duplexed Field Control 单位 is an advanced controller designed for use in large-scale industrial control systems. As a key component / Yokogawa’s renowned CENTUM CS 3000 and CENTUM VP DCS platforms, it embodies high reliability, fault tolerance, and powerful real-time data processing capabilities.
The duplexed configuration ensures system redundancy, allowing continuous operation even in the event / a hardware failure. With its superior processing speed and expansive input/output capabilities, the AFS30D-H4113 is ideal for mission-critical applications where downtime is unacceptable. Its modular design supports flexible system expansion, while rigorous engineering ensures stable operation across a wide range / industrial environments.
产品规格
| Parameter | 描述 |
|---|---|
| Product 型号 | AFS30D-H4113 |
| Product Name | Duplexed Field Control 单位 |
| Series | CENTUM CS 3000 / CENTUM VP |
| CPU | Dual redundant processor 件s |
| Memory Capacity | 64 MB (expandable) |
| I/O Interface | Vnet/IP (Virtual Network over Ethernet) |
| Power Supply Voltage | 24 VDC |
| Power Consumption | Approx. 60 W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Communication Ports | Ethernet ports for system communication |
| Mounting | Rack-mounted |
| Dimensions | 426 × 250 × 300 mm |
| 重量 | 2.5 kg |
| Certifications | CE, CSA, ATEX, IECEx, RoHS compliant |
Product Applications
The Yokogawa AFS30D-H4113 is widely employed in sectors requiring robust and continuous control, such as:
-
Oil and gas production facilities
-
Petrochemical and chemical processing plants
-
Power generation stations (thermal, nuclear, and hydroelectric)
-
Water treatment and wastewater management systems
-
Pulp and paper manufacturing industries
-
Food and beverage processing plants
-
Pharmaceuticals and life sciences industries
It serves as the heart / distributed control systems (DCS), coordinating real-time data acquisition, control logic execution, and inter-device communication.
Product Advantages
-
High Availability: Dual CPU architecture ensures that the system continues to function seamlessly even if one 件 fails.
-
Outstanding Processing Power: Handles large volumes / I/O and complex control strategies with minimal latency.
-
Flexible Network Integration: 支持s Vnet/IP for high-speed and highly reliable data communications.
-
Modular and Scalable: Easily expandable to accommodate growing system requirements without major overhauls.
-
Energy Efficient: Low power consumption without compromising performance.
-
Certified for Harsh Environments: Fully compliant with international standards for industrial automation.
-
Minimal Downtime: Online maintenance features allow module replacement without halting the system.
-
Enhanced Security: Features advanced security mechanisms to protect control data and communication channels.
-
Wide Temperature Range: Designed to operate reliably under varied and extreme environmental conditions.
-
Long Service Life: Built to Yokogawa’s strict quality standards, ensuring dependable operation over decades.
FAQ (常见问题)
1. What does “Duplexed” mean in the context / the AFS30D-H4113?
It refers to the dual redundant CPU design, allowing continuous operation even if one CPU fails.
2. Can the AFS30D-H4113 be used in hazardous areas?
Yes, it holds certifications like ATEX and IECEx, making it suitable for hazardous industrial environments.
3. What type / network communication does it support?
It supports Vnet/IP, Yokogawa’s high-speed, deterministic Ethernet-based control network.
4. How is system expansion handled?
The modular design allows the addition / I/O modules and network nodes without significant downtime.
5. What is the typical power consumption?
The 件 consumes 60 watts under normal operation.
6. Is it possible to replace modules online without shutting down the system?
Yes, online maintenance capabilities enable hot-swapping / modules.
7. What industrial standards is it compliant with?
It complies with CE, CSA, ATEX, IECEx, and RoHS standards.
8. What are the installation requirements for the AFS30D-H4113?
It requires rack-mount installation with adequate ventilation to maintain optimal operating temperatures.
9. How much memory is available?
The standard memory capacity is 64 MB, and it can be expanded as needed.
10. What is the weight / the 件?
The 件 weighs 2.5 kg.
Related 型号s from the Same Series
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| AFS30D-H4112 | Duplexed Field Control 单位 | 上一页 model, similar redundancy features |
| AFS40D-S0000 | Standard Field Control Station | High-speed CPU for faster control |
| AFF50D-S0000 | Field Control Function Card | Enhances CPU I/O capabilities |
| AFV10D-S0000 | Vnet/IP Interface Module | Robust communication interface |
| ACG10D-S0000 | Control Gateway Module | Bridges multiple networks for seamless integration |
| ANB10D-S0000 | Node Interface Module | Distributed I/O interface over Vnet/IP |
Popular 型号s from Yokogawa
| 型号 Number | 描述 | Application |
|---|---|---|
| CP451-10 | Processor Module | High-speed control and processing |
| PW482-10 | Power Supply Module | Stable 24VDC power delivery |
| AMN11 | Network Module | Vnet/IP communication network node |
| ADV151-P00 | Analog Input Module | High-accuracy analog data acquisition |
| AAI543-H50 | Analog Input Card (HART) | Enables HART-enabled field device communication |
| SAI143-H00 | Analog Input Module for Safety Systems | Critical analog input for safety applications |
