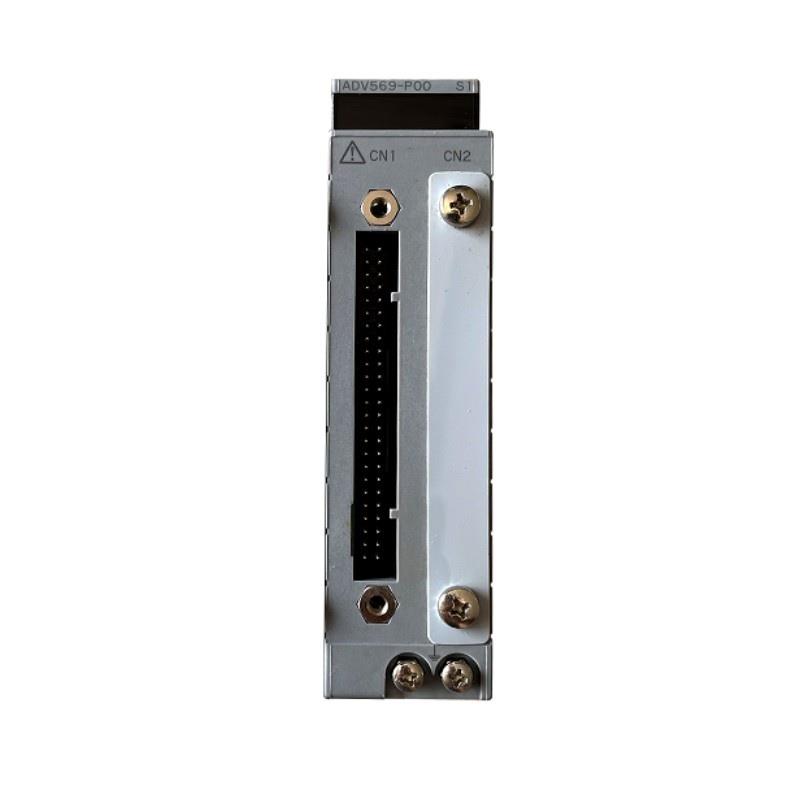

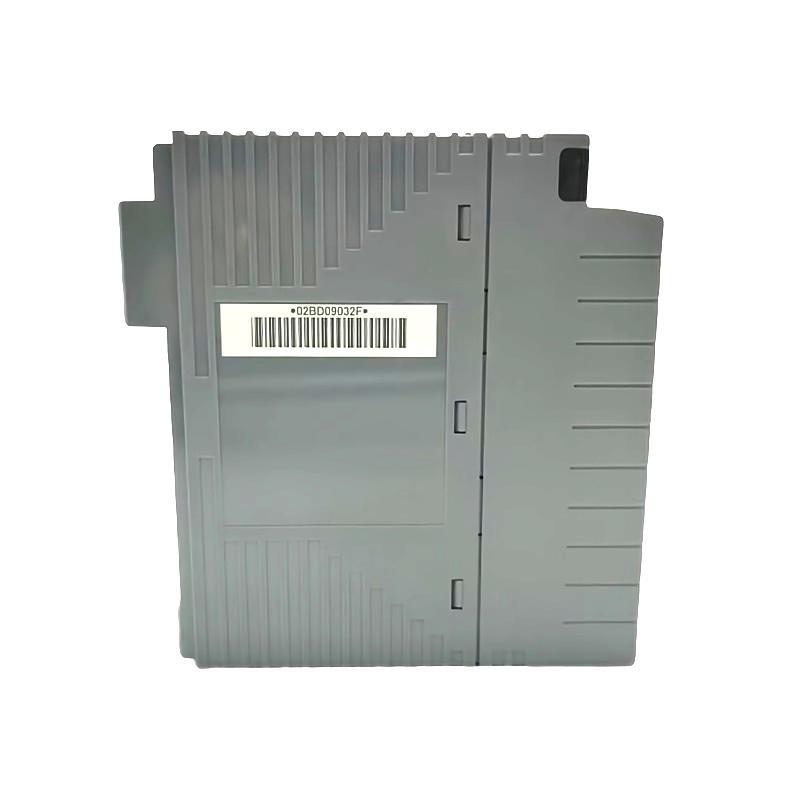

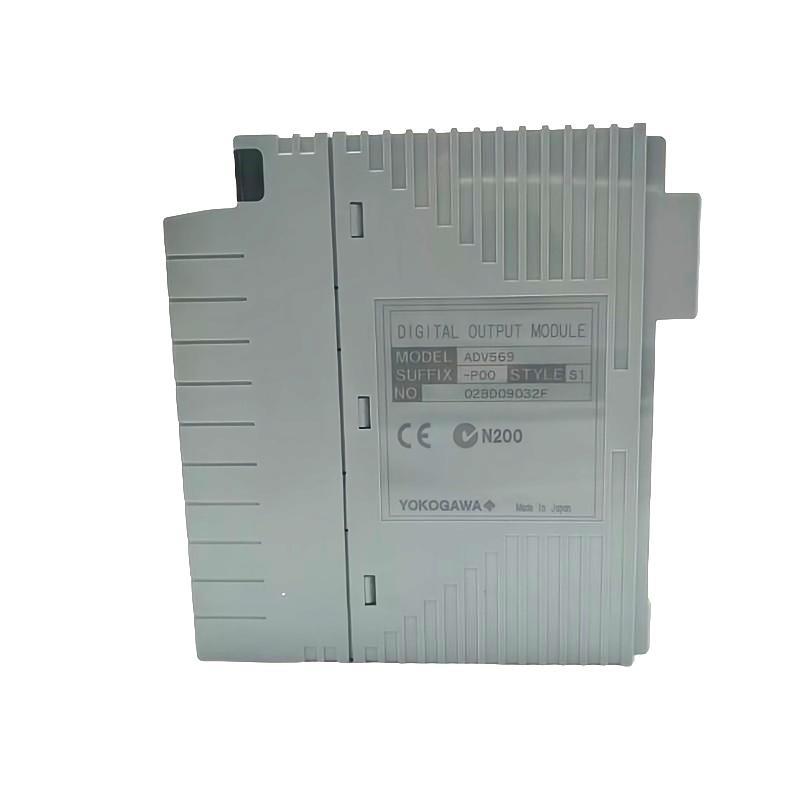

The Yokogawa ADV569 Digital I/O Module is a compact, high-performance mixed input/output module developed for Yokogawa’s CENTUM VP and CENTUM CS 3000 control platforms. Designed for systems that demand both digital input and output capabilities within a single module, the ADV569 simplifies cabinet design, reduces wiring, and increases flexibility in industrial automation environments.
With 16 digital channels configurable as inputs or outputs, the ADV569 is ideal for control architectures where space optimization, high availability, and reliability are essential. This module is especially suitable for batch control, equipment interlocks, signal feedback, and on//f control applications in critical industries such as oil & gas, chemical processing, power generation, water treatment, and more.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | ADV569 |
| Module Type | Digital Input/Output Module |
| Number / Channels | 16 points (configurable as input/output) |
| Input Signal Type | Dry contact or 24 V DC logic |
| Output Signal Type | 24 V DC (sink/source type configurable) |
| Rated Voltage | 24 V DC |
| Input Current | Approx. 6–8 mA per input |
| Output Current Capacity | Max. 0.5 A per output channel |
| Response Time | ≤10 ms (typical) |
| Isolation | Optical isolation per channel |
| Diagnostics | Output open load, short-circuit detection |
| Power Supply | Supplied via I/O baseplate |
| Dimensions (H × W × D) | 130 x 127.2 x 32.8 mm |
| 重量 | 0.3 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5–95% RH (non-condensing) |
| Mounting Method | Mounted on FCS or I/O baseplate |
| Certifications | CE, FM, CSA, ATEX |
Product Applications
The ADV569 Digital I/O Module is used in a wide range / industries where mixed discrete signal monitoring and control are required. It is commonly installed in:
-
Oil & Gas Processing 单位s
For receiving valve open/close status and controlling actuators or solenoids. -
Chemical and Petrochemical Plants
Used to monitor equipment interlocks while triggering alarms or motor starters. -
Power Generation Facilities
Controls circuit breakers, receives turbine protection feedback, and outputs control pulses. -
Water and Wastewater Treatment
Captures sensor signals and controls gates or pump relays from one 件. -
Pharmaceutical Manufacturing
Ensures accurate signal management in validated cleanroom or batch environments. -
Food & Beverage Automation
Operates safety interlocks and system start/stop via programmable outputs and feedback.
Product Advantages
-
Dual Functionality: Combines input and output capability in a single module, reducing footprint and wiring.
-
Channel Flexibility: Allows dynamic assignment / each point as input or output based on system needs.
-
Fast Response Time: Ideal for real-time control loops and feedback-sensitive equipment.
-
Built-In Diagnostics: Includes fault detection for open load and short circuits, enhancing system safety.
-
High Reliability: Designed for harsh environments with robust isolation and industrial certification.
-
Compact Design: Slim 27 mm width module maximizes panel density in tight enclosures.
-
System Integration: Fully compatible with Yokogawa’s DCS platforms (CENTUM VP and CS 3000).
-
Certifications for Global Deployment: CE, ATEX, FM, and CSA ensure international compliance.
常见问题 (FAQ)
-
What is the ADV569 module used for?
It is used for applications requiring both digital input and output functionalities in one compact module. -
How many channels does the module provide?
It provides 16 digital channels that can be individually configured as input or output. -
What voltage does it support?
The ADV569 operates at 24 V DC nominal. -
Is the output channel capable / driving high current loads?
Yes, each output can handle up to 0.5 A, which is sufficient for most industrial actuators and solenoids. -
Can input and output be mixed on the same module?
Yes, channels are independently configurable as inputs or outputs. -
Does it support diagnostic monitoring?
Yes, it provides diagnostics such as open load detection and short-circuit alarms. -
Is the module hot-swappable?
序号 For safety and stability, the system should be powered down before replacing the module. -
What is the typical response time / the module?
The module responds within approximately 10 milliseconds, suitable for most automation scenarios. -
Can it be used in hazardous environments?
Yes, it is certified by ATEX, FM, CSA, and CE for use in hazardous areas. -
Which systems is it compatible with?
It integrates seamlessly with Yokogawa’s CENTUM VP, CS 3000, and ProSafe-RS platforms.
Related 型号s from the Same Series or Product Family
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| ADV561 | High-Speed Digital Input Module | Ultra-fast input detection |
| ADV151 | Voltage Digital Input Module | 32-channel input, isolated |
| ADV159 | Standard Digital Input Module | General-purpose 32-point input |
| ADV161 | Digital Input Module | 16 isolated inputs, standard response |
| ADV163 | Digital Input for Safety Systems | SIS-ready with diagnostics |
| ADV169 | Safety-Class Digital Input Module | Enhanced for safety instrumented systems |
Popular 型号s from Yokogawa 品牌
| 型号 Number | 描述 | Application Area |
|---|---|---|
| CP451-10 | Field Control Station Processor Module | Centralized logic and control processing |
| AAI141-H00 | High-Density Analog Input Module | Multi-signal analog monitoring |
| AAI543-H50 | Isolated Analog Input Module | Critical analog input processing |
| PW402 | Redundant Power Supply Module | Powering FCS and I/O reliably |
| SAI533-H33 | Safety Analog Input Module | ProSafe-RS compliant safety input |
| ALR121-S00 | Alarm Relay Output Module | Used for status annunciation and alarms |
