产品介绍

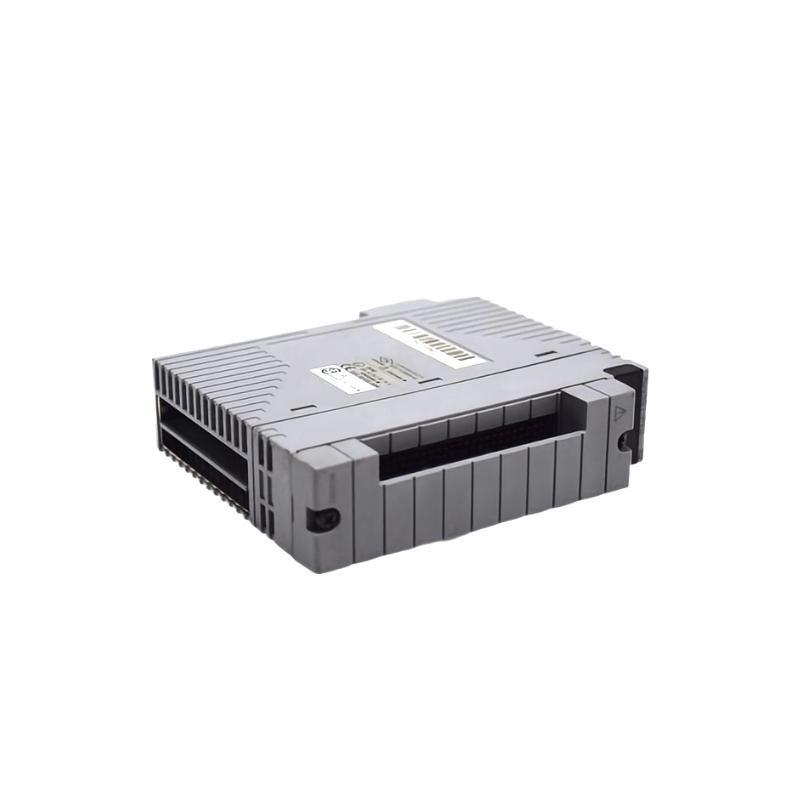

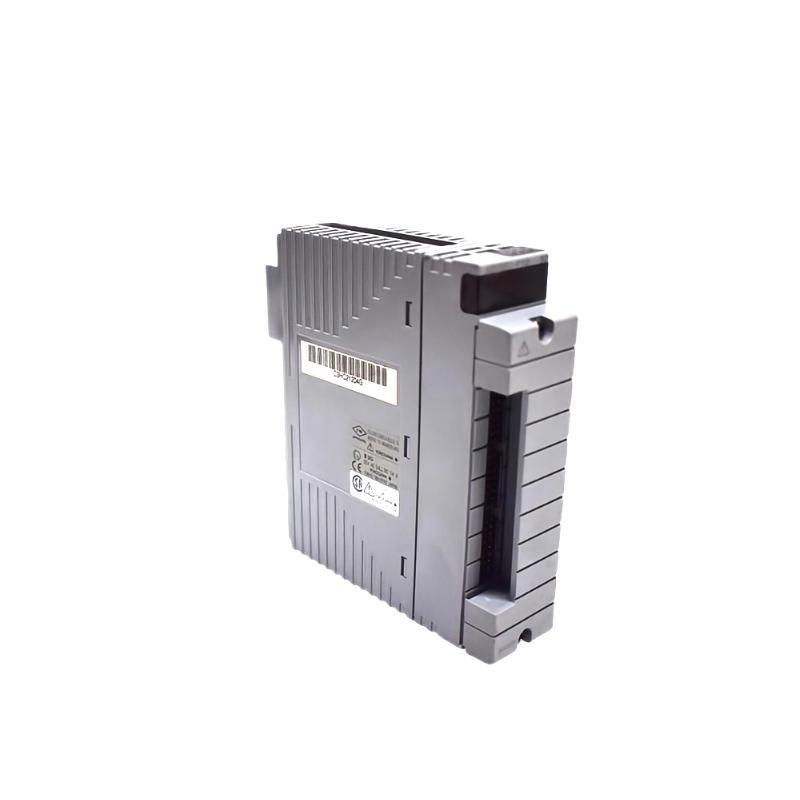

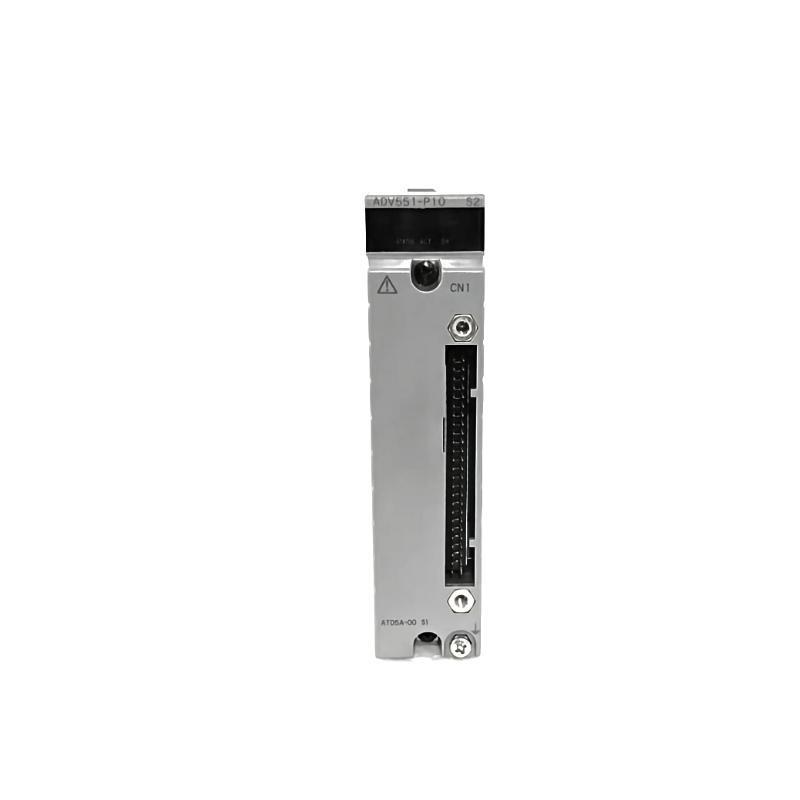

The Yokogawa ADV551-P10 is a digital output module designed for the CENTUM series distributed control systems. This module provides multiple discrete output channels to control a wide range / field devices, such as solenoid valves, relays, alarms, and actuators.
Built with a focus on durability and reliable signal transmission, the ADV551-P10 ensures robust operation even in demanding industrial environments. Its modular design allows easy integration into existing Yokogawa systems, delivering precise control signals for automated process management.
With advanced diagnostics and fault detection, the ADV551-P10 helps reduce downtime by alerting operators to output abnormalities early. This module supports up to 32 output channels, /fering a high-density solution for system architects seeking efficient space and wiring management.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | ADV551-P10 |
| Module Type | Digital Output Module |
| Number / Channels | 32 output channels |
| Output Type | Open collector transistor outputs (sink type) |
| Rated Voltage | 24 V DC nominal |
| Max Output Current | 0.5 A per channel |
| Output Isolation | Photocoupler isolation per channel |
| Signal Update Time | ≤ 100 milliseconds |
| Power Supply | System base plate power |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | DIN rail on system base plate |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| 重量 | 0.2 kg |
| Communication Interface | Network I/O bus (N-IO) |
| Compatible Systems | Yokogawa CENTUM VP, CENTUM CS 3000 |
Applications
-
Oil and Gas Industry: Controls valves and safety devices for pipelines and processing 件s.
-
Chemical Manufacturing: Drives discrete actuators in batch and continuous processes.
-
Power Generation Plants: Manages auxiliary equipment such as cooling fans, alarms, and pumps.
-
Water Treatment Facilities: Operates pumps, valves, and other process equipment with discrete on//f signals.
-
Pharmaceutical Production: Facilitates precise control in automated production lines.
-
Food and Beverage Industry: Controls packaging and process line actuators with reliability.
Product Advantages
-
High Channel Density: 32 discrete outputs in a compact form factor reduce cabinet size and wiring complexity.
-
Reliable Isolation: Photocoupler isolation on every channel ensures protection from electrical noise and cross-talk.
-
Early Fault Detection: Built-in diagnostics detect output shorts and opens, assisting in preventive maintenance.
-
Seamless Integration: Fully compatible with CENTUM VP and CS 3000 systems for straightforward deployment.
-
Robust Build Quality: Designed to withstand industrial temperature fluctuations, humidity, and electrical interference.
-
Low Power Consumption: Efficient energy use reduces operational costs over time.
-
Easy Installation: DIN rail mounting and standardized connections simplify field installation and replacement.
-
Long Service Life: 支持ed by Yokogawa’s worldwide network for spare parts and technical support.
常见问题 (FAQ)
-
What type / output signals does the ADV551-P10 provide?
It provides open collector transistor outputs with sink configuration. -
How many output channels are available on this module?
There are 32 discrete output channels. -
What is the maximum current rating per channel?
Each channel can handle up to 0.5 amperes. -
Is there any built-in diagnostic functionality?
Yes, the module detects open and short circuits on the output channels. -
What are the physical dimensions / the ADV551-P10?
The module measures 27.4 mm wide, 130 mm high, and 176 mm deep. -
What operating temperature range is supported?
The module operates reliably from 0 °C to 55 °C. -
Can the module be installed on a DIN rail?
Yes, it is designed for DIN rail mounting on the system base plate. -
What is the signal update time for the outputs?
The output signals are updated every 100 milliseconds or less. -
Is this module compatible with CENTUM CS 3000?
Yes, it supports both CENTUM VP and CENTUM CS 3000 systems. -
Can the module be hot-swapped during operation?
No, it must be powered down before removal or installation to avoid damage.
Related 型号s (Same Series or Compatible)
| 型号 Number | 描述 | Output Type | Channels | Remarks |
|---|---|---|---|---|
| ADV551-P00 | Digital Output Module (Legacy) | Sink | 32 | 上一页 generation version |
| ADV552-P10 | Digital Output Module | Source | 32 | Source type outputs |
| ADV561-P10 | Digital Output Module | Sink | 16 | Half channel count version |
| ADV151-P10 | Digital Input Module | N/A | 32 | Complementary input module |
| ADV161-P10 | Digital Input Module | N/A | 16 | Smaller input module |
| AAI543-H10 | Analog Input Module | N/A | 8 | For analog signal inputs |
Popular Yokogawa 型号s
| 型号 Number | 描述 | Type | Application |
|---|---|---|---|
| AAI543-H10 | Analog Input Module | Analog Input | Measurement / analog signals |
| ADV151-P10 | Digital Input Module | Digital Input | Discrete input acquisition |
| AAR181-S00 | Network Interface Module | Communication | Remote I/O connectivity |
| AAI841-H10 | High-Speed Analog Input Module | Analog Input | Fast analog signal capture |
| CP451-10 | CPU Module | Controller | CENTUM VP system processing |
| PW482-10 | Power Supply Module | Power Supply | Provides power for modules |
