Product Introduction

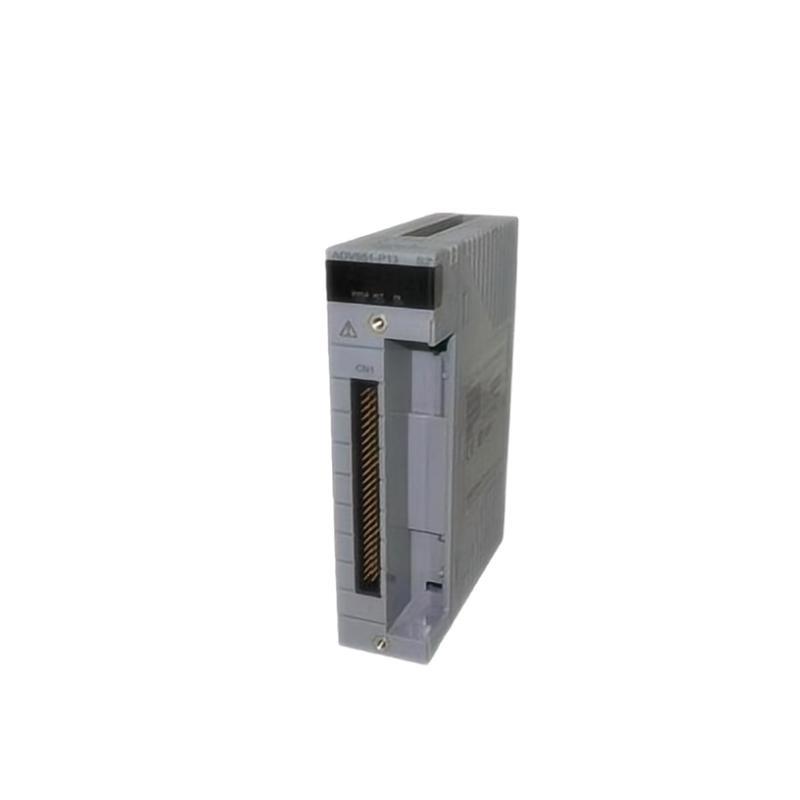

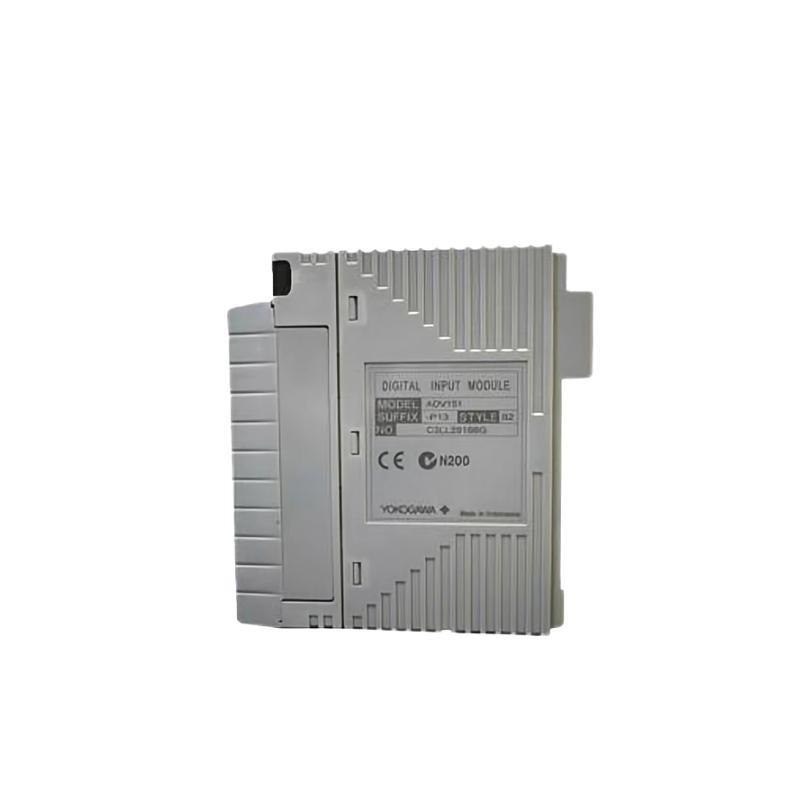

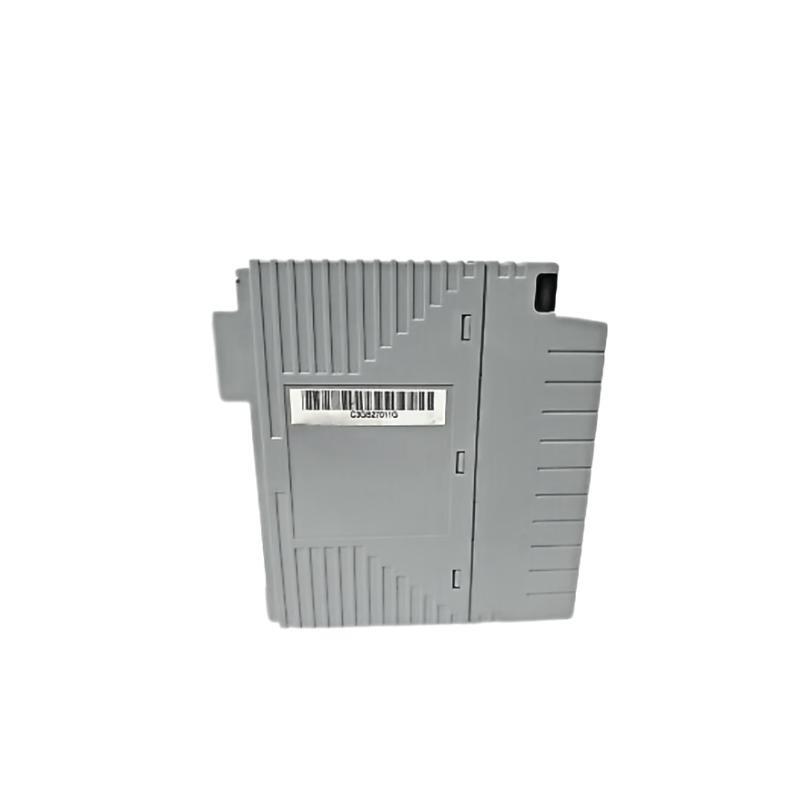

The Yokogawa ADV169-P01 is a high-density 32-channel digital input module designed for integration into Yokogawa’s CENTUM VP and ProSafe-RS control systems. Engineered to collect discrete signals from field devices such as limit switches, pushbuttons, contactors, and safety interlocks, this module is a critical component for reliable and real-time digital input processing in complex industrial systems.
This module is part / the Fieldbus I/O (FIO) family and /fers enhanced input signal diagnostics and robust isolation features. The ADV169-P01 is designed to accept non-polarized voltage inputs, ensuring flexibility in wiring and reducing engineering effort during system setup. With optical isolation for each channel and configurable input filter times, the module ensures accurate detection / state changes, while suppressing electrical noise from the field.
The ADV169-P01 is well-suited for applications that require high-speed monitoring, accurate event timestamping, and integration into both standard and safety instrumented systems. It is especially ideal for demanding sectors such as oil & gas, chemical processing, power generation, and large-scale manufacturing.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | ADV169-P01 |
| Function | 32-Channel Digital Input Module |
| Input Channels | 32 channels |
| Input Signal Type | Voltage input, non-polarized |
| Nominal Input Voltage | 24 VDC (operating range: 18–30 VDC) |
| Input Current | Approximately 6 mA per channel |
| Input Filter Times | Configurable: 3 ms, 10 ms, 20 ms, 100 ms |
| Sequence / Events (SOE) | 支持ed with 1 ms timestamp accuracy |
| Input Isolation | Optical isolation per channel |
| Internal Power Supply | Supplied via system backplane |
| Power Consumption | Approx. 5.5 W |
| Mounting Method | Baseplate mounting |
| Terminal Connection | Removable screw-type terminal block |
| Communication Interface | FIO (Fieldbus I/O) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +70 °C |
| Humidity Tolerance | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 10 to 60 Hz, 0.7 mm amplitude |
| Shock Resistance | 10 G |
| Dimensions | 130 x 127.2 x 32.8 mm |
| 重量 | 0.3 kg |
| Certifications | CE, ATEX, CSA (varies by configuration) |
| Hot-Swap Capability | 支持ed |
| Wiring Type | Non-polarized signal wiring |
Product Applications
-
Process Safety Systems: The ADV169-P01 is widely used in SIS (Safety Instrumented Systems) to acquire safety-critical digital input signals such as emergency shutdown initiators, fire and gas detectors, and fault alarms.
-
Oil & Gas Platforms: Ideal for collecting contact inputs from motor starters, pressure switches, valve limit switches, and local control panels in hazardous /fshore and onshore environments.
-
Chemical Processing Plants: Handles extensive I/O in batch, continuous, and hybrid chemical systems where contact input state accuracy and fast detection are crucial.
-
Power Generation Facilities: Used in turbine control systems and auxiliary monitoring where digital inputs from field relays and interlocks must be monitored continuously and precisely.
-
Water Treatment Systems: Efficiently interfaces with flow switches, pressure switches, level switches, and door interlocks in water and wastewater automation.
-
Manufacturing Automation: 支持s the acquisition / interlock signals, safety relay feedback, emergency stop button signals, and machine status feedback.
Product Advantages
-
High-Density Input Capability: 32 digital input channels in a single module maximize space efficiency and reduce installation footprint.
-
Non-Polarized Wiring: Simplifies field wiring by accepting signals without regard to polarity, reducing installation errors.
-
Advanced SOE Logging: Integrated Sequence / Events capability provides accurate timestamping for incident reconstruction and root cause analysis.
-
Optical Isolation Per Channel: Each input is isolated from system electronics and other channels to protect against voltage spikes and ground loops.
-
Hot-Swappable Design: Enables maintenance and replacement without shutting down the system, minimizing operational disruptions.
-
Wide Operating Range: Built to operate in harsh industrial conditions with wide temperature and humidity tolerances.
-
Selectable Input Filtering: Adjustable input debounce times help to eliminate false signal readings due to contact bounce or field noise.
-
Integrated Diagnostics: Provides channel-level diagnostics for input signal status, aiding in rapid troubleshooting.
-
Standard Compliant: Compatible with international standards for use in critical applications including hazardous areas.
-
Backed by Yokogawa Reliability: Engineered under Yokogawa’s rigorous quality standards, ensuring durability and system integrity.
常见问题 (FAQ)
-
Q: What is the difference between ADV169-P01 and ADV169-P00?
A: The ADV169-P01 is an enhanced variant with improved SOE support and diagnostics over the P00 version. -
Q: Does the module support hot-swapping?
A: Yes, the ADV169-P01 can be replaced without system shutdown when configured properly. -
Q: What input signal types are supported?
A: The module accepts 24 VDC non-polarized digital voltage inputs. -
Q: Can this module be used in ProSafe-RS systems?
A: Yes, it is designed to be fully compatible with Yokogawa’s ProSafe-RS SIS platform. -
Q: What is the maximum cable length for input wiring?
A: It depends on wire gauge and field noise, but typically up to 500 meters with proper shielding. -
Q: Is Sequence / Events logging supported?
A: Yes, with timestamp resolution up to 1 millisecond. -
Q: What terminal type is used for wiring?
A: The module uses a removable screw-type terminal block for secure and convenient connections. -
Q: What are the dimensions / the ADV169-P01?
A: 130 x 127.2 x 32.8 mm -
Q: How much does the module weigh?
A: 0.3 kg. -
Q: Is this module suitable for use in hazardous zones?
A: Yes, certain configurations are certified for use in ATEX and CSA hazardous environments.
Related 型号s (Same Series or Function)
| 型号 | 描述 | Channels | Type | SOE |
|---|---|---|---|---|
| ADV169-P00 | 32-Channel Digital Input Module | 32 | Digital Input | Yes |
| ADV161-P50 | 16-Channel Digital Input Module | 16 | Digital Input | Yes |
| ADV151-P00 | 8-Channel Digital Input Module | 8 | Digital Input | No |
| ADV561-P00 | 32-Channel Digital Output Module | 32 | Digital Output | N/A |
| ADV551-P00 | 8-Channel Digital Output Module | 8 | Digital Output | N/A |
| ADV171-P50 | 64-Channel DI/DO Mixed Module | 64 (32 IN/32 OUT) | Digital I/O | Partial |
Popular Yokogawa Modules (Same 品牌)
| 型号 | 描述 | Type | System | Channels |
|---|---|---|---|---|
| CP471-10 | Dual CPU Control Processor | Controller | CENTUM VP | N/A |
| AAI141-H50 | High-Speed Analog Input Module | Analog Input | CENTUM VP | 16 |
| AAI543-H00 | Analog Output Module | Analog Output | CENTUM VP | 8 |
| AAR181-S00 | RTD Input Module | Temperature Input | CENTUM VP | 8 |
| ALR121-S00 | Alarm Relay Output Module | Relay Output | Alarms | 8 |
| PW482-10 | System Power Supply 单位 | Power Module | CENTUM VP | N/A |
