Product Overview

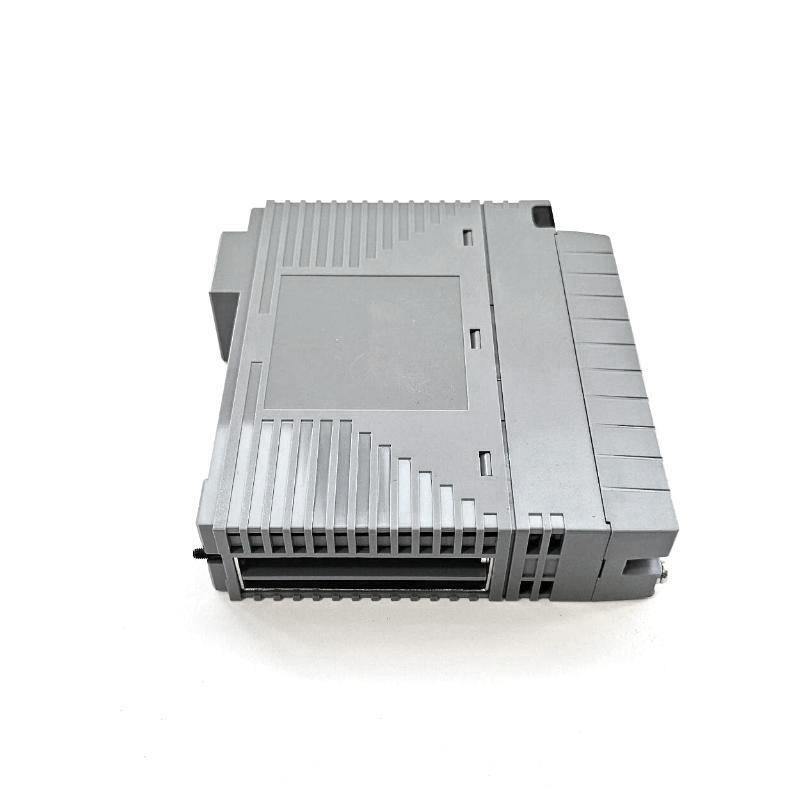

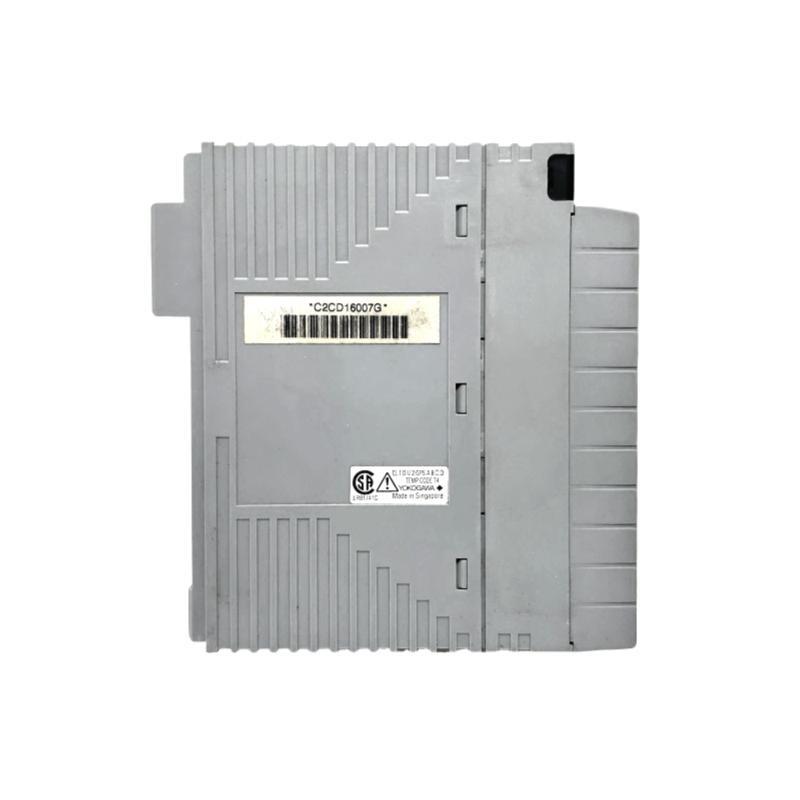

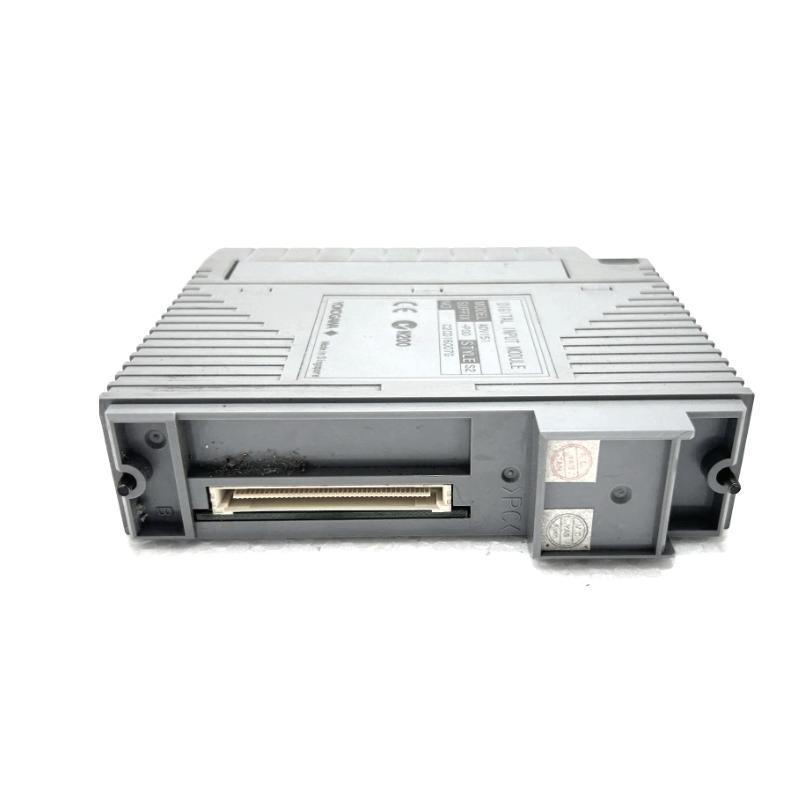

The Yokogawa ADV151-E63/D5A00 is a 32-channel, 24 V DC isolated digital input module designed for high-reliability industrial control systems. It supports sink/source input types, pushbutton edge counting, and Sequence / Events (SOE) data capture. With robust isolation and durable construction, it is ideal for demanding process automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | ADV151-E63/D5A00 |
| Number / Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current (Rated) | 4.1 mA ±20% / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | 2 kV AC (input to system), 500 V AC (between commons every 16 channels) |
| Functions | Status input, pushbutton input, SOE capture |
| Input Response Time | ≤ 8 ms (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection | KS Cable Interface Adapter / Pressure Clamp Terminal Block / MIL Connector Cable |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| 重量 | 0.3 kg |
Applications
Used extensively in:
-
Distributed Control Systems (DCS) for industrial plants
-
Process monitoring in oil, gas, and petrochemical facilities
-
Power generation control systems
-
Water treatment plant automation
-
Manufacturing process automation requiring reliable digital input monitoring
Advantages
-
High Reliability: Robust isolation ensures safe operation in critical control applications.
-
SOE Capability: Captures event sequence with precise timing for diagnostics and troubleshooting.
-
Flexible Input Handling: 支持s both status and pushbutton inputs.
-
Dual Redundancy Ready: Can be configured for redundant systems to improve fault tolerance.
-
Compact Size: Fits into space-constrained control cabinets.
-
Multiple Connection Options: Compatible with pressure clamp, KS adapter, and MIL connector cables.
FAQ
Q1: What is the main function / the ADV151-E63/D5A00?
A1: It receives 32 channels / 24 V DC ON/OFF input signals with isolation for industrial control applications.
Q2: Does it support Sequence / Events (SOE) capture?
A2: Yes, the ADV151-E63 version includes SOE capture functionality.
Q3: What is the typical input voltage range?
A3: The rated input voltage is 24 V DC, with an ON range / 18 to 26.4 V DC.
Q4: Can it be used in hazardous areas?
A4: Yes, the E63 version provides explosion protection, but selection must comply with installation standards.
Q5: What is the maximum input voltage it can handle?
A5: It can handle up to 30.0 V DC.
Q6: What is the response time for input signals?
A6: The input response time is 8 ms or less for status input.
Q7: Does it support redundant system configurations?
A7: Yes, the ADV151 series supports dual redundant configurations.
Q8: What is the power consumption?
A8: Maximum current consumption is 500 mA at 5 V DC.
Q9: What type / connectors are supported?
A9: It supports KS Cable Interface Adapter, Pressure Clamp Terminal Block, and MIL Connector Cable.
Q10: What are its dimensions and weight?
A10: Dimensions are 107.5 × 130 × 32.8 mm, weight is approximately 0.3 kg.
Related 型号s (Same Series / Function)
| 型号 | Channels | Voltage | Special Function | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| ADV151-P/D5A00 | 32 | 24 V DC | Pushbutton input | 107.5×130×32.8 | 0.3 kg |
| ADV151-E/D5A00 | 32 | 24 V DC | SOE capture | 107.5×130×32.8 | 0.3 kg |
| ADV161 | 64 | 24 V DC | Status input | 107.5×130×32.8 | 0.3 kg |
| ADV159 | 32 | 24 V DC | ST3 compatible | 125.5×130×32.8 | 0.4 kg |
| ADV169 | 64 | 24 V DC | ST6 compatible | 125.5×130×32.8 | 0.3 kg |
| ADV859 | 16 in / 16 out | 24 V DC | ST2 compatible | 125.5×130×32.8 | 0.3 kg |
Popular Yokogawa 型号s
| 型号 | Function | Channels | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| PW101 | Power Module | – | – | 130×107.5×32.8 | 0.3 kg |
| PW402 | Power Supply | – | – | 130×107.5×32.8 | 0.3 kg |
| ADV551 | Digital Output | 32 | 24 V DC | 107.5×130×32.8 | 0.2 kg |
| ADV561 | Digital Output | 64 | 24 V DC | 107.5×130×32.8 | 0.3 kg |
| AAI143 | Analog Input | 16 | 4–20 mA | 130×107.5×32.8 | 0.3 kg |
| AAI543 | Analog Output | 8 | 4–20 mA | 130×107.5×32.8 | 0.3 kg |
