产品介绍

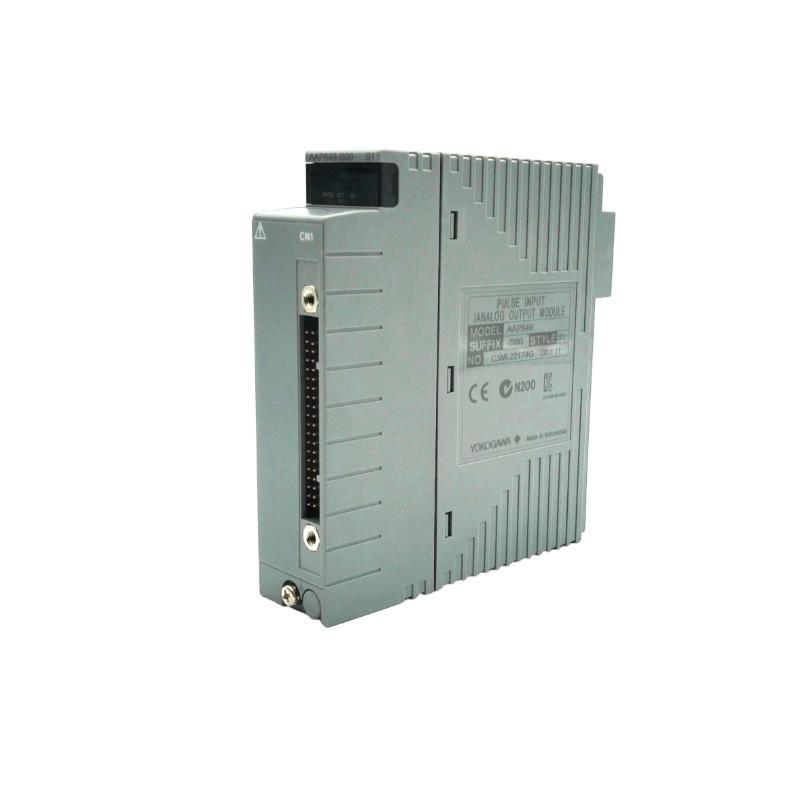

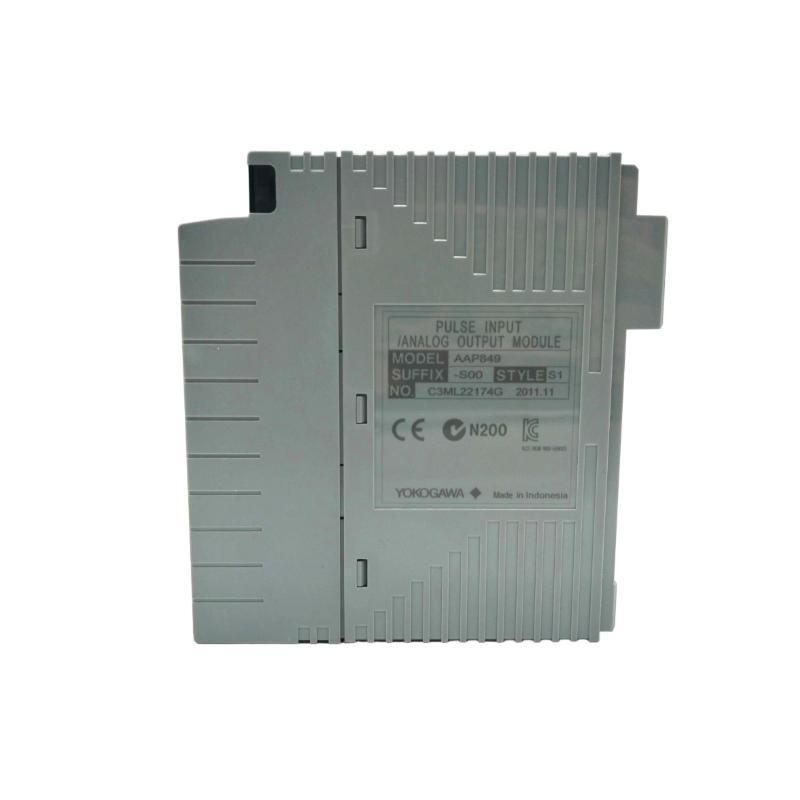

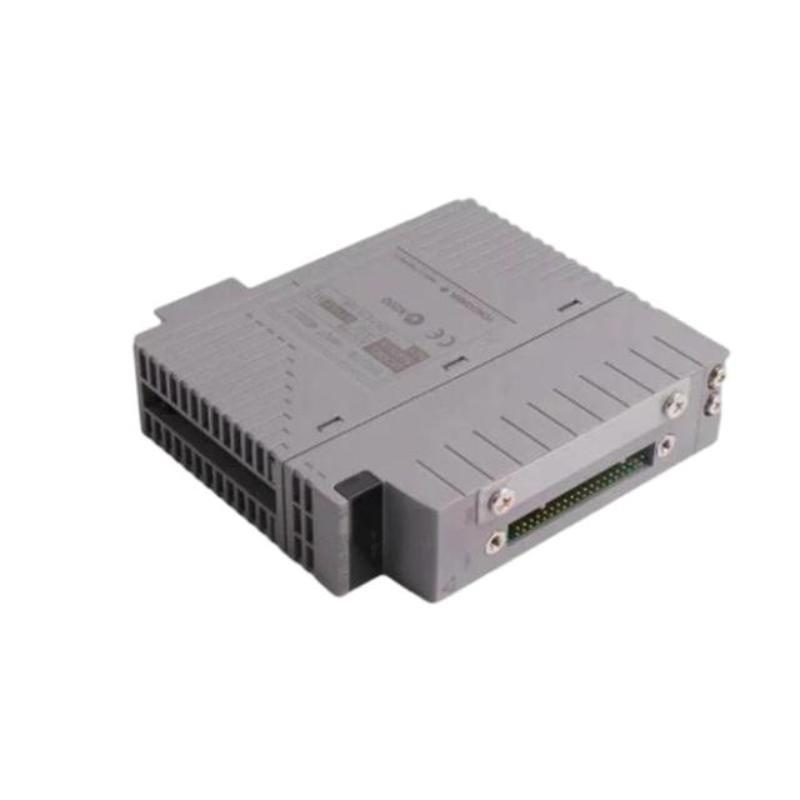

The Yokogawa AAP849-S50 is a Pulse Input / Analog Output Module designed for high-performance applications in industrial automation. It combines the functionality / pulse input processing with precise analog output capabilities, making it an essential tool for process monitoring and control systems. This module is used in various industrial environments where both pulse signals and analog outputs are necessary to maintain optimal performance.
Built with Yokogawa’s commitment to reliability and accuracy, the AAP849-S50 supports pulse input systems, providing valuable data for process control while simultaneously generating analog outputs to control devices such as pumps, valves, and motors. The module’s flexible design and versatility make it suitable for a wide range / applications, including flow rate measurement, level monitoring, and other process control tasks in industries such as oil and gas, chemical processing, manufacturing, and automotive.
产品规格
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 130 × 32.8 × 127.2 mm |
| 重量 | 0.3 kg |
| Pulse Input Channels | 4 Pulse Input Channels |
| Analog Output Channels | 4 Analog Output Channels |
| Input Signal Type | Pulse Signals (Digital Input) |
| Output Signal Type | Analog Voltage Output (4-20mA, 0-10V) |
| Input Frequency Range | 0-10 kHz |
| Resolution | 16-bit |
| Output Resolution | 12-bit |
| Power Supply | 24V DC ±10% |
| Operating Temperature Range | -10°C to +60°C |
| Mounting | DIN Rail Mountable |
| Environmental Protection | IP20 |
Product Applications
The Yokogawa AAP849-S50 is widely used in various applications across industries that require both pulse signal processing and analog output generation. Below are the primary applications:
-
Flow Measurement and Control
The module is /ten used in flow measurement systems, where pulse signals from flow meters are converted into analog output signals for controlling valves and pumps, ensuring consistent and accurate flow rates. -
Level Monitoring
In applications where the level / liquids or solids needs to be monitored, the pulse input module captures signals from level sensors, while the analog output module regulates pumps or valves to control the material level. -
Speed and RPM Control
The AAP849-S50 processes pulse inputs from devices like tachometers or encoders to measure speed or RPM. It then generates corresponding analog outputs to control the speed / motors or turbines. -
Production and Manufacturing Control
The module is utilized in manufacturing processes that involve pulse-based measurement for counting or event tracking. It generates analog outputs to adjust machine settings or trigger alarms if necessary. -
Counter Systems
The module can be integrated into counter systems, converting pulses into data used for triggering various output actions, such as stopping or starting a process, or raising alarms for critical events. -
Preventive Maintenance
Used for machinery health monitoring, the AAP849-S50 captures pulse signals related to machine events and outputs analog control signals to adjust operational parameters, ensuring early maintenance interventions.
Product Advantages
-
Dual Functionality
The AAP849-S50 /fers the ability to both receive pulse inputs and generate analog outputs. This dual functionality provides enhanced flexibility and allows it to handle more complex automation systems. -
High Accuracy and Resolution
With 16-bit resolution for pulse inputs and 12-bit resolution for analog outputs, the module ensures high accuracy in processing signals, which is essential for precise process control. -
Wide Frequency Range
The module supports pulse frequencies / 0-10 kHz, making it suitable for various high-speed measurement and control applications in industries that require rapid data acquisition. -
Compact and Robust Design
The AAP849-S50 is designed to be compact, measuring 130 × 32.8 × 127.2 mm, which allows for easy installation even in space-constrained control panels. Additionally, it is built with durability in mind, ensuring longevity in industrial environments. -
Flexible Signal Output
The module provides 4-20mA and 0-10V analog output signals, making it compatible with a wide range / control systems, from simple machinery to complex process automation systems. -
Easy Integration with 其他 Systems
The AAP849-S50 is designed to integrate seamlessly with other industrial automation systems, such as PLC and SCADA systems, enabling easy data exchange and enhancing overall system performance. -
Energy-Efficient
Operating on a 24V DC ±10% power supply, the module is energy-efficient, making it an economical choice for long-term operation in industrial environments. -
DIN Rail Mounting
Its DIN rail mounting capability ensures easy installation and integration into existing industrial setups, reducing the time required for system configuration. -
IP20 Protection
The module has an IP20 protection rating, ensuring that it is well-suited for use in industrial environments where it may be exposed to dust or other environmental factors. -
Wide Operating Temperature Range
The AAP849-S50 operates within a temperature range / -10°C to +60°C, making it ideal for both indoor and outdoor installations in diverse climate conditions.
FAQ
Q1: How many pulse input channels does the AAP849-S50 have?
A1: The AAP849-S50 has 4 pulse input channels.
Q2: What type / output signals can the module generate?
A2: The module can generate 4-20mA or 0-10V analog output signals.
Q3: What is the resolution / the pulse input and analog output?
A3: The AAP849-S50 has a 16-bit resolution for pulse inputs and a 12-bit resolution for analog outputs.
Q4: What is the operating temperature range / the module?
A4: The module operates in the temperature range / -10°C to +60°C.
Q5: Can the module be mounted on a DIN rail?
A5: Yes, the module is designed for DIN rail mounting.
Q6: What is the power supply requirement for the module?
A6: The AAP849-S50 requires a 24V DC ±10% power supply.
Q7: Is the module suitable for use in industrial environments?
A7: Yes, the AAP849-S50 has an IP20 protection rating, making it suitable for most industrial environments.
Q8: What industries use the AAP849-S50 module?
A8: The module is used in industries such as oil & gas, chemical processing, manufacturing, and automation.
Q9: How many analog output channels does the AAP849-S50 support?
A9: The AAP849-S50 supports 4 analog output channels.
Q10: What is the weight / the AAP849-S50 module?
A10: The AAP849-S50 weighs 0.3 kg.
Recommended 型号s
| 型号 | 描述 |
|---|---|
| AAP849-S51/K4A00 | 4-Channel Pulse Input / Analog Output Module for high-performance applications. |
| AAP849-S52/K4A00 | Pulse Input / Analog Output Module with extended signal processing capabilities. |
| AAP849-S53/K4A00 | High-precision pulse input module with enhanced analog output range. |
| AAP849-S54/K4A00 | Compact and robust module for space-constrained applications. |
| AAP849-S55/K4A00 | Pulse Input / Analog Output Module with enhanced environmental protection. |
| AAP849-S56/K4A00 | Advanced model /fering higher pulse input frequency and analog output resolution. |
Popular 型号s
| 型号 | 描述 |
|---|---|
| AAP135-S53/K4A00 | High-performance analog I/O module for complex industrial systems. |
| AAP149-S50/K4A00 | 8-Channel Pulse Input / Analog Output Module for demanding applications. |
| AAP149-S51/K4A00 | Flexible module /fering a range / analog output configurations. |
| AAP135-S50/K4A00 | Compact 4-Channel Analog I/O module designed for high-speed applications. |
| AAP135-S56/K4A00 | Enhanced I/O module with robust signal processing capabilities. |
| AAP149-S56/K4A00 | Advanced pulse input module with high-speed analog output capabilities. |
