产品介绍

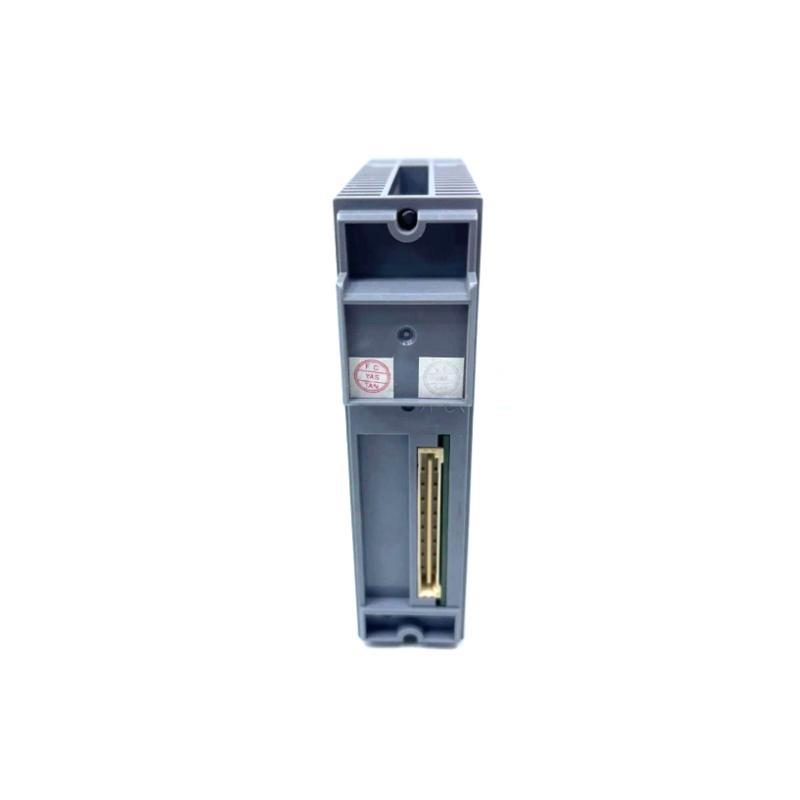

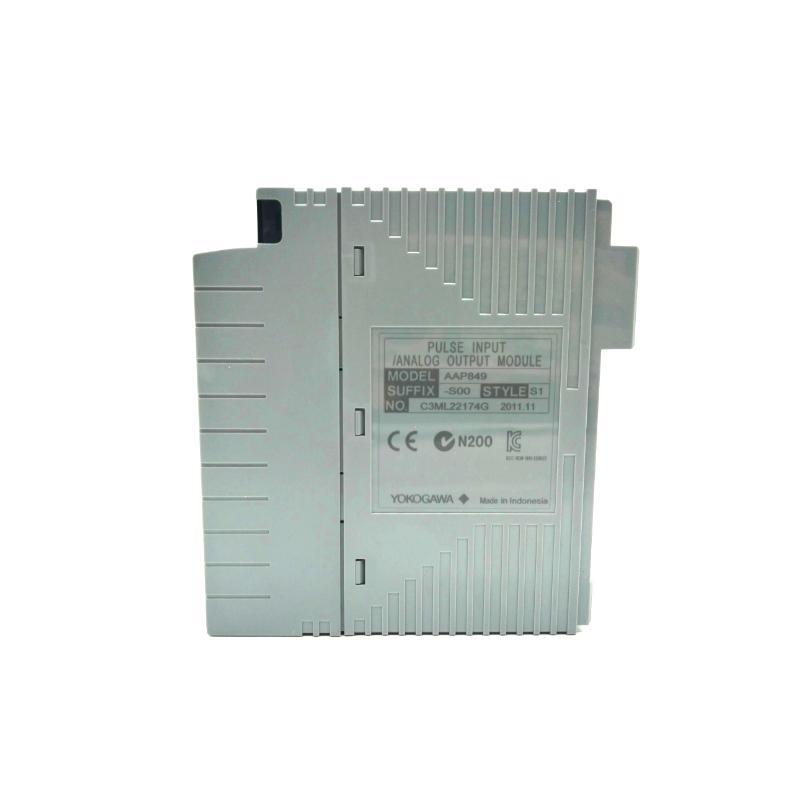

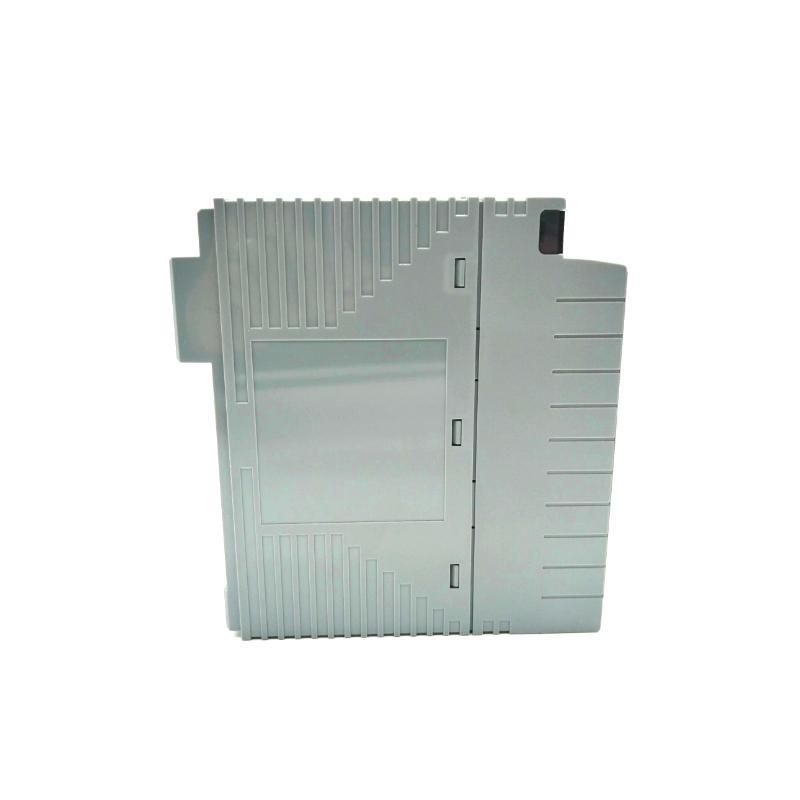

The Yokogawa AAP849-S00 is a high-performance module designed for use in industrial automation and process control systems. Specifically engineered to handle pulse input signals and analog output functionalities, this module is a crucial component in distributed control systems (DCS) where precision and reliability are paramount.
This module belongs to the Yokogawa CENTUM CS 3000 and CENTUM VP series and plays a vital role in ensuring accurate data conversion and real-time control. The AAP849-S00 facilitates seamless integration / field devices with the control system, enhancing the overall efficiency and accuracy / plant operations.
Manufactured under strict quality standards, it delivers excellent performance even in harsh industrial environments, making it suitable for industries such as oil & gas, petrochemicals, power generation, water treatment, and more.
Product Specification
| Parameter | Details |
|---|---|
| 型号 Number | AAP849-S00 |
| 制造商 | 横河 Corporation |
| Product Type | Pulse Input/Analog Output Module |
| Series | CENTUM CS 3000 / CENTUM VP |
| Input Type | Pulse (digital) input |
| Output Type | Analog (4–20 mA standard, others optional) |
| Input Channels | 2 Channels |
| Output Channels | 2 Channels |
| Power Supply | Supplied through the system backplane |
| Power Consumption | Approx. 3.5 W |
| Communication | Field control bus (Vnet/IP) |
| Isolation | Photo-coupler isolation between input/output and system |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 130 × 32.8 × 127.2 mm |
| 重量 | 0.3 kg |
| Mounting | Mounted on I/O base 件 |
| Compliance Standards | CE, RoHS, CSA, UL |
Applications
The AAP849-S00 is widely used in various industrial applications requiring precise control and monitoring:
-
Flow Measurement: Pulse input is /ten used for flow transmitters that output digital pulses.
-
Batch Control Systems: Ensures synchronized dosing and mixing processes with analog output control.
-
Rotational Speed Monitoring: Ideal for applications where pulse signals from encoders are converted to analog control.
-
Utility Monitoring: Tracks usage / water, gas, or electricity in large industrial facilities.
-
Process Control: Offers real-time input/output for process variables across manufacturing 件s.
-
Energy Management Systems: Integration with pulse meters for detailed energy tracking and analog control / HVAC systems.
Product Advantages
-
Dual Functionality: Combines both pulse input and analog output in a single module, reducing hardware footprint.
-
High Reliability: Engineered for continuous operation in demanding industrial environments.
-
优秀 Signal Integrity: Ensures high-accuracy conversion with minimized signal noise.
-
Compact Design: Space-saving form factor facilitates dense installation within control cabinets.
-
System Compatibility: Seamlessly integrates with Yokogawa’s CENTUM CS 3000 and VP platforms.
-
Long-Term 支持: Backed by Yokogawa’s robust global support infrastructure and lifecycle services.
-
Fail-Safe Operation: Built-in diagnostic functions allow early detection / abnormalities.
-
Modular Configuration: Easy replacement or upgrade / modules without affecting system availability.
FAQ – 常见问题
-
Q: What is the primary function / the AAP849-S00 module?
A: It handles pulse input signals and provides analog output, enabling real-time monitoring and control. -
Q: Can it be used in hazardous environments?
A: Yes, it complies with industrial standards and is suitable for use in controlled hazardous zones. -
Q: What type / analog output does it support?
A: Typically 4–20 mA, but it can be configured for other ranges as per application needs. -
Q: Is it compatible with CENTUM VP systems?
A: Yes, it is fully compatible with both CENTUM CS 3000 and CENTUM VP systems. -
Q: How many input and output channels does it have?
A: It has 2 pulse input channels and 2 analog output channels. -
Q: What are its dimensions and weight?
A: The module measures 130 × 32.8 × 127.2 mm and weighs 0.3 kg. -
Q: Does it require external power?
A: No, it receives power through the system backplane. -
Q: What type / isolation is provided?
A: It includes photo-coupler isolation between channels and the system. -
Q: Can it be hot-swapped during operation?
A: Yes, it supports hot-swapping when mounted on a compatible I/O base. -
Q: Is the module RoHS-compliant?
A: Yes, it is fully compliant with RoHS and CE standards.
Related 型号s (Same Series or Functionality)
| 型号 | 描述 |
|---|---|
| AAP135-S00 | Analog Input Module (High accuracy, 4-ch) |
| AAR181-S00 | Analog Output Module (Multi-channel, high load) |
| AAI143-S00 | Analog Input Module with HART communication |
| AAI841-S00 | Analog Input (Redundant Type) |
| ADV151-P00 | Pulse Input Module |
| AAP849-S10 | Enhanced version with extended environmental specs |
Popular Yokogawa 型号s (Same 品牌)
| 型号 | Type | Functionality |
|---|---|---|
| CP451-10 | CPU Module | Central processor for DCS |
| AAI543-S00 | Analog Input Module (16-ch) | Signal acquisition for process values |
| AAR111-S00 | Analog Output Module | Output control for actuators |
| SAI533-H00 | Digital Input Module | Discrete input signal acquisition |
| PW402 | Power Supply Module | Powering field control stations |
| NFAI841-S00 | Fieldbus Interface Module | FOUNDATION Fieldbus integration |
