产品介绍

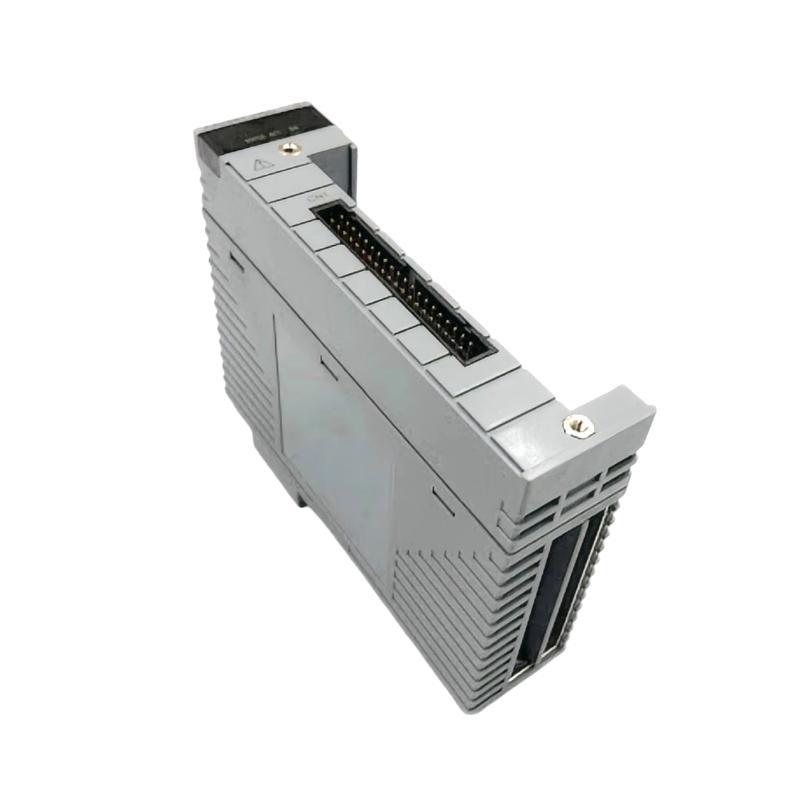

The Yokogawa AAI841-H50/K4A00 Analog I/O Module is engineered for precise analog signal processing in industrial automation systems, especially within Yokogawa’s distributed control systems (DCS). This module is designed to handle both analog input and output signals, converting electrical signals from field devices into digital data for the control system, and vice versa. Its robust design ensures reliable operation in demanding industrial environments where signal accuracy and integrity are essential.
This model features enhanced performance compared to earlier versions, supporting higher signal fidelity and improved noise imm件y. It is tailored for processes that demand high accuracy and fast response, such as chemical processing, power generation, and oil refining. The AAI841-H50/K4A00 integrates tightly with Yokogawa’s CENTUM VP system, allowing for streamlined system configuration and operation.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | AAI841-H50/K4A00 |
| Module Type | Analog Input/Output Module |
| Number / Channels | 4 (Analog Input/Output) |
| Input Signal Range | ±10 V, 0-20 mA, 4-20 mA selectable |
| Output Signal Range | 0-20 mA or 4-20 mA |
| Resolution | 16-bit A/D and D/A conversion |
| Accuracy | ±0.05% / full scale (improved precision) |
| Response Time | Typically less than 50 ms |
| Power Supply | 24 V DC nominal |
| Communication Interface | Compatible with Yokogawa DCS bus |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -25°C to +75°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Dimensions (WxHxD) | 107.5 × 32.8 × 130 mm |
| 重量 | 0.3 kg |
| Mounting | DIN rail or rack mount |
Applications
The AAI841-H50/K4A00 is utilized in many industrial settings where precision analog signal conversion is crucial. Common applications include:
-
Chemical plants, for managing complex process variables such as flow, temperature, and pressure
-
Power generation plants, for controlling and monitoring turbine and boiler systems
-
Oil and gas refineries, supporting critical process instrumentation
-
Water and wastewater treatment facilities, enabling control / pumps and chemical dosing
-
Food and beverage manufacturing, ensuring accurate process monitoring and quality control
-
Pharmaceutical production environments requiring strict process parameter control
Its ability to interface with various sensor types such as thermocouples, RTDs, and current transmitters makes it versatile across industries.
Advantages
-
High Accuracy and Stability: The module delivers enhanced precision with ±0.05% accuracy and stable long-term performance.
-
Fast Signal Response: Response time under 50 ms supports fast process dynamics and control loops.
-
Robust Construction: Designed to resist industrial noise and operate reliably over a wide temperature and humidity range.
-
Wide Signal Compatibility: Accepts multiple analog input types and provides configurable outputs suitable for a broad range / devices.
-
Electrical Isolation: Protects system integrity with thorough channel isolation to reduce signal interference.
-
Compact and Easy to Install: Small form factor compatible with DIN rail or rack mounting simplifies integration.
-
Seamless DCS Integration: Optimized for Yokogawa’s CENTUM and other DCS platforms, enhancing operational efficiency and ease / maintenance.
常见问题 (FAQ)
-
What analog input signals can the AAI841-H50/K4A00 accept?
It supports ±10 V voltage input, 0-20 mA, and 4-20 mA current input signals, configurable per application. -
Are output signal ranges configurable on this module?
Yes, output signals can be configured for 0-20 mA or 4-20 mA ranges. -
What is the resolution and accuracy / this module?
It uses 16-bit A/D and D/A converters with a precision accuracy / ±0.05% / full scale. -
Does the module provide electrical isolation between channels?
Yes, each channel is isolated from others and from the ground, minimizing interference. -
What is the signal processing response time?
The module processes signals with a response time typically less than 50 milliseconds. -
What power supply voltage is required?
It requires a 24 V DC nominal power supply for operation. -
Can this module operate under high humidity conditions?
Yes, it operates reliably in relative humidity up to 95% without condensation. -
Is this module compatible with Yokogawa’s DCS communication standards?
Yes, it integrates seamlessly with Yokogawa DCS communication protocols. -
Can it handle both analog input and output signals simultaneously?
Yes, the module supports mixed analog input and output across its 4 channels. -
What routine maintenance is recommended?
Regular calibration checks, cleaning / terminals, and verifying signal accuracy help maintain optimal performance.
Related 型号s (Same Series or Similar Functionality)
| 型号 Number | 描述 | Channels | Signal Type | Key Feature |
|---|---|---|---|---|
| AAI841-H00/K4A00 | Analog Input/Output Module | 4 | Voltage/Current | Standard accuracy module |
| AAI840-H50/K4A00 | Analog Input Module | 4 | Voltage/Current Input | High accuracy input only |
| AAI842-H50/K4A00 | Analog Output Module | 4 | Current Output | High accuracy output |
| AAI843-H50/K4A00 | Analog I/O Combination Module | 8 | Mixed I/O | Increased channel count |
| AAI845-H50/K4A00 | High-Speed Analog Input Module | 4 | Fast response input | Suitable for dynamic process |
| AAI846-H50/K4A00 | Redundant Analog Output Module | 4 | Redundant output | Enhanced reliability |
Popular Yokogawa 型号s (Same 品牌)
| 型号 Number | 描述 | Application | Key Feature |
|---|---|---|---|
| AAI831-H50/K4A00 | Temperature Input Module | Temperature sensing | Thermocouple and RTD support |
| AAI832-H50/K4A00 | General Analog Input Module | Multiple sensor input | High precision input |
| AAI833-H50/K4A00 | Analog Output Module | Control output | Stable 4-20 mA output |
| AAI834-H50/K4A00 | Digital Input Module | Discrete signal input | Fast response time |
| AAI835-H50/K4A00 | Digital Output Module | Relay and actuator control | Electrical isolation |
| AAI837-H50/K4A00 | Universal Input Module | Multi-sensor compatibility | Flexible configuration |
