Product Overview

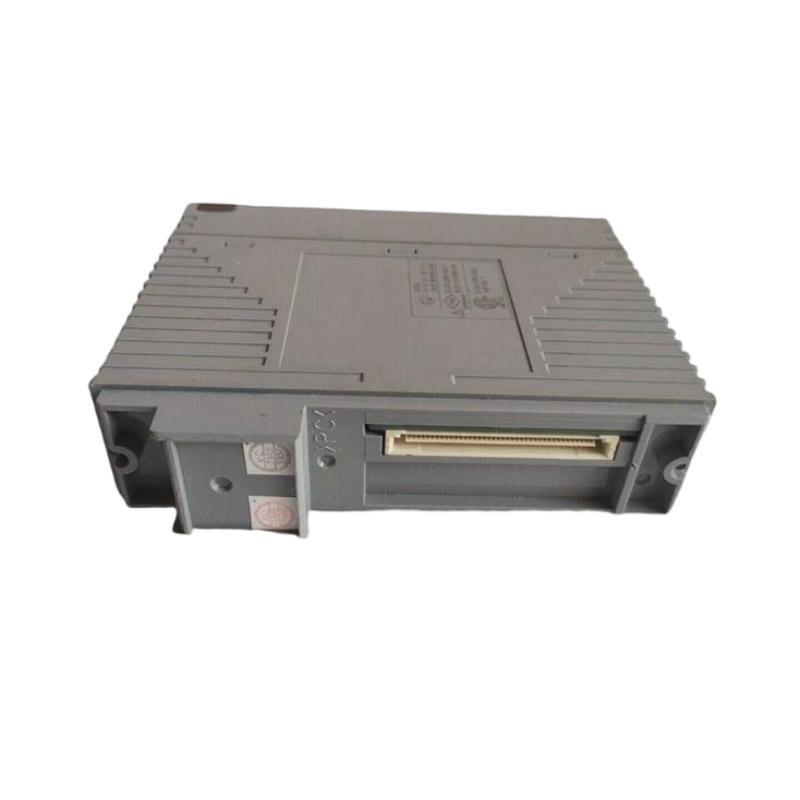

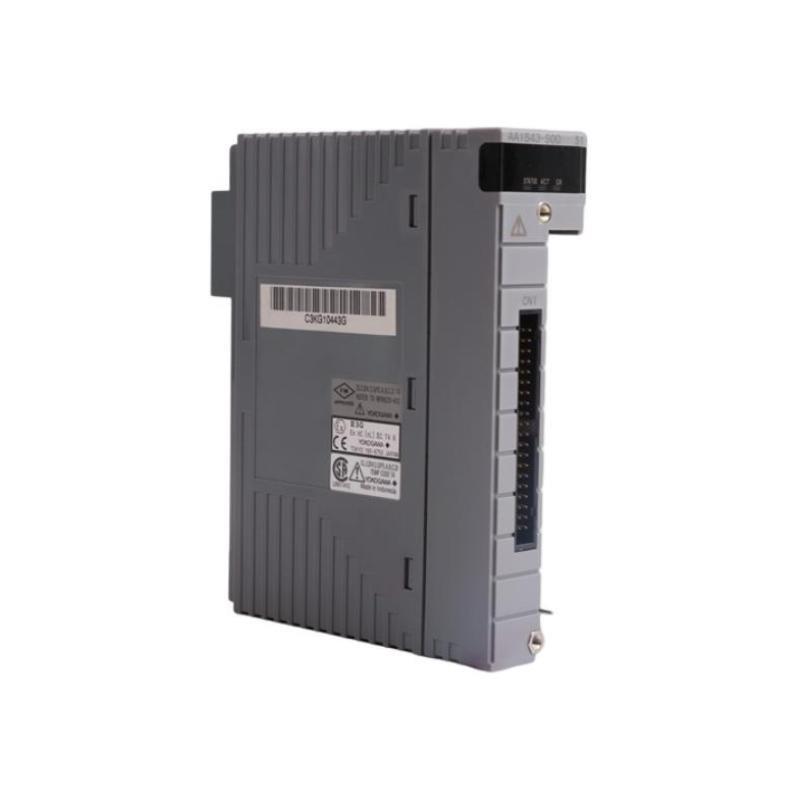

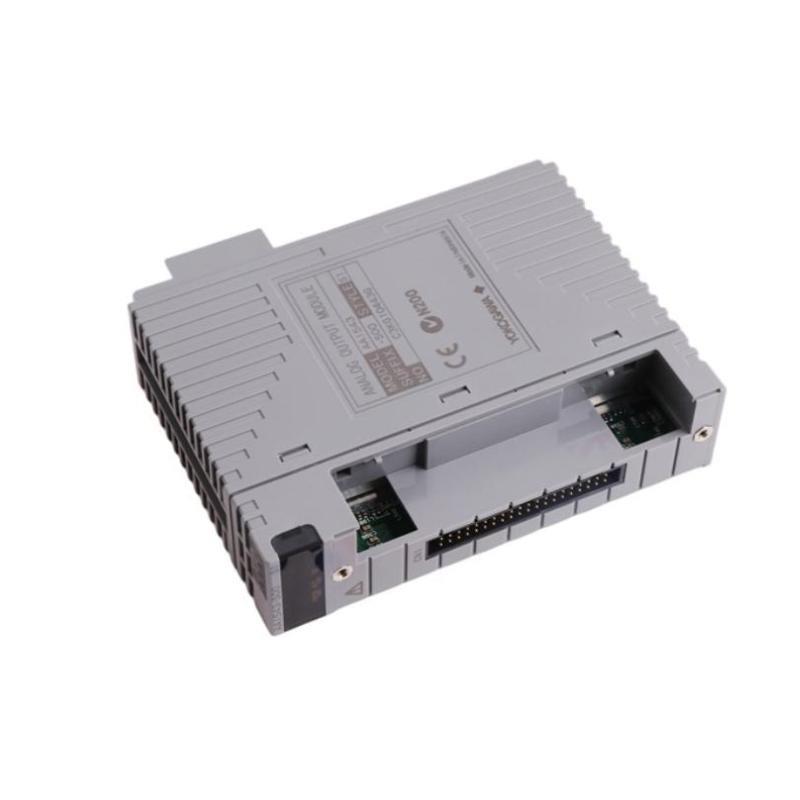

The Yokogawa AAI543-S00 S1 is an 8-channel analog output module developed for integration with Yokogawa’s industry-leading CENTUM VP and ProSafe-RS control systems. This module provides reliable and accurate 4–20 mA current output signals, making it ideal for controlling field devices such as control valves, positioners, and actuators. With a robust design, high accuracy, and diagnostic features, the AAI543-S00 S1 delivers dependable performance in demanding industrial automation environments.
Key Features
-
8-channel analog current output (4–20 mA)
-
Channel-to-channel and channel-to-ground isolation
-
12-bit resolution or higher for precise signal control
-
Built-in diagnostics for fault detection
-
Hot-swappable for minimal downtime during maintenance
-
Designed for integration with CENTUM VP and ProSafe-RS systems
-
Conforms to international industrial standards
-
Suitable for use in safety instrumented applications
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | AAI543-S00 S1 |
| Module Type | Analog Output Module |
| Number / Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | Max. 600 Ω |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% / span |
| HART Communication | Not supported (non-HART version) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open circuit detection, output signal abnormality |
| Hot Swap Capability | 支持ed |
| Power Supply | Supplied via FIO base 件 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| 重量 | 0.4 kg |
| Mounting Type | Mounted on FIO base 件 |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS integration) |
Industry Applications
-
Oil & gas and petrochemical control
-
Power generation and turbine automation
-
Water and wastewater treatment systems
-
Batch processing in food & beverage industries
-
Chemical plant operations
-
Pharmaceutical manufacturing
-
Safety systems (SIL) using ProSafe-RS architecture
常见问题 (FAQ)
-
What is the function / the AAI543-S00 S1 module?
It converts digital control signals into 4–20 mA analog current outputs for use with field devices. -
How many channels does the module support?
It provides 8 isolated analog output channels. -
Does this model support HART communication?
No, the AAI543-S00 S1 is a non-HART analog output module. -
Can the module be hot-swapped?
Yes, it is hot-swappable and can be replaced during system operation. -
Is it suitable for safety systems?
Yes, when used with ProSafe-RS, it supports SIL applications. -
What types / field devices is it used with?
It is commonly used to control valves, actuators, and other analog field instruments. -
Does the module include diagnostic features?
Yes, it includes fault detection like open circuit and output abnormalities. -
What control systems is it compatible with?
CENTUM VP and ProSafe-RS. -
What is the maximum load resistance for outputs?
The maximum load is 600 Ω per channel. -
Is the module isolated?
Yes, it provides both channel-to-channel and channel-to-ground isolation.
Related Modules
| 型号 Number | 描述 |
|---|---|
| AAI543-H00 S1 | Analog Output Module with HART support |
| AAI543-H03 | Advanced Analog Output Module with diagnostics and HART |
| AAI543-H53-S1 | 8-channel HART Analog Output Module |
| ADV551-P00 | Standard Analog Output Module |
| AAI143-S53 S1 | 16-channel Analog Input Module (isolated) |
| AAI841-H00 | 8-channel HART Analog Input Module |
