产品介绍

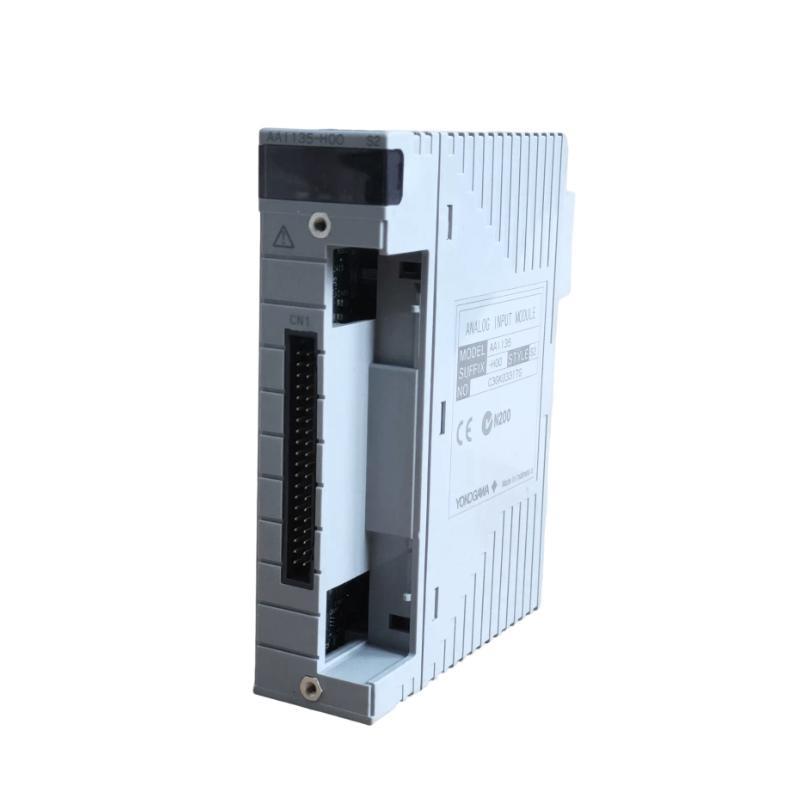

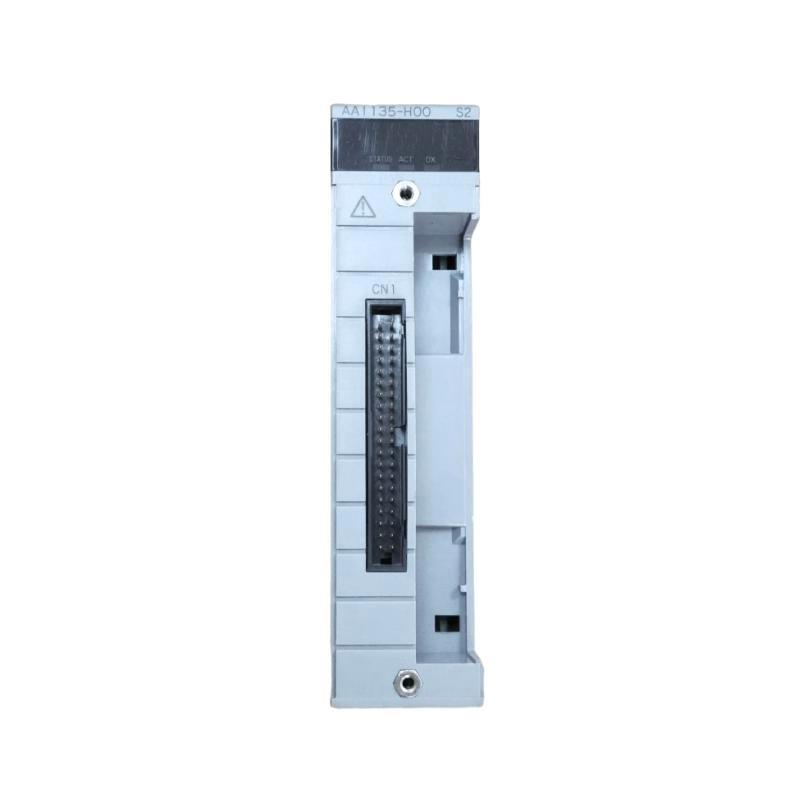

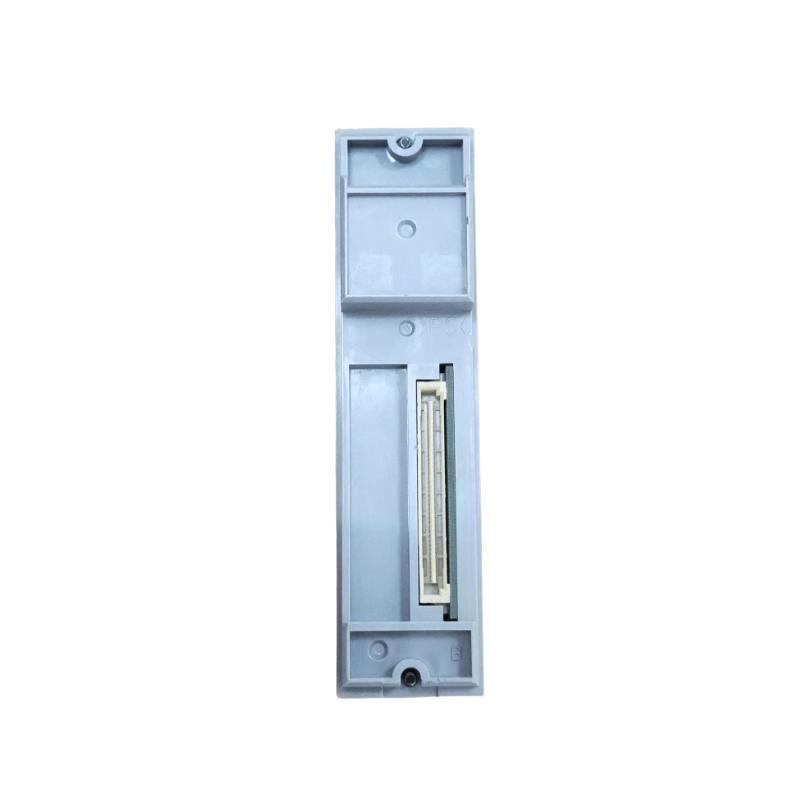

The Yokogawa AAI135-H00/K4A00 is a high-performance 16-channel analog input module engineered for integration within the CENTUM VP and ProSafe-RS distributed control systems (DCS). Designed to deliver precision, reliability, and high-speed signal acquisition, the AAI135-H00/K4A00 supports analog inputs such as 4–20 mA and voltage signals, making it suitable for a wide range / industrial process applications.
The module features high-resolution A/D conversion, galvanic isolation, and advanced diagnostic features that enhance its functionality in mission-critical control environments. It supports HART communication, allowing for simultaneous analog signal processing and digital device parameter reading.
产品规格
| Parameter | Details |
|---|---|
| 型号 | AAI135-H00/K4A00 |
| Type | Analog Input Module |
| Number / Channels | 16 input channels |
| Input Signal Type | 4–20 mA DC (with HART support) |
| Input Resistance | 250 Ω |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% / span |
| Sampling Period | 100 ms (typical per channel) |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply | Supplied by I/O power from base |
| HART Protocol 支持 | Yes |
| Self-diagnostics | Yes (open circuit detection, over-range) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH (non-condensing) |
| Mounting | Mounted on dedicated baseplate |
| Dimensions | 107.5 × 32.8 × 130 mm |
| 重量 | 0.3 kg |
| Certification | CE, CSA, ATEX (depending on configuration) |
| Compatible System | Yokogawa CENTUM VP / ProSafe-RS |
Product Applications
The AAI135-H00/K4A00 is widely used in various process industries where stable and accurate analog input data acquisition is critical. Its robust design and multi-protocol capabilities make it ideal for:
-
Oil & Gas: Monitoring pressure, flow, and temperature sensors in upstream and downstream facilities
-
Power Generation: Gathering analog values from turbines, boilers, and auxiliary systems
-
Chemical & Petrochemical: Reading critical tank level, pH, and flow data in hazardous zones
-
Water & Wastewater: Integration into SCADA/DCS systems for real-time monitoring
-
Pharmaceuticals: Validated analog acquisition in GMP-compliant process automation
-
Pulp & Paper: Reliable input for complex control loops in continuous manufacturing
Product Advantages
-
High Channel Density: Accommodates up to 16 analog input channels per module, optimizing cabinet space.
-
HART Communication 支持: Enables simultaneous analog and digital communication, reducing wiring and increasing diagnostics capability.
-
Advanced Diagnostics: Features built-in functions for wire break detection, over-range, and system error alarms.
-
High Accuracy & Resolution: 16-bit A/D ensures precise signal digitization for tight process control.
-
Robust Isolation: Electrical isolation between channels and system ground enhances signal integrity and system safety.
-
Seamless Integration: Fully compatible with Yokogawa CENTUM VP and ProSafe-RS systems for streamlined configuration and maintenance.
FAQ
-
Does the AAI135-H00/K4A00 support redundant configurations?
Yes, it supports redundant input channels when paired with appropriate I/O bases and configurations in CENTUM VP. -
Can I use voltage signals directly with this module?
No, the AAI135-H00/K4A00 is primarily designed for current (4–20 mA) input; using voltage inputs requires signal conversion. -
What is the input impedance / the analog channels?
The input impedance is typically 250 Ω per channel to accommodate standard 4–20 mA loops. -
Is HART communication enabled on all channels?
Yes, HART is supported on all 16 channels, provided proper wiring and settings are configured in the system. -
How does the module handle open-circuit detection?
The module includes diagnostics to detect wire breaks or disconnections in 4–20 mA loops and generates system alarms. -
What is the update rate for each channel?
The standard input scan time is around 100 ms per channel, which can vary depending on system load. -
Is channel-to-channel isolation provided?
Yes, the module provides galvanic isolation between individual channels to reduce signal interference. -
Can this module be used in SIL-rated safety applications?
Yes, when used within the Yokogawa ProSafe-RS system, it is suitable for SIL2/SIL3 applications depending on configuration. -
Are there limitations to mixing HART and non-HART devices?
No, the module can communicate with both HART-enabled and conventional 4–20 mA devices simultaneously. -
Is configuration required before commissioning?
Yes, the module must be configured using Yokogawa’s system s/tware (such as PRM or SENG) before becoming operational.
Related 型号s (Same Series or Function)
| 型号 | 描述 |
|---|---|
| AAI141-H00/K4A00 | 8-channel analog input module with HART |
| AAI543-H50 | 8-channel isolated analog input module |
| AAI135-S00/K4A00 | Same as AAI135-H00 but for safety applications |
| AAI835-H00 | 16-channel high-speed analog input |
| AAI135-H10 | Analog input module with enhanced diagnostics |
| AAI141-S00/K4A00 | SIL-rated analog input module with HART |
Popular Yokogawa 型号s
| 型号 | Function |
|---|---|
| CP451-10 | Central Processor Module |
| PW482-10 | Power Supply Module |
| AAI143-H00/K4A00 | Analog input with high isolation |
| AAR181-S00 | Remote I/O communication module |
| ADV151-P03 | Digital output module (32 points) |
| ATD5A-00 | Terminal block for analog modules |
