Product Overview

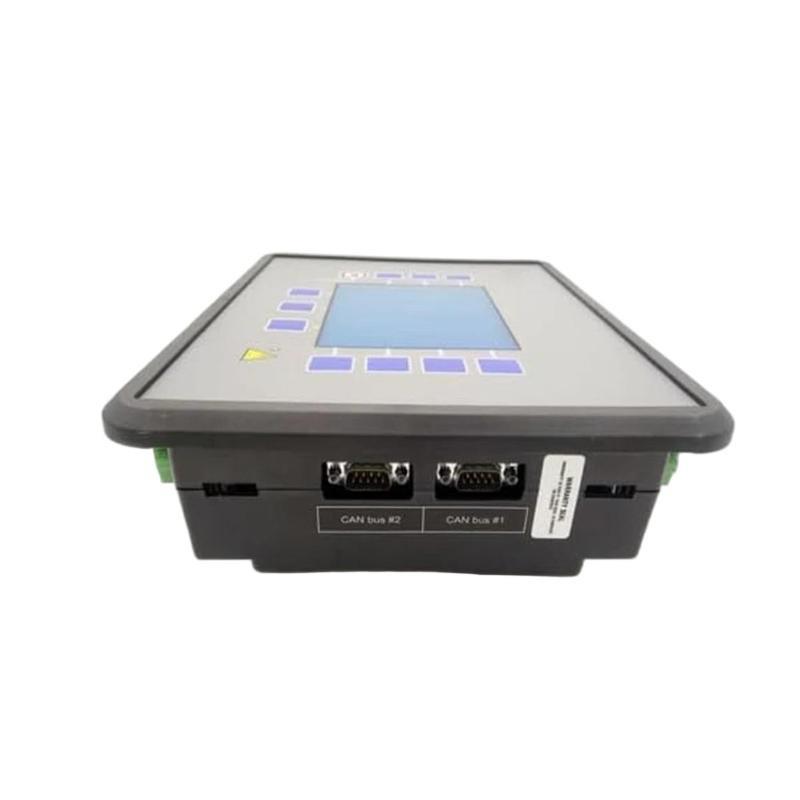

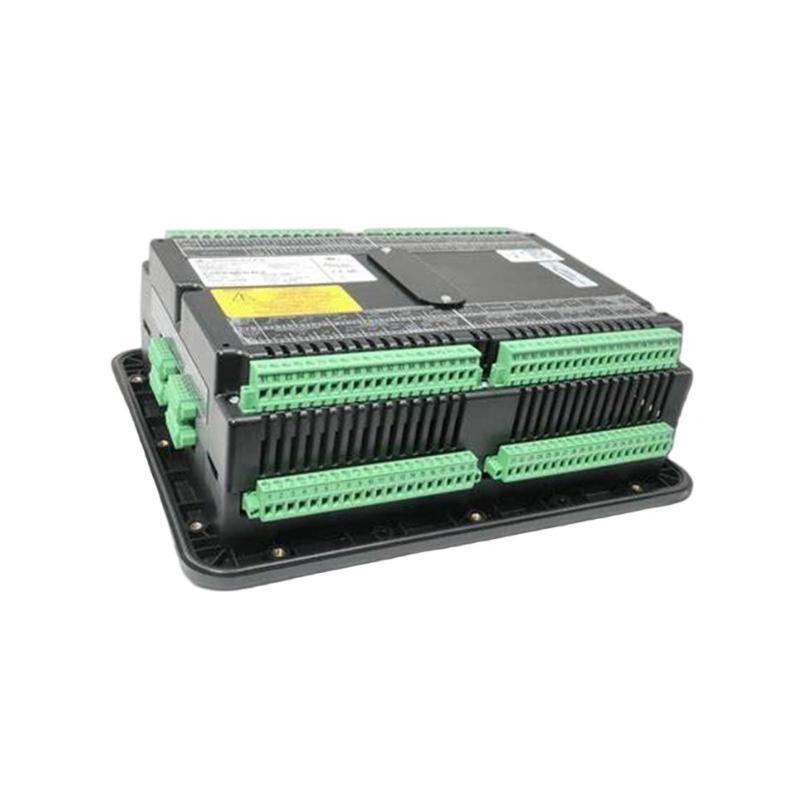

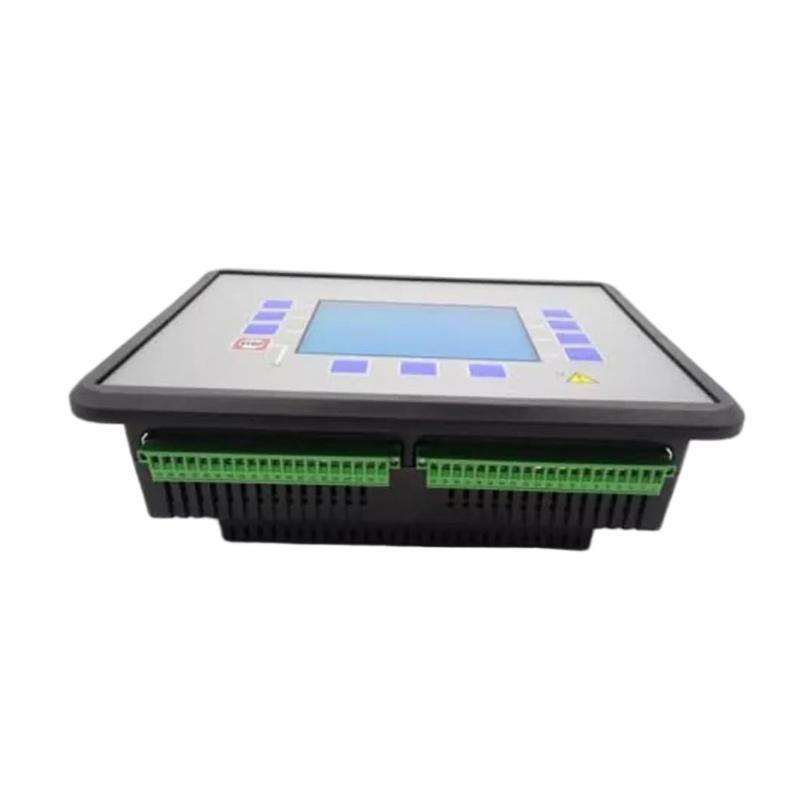

The 伍德沃德 8440-2082 Controller is part / the easYgen™ 3000XT series, providing high-end control, protection, and synchronization for generator sets in a wide range / industrial and commercial power applications. With advanced load sharing, breaker control, and communication capabilities, this controller is ideal for complex power management systems requiring reliable automation and flexibility.
Key Features
-
Comprehensive genset control with synchronization and load sharing
-
Suitable for isolated and parallel operations
-
支持 for dual-breaker applications (Mains and Generator breaker control)
-
Flexible communication via Ethernet, CAN, and Modbus protocols
-
Built-in PLC logic for user-defined control strategies
-
Rugged construction for harsh environments
-
IP65 front panel protection with graphical LCD interface
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 8440-2082 |
| Product Series | easYgen™ 3000XT Series |
| Control Type | Synchronization, Load Sharing, Protection |
| Communication Interfaces | Ethernet, CANopen, RS-232/RS-485, Modbus RTU/TCP |
| Display | High-resolution graphical LCD with s/t keys |
| Digital Inputs | 16 configurable |
| Digital Outputs | 11 relay outputs |
| Analog Inputs | 3 configurable |
| Analog Outputs | 4 configurable (0–10 VDC or 4–20 mA) |
| Rated Voltage | 12/24 VDC (8–40 VDC range) |
| Frequency Range | 40–70 Hz |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Class | IP65 (front), IP20 (rear) |
| Dimensions | 240 × 172 × 65 mm |
| 重量 | 1.5 kg |
| Certifications | CE, UL, CSA, EAC |
| Mounting Type | Panel mount |
Industry Applications
-
Prime and standby generator control
-
Industrial and commercial power plants
-
CHP (Combined Heat and Power) systems
-
Marine and /fshore power management
-
Microgrid and utility-tie applications
常见问题 (FAQ)
-
What applications is the 8440-2082 controller suitable for?
It is designed for generator set control in complex and mission-critical power systems. -
Does the controller support dual-breaker applications?
Yes, it can control both generator and mains breakers. -
Can the 件 be used in islanded and grid-parallel modes?
Yes, it supports both operating modes. -
Is remote communication available?
Yes, via Ethernet, CAN, and Modbus protocols. -
Does it feature built-in PLC logic?
Yes, it supports user-defined PLC logic for custom operations. -
Is the display panel weatherpro/?
The front panel is rated IP65, suitable for harsh environments. -
How many digital inputs and outputs does it support?
It supports 16 digital inputs and 11 relay outputs. -
Can analog I/O signals be customized?
Yes, analog channels are configurable for various sensor types. -
What kind / power supply is required?
The controller operates on 12/24 VDC power input. -
Is the controller certified for industrial use?
Yes, it meets CE, UL, CSA, and EAC certifications.
