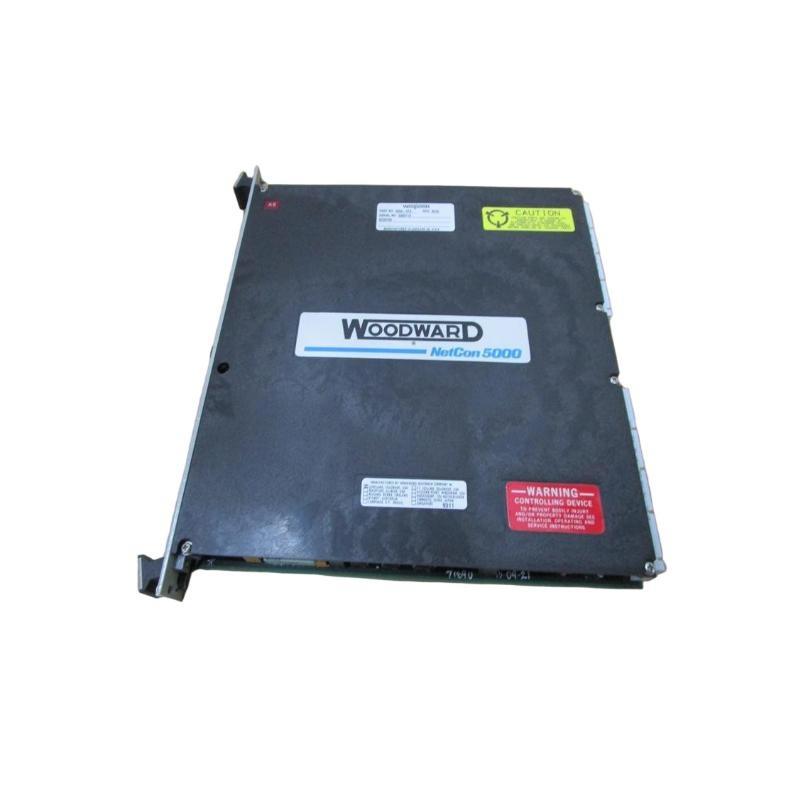

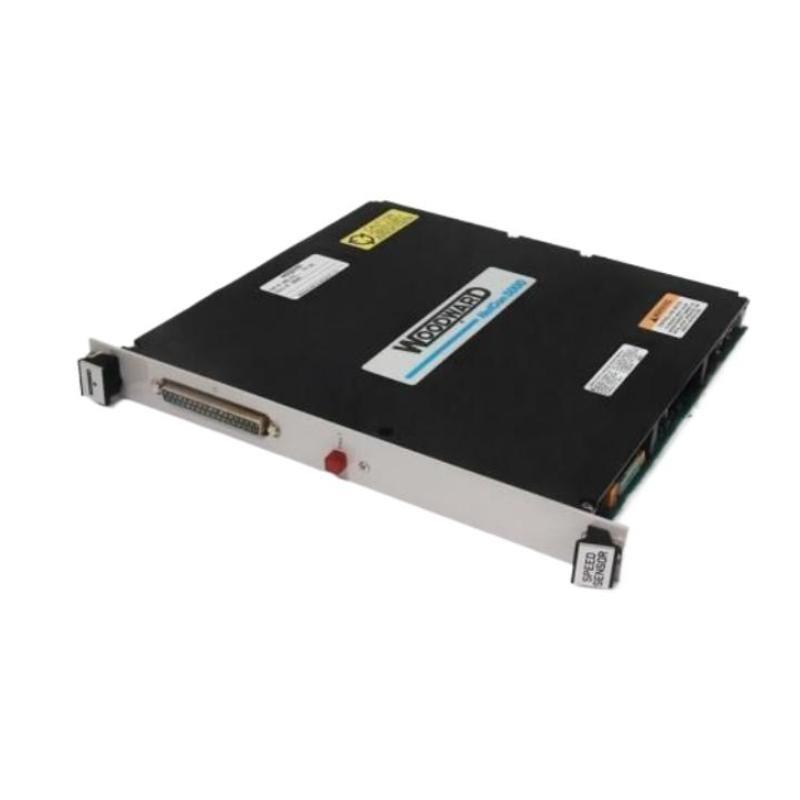

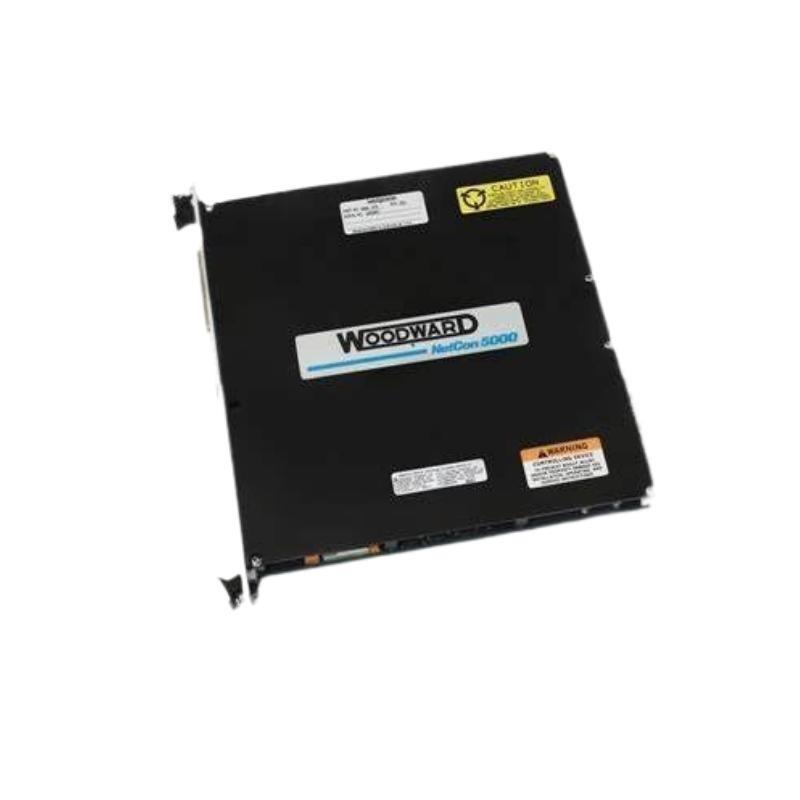

伍德沃德 5464-414 Digital Speed Sensor

Product Overview
The 伍德沃德 5464-414 Digital Speed Sensor is a high-precision, industrial-grade module designed to monitor rotational speed in engines, turbines, and other rotating machinery. By converting rotational movement into reliable digital signals, this sensor ensures accurate real-time speed feedback to control systems, making it essential for critical applications such as power generation, marine propulsion, and process control.

With its rugged design, IP67-rated protection, and compatibility with both digital and analog outputs, the 5464-414 provides dependable operation in harsh industrial environments. It integrates seamlessly with 伍德沃德 control platforms and standard PLC systems, /fering users flexibility and high performance.

Key Features and Advantages

• High Accuracy Measurement: Provides ±0.2% full-scale speed accuracy for critical control applications.

• Wide Frequency Range: Detects rotational speeds from 20 Hz to 2 kHz, suitable for a variety / machinery.

• Flexible Output Options: Offers both digital pulse and optional 4–20 mA analog current loop outputs.

• Rugged Industrial Design: Engineered to perform in harsh conditions with high resistance to vibration and environmental contaminants.

• Ingress Protection IP67: Fully protected against dust and water ingress, ideal for outdoor and marine use.

• Wide Voltage Range: Operates on 12–36 VDC power supply, supporting various control system requirements.

• Compact and Lightweight: Space-saving design allows easy installation in control panels or engine compartments.

• Certified Reliability: Complies with CE and UL standards for safety and industrial reliability.

• Seamless Integration: Compatible with 伍德沃德 MicroNet, 2301 controllers, and other standard control platforms.

Technical Specifications

Applications

• Power Generation: Turbine and generator speed monitoring for power plants.

• Marine Propulsion: Real-time speed measurement for ship engines and propulsion systems.

• Industrial Automation: Monitoring / pumps, compressors, and rotating machinery.

• Oil & Gas Industry: Speed feedback for drilling equipment, compressors, and generators.

• Process Control: Overspeed protection and performance optimization in critical rotating equipment.

• Heavy Equipment and Mobile Machinery: Integration with mobile diesel engines and generators.

常见问题 (FAQ)

1. What speed range does the 5464-414 sensor measure?
   The sensor accurately detects rotational speeds from 20 Hz to 2 kHz.

2. What output types are available?
   It provides digital pulse outputs and an optional 4–20 mA analog signal.

3. How accurate is the speed measurement?
   The sensor /fers ±0.2% full-scale accuracy for high-precision control.

4. What power supply does the sensor require?
   It operates on a 12–36 VDC power supply.

5. Is the sensor suitable for harsh environments?
   Yes, with an IP67 protection rating, it is resistant to dust, water, and harsh environmental conditions.

6. Can the 5464-414 integrate with 伍德沃德 controllers?
   Absolutely, it is fully compatible with 伍德沃德 systems such as MicroNet and the 2301 series.

7. What are the sensor’s physical dimensions?
   The module measures approximately 26  x 248  x 262 mm.

8. What is the approximate weight / the sensor?
   The sensor weighs around 0.96 kg, making it compact and easy to handle.

9. Is the sensor certified for industrial use?
   Yes, it complies with CE and UL certification standards.

10. Where is the 5464-414 sensor manufactured?
    It is manufactured in the 单位ed 状态s, ensuring high-quality production standards.
