Product Overview

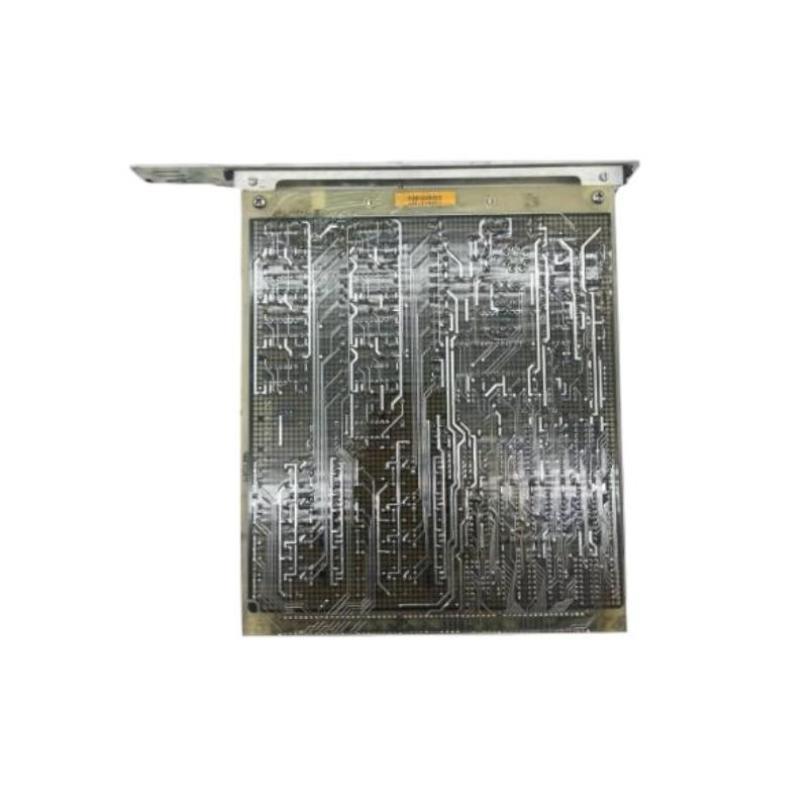

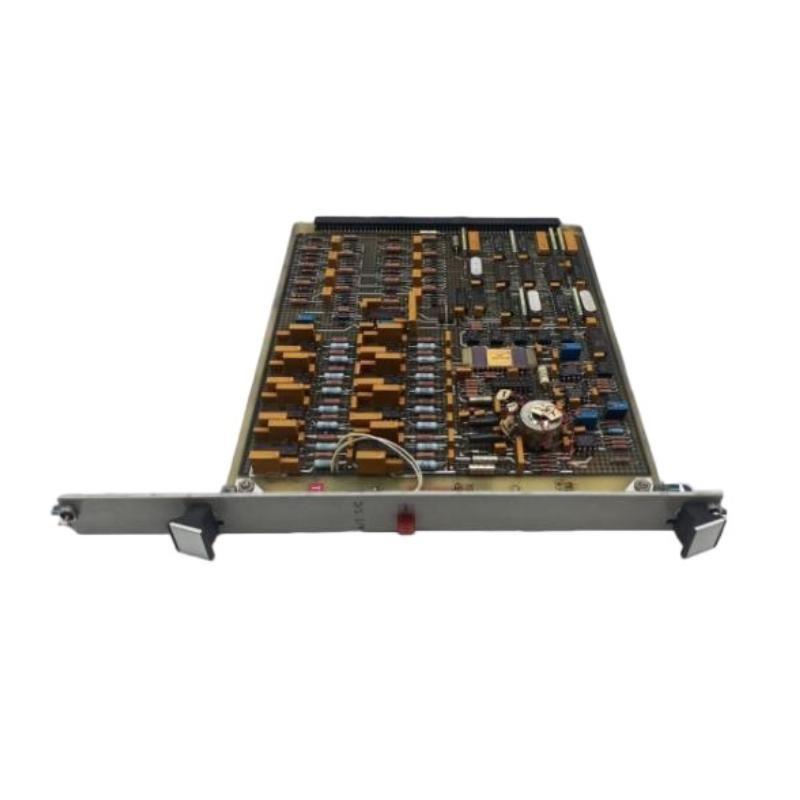

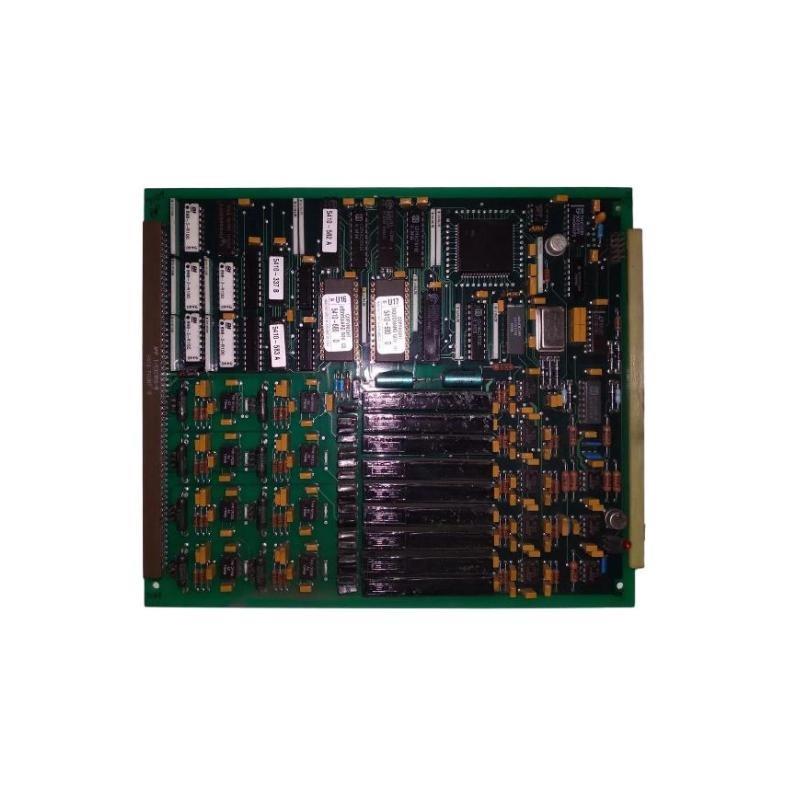

The 伍德沃德 5463-581 Input Module Control Board is an 8-channel isolated 4-20 mA analog input module designed for industrial automation and control systems. It enables accurate and reliable integration / multiple analog sensor signals into control platforms by providing electrical isolation for each channel. This isolation protects the control system from electrical noise and ground loops, enhancing signal integrity and system safety.
Engineered with a compact design, the module is suitable for installation in control panels with limited space and built to withstand harsh industrial environments. Equipped with LED indicators for each channel, it allows easy monitoring and troubleshooting.
Key Features and Advantages
-
8 Independent Input Channels: 支持s eight 4-20 mA analog input signals simultaneously for multi-parameter monitoring.
-
Electrical Isolation: Each input channel is electrically isolated to prevent interference and protect downstream equipment.
-
Compact and Space-Saving: Slim pr/ile facilitates integration into existing control cabinets.
-
Robust Build Quality: Designed for durability and long-term operation in industrial settings.
-
LED Status Indicators: Real-time channel status indicators aid in diagnostics and maintenance.
-
Wide Operating Temperature Range: Reliable performance from -40°C to +70°C.
-
High Protection Rating: IP65 rating /fers dust and water resistance.
-
Compliance: Meets CE and UL safety and performance standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 5463-581 |
| Input Channels | 8 |
| Input Signal Type | 4-20 mA Analog |
| Electrical Isolation | Yes |
| LED Indicators | Yes |
| Dimensions | 260 x 100 x 25 mm |
| 重量 | 0.5 kg |
| Operating Temperature Range | -40°C to +70°C |
| Protection Class | IP65 |
| Compliance | CE, UL |
Applications
-
Power generation systems for turbine and generator monitoring
-
Industrial manufacturing automation involving analog sensor integration
-
Process control in chemical, petrochemical, and other heavy industries
-
Building management systems for HVAC and lighting control
-
Any industrial application requiring isolated analog signal acquisition
常见问题 (FAQ)
-
What type / input signals does the 5463-581 module support?
The module supports 4-20 mA analog input signals. -
How many input channels are available?
There are 8 isolated input channels. -
Is the module electrically isolated?
Yes, each channel is electrically isolated for signal integrity. -
What are the physical dimensions / the module?
The module measures 260 x 100 x 25 mm. -
What is the operating temperature range?
It operates between -40°C and +70°C. -
Does the module have status indicators?
Yes, each channel has an LED indicator. -
What protection does the module /fer against environmental factors?
The module has an IP65 rating, making it resistant to dust and water ingress. -
What is the weight / the module?
The module weighs approximately 0.5 kg. -
Is the module certified for safety and quality?
Yes, it complies with CE and UL standards. -
Where can I purchase the 伍德沃德 5463-581?
It is available through authorized 伍德沃德 distributors and industrial automation suppliers.
Related and Similar 型号s
| 型号 Number | 描述 |
|---|---|
| 5463-473 | 8-Channel Isolated 0-20 mA Input Module |
| 5463-785 | 4-Channel Isolated 4-20 mA Input Module |
| 5464-013 | 8-Channel RTD Input Module |
| 5464-210 | 16-Channel Digital Input Module |
| 5464-211 | 16-Channel Digital Output Module |
| 5464-414 | 8-Channel Analog Output Module |
