产品介绍

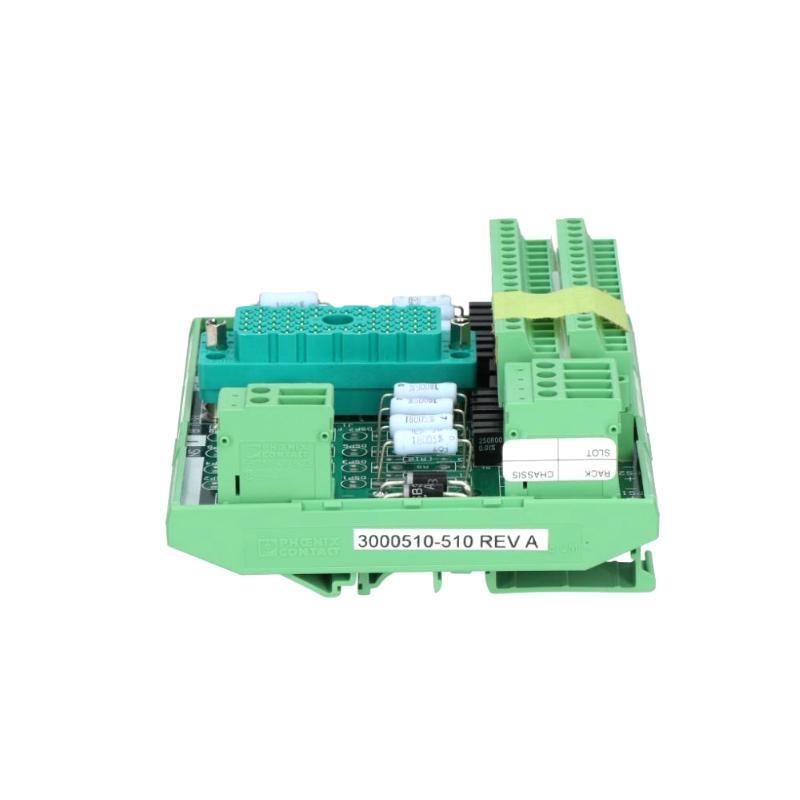

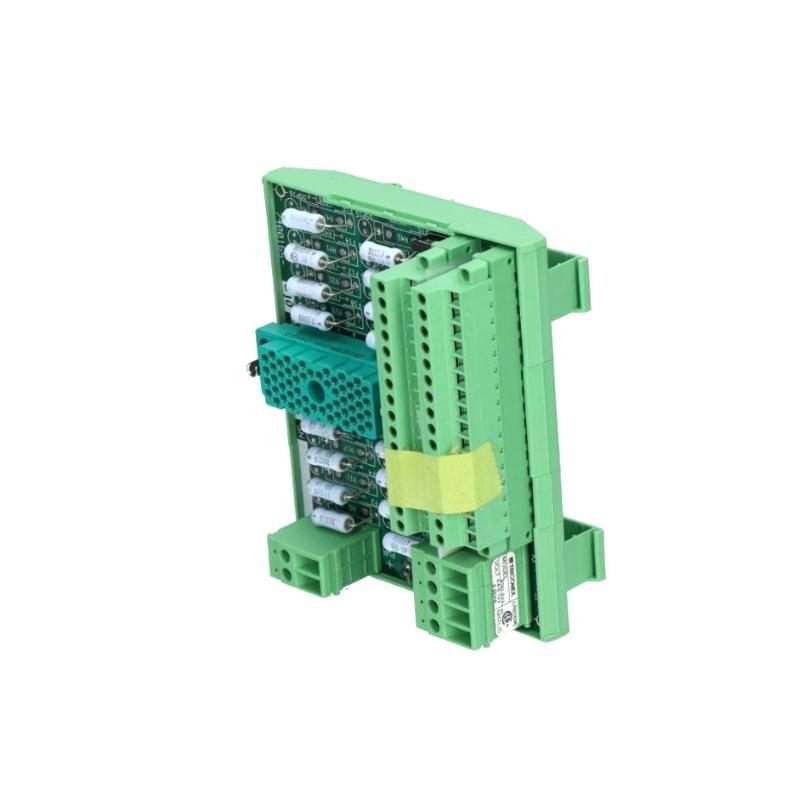

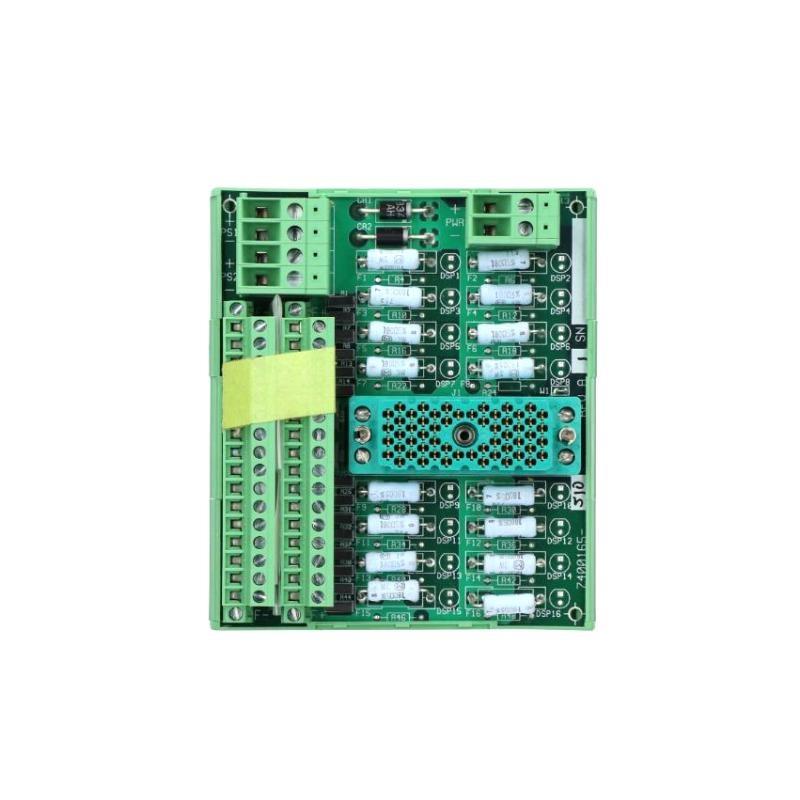

The Triconex 9761-210 Terminal Panel Module (零件号: 3000510-510) is a dedicated terminal wiring interface designed to seamlessly integrate with Triconex Tricon™ safety systems. As part / the critical infrastructure in safety instrumented systems (SIS), this module facilitates reliable and orderly connection / I/O signals from field instruments to the system’s logic solvers.
The terminal panel ensures ease / maintenance, clean wire management, and high noise imm件y. It is engineered to meet the demanding requirements / hazardous and mission-critical industries where safety, accuracy, and fault tolerance are paramount.
产品规格
| Parameter | Specification |
|---|---|
| Product Name | Terminal Panel Module |
| 型号 Number | 9761-210 |
| 零件号 | 3000510-510 |
| Function | I/O Field Wiring Interface Terminal Panel |
| System Compatibility | Triconex Tricon™ Safety Systems |
| 支持ed I/O | Typically used for Analog/Digital I/O Termination |
| Terminal Type | Screw-Type Terminal Blocks |
| Channel Capacity | Up to 32 signal channels |
| Mounting Type | Panel Mount |
| Material | Industrial-grade FR4 PCB + rugged terminal base |
| Voltage Isolation | ≥1500 Vrms |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Shock & Vibration | Complies with IEC 60068-2 standards |
| Certifications | CE, UL, FM, CSA, RoHS |
| Dimensions (W × H × D) | 114.3 ×127 × 107.95 mm |
| 重量 | 0.85 kg |
| Mounting Accessories | Supplied with screws and wiring guide |
| Connection to System | Ribbon cable or shielded field wiring harness |
Product Applications
The Triconex 9761-210 module plays an integral role in the functioning / high-reliability process systems, including:
-
Oil & Gas Exploration and Refining – Providing safe and redundant field signal connectivity in /fshore platforms and refineries.
-
Petrochemical Plants – Secure termination / analog and digital I/O for reactors and distillation columns.
-
Nuclear Energy Plants – Ensuring reliable and noise-isolated wiring for sensors and actuators in safety zones.
-
Power Generation Facilities – Monitoring turbine parameters and facilitating fault-tolerant system wiring.
-
Water and Wastewater Treatment – Connecting field instrumentation for pressure, flow, and level control.
-
Pharmaceutical Manufacturing – Ensuring GMP-compliant safety and process interlocks.
Product Advantages
-
Field-Wiring Convenience: Clean layout simplifies installation and wire identification.
-
TMR System Integration: Fully compatible with Triconex Triple Modular Redundant (TMR) architecture.
-
High Durability: Resistant to environmental hazards including dust, heat, and moisture.
-
Safe and Isolated Wiring: Enhanced dielectric protection between channels and grounding.
-
Fast Maintenance: Terminal labels and group separation allow for quick troubleshooting.
-
Industrial Grade Build: Built to last in mission-critical safety environments.
常见问题 (FAQ)
-
What type / systems can use the 9761-210 Terminal Panel?
This panel is intended for use with Triconex Tricon™ safety systems and associated I/O modules. -
Is the panel suitable for analog or digital signals?
It supports both analog and digital signal termination depending on system configuration. -
Can it be mounted in hazardous areas?
The panel itself should be mounted in a control cabinet, but it supports signals from hazardous-rated field devices. -
What kind / terminal blocks are used?
It uses industrial-grade screw terminals to ensure secure field wiring. -
Does it come pre-wired?
No, field wiring must be connected during installation, but wire labeling aids the process. -
What is the maximum number / channels?
Typically supports up to 32 signal channels per 件, depending on I/O layout. -
Is there electrical isolation between signal lines?
Yes, the panel /fers dielectric strength ≥1500 Vrms to isolate signals and avoid cross-talk. -
How do I connect this panel to the I/O chassis?
You can use Triconex-specified ribbon cables or standard shielded harnesses. -
Is the documentation available from Triconex?
Yes, detailed wiring diagrams and technical manuals are available via Schneider Electric. -
How does this panel improve system reliability?
It ensures clean, noise-immune, and organized field wiring which is critical in safety instrumented systems.
Related 型号s (Same Series or Function)
| 型号 Number | 描述 | Application |
|---|---|---|
| 9761-210B | Terminal Panel with Extended Mount Bracket | Same as 9761-210 with mounting flexibility |
| 9760-210 | Analog Input Terminal Panel | For analog input wiring |
| 9762-300 | Relay Output Terminal Panel | For digital output/relay connectivity |
| 9761-310 | High-Density Terminal Panel | For compact control cabinets |
| 9765-210 | 24VDC Digital Input Terminal Panel | For low-voltage field inputs |
| 9761-250 | Shielded Terminal Panel with Ground Rail | Enhanced EMI protection |
Popular Triconex 型号s (Same 品牌)
| 型号 Number | Function | Key Feature |
|---|---|---|
| 3008 | Main Processor Module | Core logic controller for TMR systems |
| 3721 | Analog Input Module | High-speed AI acquisition |
| 3625 | Digital Output Module | Rugged fault-tolerant output channels |
| 4211 | Communication Interface Module | Modbus and other protocol support |
| 3501E | I/O Chassis Expansion Module | High-capacity I/O expansion |
| 4351B | Enhanced Main Processor | Advanced processing with fast I/O scan rates |
