Product Overview

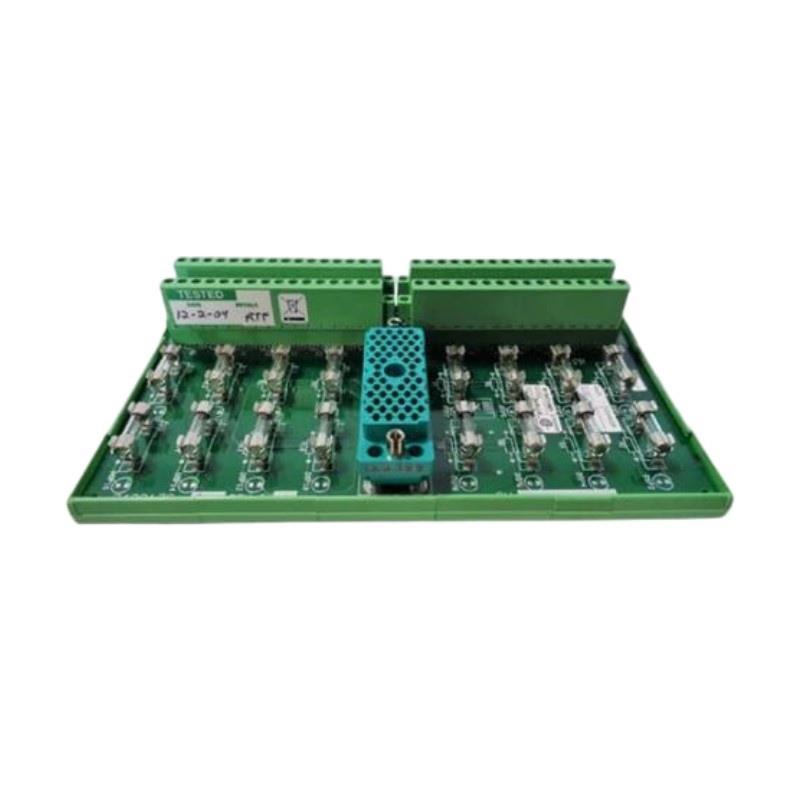

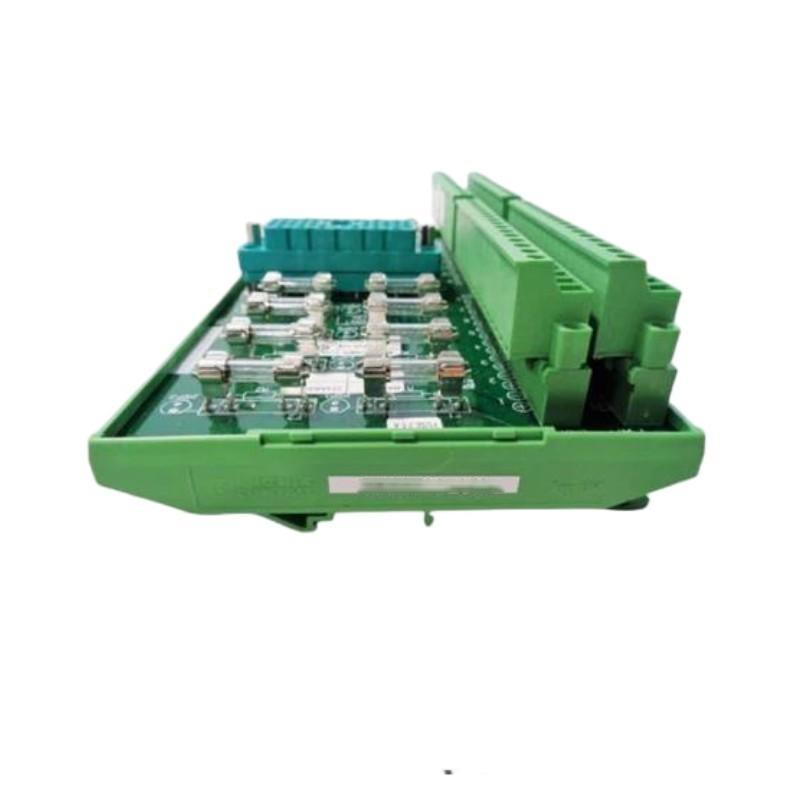

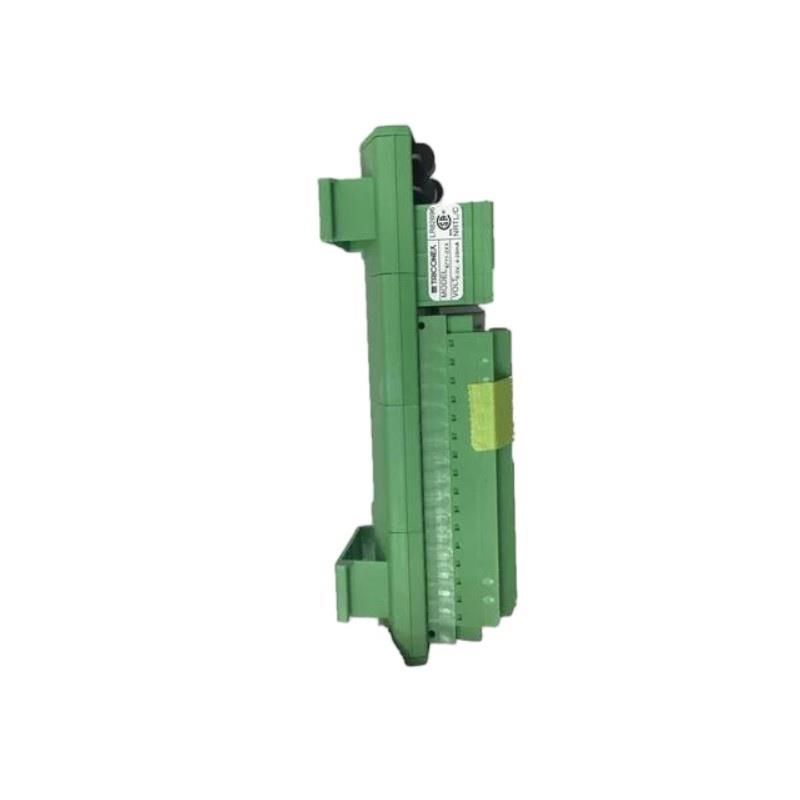

The Triconex 9674-810 Digital Output Terminal Board is a critical interface module designed for Triconex safety and control systems. It provides reliable and secure connection points for digital output signals, enabling effective communication between the controller and field devices. Engineered to meet stringent safety standards, this terminal board supports robust operation in demanding industrial environments such as oil & gas, power generation, and chemical processing.
Key Features
-
Provides secure and organized termination for digital output signals
-
Compatible with Triconex safety and control systems
-
High reliability suitable for critical safety applications
-
Compact design for easy integration in control cabinets
-
Designed to withstand harsh industrial conditions
-
Complies with international safety and electromagnetic compatibility standards
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 9674-810 |
| Module Type | Digital Output Terminal Board |
| 制造商 | Triconex (Schneider Electric) |
| Compatible Systems | Triconex Safety & Control Systems |
| Number / Terminals | Multiple digital output channels |
| Mounting Type | Panel mounting |
| Dimensions | 171 x 89 x 46 mm |
| 重量 | 1.0 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Safety Certifications | SIL 3 certified, CE, UL |
Industry Applications
-
Process safety systems
-
Oil and gas refining and production
-
Power generation and distribution
-
Chemical and petrochemical plants
-
Critical infrastructure control
常见问题 (FAQ)
Q1: What is the main function / the 9674-810 terminal board?
It provides secure termination points for digital output signals in Triconex control systems.
Q2: Is this terminal board compatible with all Triconex systems?
It is designed for use with Triconex safety and control systems.
Q3: How many output channels does it support?
It supports multiple digital output channels; please consult the manufacturer for exact counts.
Q4: Can it be installed in harsh environments?
Yes, it is built to withstand demanding industrial conditions.
Q5: What are the mounting options?
Panel mounting is supported.
Q6: What certifications does it hold?
It is SIL 3 certified and meets CE and UL standards.
Q7: What is the operating temperature range?
0°C to 55°C.
Q8: Is the board easy to maintain?
Yes, designed for straightforward installation and maintenance.
Q9: How does it enhance system reliability?
By providing organized and secure signal terminations, it reduces wiring errors and improves safety.
Q10: Where can I get technical support or purchase this module?
联系我们 Schneider Electric or authorized Triconex distributors for orders and support.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 9674-800 | Digital Input Terminal Board |
| 9674-820 | Analog Output Terminal Board |
| 9674-830 | Digital Output Terminal Board with Enhanced Features |
| 9674-840 | Safety Relay Terminal Board |
| 9674-850 | Communication Terminal Board |
| 9674-860 | Power Supply Terminal Board |
Popular Triconex Modules
| 型号 Number | 描述 |
|---|---|
| 9670-020 | Triconex 3000 Safety Controller |
| 9671-040 | Triconex 3000 I/O Module |
| 9672-030 | Triconex Redundant Power Supply |
| 9673-050 | Triconex Analog Input Module |
| 9675-010 | Triconex Communication Module |
| 9676-060 | Triconex Safety Relay Module |
